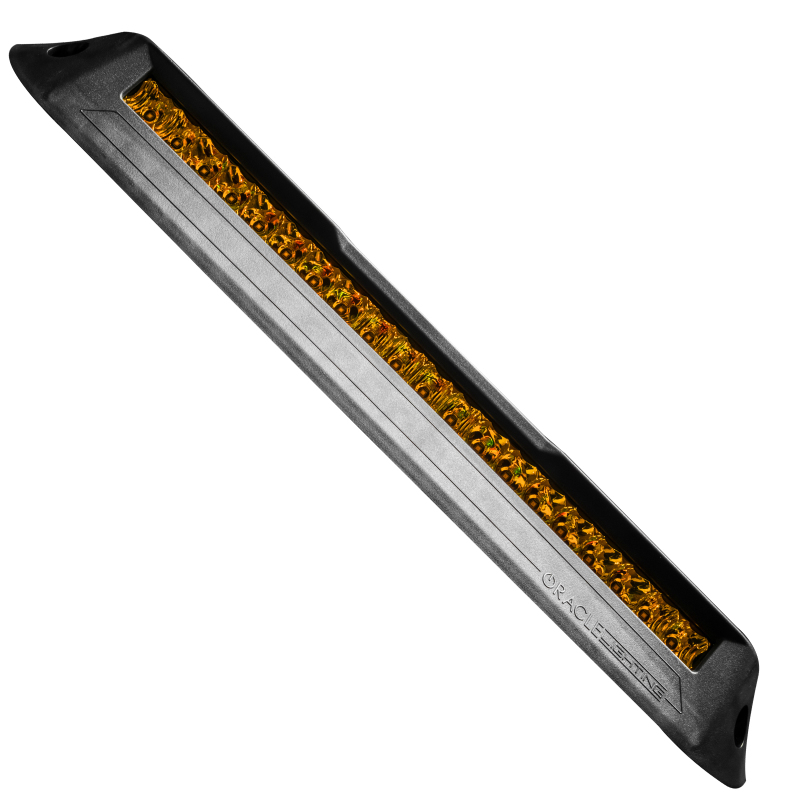

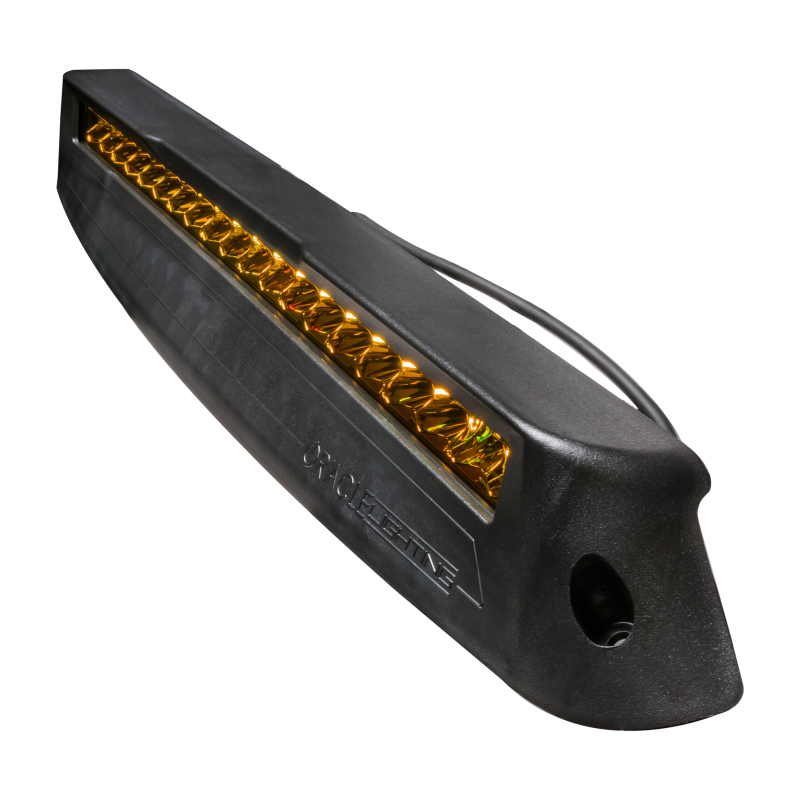

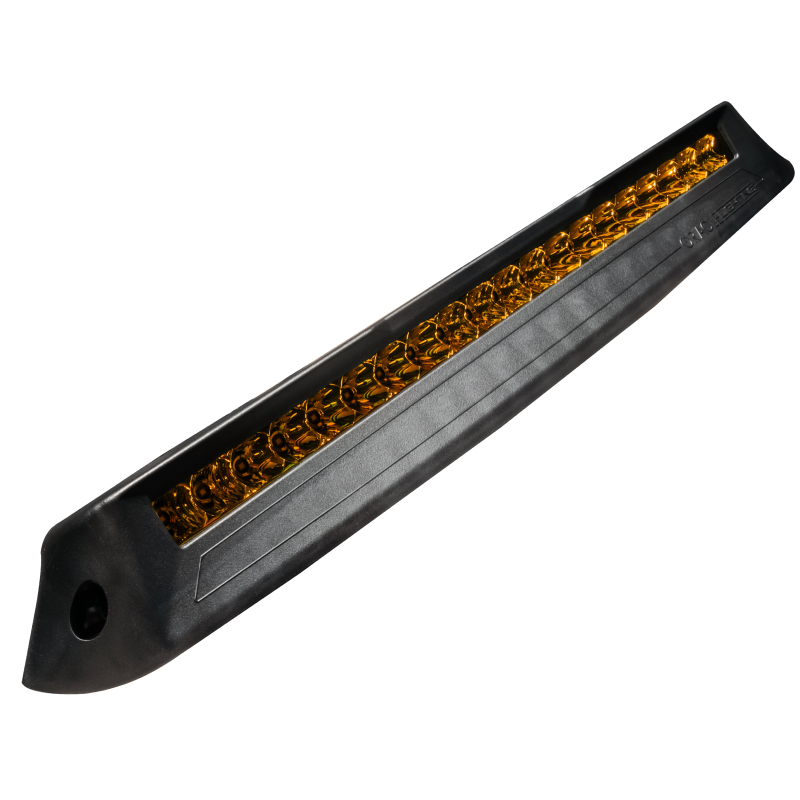

Oracle 19-22 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

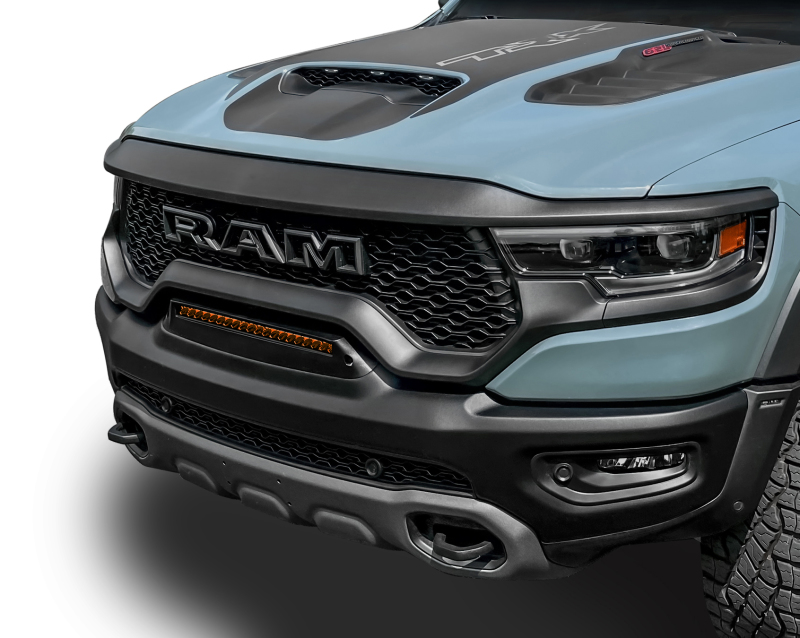

This unique new lighting system from ORACLE Lighting provides functional forward LED lighting while maintaining a factory appearance. Our high powered 100W LED light bar is fitted into a housing which is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches, if your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504 The projection of the light bar is a mixed beam with 8 of the LEDs using a flood (45? angle) beam and 12 of the LEDs using a spot (25? angle) beam the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33? (8x45? + 12x25?) and calculating based on 14000Lm the total candela of the light is 54107.70cd.

Additional Information

2019-2022 RAM Rebel/TRX Front Bumper Flush LED Light Bar System

Part Type

Light Bar

Features and Benefits

• Optics: Mixed Spot/ Flood

Product Details

Amperage:	7.5A @ 12VDC
Base Color:	Black
Base Diameter:	31.98
Base Length:	31.84
Base Material:	6061-T6 Billet Aluminum
Brightness:	12000
Color:	Amber Lens
DOT Approved:	No
Description:	Oracle 19-22 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
Housing Color:	Black
Housing Finish:	Painted
Housing Material:	Composite
Housing Shape:	Rectangle
Housing:	Polycarbonate
LED Life:	50,000+ Hours
LED:	Osram CRDP LED Chip
Lens Color:	Yellow
Lens Diameter:	18.76
Lens Length:	18.75
Lens Material:	Polycarbonate
Lens Width:	1.91
Lens:	Optically Clear Lexan
Light Beam Pattern:	Combination
Light Quantity:	20
Lumen Output:	12,000lm
Mounting Hardware Included:	Yes
Optics:	Mixed Spot/ Flood
Part Number:	orl5885-005
Relay Included:	No
Street Legal:	No
Switch Included:	No
Terminal Quantity:	2
Terminal Type:	Lead Wire
Title:	5885-005 - Off-Road Lighting
Voltage:	12
Wattage:	100
Watts:	100W (20x 5W LED)
Wire Gauge Measurement:	16
Wire Quantity:	2
Wiring Harness Included:	Yes
Wiring Harness Length:	36

Product Overview

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

Data: v2 - Desc: v4.2 - Upd: 2026-10-14 07:29:58

Product Overview

This unique new lighting system from ORACLE Lighting provides functional forward LED lighting while maintaining a factory appearance. Our high powered 100W LED light bar is fitted into a housing which is designed to mimic the shape of the original factory bumper and integrate into the front end of the 2019+ RAM 1500 TRX or Rebel. The lighting system is installed using rivet nuts, which require 2 holes 3/8" to attach the bar to the bumper. Wiring can easily connect to the factory AUX switches, if your truck is not equipped with AUX switches, we recommend you add our switched light bar wiring harness PART #2088-504 The projection of the light bar is a mixed beam with 8 of the LEDs using a flood (45? angle) beam and 12 of the LEDs using a spot (25? angle) beam the user gets the advantages of both a wide field of vision and a long narrow beam. With the average Apex Angle of 33? (8x45? + 12x25?) and calculating based on 14000Lm the total candela of the light is 54107.70cd.

Features and Benefits

• Optics: Mixed Spot/ Flood

Product Details

Add-On:	N/A
Amperage:	7.5A @ 12VDC
Base Color:	Black
Base Diameter:	31.98
Base Length:	31.84
Base Material:	6061-T6 Billet Aluminum
Brightness:	12000
Color:	Amber Lens
DOT Approved:	No
Description:	Oracle 19-22 RAM Rebel/TRX Front Bumper Flush LED Light Bar System
Housing Color:	Black
Housing Finish:	Painted
Housing Material:	Composite
Housing Shape:	Rectangle
Housing:	Polycarbonate
LED Life:	50,000+ Hours
LED:	Osram CRDP LED Chip
Lens Color:	Yellow
Lens Diameter:	18.76
Lens Length:	18.75
Lens Material:	Polycarbonate
Lens Width:	1.91
Lens:	Optically Clear Lexan
Light Beam Pattern:	Combination
Light Quantity:	20
Lumen Output:	12,000lm
Mounting Hardware Included:	Yes
Optics:	Mixed Spot/ Flood
Part Number:	orl5885-005
Prop 65 - Long Label:	Warning: This product contains chemicals known to the State of California to cause cancer or birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
Prop 65 Yes/No:	Yes
Relay Included:	No
Street Legal:	No
Switch Included:	No
Terminal Quantity:	2
Terminal Type:	Lead Wire
Title:	5885-005 - Off-Road Lighting
Voltage:	12
Wattage:	100
Watts:	100W (20x 5W LED)
Wire Gauge Measurement:	16
Wire Quantity:	2
Wiring Harness Included:	Yes
Wiring Harness Length:	36
