Description
NGK Ruthenium HX is designed for newer engines which demand high ignitability. Double Fine Electrode (DFE) design promotes spark energy concentration and ignites a wider range of air-fuel ratios, offering improved performance in rich or lean engine conditions.
Product Overview
NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.
Features and Benefits
- RECOMMENDED USAGE: Modern vehicles using OE PSPE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
- Trivalent metal plating for superior anti-corrosion and anti-seizing properties
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
- Copper core aids in heat removal
- 0.4mm Ruthenium alloy fine wire center electrode and 0.8mm platinum fine wire ground electrode
Product Details
| Year | Make |
|---|---|
| 557: | 12.00 |
| Center Electrode Core Material: | Copper |
| Center Electrode Tip Material: | Ruthenium |

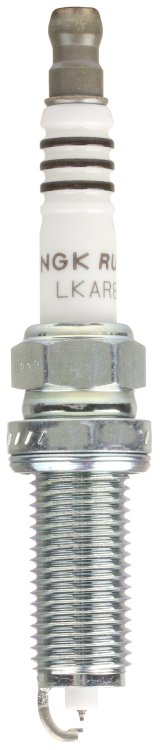

| Description: | NGK Ruthenium HX High Ignitability Spark Plug |
| Electrical Terminal Type: | Non-Removable Nut |
| Ground Configuration: | Standard |
| Ground Electrode Core Material: | Copper |
| Ground Electrode Quantity: | 1 |
| Ground Electrode Tip Design: | Projected Square Platinum Electrode - High Ignitability |
| Hex Size: | 14 |
| Insulator Height: | 51.00 |
| Manufacturer Heat Range: | 8 |
| Part Number: | LKAR8BHX |
| Pre-Gap Size: | .032 |
| Reach: | 26.5 |
| Resistance: | 5000.0 |
| Seat Type: | Flat |
| Stock Number: | 91784 |
Application Summary
INFINITI EX37 2013, FX37 2013, G37 2013-2008, M37 2013-2011, Q40 2015, Q50 2015-2014, Q60 2015, Q70 2017-2014, Q70L 2017-2015, QX50 2017-2014, QX70 2017-2014, NISSAN 370Z 2017-2009, GT-R 2017-2009
Part Type
High Ignitability Spark Plug
Features
- 0.4mm Ruthenium alloy fine wire center electrode and 0.8mm platinum fine wire ground electrode
- Copper core aids in heat removal
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
- RECOMMENDED USAGE: Modern vehicles using OE PSPE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
- Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Specifications
- Year
- Make
- 557:
- 12.00
- Center Electrode Core Material:
- Copper
- Center Electrode Tip Material:
- Ruthenium
- Description:
- NGK Ruthenium HX High Ignitability Spark Plug
- Electrical Terminal Type:
- Non-Removable Nut
- Ground Configuration:
- Standard
- Ground Electrode Core Material:
- Copper
- Ground Electrode Quantity:
- 1
- Ground Electrode Tip Design:
- Projected Square Platinum Electrode - High Ignitability
- Hex Size:
- 14
- Insulator Height:
- 51.00
- Manufacturer Heat Range:
- 8
- Part Number:
- LKAR8BHX
- Pre-Gap Size:
- .032
- Reach:
- 26.5
- Resistance:
- 5000.0
- Seat Type:
- Flat
- Stock Number:
- 91784
Reference Information
| Brand Name/s | Ngk |
|---|---|
| StreetFX SKU | ngk91784 |
| SFX Item ID | 4149462 |
| Supplier Item Code | 4149462 |
| Manufacturer SKU | 91784 |
| Manufacturer UPC | 87295917848 |
| Alternative References | (LKAR8BHX) |
Compatibility
INFINITI EX37 2013, FX37 2013, G37 2013-2008, M37 2013-2011, Q40 2015, Q50 2015-2014, Q60 2015, Q70 2017-2014, Q70L 2017-2015, QX50 2017-2014, QX70 2017-2014, NISSAN 370Z 2017-2009, GT-R 2017-2009
