Description
NGK Laser Iridium plugs were designed specifically for the performance enthusiast. Fine wire center electrode ensures high durability and a consistently stable spark. Iridium alloy has an extremely high melting point, perfect for today's high-tech, high-performance engines.
Product Overview
NGK Iridium IX spark plugs are specifically designed for the performance enthusiast. Iridium IX provides outstanding acceleration, high fuel efficiency and durability. NGK Iridium IX plugs offer extreme ignitability and exceptional anti-fouling. Tapered cut ground electrode provides improved starting, idling and throttle response. The Iridium fine wire center electrode's durability is six times harder than platinum. Iridium alloy's extremely high melting point is perfect for today's engines. For even greater performance consider upgrading to an NGK Ruthenium HX plug.
Features and Benefits
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
Product Details
| Center Electrode Core Material: | Copper |
|---|---|
| Center Electrode Tip Material: | Iridium |

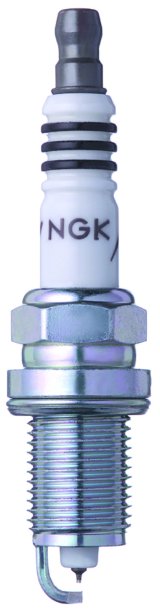

| Description: | NGK Iridium IX Spark Plug |
| Electrical Terminal Type: | Non-Removable Nut |
| Ground Configuration: | Standard |
| Ground Electrode Core Material: | Nickel |
| Ground Electrode Quantity: | 1 |
| Ground Electrode Tip Design: | Taper Cut |
| Hex Size: | 5/8 |
| Insulator Height: | 50.50 |
| Manufacturer Heat Range: | 5 |
| Part Number: | ZFR5FIX-11 |
| Pre-Gap Size: | .044 |
| Reach: | .75 |
| Resistance: | 5000.0 |
| Seat Type: | Flat |
| Stock Number: | 2477 |
| Thread Diameter: | 14.00 |
Application Summary
ACURA 2003-92; BMW 1997-88; CHRYS 2014-07; DODGE 2014-94; HON 2005-90; HYUNDAI 2011-06; ISUZU 1999-96; JEEP 2014-07; KIA 2011-08; MAZDA 2003-90; MITSUBISHI 2007-06
Part Type
Spark Plug
Features
- Copper core aids in heat removal
- Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
- RECOMMENDED USAGE: Modified or high performance applications, or as an upgrade to OE nickel alloy spark plugs
- Triple seals prevent leakage
- Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Specifications
- Center Electrode Core Material:
- Copper
- Center Electrode Tip Material:
- Iridium
- Description:
- NGK Iridium IX Spark Plug
- Electrical Terminal Type:
- Non-Removable Nut
- Ground Configuration:
- Standard
- Ground Electrode Core Material:
- Nickel
- Ground Electrode Quantity:
- 1
- Ground Electrode Tip Design:
- Taper Cut
- Hex Size:
- 5/8
- Insulator Height:
- 50.50
- Manufacturer Heat Range:
- 5
- Part Number:
- ZFR5FIX-11
- Pre-Gap Size:
- .044
- Reach:
- .75
- Resistance:
- 5000.0
- Seat Type:
- Flat
- Stock Number:
- 2477
- Thread Diameter:
- 14.00
Reference Information
| Brand Name/s | Ngk |
|---|---|
| StreetFX SKU | ngk2477 |
| SFX Item ID | 4150197 |
| Supplier Item Code | 4150197 |
| Manufacturer SKU | 2477 |
| Manufacturer UPC | 87295124772 |
| Alternative References | (ZFR5FIX-11) |
Compatibility
ACURA 2003-92; BMW 1997-88; CHRYS 2014-07; DODGE 2014-94; HON 2005-90; HYUNDAI 2011-06; ISUZU 1999-96; JEEP 2014-07; KIA 2011-08; MAZDA 2003-90; MITSUBISHI 2007-06
