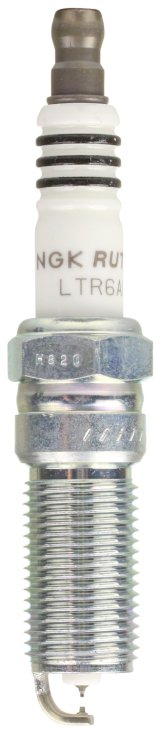

Description
NGK Ruthenium HX is designed for newer engines which demand high ignitability. Double Fine Electrode (DFE) design promotes spark energy concentration and ignites a wider range of air-fuel ratios, offering improved performance in rich or lean engine conditions.
Product Overview
NGK Ruthenium HX High Ignitability spark plugs are the best in class plug for todays modern vehicles. Patented Ruthenium technology offers the most advance tip technology and delivers the highest performance and life expectancy. Created from advanced OE technology as a high ignitability plug; Ruthenium HX spark plugs come with patented, specialized OEM DFE and PSPE tip designs. NGK Ruthenium HX High Ignitability spark plugs provide a more complete fuel burn resulting in a quicker throttle response, smoother idle and better cold starts. Ruthenium center electrode provides industry leading durability.
Features and Benefits
- RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
Product Details
| Center Electrode Core Material: | Copper |
|---|---|
| Center Electrode Tip Material: | Ruthenium |
| Description: | NGK Ruthenium HX High Ignitability Spark Plug |
| Electrical Terminal Type: | Non-Removable Nut |
| Ground Configuration: | Standard |
| Ground Electrode Core Material: | Nickel |
| Ground Electrode Quantity: | 1 |
| Ground Electrode Tip Design: | Dual Fine Electrode - High Ignitability |
| Hex Size: | 5/8 |
| Insulator Height: | 52.50 |
| Manufacturer Heat Range: | 6 |
| Part Number: | LTR6AHX |
| Pre-Gap Size: | .044 |
| Reach: | 25.00 |
| Resistance: | 5000.0 |
| Seat Type: | Tapered |
| Stock Number: | 91276 |
| Thread Diameter: | 14.00 |
Application Summary
BUICK 2017-05, CADILLAC 2017-04, CHEV 2017-08, FORD 2017-11, GMC 2017-07, LINCOLN 2017-11, MAZDA 2015-06, PONTIAC 2009-07, SAAB 2011, SATURN 2010-07, SUZUKI 2010-07
Part Type
High Ignitability Spark Plug
Features

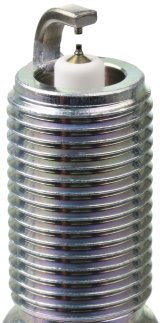

- 0.4mm Ruthenium alloy fine wire center electrode and 0.8mm platinum fine wire ground electrode
- Copper core aids in heat removal
- Corrugated ribs prevent flashover
- Pure alumina silicate ceramic insulator provides superior strength and better heat transfer
- RECOMMENDED USAGE: Modern vehicles using OE DFE type spark plugs or for those seeking an aftermarket plug with the latest OE technology
- Trivalent metal plating for superior anti-corrosion and anti-seizing properties
Specifications
- Center Electrode Core Material:
- Copper
- Center Electrode Tip Material:
- Ruthenium
- Description:
- NGK Ruthenium HX High Ignitability Spark Plug
- Electrical Terminal Type:
- Non-Removable Nut
- Ground Configuration:
- Standard
- Ground Electrode Core Material:
- Nickel
- Ground Electrode Quantity:
- 1
- Ground Electrode Tip Design:
- Dual Fine Electrode - High Ignitability
- Hex Size:
- 5/8
- Insulator Height:
- 52.50
- Manufacturer Heat Range:
- 6
- Part Number:
- LTR6AHX
- Pre-Gap Size:
- .044
- Reach:
- 25.00
- Resistance:
- 5000.0
- Seat Type:
- Tapered
- Stock Number:
- 91276
- Thread Diameter:
- 14.00
Reference Information
| Brand Name/s | Ngk |
|---|---|
| StreetFX SKU | ngk91276 |
| SFX Item ID | 4149468 |
| Supplier Item Code | 4149468 |
| Manufacturer SKU | 91276 |
| Manufacturer UPC | 87295912768 |
| Alternative References | ltr6ahx |
Compatibility
BUICK 2017-05, CADILLAC 2017-04, CHEV 2017-08, FORD 2017-11, GMC 2017-07, LINCOLN 2017-11, MAZDA 2015-06, PONTIAC 2009-07, SAAB 2011, SATURN 2010-07, SUZUKI 2010-07
