Msd Ignition

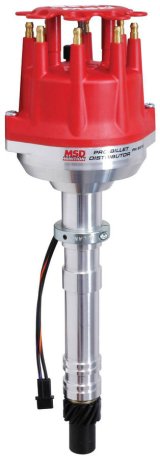

MSD Pro-Billet Distributors 8570 Distributor, Pro-Billet, Small Base, Magnetic Trigger, Mechanical Advance, Chevy, Big/Small Block, Each

SKU: MSD8570

Distributors
MSD Pro-Billet Distributors 8570 Distributor, Pro-Billet, Small Base, Magnetic Trigger, Mechanical Advance, Chevy, Big/Small Block, Each

Msd Ignition

MSD Pro-Billet Distributors 8570 Distributor, Pro-Billet, Small Base, Magnetic Trigger, Mechanical Advance, Chevy, Big/Small Block, Each

SKU: MSD8570

Distributors
A$1,065.61
IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

MSD Pro-Billet distributors share the same CNC machining techniques as the rest of the MSD distributor line. They feature a housing that's machined from high-quality 6061-T6 aluminum for durability and show-quality looks. Their oversized shaft receives a QPQ coating for friction reduction and corrosion resistance, with the added strength of two sealed ball bearings that guide the shaft accurately at well over 10,000 rpm. An extra-long sintered bushing replaces the ball bearing at the bottom of Chevrolet models. TIG-welded on top of the polished steel shaft is MSD's accurate mechanical advance assembly. The weights are supported by nylon pads that allow the advance to operate smoothly throughout the rpm range.

For all-out racing, the advance mechanism can also be easily locked out. To accurately trigger the ignition, a high-output magnetic pickup is bolted to the base. This pickup produces a precise trigger signal that will never vary more than one degree at any rpm. A durable gear is installed for performance applications, and an MSD red cap with brass terminals and race rotor is supplied. They're available in standard and small diameter models for applications with limited clearance, and require the use of a separate ignition box such as an MSD 6, 7, 8, or 10 Series ignition.

Part Type

Chevy Billet Dist(Sm Bas

Data: v4.2 - Upd: 2026-09-29 08:59:01

Specifications

Product Attributes - Brand
MSD Ignition
Product Attributes - Manufacturer's Part Number
8570
Product Attributes - Part Type
Distributors
Product Attributes - Product Line
MSD Pro-Billet Distributors
Product Attributes - UPC
085132085705
Product Attributes - Distributor Cap Included
Yes
Product Attributes - Distributor Cap Style
Male/HEI
Product Attributes - Distributor Cap Type
Small cap
Product Attributes - Ignition Coil Included
No
Product Attributes - Ignition Module Included
No
Product Attributes - Computer-Controlled Compatible
No
Product Attributes - Trigger Style
Magnetic
Product Attributes - Advance Type
Mechanical
Product Attributes - Ignition Box Required
Yes
Product Attributes - Mechanical Tach Drive
No
Product Attributes - Slip Collar
Yes
Product Attributes - Distributor Gear Material
Iron
Product Attributes - Distributor Gear Rotation
Standard
Product Attributes - Distributor Cap Color
Red
Product Attributes - Housing Material
Aluminum
Product Attributes - Housing Finish
Natural
Product Attributes - Marine Use
No
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Small base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
Product Attributes - CARB EO Number(s)
D-40-39
Product Attributes - Emissions
California EO Approved

Reference Information

Brand Name/s Msd Ignition
StreetFX SKU msd8570
SFX Item ID 4974031
Supplier Item Code 4974031
Manufacturer SKU 8570
Manufacturer UPC 851320857054

Compatibility

Application Data
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1955
    Ending Year1957
    Engine TypeV8
    Liter4.3
    CID265
    CC4343
    Engine Size4.3L/265
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1955
    Ending Year1957
    Engine TypeV8
    Engine Size4.3L/265
    Engine FamilyChevy small block Gen I
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1957
    Ending Year1967
    Engine TypeV8
    Liter4.6
    CID283
    CC4638
    Engine Size4.6L/283
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1957
    Ending Year1967
    Engine TypeV8
    Engine Size4.6L/283
    Engine FamilyChevy small block Gen I
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1962
    Ending Year1969
    Engine TypeV8
    Liter5.3
    CID327
    CC5358
    Engine Size5.3L/327
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1963
    Ending Year1963
    Engine TypeV8
    Liter7.0
    CID427
    CC6997
    Engine Size7.0L/427
    Engine FamilyChevy big block W-engines
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1965
    Ending Year1969
    Engine TypeV8
    Liter6.5
    CID396
    CC6489
    Engine Size6.5L/396
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1966
    Ending Year1969
    Engine TypeV8
    Engine Size6.5L/396
    Engine FamilyChevy big block Mark IV
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1966
    Ending Year1969
    Engine TypeV8
    Liter7.0
    CID427
    CC6998
    Engine Size7.0L/427
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1966
    Ending Year1969
    Engine TypeV8
    Engine Size7.0L/427
    Engine FamilyChevy big block Mark IV
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1968
    Ending Year1968
    Engine TypeV8
    Liter5.0
    CID307
    CC5031
    Engine Size5.0L/307
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1968
    Ending Year1968
    Engine TypeV8
    Engine Size5.0L/307
    Engine FamilyChevy small block Gen I
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1969
    Ending Year1971
    Engine TypeV8
    Liter5.7
    CID350
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1969
    Ending Year1975
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1970
    Ending Year1971
    Engine TypeV8
    Liter6.6
    CID400
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1970
    Ending Year1971
    Engine TypeV8
    Liter6.6
    CID400
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1970
    Ending Year1971
    Engine TypeV8
    Liter6.6
    CID402
    CC6588
    Engine Size6.6L/402
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1970
    Ending Year1971
    Engine TypeV8
    Liter7.4
    CID454
    CC7439
    Engine Size7.4L/454
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1970
    Ending Year1971
    Engine TypeV8
    Liter7.4
    CID454
    CC7441
    Engine Size7.4L/454
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1970
    Ending Year1975
    Engine TypeV8
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1970
    Ending Year1975
    Engine TypeV8
    Engine Size7.4L/454
    Engine FamilyChevy big block Mark IV
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1971
    Ending Year1972
    Engine TypeV8
    Engine Size6.6L/402
    Engine FamilyChevy big block Mark IV
    Application NotesSmall base diameter for clearing tunnel rams, blowers, and tight clearance firewalls.
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1972
    Ending Year1972
    Engine TypeV8
    Liter6.6
    CID402
    CC6588
    Engine Size6.6L/402
    Engine FamilyChevy big block Mark IV
    Engine VIN CodeS
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1972
    Ending Year1972
    Engine TypeV8
    Liter6.6
    CID402
    CC6588
    Engine Size6.6L/402
    Engine FamilyChevy big block Mark IV
    Engine VIN CodeU
  • MakeCHEVROLET
    ModelBEL AIR
    SubmodelBASE
    Beginning Year1972
    Ending Year1972
    Engine TypeV8
    Liter7.4
    CID454
    CC7439
    Engine Size7.4L/454
    Engine FamilyChevy big block Mark IV
    Engine VIN CodeV
