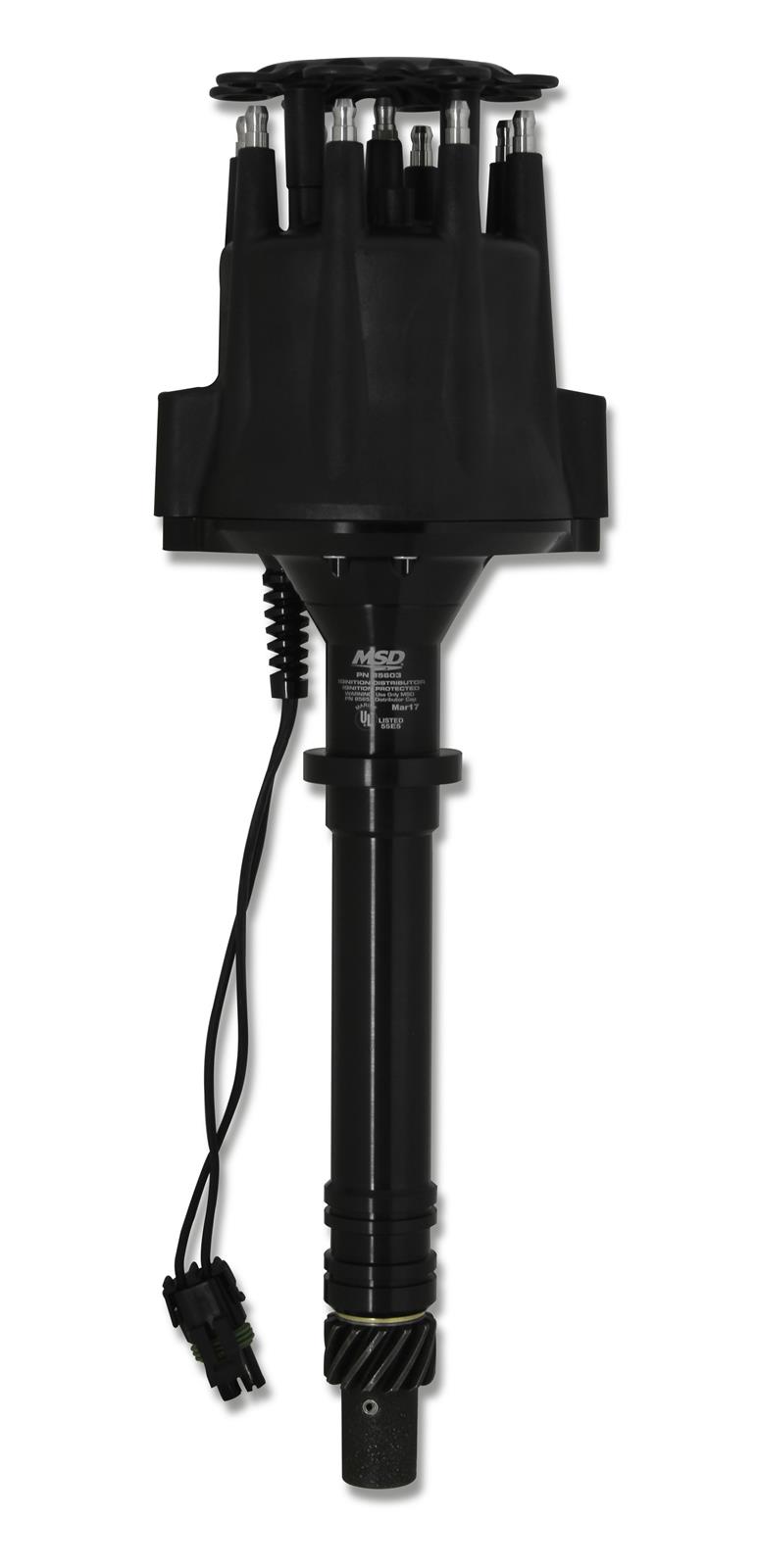

MSD Pro-Billet Marine Distributors 85603 Distributors, Marine, Magnetic Trigger, Male/HEI, Mechanical Advance, Black, UL-approved Distributor, Chevy, V8, Each
MSD Pro-Billet Marine Distributors 85603 Distributors, Marine, Magnetic Trigger, Male/HEI, Mechanical Advance, Black, UL-approved Distributor, Chevy, V8, Each
A$1,421.64
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MSD recognized the need for a true marine performance distributor and built these Pro-Billet marine distributors to answer this need. Marine environments place rigorous demands on every component of the ignition system, especially the distributor. The combination of water spray, salt exposure, full throttle acceleration, and harsh vibrations all take their toll. The housing is CNC-machined from billet 6061-T6 aluminum, creating a housing with no porosity or weak areas. Internally, a Tuftride coated steel shaft is guided by a sealed ball bearing and an extra-long sintered bushing for high-speed stability and endurance. Each distributor uses MSD's race-proven magnetic pickup to trigger the ignition control. The pickup receives its signal through a precision-manufactured reluctor that is attached to the shaft. The mechanical advance assembly receives a QPQ plating for long lasting resistance to corrosion in marine environments. Their mechanical advance assembly is easily adjustable, so you can dial-in an ignition curve to match your boat's application. Three additional sets of advance springs and stop bushings are included with detailed instructions, making adjustments easy to perform and understand. The distributor cap is bolted and sealed to the aluminum base, and has two flame arrestor holes with brass screens machined into the base of the distributor. This design works to prevent ignition of gas fumes that may build up in the engine compartment. A special weathertight connector is supplied to provide a positive lock and water-resistant connection. This heavy-duty connector will withstand high temperatures and water, and plugs directly into the MSD 6M-2 or 7M-2 ignitions. The distributors come complete with a high-quality, bolt-down alkyd cap and MSD's racing rotor. These high-quality distributors have been tested by the Underwriter's Laboratory, and are certified to meet or exceed safety standards for marine ignition systems as set by the U.S. Coast Guard. They require the use of a separate ignition box.
Part Type
Marine Distributor Chevy V8
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 85603
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- MSD Pro-Billet Marine Distributors
- Product Attributes - UPC
- 085132856039
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- Small cap
- Product Attributes - Ignition Coil Included
- No
- Product Attributes - Ignition Module Included
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Trigger Style
- Magnetic
- Product Attributes - Advance Type
- Mechanical
- Product Attributes - Ignition Box Required
- Yes
- Product Attributes - Mechanical Tach Drive
- No
- Product Attributes - Slip Collar
- No
- Product Attributes - Distributor Gear Material
- Iron
- Product Attributes - Distributor Gear Rotation
- Standard
- Product Attributes - Distributor Cap Color
- Black
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Black
- Product Attributes - Marine Use
- Yes
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- UL-approved marine distributor. Distributor is 8.125 in. tall from engine to top of distributor cap.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd85603 |
| SFX Item ID | 4973544 |
| Supplier Item Code | 4973544 |
| Manufacturer SKU | 85603 |
| Manufacturer UPC | 85132856039 |
| Alternative References | V8 |
