Msd Ignition

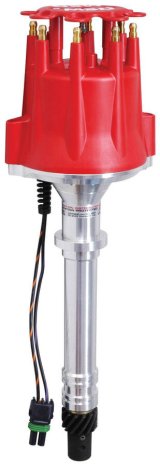

MSD Pro-Billet Marine Distributors 8560 Distributor, Marine, Magnetic Trigger, Mechanical Advance, Chevy, Big/Small Block, Each

SKU: MSD8560

Distributors
MSD Pro-Billet Marine Distributors 8560 Distributor, Marine, Magnetic Trigger, Mechanical Advance, Chevy, Big/Small Block, Each

Msd Ignition

MSD Pro-Billet Marine Distributors 8560 Distributor, Marine, Magnetic Trigger, Mechanical Advance, Chevy, Big/Small Block, Each

SKU: MSD8560

Distributors
A$1,244.28
LOW STOCK! Est Ship 4-7 days. HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

MSD recognized the need for a true marine performance distributor and built these Pro-Billet marine distributors to answer this need. Marine environments place rigorous demands on every component of the ignition system, especially the distributor. The combination of water spray, salt exposure, full throttle acceleration, and harsh vibrations all take their toll. The housing is CNC-machined from billet 6061-T6 aluminum, creating a housing with no porosity or weak areas. Internally, a Tuftride coated steel shaft is guided by a sealed ball bearing and an extra-long sintered bushing for high-speed stability and endurance. Each distributor uses MSD's race-proven magnetic pickup to trigger the ignition control. The pickup receives its signal through a precision-manufactured reluctor that is attached to the shaft. The mechanical advance assembly receives a QPQ plating for long lasting resistance to corrosion in marine environments. Their mechanical advance assembly is easily adjustable, so you can dial-in an ignition curve to match your boat's application. Three additional sets of advance springs and stop bushings are included with detailed instructions, making adjustments easy to perform and understand. The distributor cap is bolted and sealed to the aluminum base, and has two flame arrestor holes with brass screens machined into the base of the distributor. This design works to prevent ignition of gas fumes that may build up in the engine compartment. A special weathertight connector is supplied to provide a positive lock and water-resistant connection. This heavy-duty connector will withstand high temperatures and water, and plugs directly into the MSD 6M-2 or 7M-2 ignitions. The distributors come complete with a high-quality, bolt-down alkyd cap and MSD's racing rotor. These high-quality distributors have been tested by the Underwriter's Laboratory, and are certified to meet or exceed safety standards for marine ignition systems as set by the U.S. Coast Guard. They require the use of a separate ignition box.

Part Type

Marine Distributor W/Cap & Rotor

Data: v4.2 - Upd: 2026-10-11 06:18:42

Specifications

Product Attributes - Brand
MSD Ignition
Product Attributes - Manufacturer's Part Number
8560
Product Attributes - Part Type
Distributors
Product Attributes - Product Line
MSD Pro-Billet Marine Distributors
Product Attributes - UPC
085132085606
Product Attributes - Distributor Cap Included
Yes
Product Attributes - Distributor Cap Style
Male/HEI
Product Attributes - Distributor Cap Type
Small cap
Product Attributes - Ignition Coil Included
No
Product Attributes - Ignition Module Included
No
Product Attributes - Computer-Controlled Compatible
No
Product Attributes - Trigger Style
Magnetic
Product Attributes - Advance Type
Mechanical
Product Attributes - Ignition Box Required
Yes
Product Attributes - Mechanical Tach Drive
No
Product Attributes - Slip Collar
No
Product Attributes - Distributor Gear Material
Iron
Product Attributes - Distributor Gear Rotation
Standard
Product Attributes - Housing Material
Aluminum
Product Attributes - Housing Finish
Natural
Product Attributes - Marine Use
Yes
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Distributor is 8.125 in. tall from engine to top of distributor cap.

Reference Information

Brand Name/s Msd Ignition
StreetFX SKU msd8560
SFX Item ID 4973435
Supplier Item Code 4973435
Manufacturer SKU 8560
Manufacturer UPC 85132085606

Compatibility

Application Data
  • MakeCHEVROLET
    Beginning Year1955
    Ending Year1957
    Engine TypeV8
    Engine Size4.3L/265
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1957
    Ending Year1967
    Engine TypeV8
    Engine Size4.6L/283
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1962
    Ending Year1969
    Engine TypeV8
    Engine Size5.4L/327
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1966
    Ending Year1969
    Engine TypeV8
    Engine Size7.0L/427
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1966
    Ending Year1970
    Engine TypeV8
    Engine Size6.5L/396
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1967
    Ending Year1968
    Engine TypeV8
    Engine Size4.9L/302
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1967
    Ending Year1980
    Engine TypeV8
    Engine Size5.7L/350
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1968
    Ending Year1973
    Engine TypeV8
    Engine Size5.0L/307
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1972
    Engine TypeV8
    Engine Size6.6L/402
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1980
    Engine TypeV8
    Engine Size6.6L/400
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1970
    Ending Year1980
    Engine TypeV8
    Engine Size7.4L/454
    Engine FamilyChevy big block Mark IV
  • MakeCHEVROLET
    Beginning Year1976
    Ending Year1980
    Engine TypeV8
    Engine Size5.0L/305
    Engine FamilyChevy small block Gen I
  • MakeCHEVROLET
    Beginning Year1979
    Ending Year1980
    Engine TypeV8
    Engine Size4.4L/267
    Engine FamilyChevy small block Gen I
