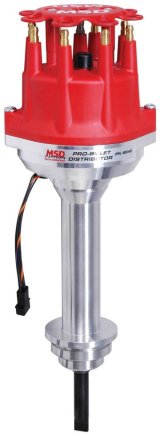

MSD Pro-Billet Distributors 8545 Distributor, Pro-Billet, Magnetic Trigger, Mechanical Advance, Chrysler 383-400, Big Block B, Each
MSD Pro-Billet Distributors 8545 Distributor, Pro-Billet, Magnetic Trigger, Mechanical Advance, Chrysler 383-400, Big Block B, Each
A$1,200.20
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
MSD Pro-Billet distributors share the same CNC machining techniques as the rest of the MSD distributor line. They feature a housing that's machined from high-quality 6061-T6 aluminum for durability and show-quality looks. Their oversized shaft receives a QPQ coating for friction reduction and corrosion resistance, with the added strength of two sealed ball bearings that guide the shaft accurately at well over 10,000 rpm. An extra-long sintered bushing replaces the ball bearing at the bottom of Chevrolet models. TIG-welded on top of the polished steel shaft is MSD's accurate mechanical advance assembly. The weights are supported by nylon pads that allow the advance to operate smoothly throughout the rpm range.
For all-out racing, the advance mechanism can also be easily locked out. To accurately trigger the ignition, a high-output magnetic pickup is bolted to the base. This pickup produces a precise trigger signal that will never vary more than one degree at any rpm. A durable gear is installed for performance applications, and an MSD red cap with brass terminals and race rotor is supplied. They're available in standard and small diameter models for applications with limited clearance, and require the use of a separate ignition box such as an MSD 6, 7, 8, or 10 Series ignition.
Part Type
Chrys Pro-Billet Dist
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 8545
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- MSD Pro-Billet Distributors
- Product Attributes - UPC
- 085132085453
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- Small cap
- Product Attributes - Ignition Coil Included
- No
- Product Attributes - Ignition Module Included
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Trigger Style
- Magnetic
- Product Attributes - Advance Type
- Mechanical
- Product Attributes - Ignition Box Required
- Yes
- Product Attributes - Mechanical Tach Drive
- No
- Product Attributes - Slip Collar
- No
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Natural
- Product Attributes - Marine Use
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Distributor is 10.125 in. tall from engine to top of distributor cap.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd8545 |
| SFX Item ID | 4973777 |
| Supplier Item Code | 4973777 |
| Manufacturer SKU | 8545 |
| Manufacturer UPC | 85132085453 |
