MSD Pro-Billet Crank Trigger Distributors 84863 Distributors, Trigger, Male/HEI, Locked Advance, Black Cap, for Use with Aftermarket Tall Deck Blocks, Chevrolet, 427, 454, Each

SKU: MSD84863

Distributors
MSD Pro-Billet Crank Trigger Distributors 84863 Distributors, Trigger, Male/HEI, Locked Advance, Black Cap, for Use with Aftermarket Tall Deck Blocks, Chevrolet, 427, 454, Each

Msd Ignition

MSD Pro-Billet Crank Trigger Distributors 84863 Distributors, Trigger, Male/HEI, Locked Advance, Black Cap, for Use with Aftermarket Tall Deck Blocks, Chevrolet, 427, 454, Each

SKU: MSD84863

Distributors

Sale ends in Calculating...

A$1,204.92 A$1,267.03
IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

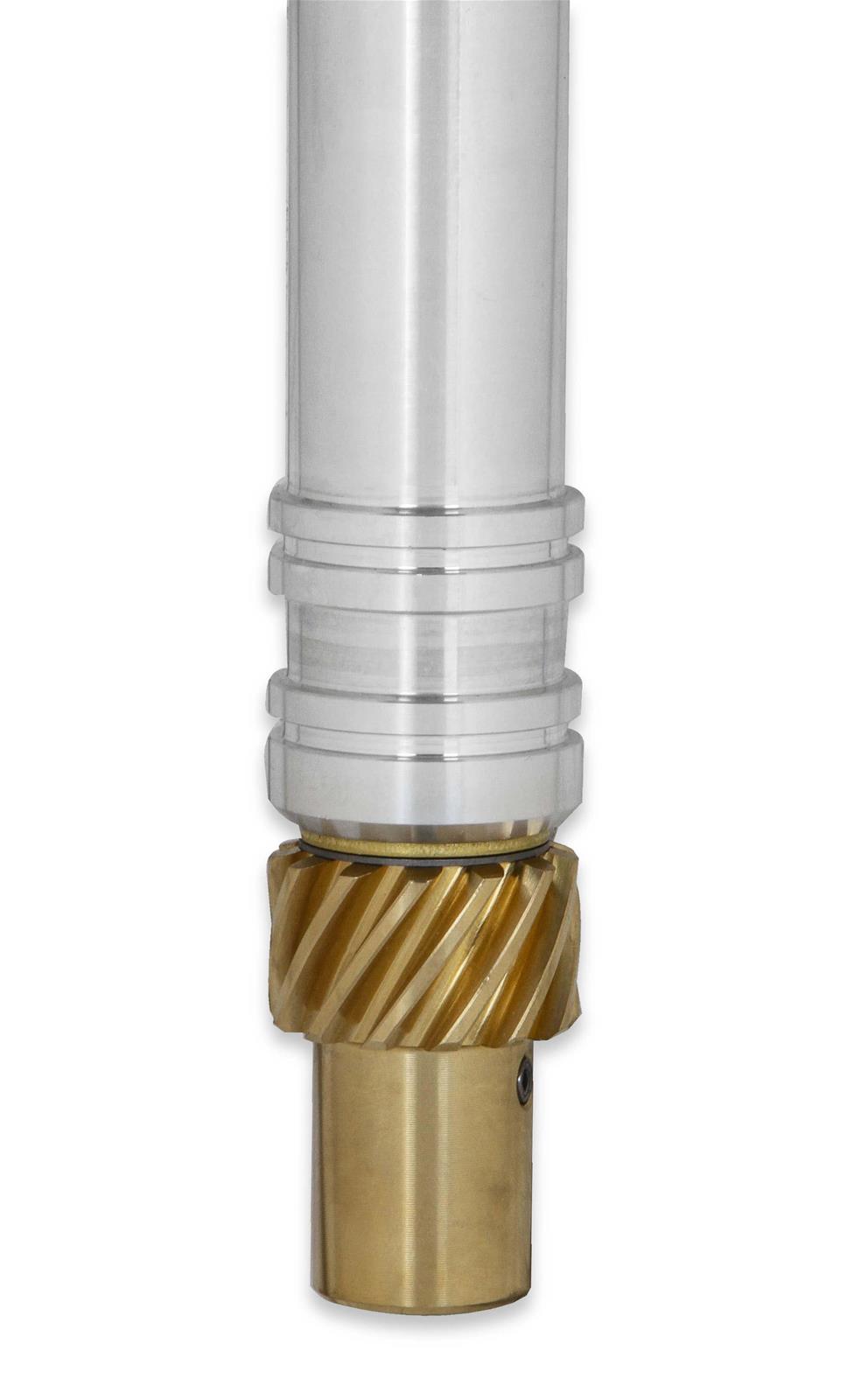

MSD Pro-Billet crank distributors are built specifically for racing engines with almost no room for a distributor, due to tunnel rams or blowers. These units are equipped with a special low-profile crab-style distributor cap, allowing them to fit into extremely tight areas. The housing features two optional O-rings at the bottom that improves oil control by preventing oil pressure loss. Also, a small oil bleed hole (located in the base) sprays oil on the distributor and camshaft gears to prevent excessive wear.

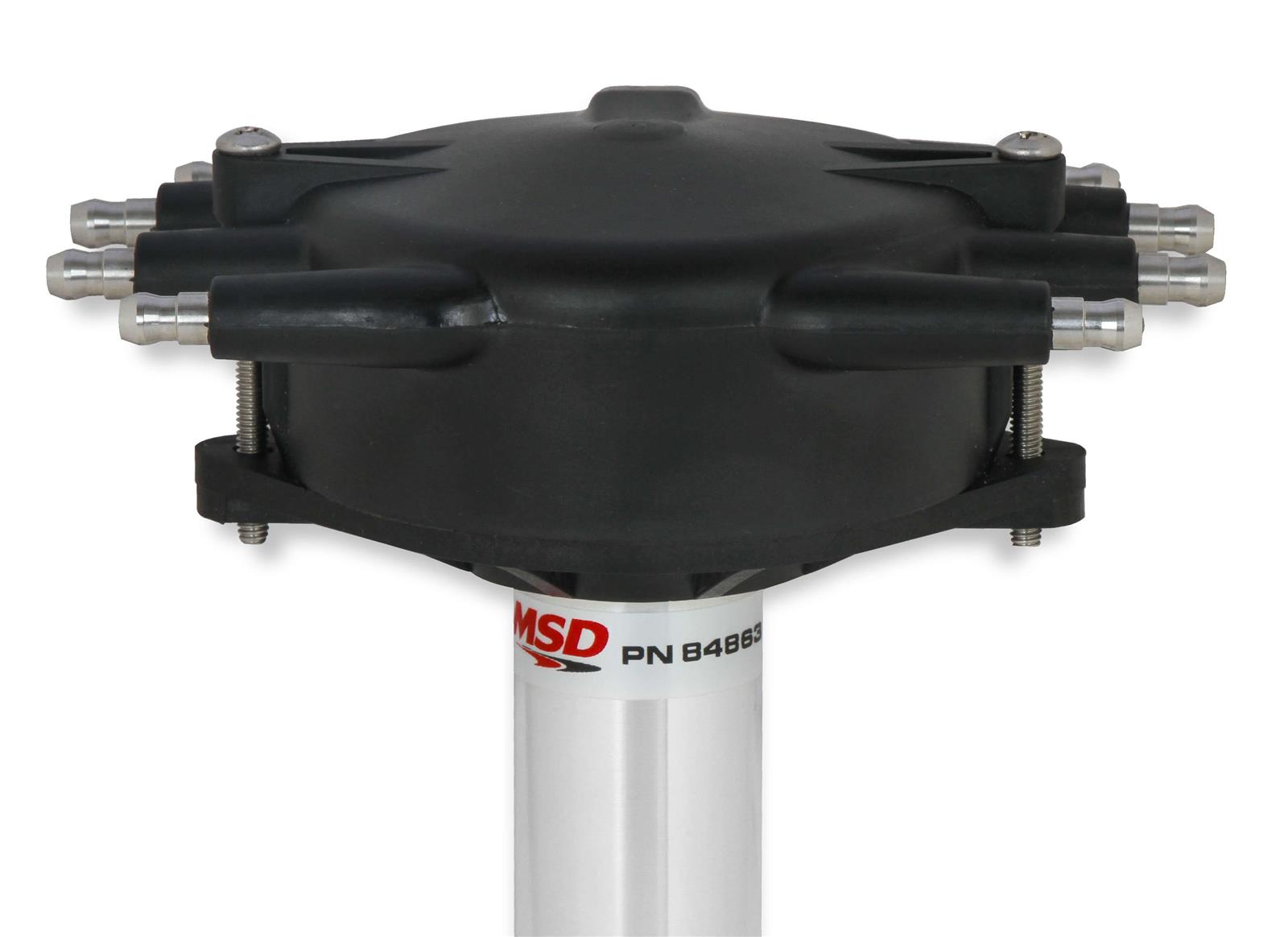

Since these are racing distributors, there is an adjustable slip collar to make up for engines that have had the distance between the mounting surface and the gear modified. Crowning the Pro-Billet crank distributor is MSD's own crab cap. This incorporates spark plug-style terminals for a better connection and grip to the plug wires. Order the model recommended for your vehicle and engine application.

Part Type

Chevy V8 Crank Trigger Distributor w/Crab Cap

Data: v4.2 - Upd: 2026-10-14 04:30:03

Specifications

Product Attributes - Brand
MSD Ignition
Product Attributes - Manufacturer's Part Number
84863
Product Attributes - Part Type
Distributors
Product Attributes - Product Line
MSD Pro-Billet Crank Trigger Distributors
Product Attributes - UPC
085132848638
Product Attributes - Distributor Cap Included
Yes
Product Attributes - Distributor Cap Style
Male/HEI
Product Attributes - Distributor Cap Type
Crab cap
Product Attributes - Ignition Coil Included
No
Product Attributes - Ignition Module Included
No
Product Attributes - Computer-Controlled Compatible
No
Product Attributes - Trigger Style
Crank trigger
Product Attributes - Advance Type
Locked
Product Attributes - Ignition Box Required
Yes
Product Attributes - Mechanical Tach Drive
No
Product Attributes - Slip Collar
Yes
Product Attributes - Distributor Gear Material
Bronze
Product Attributes - Distributor Gear Rotation
Standard
Product Attributes - Distributor Cap Color
Black
Product Attributes - Housing Material
Aluminum
Product Attributes - Housing Finish
Natural
Product Attributes - Marine Use
No
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
For use with tall deck blocks. Distributor is 8.406 in. tall from engine to top of distributor cap.

Reference Information

Brand Name/s Msd Ignition
StreetFX SKU msd84863
SFX Item ID 4973607
Supplier Item Code 4973607
Manufacturer SKU 84863
Manufacturer UPC 85132848638

Compatibility

Application Data
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size7.0L/427
    Engine FamilyChevy big block Mark IV
    Application NotesFor use with aftermarket tall deck blocks.
  • MakeCHEVROLET
    Engine TypeV8
    Engine Size7.4L/454
    Engine FamilyChevy big block Mark IV
    Application NotesFor use with aftermarket tall deck blocks.
