MSD Pro-Billet Dual Pickup Distributors 8384 Distributor, Pro-Billet, Magnetic Pickup, Mechanical Advance, Ford, 351W, Each
MSD Pro-Billet Dual Pickup Distributors 8384 Distributor, Pro-Billet, Magnetic Pickup, Mechanical Advance, Ford, 351W, Each
A$1,795.60
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
These Pro-Billet dual pickup distributors from MSD are specifically designed for Circle Track racing. Not only do they feature a strong, CNC-machined billet 6061-T6 aluminum housing and a large steel shaft, but they also feature two magnetic pickups for a complete redundant ignition system that can be activated at the flip of a switch. The pickups are triggered as a precision reluctor, mounted to the oversized shaft, spins past. The pickups are placed precisely 180 degrees apart so that when you switch to the secondary ignition, the timing remains constant. Guiding the distributor shaft is the responsibility of two sealed ball bearings for incredible endurance and high-end stability. The shaft also receives a QPQ coating for corrosion resistance and friction reduction. Additional features include a fully adjustable mechanical advance consisting of a hardened advance cam, chromoly weights, and weight pins that are TIG-welded to the advance plate. The entire assembly is welded to the polished steel. The advance assembly can also be easily locked out for quick tuning changes. The Chevrolet model features two O-ring grooves at the base of the CNC-machined housing to prevent oil in the lifter valley from leaking through the oil passage. If the engine deck, heads, or intake have been modified, there is an adjustable slip collar that allows you to set the correct installation depth. All dual pickup distributors include a cap and rotor.
Part Type
Distributors
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 8384
- Product Attributes - Part Type
- Distributors
- Product Attributes - Product Line
- MSD Pro-Billet Dual Pickup Distributors
- Product Attributes - UPC
- 085132083848
- Product Attributes - Distributor Cap Included
- Yes
- Product Attributes - Distributor Cap Style
- Male/HEI
- Product Attributes - Distributor Cap Type
- Large cap
- Product Attributes - Ignition Coil Included
- No
- Product Attributes - Ignition Module Included
- No
- Product Attributes - Computer-Controlled Compatible
- No
- Product Attributes - Trigger Style
- Magnetic
- Product Attributes - Advance Type
- Mechanical
- Product Attributes - Ignition Box Required
- Yes
- Product Attributes - Mechanical Tach Drive
- No
- Product Attributes - Slip Collar
- No
- Product Attributes - Distributor Gear Material
- Iron
- Product Attributes - Distributor Gear Rotation
- Standard
- Product Attributes - Housing Material
- Aluminum
- Product Attributes - Housing Finish
- Natural
- Product Attributes - Marine Use
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes

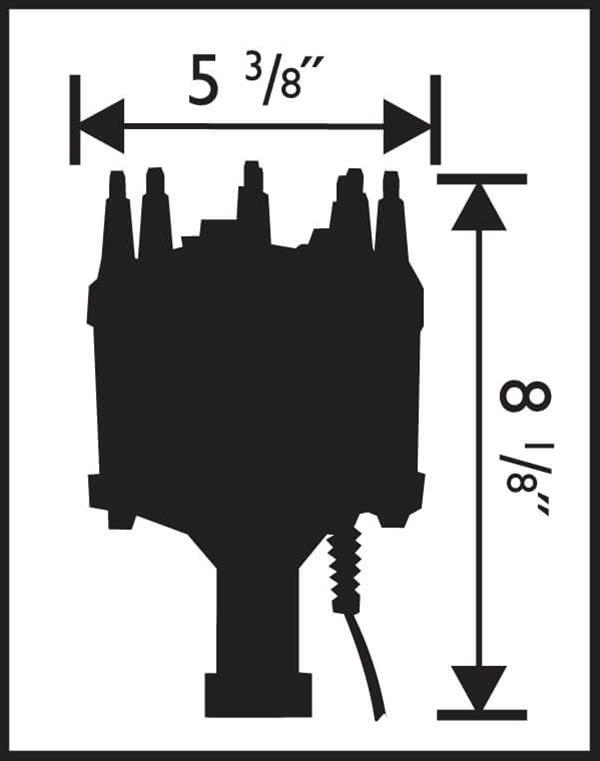

- Distributor is 8.125 in. tall from engine to top of distributor cap. Dual magnetic.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd8384 |
| SFX Item ID | 4974117 |
| Supplier Item Code | 4974117 |
| Manufacturer SKU | 8384 |
| Manufacturer UPC | 85132083848 |
| Alternative References | 351W |
