Msd Ignition

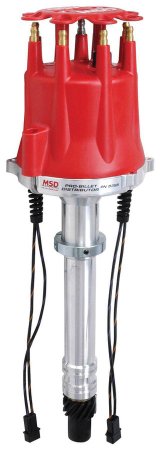

MSD Pro-Billet Dual Pickup Distributors 8356 Distributor, Pro-Billet, Magnetic Pickup, Mechanical Advance, Chevy, Big/Small Block, Each

SKU: MSD8356

Distributors
MSD Pro-Billet Dual Pickup Distributors 8356 Distributor, Pro-Billet, Magnetic Pickup, Mechanical Advance, Chevy, Big/Small Block, Each

Msd Ignition

MSD Pro-Billet Dual Pickup Distributors 8356 Distributor, Pro-Billet, Magnetic Pickup, Mechanical Advance, Chevy, Big/Small Block, Each

SKU: MSD8356

Distributors
A$1,375.79
IN STOCK! Est Ship 4-7 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
View cart
We accept
American Express
Mastercard
Visa
PayPal Checkout
Direct Deposit
Afterpay
Apple Pay
Google Pay
Zip Pay

Description

These Pro-Billet dual pickup distributors from MSD are specifically designed for Circle Track racing. Not only do they feature a strong, CNC-machined billet 6061-T6 aluminum housing and a large steel shaft, but they also feature two magnetic pickups for a complete redundant ignition system that can be activated at the flip of a switch. The pickups are triggered as a precision reluctor, mounted to the oversized shaft, spins past. The pickups are placed precisely 180 degrees apart so that when you switch to the secondary ignition, the timing remains constant. Guiding the distributor shaft is the responsibility of two sealed ball bearings for incredible endurance and high-end stability. The shaft also receives a QPQ coating for corrosion resistance and friction reduction. Additional features include a fully adjustable mechanical advance consisting of a hardened advance cam, chromoly weights, and weight pins that are TIG-welded to the advance plate. The entire assembly is welded to the polished steel. The advance assembly can also be easily locked out for quick tuning changes. The Chevrolet model features two O-ring grooves at the base of the CNC-machined housing to prevent oil in the lifter valley from leaking through the oil passage. If the engine deck, heads, or intake have been modified, there is an adjustable slip collar that allows you to set the correct installation depth. All dual pickup distributors include a cap and rotor.

Part Type

SBC Pro Billet Dist

Data: v4.2 - Upd: 2026-10-11 06:17:50

Specifications

Product Attributes - Brand
MSD Ignition
Product Attributes - Manufacturer's Part Number
8356
Product Attributes - Part Type
Distributors
Product Attributes - Product Line
MSD Pro-Billet Dual Pickup Distributors
Product Attributes - UPC
085132083565
Product Attributes - Distributor Cap Included
Yes
Product Attributes - Distributor Cap Style
Male/HEI
Product Attributes - Distributor Cap Type
Small cap
Product Attributes - Ignition Coil Included
No
Product Attributes - Ignition Module Included
No
Product Attributes - Computer-Controlled Compatible
No
Product Attributes - Trigger Style
Magnetic
Product Attributes - Advance Type
Mechanical
Product Attributes - Ignition Box Required
Yes
Product Attributes - Mechanical Tach Drive
No
Product Attributes - Slip Collar
Yes
Product Attributes - Distributor Gear Material
Melonized
Product Attributes - Distributor Gear Rotation
Standard
Product Attributes - Housing Material
Aluminum
Product Attributes - Housing Finish
Natural
Product Attributes - Marine Use
No
Product Attributes - Remanufactured
No
Product Attributes - Quantity
Sold individually.
Product Attributes - Notes
Distributor is 5.75 - 7.1875 in. tall from engine to top of distributor cap. Dual magnetic.

Reference Information

Brand Name/s Msd Ignition
StreetFX SKU msd8356
SFX Item ID 4973513
Supplier Item Code 4973513
Manufacturer SKU 8356
Manufacturer UPC 85132083565
