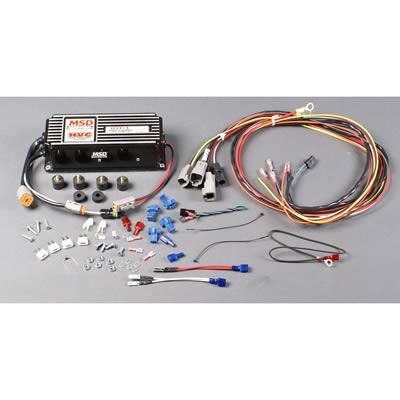

MSD 6 HVC-L CD Ignitions 6631 Ignition Box, CD, Analog, Capacitive Discharge, Fast Rev limiter, Universal, Each
MSD 6 HVC-L CD Ignitions 6631 Ignition Box, CD, Analog, Capacitive Discharge, Fast Rev limiter, Universal, Each
A$2,071.31
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The MSD 6 HVC-L CD ignitions are powerful new systems designed primarily for Circle Track and events that require high rpm for a long duration. Only the best high-end components have been put into this exclusive design for more output energy and voltage, with less current draw. Each transformer is hand-wound for more power at lower temperatures. Field Effect transistors accept higher loads than standard transistors. A faster, more efficient Integrated Gate Bi-Polar transistor improves coil saturation. They feature an optimum heat sink that gives increased heat dissipation, large capacitors that give you full-strength sparks at any rpm, a rev limiter, and a clear silicone casing that protects circuits from vibration. MSD wired them with NASCAR-mandated, 6-pin, weathertight connectors and a special 4-pin connector plug that connects directly into MSD's Soft Touch rev control, which is available separately.
Part Type
6-HVC Ignition Control w/Rev Limiter
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 6631
- Product Attributes - Part Type
- Ignition Boxes
- Product Attributes - Product Line
- MSD 6 HVC-L CD Ignitions
- Product Attributes - UPC
- 085132066315
- Product Attributes - Ignition Box Output
- Capacitive discharge
- Product Attributes - Circuitry
- Analog
- Product Attributes - Rev Limiter
- Yes
- Product Attributes - Timing Retard
- None
- Product Attributes - Data Acquisition
- No
- Product Attributes - CD Voltage Output to Coil
- 550 V
- Product Attributes - Current Draw
- 0.7 amps per 1,000 rpm
- Product Attributes - Spark Output (millijoules)
- 150 mJ
- Product Attributes - Minimum Operating Voltage
- 12 V
- Product Attributes - Maximum Operating Voltage
- 18 V
- Product Attributes - Length (in.)
- 8.000 in.
- Product Attributes - Height (in.)
- 2.250 in.
- Product Attributes - Width (in.)
- 4.000 in.
- Product Attributes - Ignition Box Color
- Black
- Product Attributes - Coil Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Warranty
- 1-year
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fast rev limiter.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd6631 |
| SFX Item ID | 4974198 |
| Supplier Item Code | 4974198 |
| Manufacturer SKU | 6631 |
| Manufacturer UPC | 85132066315 |
