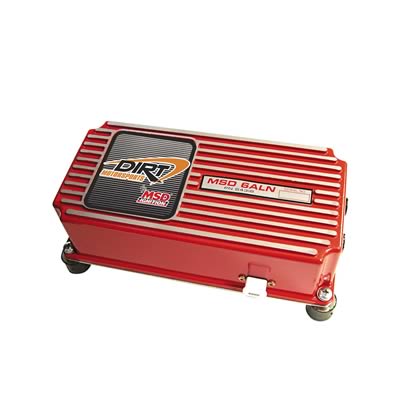

MSD 6TN/6ALN NASCAR CD Ignitions 64316 Ignition Box, 6ALN, Capacitive Discharge, Analog, Rev Limiter, Universal, V8, Dirt, NASCAR, Each
MSD 6TN/6ALN NASCAR CD Ignitions 64316 Ignition Box, 6ALN, Capacitive Discharge, Analog, Rev Limiter, Universal, V8, Dirt, NASCAR, Each
A$1,437.58
IN STOCK! Est Ship 4-7 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
These MSD 6TN and 6ALN ignitions are the ultimate choices for superior performance in harsh racing conditions. With sturdy vibration mounts and CD circuits encased in a clear 2-part silicone elastomer, they are virtually vibration-proof. A specially designed, weathertight, 6-pin connector meets NASCAR's 20-6.1 ignition wiring rule and provides a tight, positive-locking connection with individual seals to keep dirt and moisture from each connection. The 6TNs are equipped with a special 4-pin connector that plugs directly into an MSD soft touch rev control, while the 6ALNs have a built-in rev control. These rev controls are adjustable with plug-in modules and will save your engine from overrev damage caused by missed shifts or driveline failures. They'll work with virtually any 4, 6 (even-fire V6 only), or 8-cylinder engines.
Part Type
DIRT Spec Ignition Box
Specifications
- Product Attributes - Brand
- MSD Ignition
- Product Attributes - Manufacturer's Part Number
- 64316
- Product Attributes - Part Type
- Ignition Boxes
- Product Attributes - Product Line
- MSD 6TN/6ALN NASCAR CD Ignitions
- Product Attributes - UPC
- 085132643165
- Product Attributes - Ignition Box Output
- Capacitive discharge
- Product Attributes - Circuitry
- Analog
- Product Attributes - Rev Limiter
- Yes
- Product Attributes - Timing Retard
- None
- Product Attributes - Data Acquisition
- No
- Product Attributes - CD Voltage Output to Coil
- 460-480 V
- Product Attributes - Current Draw
- 1 amp per 1,000 rpm
- Product Attributes - Spark Output (millijoules)
- 105-115 mJ
- Product Attributes - Minimum Operating Voltage
- 12 V
- Product Attributes - Maximum Operating Voltage
- 18 V
- Product Attributes - Length (in.)
- 8.000 in.
- Product Attributes - Height (in.)
- 2.250 in.
- Product Attributes - Width (in.)
- 4.000 in.
- Product Attributes - Ignition Box Color
- Red
- Product Attributes - Coil Included
- No
- Product Attributes - Mounting Bracket Included
- No
- Product Attributes - Coil Wire Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- This Ignition box is designed as a spec ignition for the Dirt Motorsports Race Series. It features a fixed 7,600 rpm rev limit and is set for 8-cylinder use only.
Reference Information
| Brand Name/s | Msd Ignition |
|---|---|
| StreetFX SKU | msd64316 |
| SFX Item ID | 4973667 |
| Supplier Item Code | 4973667 |
| Manufacturer SKU | 64316 |
| Manufacturer UPC | 85132643165 |
| Alternative References | 6TN/6ALN, 6ALN, V8 |
