Moroso Donovan 700/DRC2/Merlin Big Block (w/Four Pick Ups) Drag Race Dry Sump Aluminum Oil Pan
Moroso Donovan 700/DRC2/Merlin Big Block (w/Four Pick Ups) Drag Race Dry Sump Aluminum Oil Pan
A$3,404.87
LOW STOCK! Est Ship 4-7 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

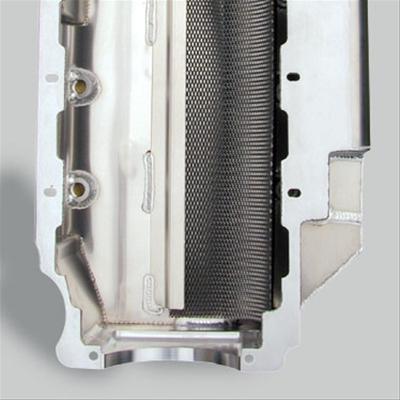

Moroso makes these oil pans for your drag racer with Donovan engines.
Features include:
* Billet end caps with extremely close tolerance
* Box-style aluminum pan features relocated bolt holes to avoid interference with rods and allow for longer strokes; will fit virtually any rod-stroke combination
* Maximum size double kickout, trim-to-fit crankshaft scraper, and unidirectional windage tray screen separates oil quickly from rotating assembly for ultimate oil control and maximum horsepower gain
* Trap door baffle contains oil in pickup area during hard braking
Product Overview
Moroso Donovan 700/DRC2/Merlin Big Block (w/Four Pick Ups) Drag Race Dry Sump Aluminum Oil Pan
Product Details
| Description: | Moroso Donovan 700/DRC2/Merlin Big Block (w/Four Pick Ups) Drag Race Dry Sump Aluminum Oil Pan |
|---|---|
| Part Number: | mor21592 |
Part Type
BBC Stage III Drag Race Oil Pan
Specifications
- Product Attributes - Brand
- Moroso
- Product Attributes - Manufacturer's Part Number
- 21592
- Product Attributes - Part Type
- Oil Pans
- Product Attributes - Product Line
- Moroso Donovan Oil Pans
- Product Attributes - UPC
- 084663215926
- Product Attributes - Sump Style
- Dry
- Product Attributes - Oil Pan Style
- Drag Race
- Product Attributes - Rear Main Seal Style
- 2-piece
- Product Attributes - Sump Location
- Full
- Product Attributes - Stroker Clearanced
- Yes
- Product Attributes - Maximum Stroke with OE Rod
- 5.300 in.
- Product Attributes - Dipstick Provision
- No
- Product Attributes - Dipstick Included
- No
- Product Attributes - Oil Pan Depth (in.)
- 8.500
- Product Attributes - Oil Pan Material
- Aluminum
- Product Attributes - Oil Pan Color
- Natural
- Product Attributes - Baffled
- Yes
- Product Attributes - Kicked Out
- Yes
- Product Attributes - Kickout Position
- Passenger side
- Product Attributes - Windage Tray Included
- Yes
- Product Attributes - Pickup Included
- No
- Product Attributes - Oil Pump Included
- No
- Product Attributes - Oil Pump Driveshaft Included
- No
- Product Attributes - Crank Scraper Included
- No
- Product Attributes - Drain Plug Thread Size
- 1/2 in.-20
- Product Attributes - Gaskets Included
- No
- Product Attributes - Hardware Included
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- Fits Donovan blocks only (Donovan 700, DRC2 ).
Reference Information
| Brand Name/s | Moroso |
|---|---|
| StreetFX SKU | mor21592 |
| SFX Item ID | 4103511 |
| Supplier Item Code | 4103511 |
| Manufacturer SKU | 21592 |
| Manufacturer UPC | 84663215926 |
| Alternative References | 700/DRC2/Merlin |
