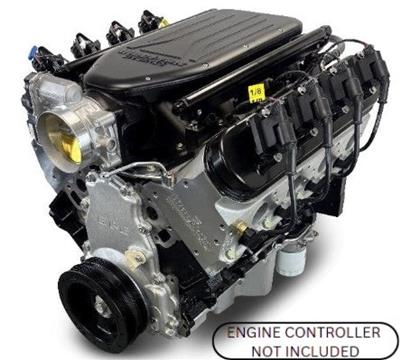

BluePrint Engines Pro Series Chevy LS 376 C.I.D. 510 HP EFI Base Dressed Long Block Crate PSLS37680CTF GM Compatible c.i. Engine - Horsepower - - No ECU / Harness
BluePrint Engines Pro Series Chevy LS 376 C.I.D. 510 HP EFI Base Dressed Long Block Crate PSLS37680CTF GM Compatible c.i. Engine - Horsepower - - No ECU / Harness
A$24,049.79
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
One of the most popular engine platforms for street cars and restomods is an LS-compatible design, and BluePrint's GM LS-compatible 376 c.i.d. Pro Series engines deliver 510 hp and 440 lb.-ft. of torque to provide proven power and versatility. These base dressed crate engines feature LS3-style aluminum cylinder heads, a 10.7:1 compression ratio, hydraulic roller cam, hypereutectic pistons, and a nodular iron crankshaft housed in a BluePrint high-strength cast iron block. Available with or without fuel injection ECU and wiring harness, select the crate engine preferred to build some serious performance for your vehicle.
Specs and features:
* BluePrint Engines high-strength cast iron (LSX-style) block
-- Increased deck thickness and strength webbing
-- Utilizes OEM LS3 front and rear covers
-- Improved water jacket design
-- Extended cylinder skirt
-- Priority main oiling
-- One-piece rear main seal
-- 6-bolt main
-- 4.0662 in. bore
* Rotating assembly:
-- Nodular iron crankshaft
-- 3.622 in. stroke
-- 6.098 in. connecting rods with 150,000 psi bolts
-- BluePrint hypereutectic pistons
-- Internally balanced front and rear
* BluePrint LS3 aluminum cylinder heads:
-- 69cc chamber
-- 2.165 in. intake/1.590 in. exhaust valves
-- 259cc intake/102cc exhaust runners
* BluePrint hydraulic roller camshaft:
-- .612 intake/.585 exhaust lift
-- 225 intake/238 exhaust duration at .050
-- 113-degree lobe separation
* Additional components:
-- Drive-by-wire throttle body
-- LS3 cast aluminum intake manifold
-- LS swap oil pan
-- Water pump
-- Injectors and fuel rail kit
-- Spark plugs and wires
-- Harmonic balancer
-- Timing cover
-- Valve covers
-- Coil packs
Part Type
Crate Engines
Specifications
- Product Attributes - Brand
- BluePrint Engines
- Product Attributes - Manufacturer's Part Number
- PSLS37680CTF
- Product Attributes - Part Type
- Crate Engines
- Product Attributes - Product Line
- BluePrint Engines Pro Series Chevy LS 376 C.I.D. 510 HP EFI Base Dressed Long Block Crate Engines
- Product Attributes - UPC
- 00887753800114
- Product Attributes - Crate Engine Family
- Chevy LS
- Product Attributes - Actual Engine Displacement
- 6.2L/376
- Product Attributes - Crate Engine Cylinder Head Material
- Aluminum
- Product Attributes - Engine Block Material
- Cast iron
- Product Attributes - Advertised Compression Ratio
- 10.7:1
- Product Attributes - Assembled
- Yes
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Cam Style
- Hydraulic roller, OE roller
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Intake Manifold Style
- Fuel Injection
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Distributor Included
- No
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- No
- Product Attributes - Air Cleaner Included
- No
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Computer Included
- No
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Stall Speed Rating RPM Range
- 2,200
- Product Attributes - Supercharger Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Special Attention
- Oil pan features a rear sump.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllPSLS37680CTF |
| SFX Item ID | 6645979 |
| Supplier Item Code | 6645979 |
| Manufacturer SKU | PSLS37680CTF |
| Manufacturer UPC | 887753800114 |
