BluePrint Motorsports Pro Series Chevy 632 C.I.D. 1015 HP Dressed Fuel Injected Long Block Engines PS6321CTF Engine ProSeries GM Big Compatible c.i. Horsepower Base
BluePrint Motorsports Pro Series Chevy 632 C.I.D. 1015 HP Dressed Fuel Injected Long Block Engines PS6321CTF Engine ProSeries GM Big Compatible c.i. Horsepower Base
A$62,467.76
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description

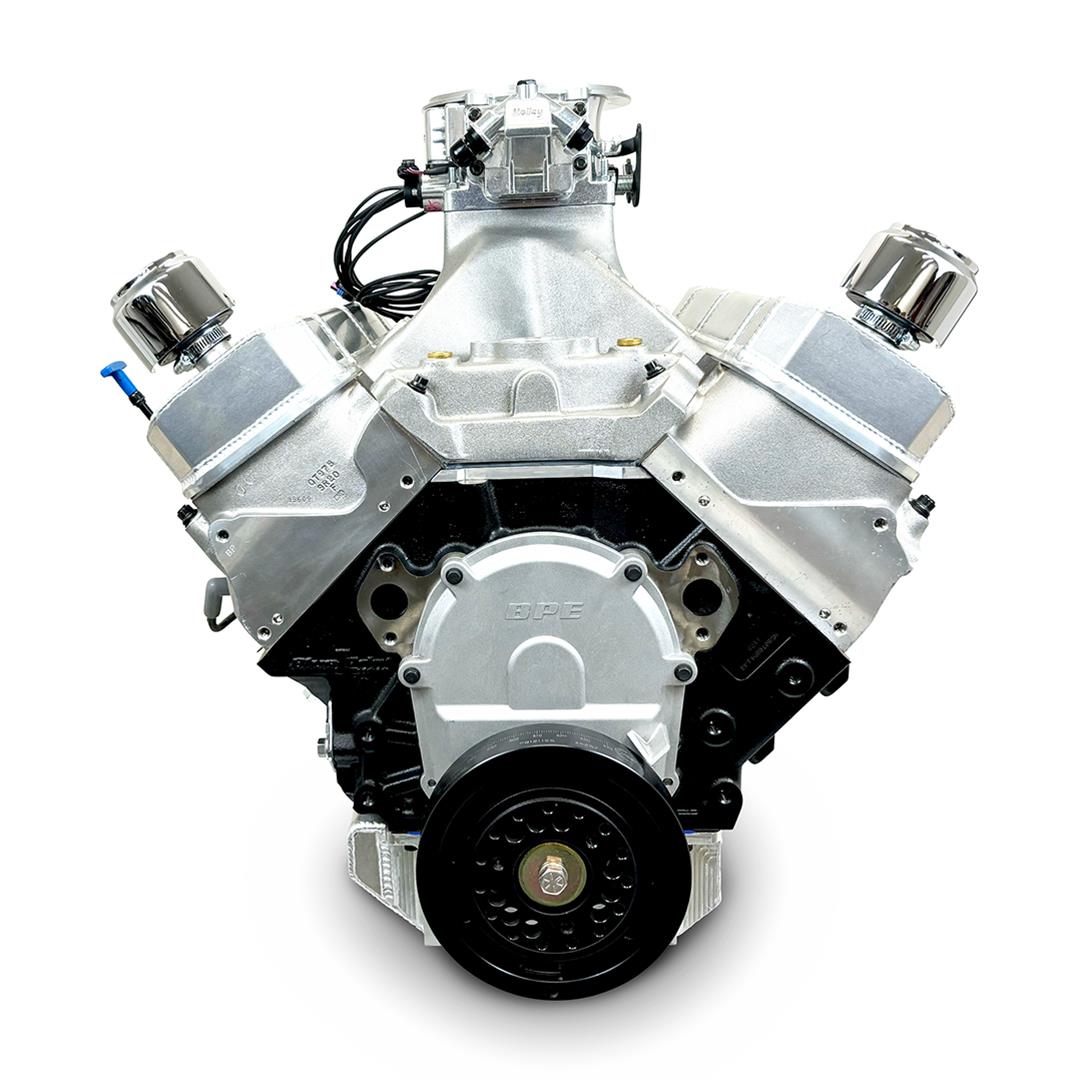

BluePrint's Pro Series based dressed GM big block compatible 632 c.i. fuel injected engines are capable of producing 1,015 hp and 830 lb.-ft. of torque. These long block crate engines are fitted with CNC-ported cylinder heads, a solid roller camshaft, forged pistons, and a forged steel crank. BluePrint Pro Series dressed 632s also include intake manifold, Sniper Stealth 4500, distributor, harmonic balancer, spark plug and wires, timing cover, and oil pan.
Here's the specs:
* Compression Ratio: 10.65:1
* BluePrint Engines high-strength cast iron block
-- 4-bolt main
-- 4.600 in. bore
-- One-piece rear main seal
* Rotating assembly
-- Forged steel crankshaft
-- 4.750 in. stroke
-- 6.635 in. connecting rods
-- Forged pistons
-- Internally balanced front and rear
* Cylinder heads
-- 95cc chamber
-- 440 intake runner
-- 2.400 in. intake/1.800 in. exhaust valves
* Solid roller camshaft
-- .873 intake/.861 exhaust lift
-- .293 intake/.304 exhaust duration
-- at .050-115 degree lobe separation
* Ignition timing controlled by ECU
Part Type
Crate Engines
Specifications
- Product Attributes - Brand
- BluePrint Motorsports
- Product Attributes - Manufacturer's Part Number
- PS6321CTF
- Product Attributes - Part Type
- Crate Engines
- Product Attributes - Product Line
- BluePrint Motorsports Pro Series Chevy 632 C.I.D. 1015 HP Dressed Fuel Injected Long Block Engines
- Product Attributes - UPC
- 00887753985200
- Product Attributes - Crate Engine Family
- Chevy Big Block
- Product Attributes - Actual Engine Displacement
- 10.3L/632
- Product Attributes - Crate Engine Cylinder Head Material
- Aluminum
- Product Attributes - Engine Block Material
- Cast iron
- Product Attributes - Advertised Compression Ratio
- 10.65:1
- Product Attributes - Assembled
- Yes
- Product Attributes - Engine Balance
- Internal
- Product Attributes - Cam Style
- Solid roller, OE roller
- Product Attributes - Rear Main Seal Style
- 1-piece
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Intake Manifold Style
- Fuel Injection
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Distributor Included
- Yes
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- No
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- No
- Product Attributes - Air Cleaner Included
- No
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Computer Included
- Yes
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Supercharger Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllPS6321CTF |
| SFX Item ID | 5182988 |
| Supplier Item Code | 5182988 |
| Manufacturer SKU | PS6321CTF |
| Manufacturer UPC | 887753985200 |
