BluePrint Builder Series LS376/510HP Standard Edition EFI Crate Engine and T56 Transmission Combos BLS3768KT56 376 c.i. LS Iron Block Edition, Fuel Injected, Manual w/ Polished Pulley Kit
BluePrint Builder Series LS376/510HP Standard Edition EFI Crate Engine and T56 Transmission Combos BLS3768KT56 376 c.i. LS Iron Block Edition, Fuel Injected, Manual w/ Polished Pulley Kit
A$50,874.26
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
BluePrint Builder Series LS376/510HP Standard Edition EFI crate engine and T56 transmission combos take the guesswork out of matching up an engine and transmission for your ride. Featuring a fuel injected Chevy LS small block-compatible 376 (c.i.d.) engine that produces 510 horsepower, this standard edition builder series includes a polished pulley kit and T56 manual transmission. The aluminum BluePrint Engines cylinder heads help produce a nice 10.7:1 compression ratio, with assistance from the hydraulic roller camshaft, hypereutectic pistons, and nodular iron crankshaft. Altogether, this engine assembly produces 440 lbs.-ft. of torque. When you need or want a new powertrain for your ride, go with the authority in crate engines and their BluePrint Builder Series LS376/510HP Standard Edition EFI crate engine and T56 trans combos.
Product description and specifications:
Block:
* High-strength cast iron (LSX style)
* Increased deck thickness and strength webbing
* Utilizes OEM LS3 front and rear covers
* Improved water jacket design
* Extended cylinder skirt
* One-piece rear main seal
* Priority main oiling
* 4.0662 in. Bore
* 6-bolt main
Rotating Assembly:
* Nodular iron crankshaft
* Stroke – 3.622 in.
* Connecting rods (6.098 in.) with 150,000 psi bolts
* Hypereutectic pistons
* Internally balanced front and rear
Cylinder Heads:
* BluePrint LS3 aluminum cylinder heads
* Chamber – 69cc
* 2.165 in. Intake /1.590 in. Exhaust Valves
* 259cc Intake / 102cc Exhaust Runners
Camshaft:
* Hydraulic roller
* Intake valve lift – 0.612 in.
* Exhaust valve lift – 0.585 in.
* Intake duration at 0.050 in. of lift – 225
* Exhaust duration at 0.050 in. of lift - 238
* Lobe separation angle (LSA) – 113 degrees
Ignition Timing:
* Ignition Timing and Spark Advance are Controlled by BluePrint Engine Calibrated ECU
* Transmission Controller Required if pairing to an automatic (ECU Does Not Offer Transmission Control)
Other Components:
* Drive-by-Wire throttle body
* LS3 cast aluminum intake manifold
* LS Swap oil pan
* Water Pump
* Engine harness and ECU kit
* Injectors and Fuel Rail kit
* Spark plugs and wiring
* Harmonic balancer
* Timing cover
* Valve covers
* Coil packs
* Gas pedal
Notes: This engine requires a non-weighted flex plate such as (BPP12654640) / flywheel (BPPLS1611) not included. Recommended fuel: 91 Octane. BluePrint Engines recommends a 2200+ rpm stall converter. Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars. Not for use in pollution-controlled vehicles or in dry sump applications. The BluePrint Engines LS controller package contains a fully tested, calibrated, locked ECU, optimized for this specific engine. This package has undergone extensive testing for performance, reliability and the safety of you and your engine.
Part Type
Engine and Transmission Combos
Specifications
- Product Attributes - Brand
- BluePrint Engines
- Product Attributes - Manufacturer's Part Number
- BLS3768KT56
- Product Attributes - Part Type
- Engine and Transmission Combos
- Product Attributes - Product Line
- BluePrint Builder Series LS376/510HP Standard Edition EFI Crate Engine and T56 Transmission Combos
- Product Attributes - UPC
- 00887753972637
- Product Attributes - Crate Engine Family
- Chevy LS
- Product Attributes - Engine Assembly Style
- Long block
- Product Attributes - Assembled
- Yes
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Distributor Included
- No
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Torque Converter Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Computer Included
- Yes
- Product Attributes - Reluctor Wheel Tooth Quantity
- 58
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention

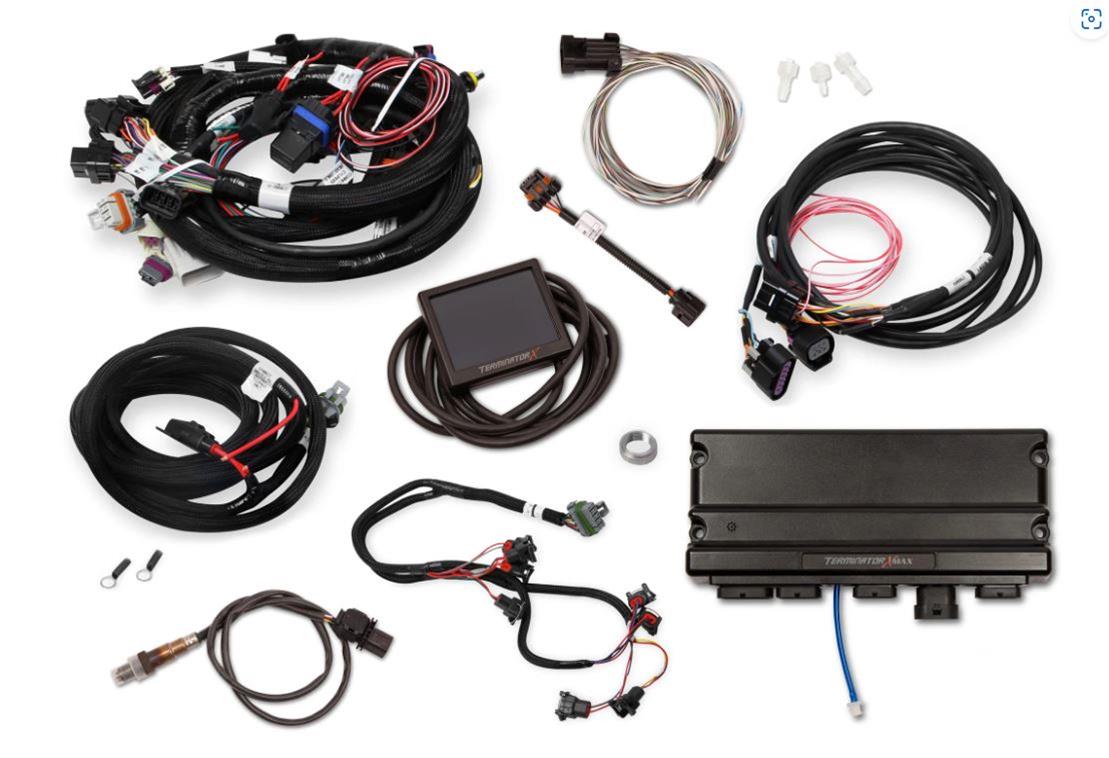

- Includes Holley Terminator X Max Gen IV complete EFI engine management system, harness, starter, drive-by-wire pedal and throttle body. Polished front accessory drive system includes water pump, alternator, power steering pump, A/C compressor and all belts and pulleys.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllBLS3768KT56 |
| SFX Item ID | 5183153 |
| Supplier Item Code | 5183153 |
| Manufacturer SKU | BLS3768KT56 |
| Manufacturer UPC | 887753972637 |
| Alternative References | LS376/510HP, T56 |
