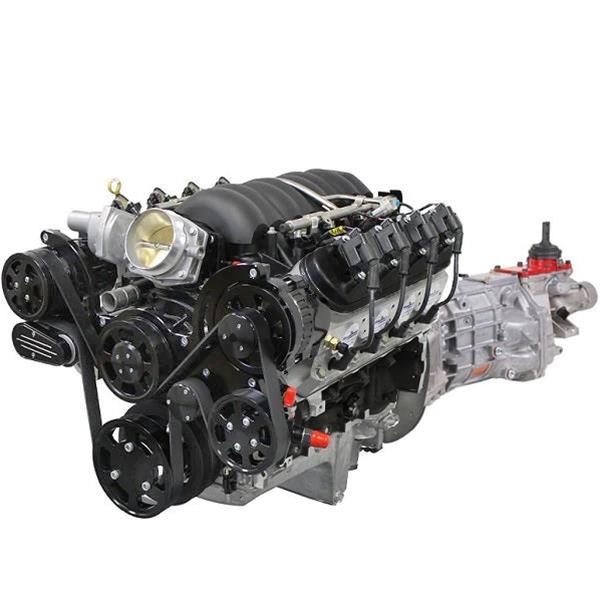

BluePrint Builder Series LS376/530HP Standard Edition EFI Crate Engine and T56 Trans Combos BLS3763KBT56 376 c.i. LS Iron Block Edition, Fuel Injected, Manual Transmission w/ Black Pulley Kit
BluePrint Builder Series LS376/530HP Standard Edition EFI Crate Engine and T56 Trans Combos BLS3763KBT56 376 c.i. LS Iron Block Edition, Fuel Injected, Manual Transmission w/ Black Pulley Kit
A$52,378.93
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
BluePrint Builder Series LS376/530HP Standard Edition EFI crate engine and T56 trans combos take the guesswork out of matching up an engine and transmission for your ride. Featuring a fuel injected Chevy LS small block-compatible 376 (c.i.d.) engine that produces 530 horsepower, this standard edition builder series includes a T56 manual transmission and pulley kit (pulley kit is an optional add-on, depending on the specific engine package you purchase). The aluminum BluePrint Engines cylinder heads help produce a nice 10.7:1 compression ratio, with assistance from the hydraulic roller camshaft, hypereutectic pistons, and nodular iron crankshaft. Altogether, this assembly produces 495 lbs.-ft. of torque. When you need or want a new LS powertrain for your ride, go with the authority in crate engines and their BluePrint Builder Series LS376/530HP Standard Edition EFI crate engine and T56 trans combos.
Other product features, items, and specifications:
Block:
* BluePrint Engines High Strength Cast Iron (LSX Style) Block
* Increased deck thickness and strength webbing
* Utilizes OEM LS3 front and rear covers
* Improved water jacket design
* Extended cylinder skirt
* One-piece rear main seal
* Priority main oiling
* 6-bolt main
Rotating Assembly:
* Nodular Iron crankshaft
* Stroke – 3.622 in.
* Connecting rods (6.098 in.) with 150,000 psi bolts
* Hypereutectic pistons
* Internally balanced (front and rear)
Cylinder Heads:
* BluePrint aluminum PS8015 models
* Chamber – 72cc
* Valves are 2.165 in. intake and 1.600 in. exhaust
* Exhaust runners are 259cc intake and 102cc exhaust
Camshaft Specs:
* Hydraulic roller
* Intake valve lift – 0.612 in.
* Exhaust valve lift – 0.585 in.
* Intake duration at 0.050 in. of lift – 225
* Exhaust duration at 0.050 in. of lift – 238
* Lobe separation angle (LSA) – 113 degrees
* Intake centerline – 110 degrees
Assembled 6-speed T56 6-speed Transmission Package:
* McLeod Super Street Pro dual-disc clutch
* Steel Bell housing
* Billet flywheel
* Engine guard
* Starter
* Gear ratios are 2.66:1 (first), 1.78:1 (second), 1.30:1 (third), 1.00:1 (fourth), 0.80:1 (fifth), and 0.63:1 (sixth)
Other Components:
* MLL-BLS3763KBT56 and MLL-BLS3763KT56 include front accessory drive with LT1 style 150-amp alternator, LT1 Style water pump, Type II power steering pump with baffled edges, and compact style A/C compressor
* Holley Terminator X Max - Gen IV Complete ECU/Harness EFI System
* BluePrint Engines fuel injectors and rail
* Low-profile swap oil pan
* DBW throttle body
* Loaded intake manifold
* Spark plugs and wires
* Harmonic balancer
* Coil packs
Note: BluePrint highly recommends their BPPLS01013 air intake kit to ensure proper MAF and Dyno calibration are maintained with the above ECU / tuning. Engine/Trans Package Ships assembled.
Part Type
Engine and Transmission Combos
Specifications
- Product Attributes - Brand
- BluePrint Engines
- Product Attributes - Manufacturer's Part Number
- BLS3763KBT56
- Product Attributes - Part Type
- Engine and Transmission Combos
- Product Attributes - Product Line
- BluePrint Builder Series LS376/530HP Standard Edition EFI Crate Engine and T56 Trans Combos
- Product Attributes - UPC
- 00887753983671
- Product Attributes - Crate Engine Family
- Chevy LS
- Product Attributes - Engine Assembly Style
- Long block
- Product Attributes - Assembled
- Yes
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Distributor Included
- No
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Torque Converter Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Computer Included
- Yes
- Product Attributes - Reluctor Wheel Tooth Quantity
- 58
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes Holley Terminator X Max Gen IV complete EFI engine management system. Black front accessory drive system includes water pump, alternator, power steering pump, A/C compressor and all belts and pulleys.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllBLS3763KBT56 |
| SFX Item ID | 5182845 |
| Supplier Item Code | 5182845 |
| Manufacturer SKU | BLS3763KBT56 |
| Manufacturer UPC | 887753983671 |
| Alternative References | LS376/530HP, T56 |
