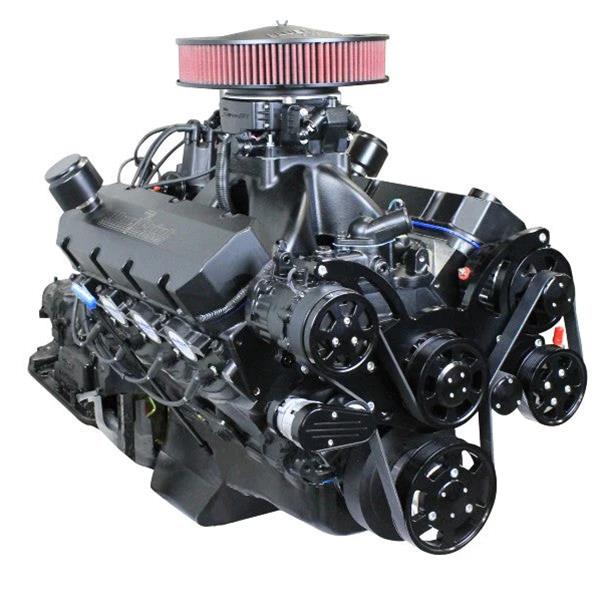

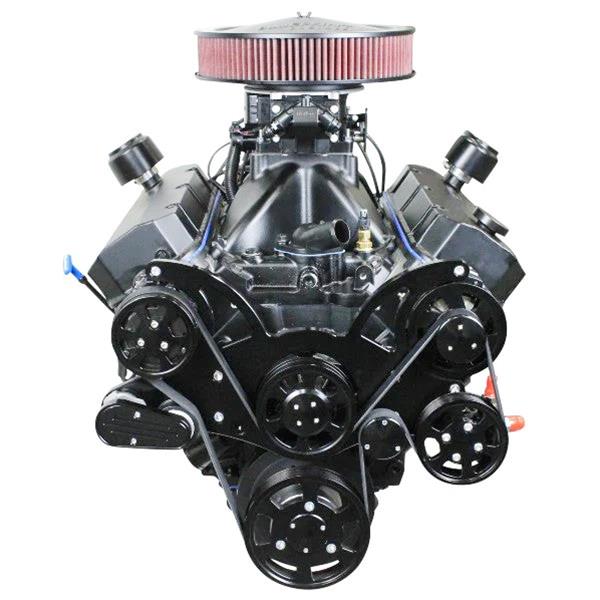

BluePrint Builder Series 632/815HP Blackout Reaper Crate Engine and 4L80E Transmission Combos B632KB4L8X Combo, Edition Series, 632 C.I.D., 815 HP, Carbureted, 4L80E, Chevy, Big Block, Kit
BluePrint Builder Series 632/815HP Blackout Reaper Crate Engine and 4L80E Transmission Combos B632KB4L8X Combo, Edition Series, 632 C.I.D., 815 HP, Carbureted, 4L80E, Chevy, Big Block, Kit
A$66,116.16
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
BluePrint Builder Series 632/815HP Blackout Reaper crate engine and 4L80E transmission combos take away the hassle of properly pairing a carbureted Chevy Gen VI big block 454 performance engine and 4-speed automatic transmission for your build. These powerful assemblies deliver 815 horsepower and 775 lbs.-ft. of torque with BluePrint aluminum cylinder heads and hydraulic roller camshaft to go with forged pistons, a forged crankshaft, and forged connecting rods. The front accessory drive includes the alternator, power steering pump, A/C compressor, and water pump for the cast iron block which features a tall deck. When you are looking for a new powertrain, go with the authority in crate engines and order your very own BluePrint Builder Series 632/815HP Blackout Reaper crate engine and 4L80E transmission combo.
More product features and details include:
* Compression ratio of 11.0:1
* Camshaft offers 0.698 in. intake/exhaust lift with 272 intake and 282 exhaust duration at 0.050 in. lift and a 110 LSA
* Stroke is 4.750 in. with 6.635 in. long connecting rods
* Block is a one-piece rear main seal, 4-bolt main setup with a 4.600 in. bore and mechanical fuel pump provision
* Rotating assembly is internally balanced and features H-beam connecting rods
* BluePrint PS8012 cylinder heads provide a 119cc combustion chamber, 2.300 in. intake and 1.880 in. exhaust valves, plus 358cc intake/125cc exhaust runners and a 0.300 in. raised exhaust port (compared to OEM casting)
* This combo also includes the 1,250 cfm carburetor, electric fuel pump, single plane satin finished aluminum intake manifold, spark plugs/wires, valve covers, Pro Billet distributor, harmonic balancer, thermostat with housing, and an oil pan
* Spark plug model BPP7938 NGK 7938 BKR5E (0.750 in. reach, 14mm thread, 5/8 in. hex, plug; gapped to 0.035 in.)
* Harmonic balancer is non-weighted
Transmission features and details include:
* Electronic transmission controller
* Lockup capable
* Torque converter with 3,800-4,200 rpm advertised stall rating
* Flexplate (non-weighted) and starter
* Gear ratios are 2.482:1 (first), 1.482:1 (second), 1.000:1 (third), 0.750:1 (fourth), and 2.077:1 (reverse)
* Builder's responsibility to verify clearances for exhaust routing, shift linkage, steering components, etc.
* Low profile front accessory design may require fabrication for power steering hoses, alternator wiring, and any additional fittings
Other notes:
* Recommended fuel is 91 octane and recommended break-in oil is BPP710
* Initial timing is 10-16 degrees
* Total timing is 32-34 degrees by 2,500 rpm
* Firing order is 1-8-4-3-6-5-7-2
* Not for EGR
* Recommended headers include those made by Ultimate Headers, Hedman Husler race headers, and Sanderson headers
Part Type
Engine and Transmission Combos
Specifications
- Product Attributes - Brand
- BluePrint Engines
- Product Attributes - Manufacturer's Part Number
- B632KB4L8X
- Product Attributes - Part Type
- Engine and Transmission Combos
- Product Attributes - Product Line
- BluePrint Builder Series 632/815HP Blackout Reaper Crate Engine and 4L80E Transmission Combos
- Product Attributes - UPC
- 00887753972859
- Product Attributes - Crate Engine Family
- Chevy Big Block
- Product Attributes - Engine Assembly Style
- Long block
- Product Attributes - Assembled
- Yes
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Carburetor Included
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Distributor Included
- Yes
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Flexplate Included
- Yes
- Product Attributes - Flywheel Included
- No
- Product Attributes - Transmission Controller Included
- Yes
- Product Attributes - Torque Converter Included
- Yes
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Computer Included
- No
- Product Attributes - Quantity
- Sold as a kit.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllB632KB4L8X |
| SFX Item ID | 5182754 |
| Supplier Item Code | 5182754 |
| Manufacturer SKU | B632KB4L8X |
| Manufacturer UPC | 887753972859 |
| Alternative References | 632/815HP, 4L80E |
