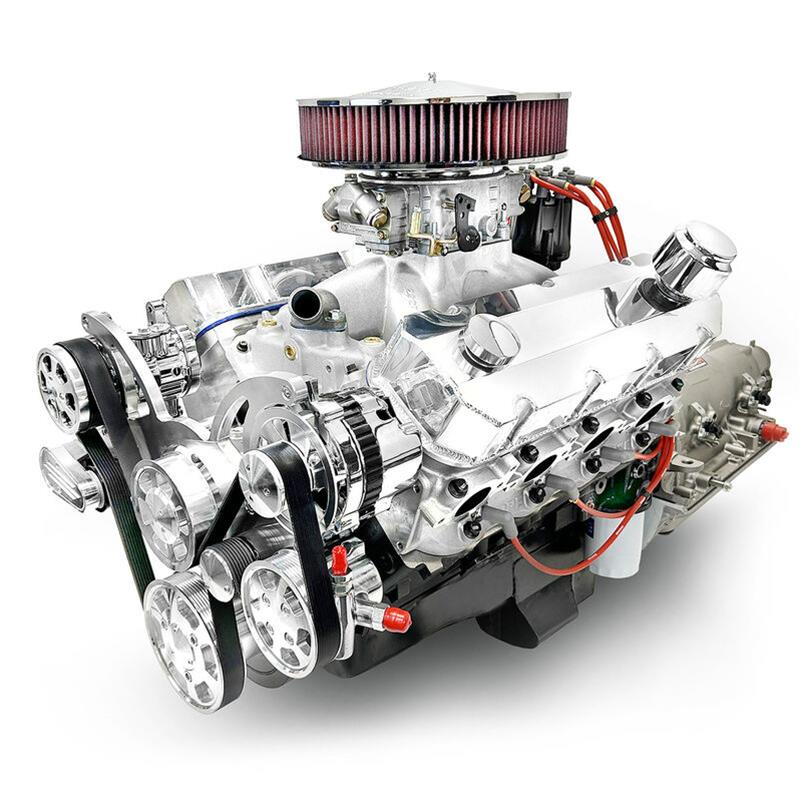

BluePrint Builder Series 598/741HP Standard Edition Carbureted Crate Engine and 4L80E Trans Combos B598K4L8 598 c.i. Series, Carbureted, Automatic Transmission /w Polished Pulley Kit. Incl. 30 month/50,000 warranty & Dyno
BluePrint Builder Series 598/741HP Standard Edition Carbureted Crate Engine and 4L80E Trans Combos B598K4L8 598 c.i. Series, Carbureted, Automatic Transmission /w Polished Pulley Kit. Incl. 30 month/50,000 warranty & Dyno
A$57,108.44
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
BluePrint Standard Edition Builder Series combos pair engine and transmission, eliminating guesswork, making it easier to gain the performance you desire. These combos match a carbureted GM big block-compatible 598 c.i.d. engine with a 4L80E automatic transmission enabling the production of an awesome 741 hp and 703 lb.-ft. of torque with a compression ratio of 10.5:1. They are available with a polished or black pulley kit. Select the one preferred.
BluePrint high-strength cast iron engine block:
* 4.600 in. bore
* 4-bolt main
* One-piece rear main seal
* Standard deck
* Mechanical fuel pump provision
Rotating assembly:
* BluePrint forged crankshaft
* Stroke: 4.500 in.
* Forged 6.480 in. connecting rods
* Forged pistons
* Internally balanced front and rear
BluePrint aluminum cylinder heads:
* 119cc chamber
* 2.30 in. intake/1.88 in. exhaust valves
* 358cc intake/125cc exhaust runners
* .300 in. raised exhaust port vs. an OEM casting
* Verify header/exhaust clearance
Hydraulic roller camshaft:
* .647 in. intake/.647 in. exhaust valve lift
* 258 intake/266 exhaust duration at .050 in. of lift
* 112 degrees lobe separation angle (LSA)
Ignition timing:
* 38 degrees total timing
4L80E automatic transmission package:
* Electronic transmission controller
* Lockup capability
* 3,800+ stall torque converter
* Flexplate
* Starter
Also included:
* Holley 1250cfm carburetor
* Intake manifold
* Pro Series Ready Run distributor
* Electric fuel pump
* Harmonic balancer
* Thermostat and thermostat housing
* Valve covers
* Spark plugs and wires
* Timing cover
* Oil pan
* Polished or black front pulley kit:
-- Reverse rotation short water pump
-- Type II power steering pump with remote reservoir
-- 140-amp one-wire alternator
Part Type
Engine and Transmission Combos
Specifications
- Product Attributes - Brand
- BluePrint Engines
- Product Attributes - Manufacturer's Part Number
- B598K4L8
- Product Attributes - Part Type
- Engine and Transmission Combos
- Product Attributes - Product Line
- BluePrint Builder Series 598/741HP Standard Edition Carbureted Crate Engine and 4L80E Trans Combos
- Product Attributes - UPC
- 00887753983411
- Product Attributes - Crate Engine Family
- Chevy Big Block
- Product Attributes - Engine Assembly Style
- Long block
- Product Attributes - Assembled
- Yes
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Carburetor Included
- Yes
- Product Attributes - Throttle Body Included
- No
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Distributor Included
- Yes
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Flexplate Included
- Yes
- Product Attributes - Flywheel Included
- No
- Product Attributes - Transmission Controller Included
- Yes
- Product Attributes - Torque Converter Included
- Yes
- Product Attributes - Wiring Harness Included
- No
- Product Attributes - Computer Included
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Carburetor included is a Gen 3 Dominator 1,250 cfm carburetor with manual choke. Short deck block. Oil pan has a rear sump.
- Product Attributes - Special Attention
- Includes a polished finish accessory drive system with a reverse rotation short water pump, type II power steering pump, remote power steering reservoir, 140 amp 1-wire alternator, and a 7B10 peanut style air conditioning compressor.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllB598K4L8 |
| SFX Item ID | 5183165 |
| Supplier Item Code | 5183165 |
| Manufacturer SKU | B598K4L8 |
| Manufacturer UPC | 887753983411 |
| Alternative References | 598/741HP, 4L80E, month/50 |
