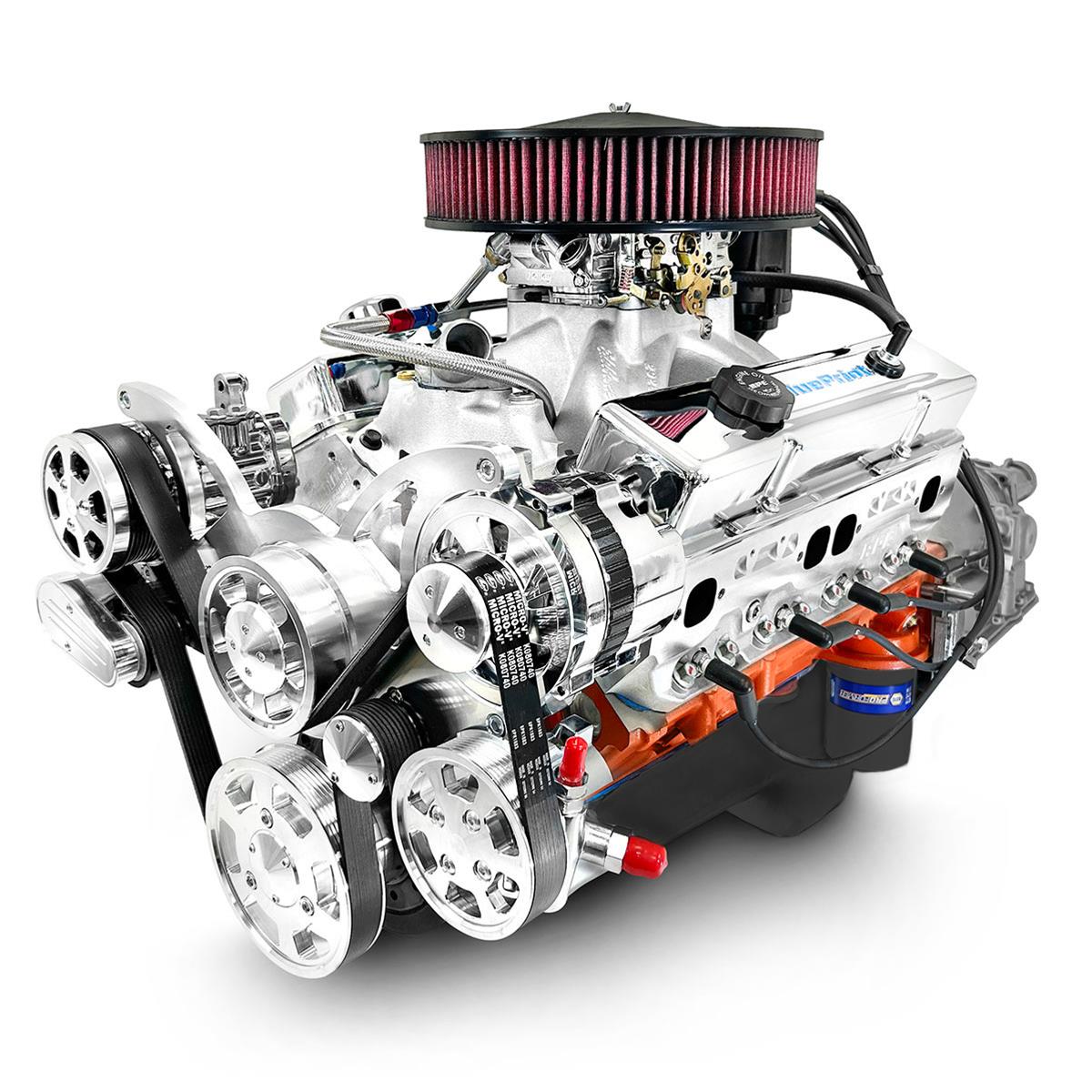

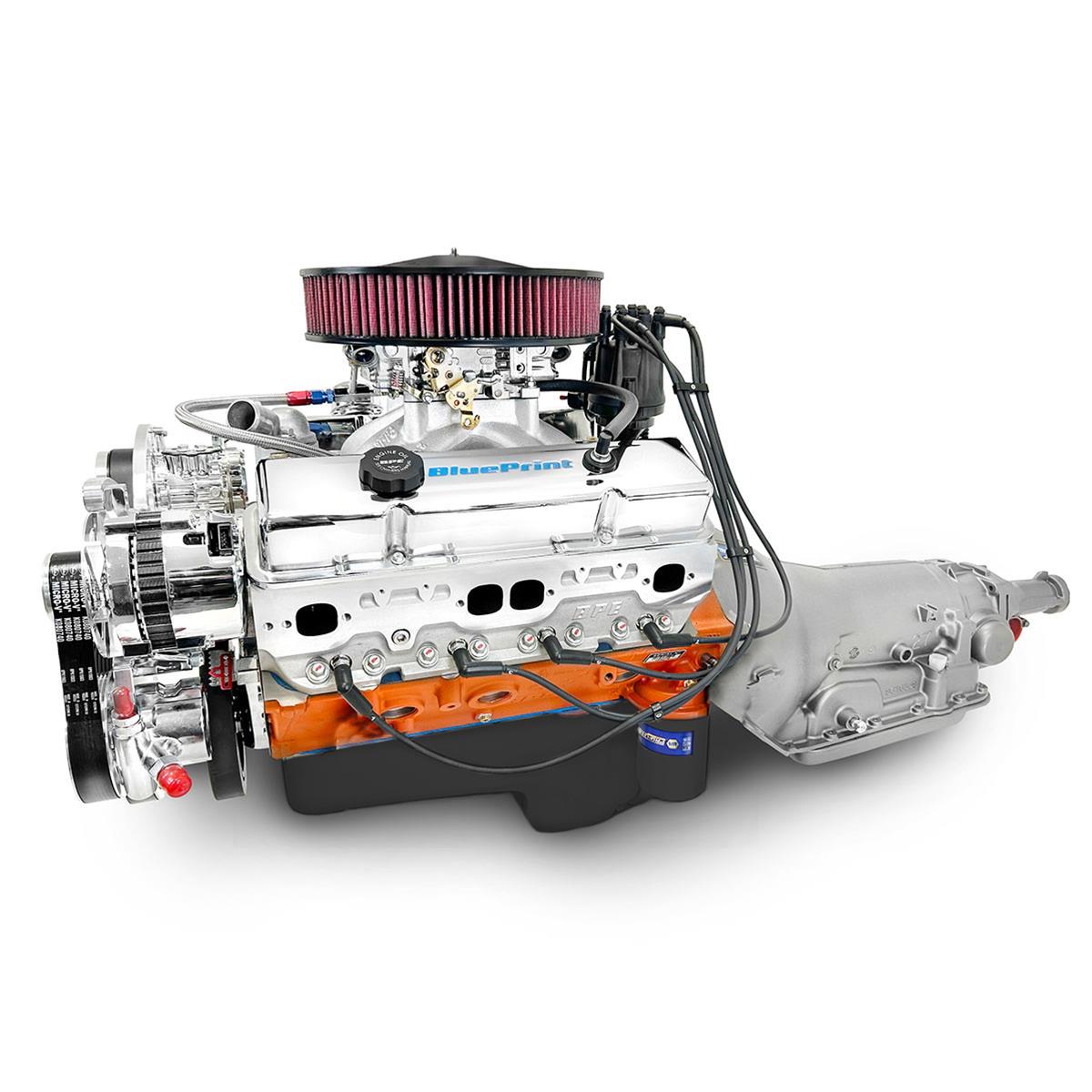

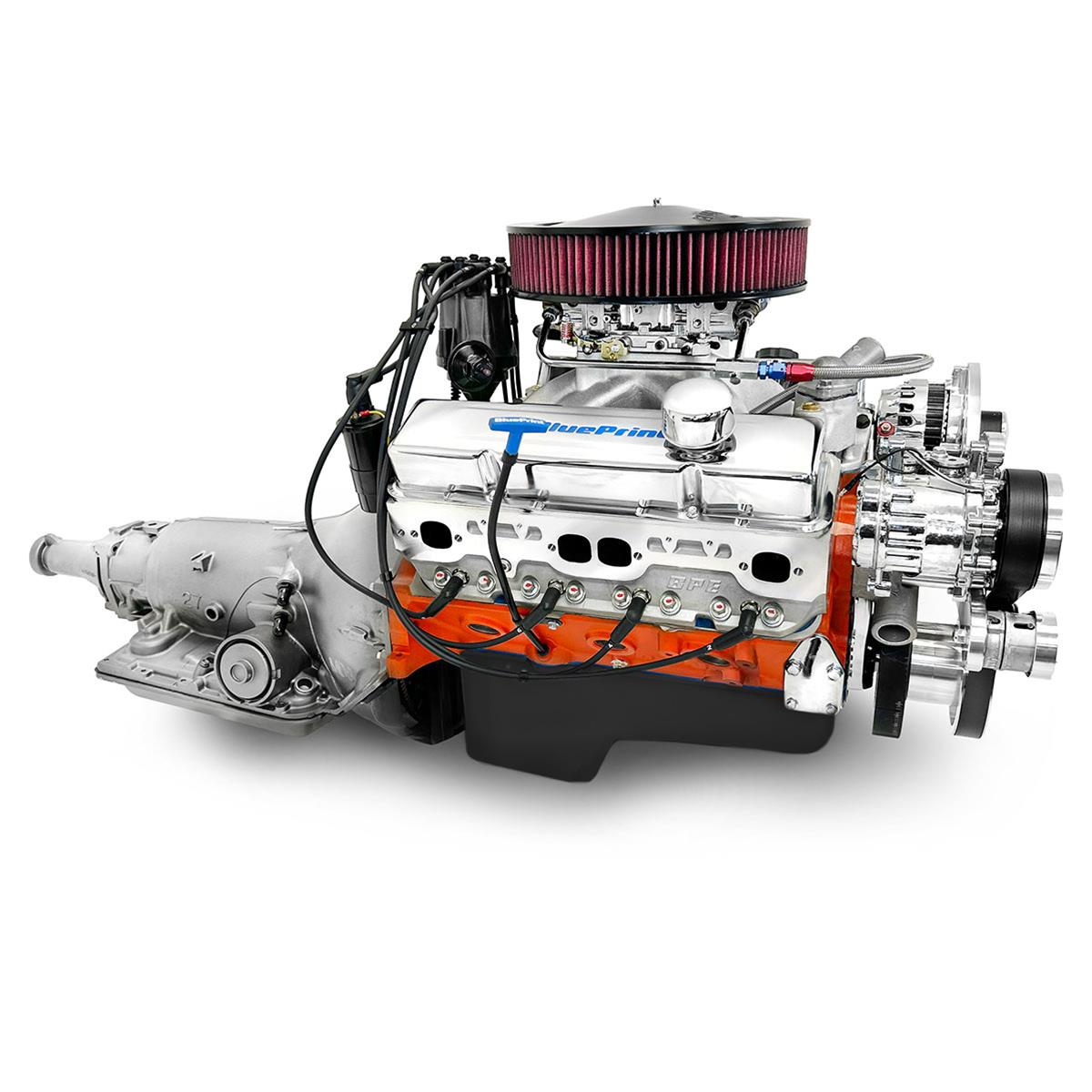

BluePrint Builder Series 454/563HP Standard Edition EFI Crate Engine and TKX Transmission Combos B454FKTKX 454 c.i. Series, Fuel Injected, Manual /w Polished Pulley Kit. Incl. 30 month/50,000 warranty & Dyno
BluePrint Builder Series 454/563HP Standard Edition EFI Crate Engine and TKX Transmission Combos B454FKTKX 454 c.i. Series, Fuel Injected, Manual /w Polished Pulley Kit. Incl. 30 month/50,000 warranty & Dyno
A$50,120.94
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
BluePrint Standard Edition Builder Series combos pair engine and transmission, eliminating guesswork, making it easier to gain the performance you desire. These combos match a fuel injected GM small block-compatible 454 c.i.d. engine with a TKX manual transmission enabling the production of 563 hp and 545 lb.-ft. of torque with a compression ratio of 10.5:1.
BluePrint high-strength cast iron engine block:
* 4.250 in. bore
* 4-bolt main
* One-piece rear main seal
* Drilled and tapped for clutch linkage
* Mechanical fuel pump provision
* Passenger side dipstick
Rotating assembly:
* BluePrint forged crankshaft
* Stroke: 4.000 in.
* Forged 6.00 in. connecting rods
* Forged pistons
* Internally balanced front and rear
BluePrint aluminum cylinder heads:
* 64cc chamber
* 2.08 in. intake/1.60 in. exhaust valves
* 220cc intake/67cc exhaust runners
* .500 raised port vs. OEM
Hydraulic roller camshaft:
* .638 in. intake/.622 in. exhaust valve lift
* 251 intake/259 exhaust duration at .050 in. of lift
* 114 degrees lobe separation angle (LSA)
Ignition timing:
* Initial timing 10 to 16 degrees, total timing 32 to 34 degrees
TKX transmission package:
* Mcleod Super Street Pro single disc clutch
* Hydraulic throwout bearing
* Bellhousing
* Billet flywheel
* Starter
-- First gear ratio: 2.87:1
-- Second gear ratio: 1.89:1
-- Third gear ratio: 1.28:1
-- Fourth gear ratio: 1.00:1
-- Fifth gear ratio: 0.81:1
Also included:
* Holley Sniper 2 EFI system
* Aluminum single plane intake manifold
* Pro Series Ready Run distributor
* EFI fuel pump kit
* Thermostat and thermostat housing
* Valve covers
* Spark plugs and wires
* Timing cover
* Oil pan
* Polished front accessory drive:
-- Reverse rotation short water pump
-- Type II power steering pump
-- Remote power steering pump reservoir
-- 140-amp one-wire alternator
-- 7B10 peanut-style air conditioning compressor
Part Type
Engine and Transmission Combos
Specifications
- Product Attributes - Brand
- BluePrint Engines
- Product Attributes - Manufacturer's Part Number
- B454FKTKX
- Product Attributes - Part Type
- Engine and Transmission Combos
- Product Attributes - Product Line
- BluePrint Builder Series 454/563HP Standard Edition EFI Crate Engine and TKX Transmission Combos
- Product Attributes - UPC
- 00887753983367
- Product Attributes - Crate Engine Family
- Chevy Small Block
- Product Attributes - Engine Assembly Style
- Long block
- Product Attributes - Assembled
- Yes
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Distributor Included
- Yes
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- Yes
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Torque Converter Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Computer Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Includes a Sniper 2 fuel injection system. Oil pan has a rear sump.
- Product Attributes - Special Attention
- Includes a polished finish accessory drive system with a reverse rotation short water pump, type II power steering pump, remote power steering reservoir, 140 amp 1-wire alternator, and a 7B10 peanut style air conditioning compressor.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllB454FKTKX |
| SFX Item ID | 5183175 |
| Supplier Item Code | 5183175 |
| Manufacturer SKU | B454FKTKX |
| Manufacturer UPC | 887753983367 |
| Alternative References | 454/563HP, month/50 |
