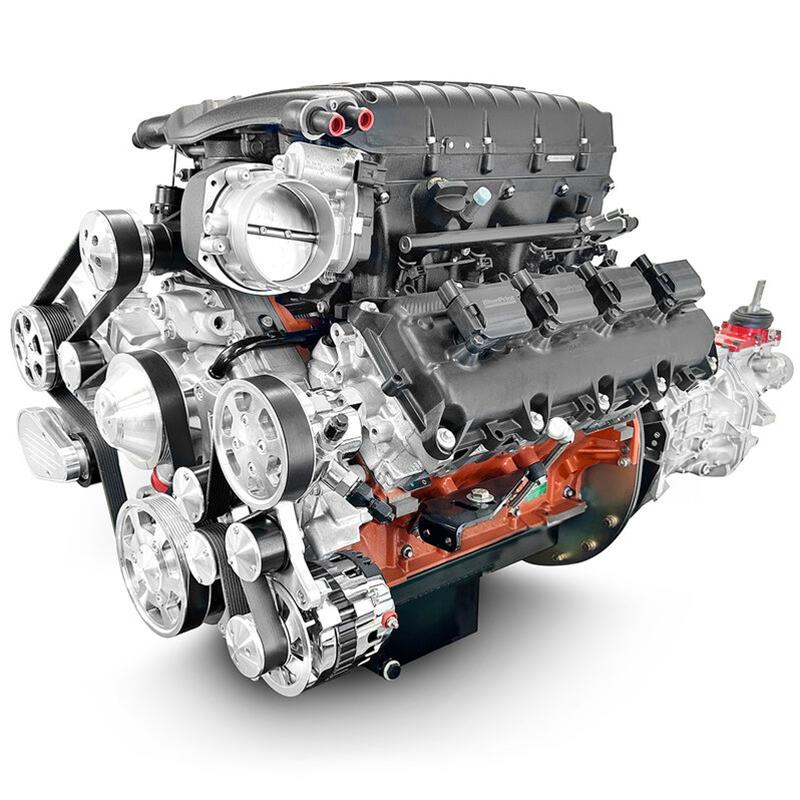

BluePrint Builder Series 426/872HP Supercharged Crate Engine/T56 Transmission Combos B426SCTKT56 426 c.i. Standard Edition Series, Supercharged, T56 Manual /w Polished Pulley Kit. Incl. 30 month/50,000 warranty & Dyno
BluePrint Builder Series 426/872HP Supercharged Crate Engine/T56 Transmission Combos B426SCTKT56 426 c.i. Standard Edition Series, Supercharged, T56 Manual /w Polished Pulley Kit. Incl. 30 month/50,000 warranty & Dyno
A$75,522.75
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
BluePrint's Standard Edition Builder Series combos pair engine and transmission, eliminating guesswork and making it easier to gain the performance you desire. These combos match a supercharged Chrysler Hemi-compatible 426 c.i.d. engine with a T-56 manual transmission enabling the production of an impressive 872 hp and 764 lb.-ft. of torque with a compression ratio of 10.48:1. They are available with a polished or black pulley kit. Select the one you like best.
BGE Hellcat engine block:
* 4.090 in. bore
* 4-bolt main
* One-piece rear main seal
Rotating assembly:
* Forged steel crankshaft
* Stroke: 4.050 in.
* 6.125 in. connecting rods
* Forged pistons
* Internally balanced front and rear
Gen III Hemi Apache aluminum cylinder heads:
* 73cc chamber
* 2.140 in. intake/1.65 in. exhaust valves
Hydraulic roller camshaft:
* .614 in. intake/.614 in. exhaust valve lift
* 231 intake/255 exhaust duration at .050 in. of lift
* 115.5 degrees lobe separation angle (LSA)
Ignition timing:
* Controlled by ECU
T56 6-speed transmission package:
* Mcleod Super Steel Pro dual disc clutch
* Bittel flywheel
* Steel bellhousing
* Engine guard
* Starter
-- First gear ratio: 2.66:1
-- Second gear ratio: 1.78:1
-- Third gear ratio: 1.30:1
-- Fourth gear ratio: 1.00:1
-- Fifth gear ratio: 0.80:1
-- Sixth gear ratio: 0.63:1
Also included:
* Whipple 3.0L supercharger
* Supercharger coolant reservoir
* Hellcat throttle body
* Harmonic balancer
* Muscle car-style mid-sump swap oil pan
* Spark plugs
* Coil
* Timing cover
* Valve covers
* Holley Terminator ECU controller kit and wiring harness
* Polished or black front accessory drive:
-- Water pump
-- Type II power steering pump
-- Remote power steering pump reservoir
-- 140-amp one-wire alternator
-- 7B10 peanut-style air conditioning compressor
Notes:
* Features 2013+ 58X reluctor wheel
* VVT locked out
* MDS eliminated
Part Type
Engine and Transmission Combos
Specifications
- Product Attributes - Brand
- BluePrint Engines
- Product Attributes - Manufacturer's Part Number
- B426SCTKT56
- Product Attributes - Part Type
- Engine and Transmission Combos
- Product Attributes - Product Line
- BluePrint Builder Series 426/872HP Supercharged Crate Engine/T56 Transmission Combos
- Product Attributes - UPC
- 00887753983305
- Product Attributes - Crate Engine Family
- Mopar Hemi Gen III
- Product Attributes - Engine Assembly Style
- Long block
- Product Attributes - Assembled
- Yes
- Product Attributes - Intake Manifold Included
- Yes
- Product Attributes - Carburetor Included
- No
- Product Attributes - Throttle Body Included
- Yes
- Product Attributes - Cylinder Heads Included
- Yes
- Product Attributes - Cylinder Head Material
- Cast aluminum
- Product Attributes - Distributor Included
- No
- Product Attributes - Oil Pan Included
- Yes
- Product Attributes - Valve Covers Included
- Yes
- Product Attributes - Timing Cover Included
- Yes
- Product Attributes - Water Pump Included
- Yes
- Product Attributes - Harmonic Balancer Included
- Yes
- Product Attributes - Spark Plugs Included
- Yes
- Product Attributes - Spark Plug Wires Included
- No
- Product Attributes - Flexplate Included
- No
- Product Attributes - Flywheel Included
- Yes
- Product Attributes - Transmission Controller Included
- No
- Product Attributes - Torque Converter Included
- No
- Product Attributes - Wiring Harness Included
- Yes
- Product Attributes - Computer Included
- Yes
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Notes
- Features a 3.0L Gen 5 Whipple supercharger. Oil pan has a middle sump.
Reference Information
| Brand Name/s | Blueprint Engines |
|---|---|
| StreetFX SKU | mllB426SCTKT56 |
| SFX Item ID | 5183164 |
| Supplier Item Code | 5183164 |
| Manufacturer SKU | B426SCTKT56 |
| Manufacturer UPC | 887753983305 |
| Alternative References | 426/872HP, Engine/T56, T56, month/50 |
