Mishimoto 04-11 Mazda RX8 Primary Replacement Oil Line
Mishimoto 04-11 Mazda RX8 Primary Replacement Oil Line
Sale ends in Calculating...
Description
The Mazda RX8 has a high-winding rotary engine capable of easy reaching 9,000RPMs on a daily basis. With those revs comes very high oil temperatures. Most RX8 models with manual transmissions were outfitted with dual oil coolers from the factory to keep the rotary engine's oil at a safe temperature during high speed driving and track situations. Unfortunately, over time, the stock rubber oil lines and steel fittings can severely corrode and degrade over time. The most frequent line to corrode is located on the left hand side of the car near the front suspension assembly. The design of the vehicle and location of the line are apt to collect dirt and road salt from winter. With the Mishimoto replacement oil line, not only is this problematic line replaced, it's replaced with a full braided stainless steel oil line and aluminum M18 -- 10AN banjo fittings that will not corrode or break down over time. The oil line fits onto the vehicle with no additional modification, and does not require any cutting to your vehicle or permanent removal of parts. Keep you RX8 protected and running smooth! As with all our products, this kit includes the Mishimoto Lifetime Warranty.
Product Overview
The Mazda RX8 has a high-winding rotary engine capable of easy reaching 9,000RPMs on a daily basis. With those revs comes very high oil temperatures. Most RX8 models with manual transmissions were outfitted with dual oil coolers from the factory to keep the rotary engine's oil at a safe temperature during high speed driving and track situations. Unfortunately, over time, the stock rubber oil lines and steel fittings can severely corrode and degrade over time. The most frequent line to corrode is located on the left hand side of the car near the front suspension assembly. The design of the vehicle and location of the line are apt to collect dirt and road salt from winter. With the Mishimoto replacement oil line, not only is this problematic line replaced, it's replaced with a full braided stainless steel oil line and aluminum M18 -- 10AN banjo fittings that will not corrode or break down over time. The oil line fits onto the vehicle with no additional modification, and does not require any cutting to your vehicle or permanent removal of parts. Keep you RX8 protected and running smooth! As with all our products, this kit includes the Mishimoto Lifetime Warranty.
Features and Benefits
- Direct-fit replacement for the 2004-2008 Mazda RX-8

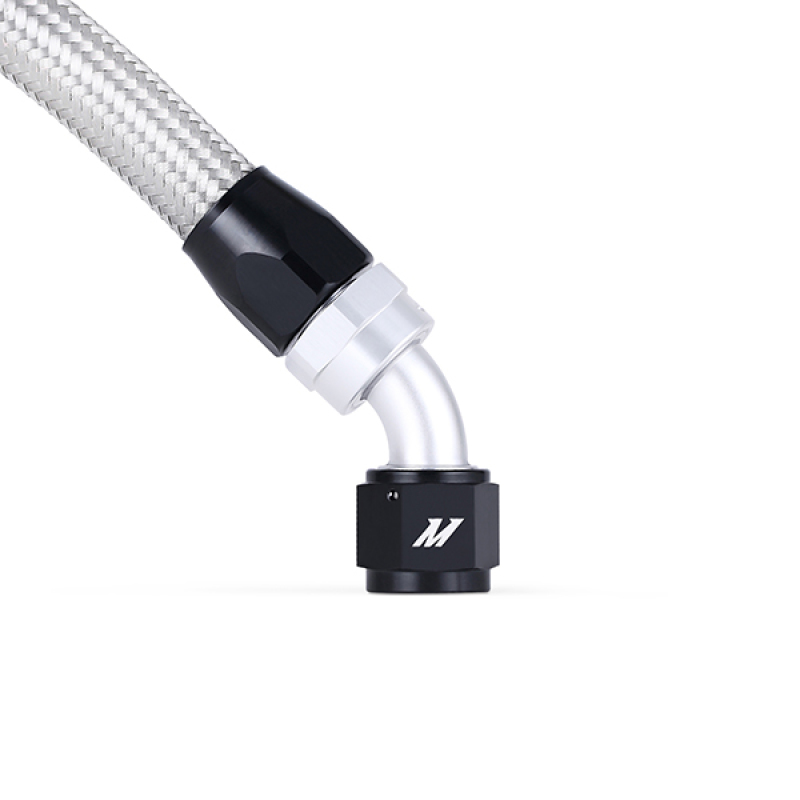

- Premade braided stainless steel oil line and aluminum fittings replace corrosion-prone stock rubber
- Kit comes with the braided stainless steel line, M18 banjo bolts, and oil seals for a trouble-free i
- Mishimoto Lifetime Warranty
Product Details
| Alternate Part Number: | MMSBH-RX8-04 |
|---|---|
| Color: | Black |
| Description: | Mazda RX8 Primary Replacement Oil Line |
| Feature Bullet 1: | Direct-fit replacement for the 2004--2011 Mazda RX-8 |
| Feature Bullet 2: | Premade braided stainless steel oil line and aluminum fittings replace corrosion-prone stock rubber |
| Feature Bullet 3: | Kit comes with the braided stainless steel line, M18 banjo bolts, and oil seals for a trouble-free i |
| Feature Bullet 4: | Mishimoto Lifetime Warranty |
| Finish: | Stainless |
| Install Difficulty: | 4 |
| Installation Difficulty: | 4/5 |
| Material: | Stainless Steel Braid |
| Part Number: | misMMSBH-RX8-04 |
| SellingPoint01: | Direct-fit replacement for the 2004-2008 Mazda RX-8 |
| SellingPoint02: | Premade braided stainless steel oil line and aluminum fittings replace corrosion-prone stock rubber line |
| SellingPoint03: | Kit comes with the braided stainless steel line, M18 banjo bolts, and oil seals for a trouble-free installation |
| SellingPoint04: | Mishimoto Lifetime Warranty |
| SellingPoint05: | N/A |
| SellingPoint06: | N/A |
| SellingPoint07: | N/A |
| SellingPoint08: | N/A |
| SellingPoint09: | N/A |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| Size: | -10AN |
| TechSpec Compatible Fluids: | N/A |
| TechSpec Fitting Angle: | N/A |
| TechSpec Inlet: | N/A |
| TechSpec Inner Material: | N/A |
| TechSpec Max Fluid Pressure (PSI): | N/A |
| TechSpec MaxFluidTemperature (F): | N/A |
| TechSpec Note: | This oil line kit is designed to work with the stock oil coolers located in the front bumper. Supplied M18 banjo bolts and M18 straight fittings are designed to attach to your stock oil cooler. Make sure to check oil levels after installation and add oil if needed.----Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Outlet: | N/A |
| TechSpec PurchaseIncludes: | 2-ft 4-in Stainless Steel Braided Hose w/ 90 Degree -10AN Fittings--M18 x -10AN Banjo Bolts w/ Dowty Oil Seals--Mishimoto Lifetime Warranty |
Application Summary
2008 Mazda RX-8 40th Anniversary Edition 1.3 Liter, 2008 Mazda RX-8 40th Anniversary Edition 1.3 Liter, 2004-2007 Mazda RX-8 Base 1.3 Liter, 2004-2007 Mazda RX-8 Base 1.3 Liter, 2008-2011 Mazda RX-8 Grand Touring 1.3 Liter, 2008-2011 Mazda RX-8 Grand Touring 1.3 Liter, 2009-2011 Mazda RX-8 R3 1.3 Liter, 2005 Mazda RX-8 Shinka 1.3 Liter, 2005 Mazda RX-8 Shinka 1.3 Liter, 2008-2011 Mazda RX-8 Sport 1.3 Liter, 2008-2011 Mazda RX-8 Sport 1.3 Liter, 2008-2009 Mazda RX-8 Touring 1.3 Liter, 2008-2009 Mazda RX-8 Touring 1.3 Liter
Part Type
Engine Oil Cooler Line
Features
- Direct-fit replacement for the 2004-2008 Mazda RX-8
- Kit comes with the braided stainless steel line, M18 banjo bolts, and oil seals for a trouble-free installation
- Premade braided stainless steel oil line and aluminum fittings replace corrosion-prone stock rubber line
Specifications
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Manufacturer's Part Number
- MMSBH-RX8-04
- Product Attributes - Part Type
- Oil Lines and Kits
- Product Attributes - UPC
- 748354021875
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMSBH-RX8-04 |
| SFX Item ID | 4050386 |
| Supplier Item Code | 4050386 |
| Manufacturer SKU | MMSBH-RX8-04 |
| Manufacturer UPC | 748354021875 |
| Alternative References | mio-mmsbh-rx8-04, rx8, MIMMMSBH-RX8-04 |
Compatibility
2008 Mazda RX-8 40th Anniversary Edition 1.3 Liter, 2008 Mazda RX-8 40th Anniversary Edition 1.3 Liter, 2004-2007 Mazda RX-8 Base 1.3 Liter, 2004-2007 Mazda RX-8 Base 1.3 Liter, 2008-2011 Mazda RX-8 Grand Touring 1.3 Liter, 2008-2011 Mazda RX-8 Grand Touring 1.3 Liter, 2009-2011 Mazda RX-8 R3 1.3 Liter, 2005 Mazda RX-8 Shinka 1.3 Liter, 2005 Mazda RX-8 Shinka 1.3 Liter, 2008-2011 Mazda RX-8 Sport 1.3 Liter, 2008-2011 Mazda RX-8 Sport 1.3 Liter, 2008-2009 Mazda RX-8 Touring 1.3 Liter, 2008-2009 Mazda RX-8 Touring 1.3 Liter
