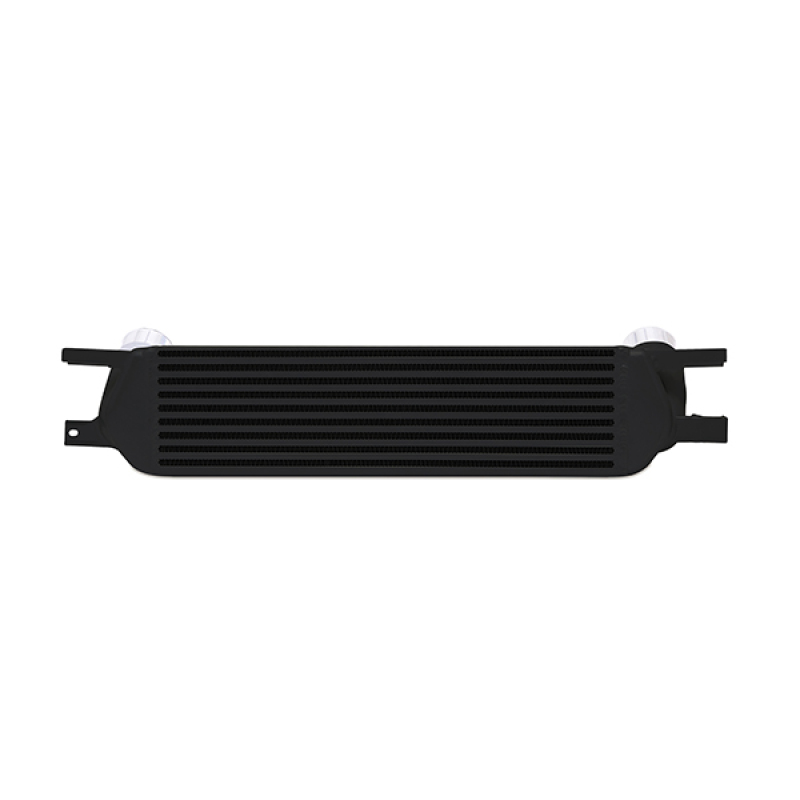

Mishimoto 2015 Ford Mustang EcoBoost Front-Mount Intercooler - Black
Mishimoto 2015 Ford Mustang EcoBoost Front-Mount Intercooler - Black
Sale ends in Calculating...
A$1,399.75
A$2,012.71
LAST ONE! Est Ship 3-5 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercoolers also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This intercooler is a direct-fit unit requires no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercooler. The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 F (19.45 C) with minimal pressure loss, has a 25% increase in core volume and 165% increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-welding and is available with a Sleek Silver or Stealth Black finish. As with all our products, the Mishimoto Mustang EcoBoost Performance Intercooler includes the Mishimoto Lifetime Warranty.
Product Overview
For the first time in over 30 years, the iconic Ford Mustang is available with a turbocharged 4-cylinder engine producing over 300 horsepower! Turbocharged 4-cylinder engines produce extremely hot charge air temperatures very quickly within a few laps on the track or aggressive street driving and stock tube-and-fin intercoolers also heat soak very easily. Mishimoto has developed a highly efficient bar-and plate intercooler engineered specifically for the Mustang EcoBoost to keep your air intake temperatures consistently low, run after run. This intercooler is a direct-fit unit requires no modification to your Mustang. The Engineers at Mishimoto designed this intercooler to fit with the stock active grille shutters, as well as prevent airflow blockage to the radiator and AC condenser by mounting it in the stock location. This cooler is constructed with cast end tanks that are CFD tested for maximum airflow and includes an in-tank air diverter, on the hot side, to provide optimal flow through the intercooler. The Mustang EcoBoost Performance Intercooler reduces intake temperatures by 35 F (19.45 C) with minimal pressure loss, has a 25-percent increase in core volume and 165-percent increase in external fin surface area, providing maximum cooling for your Mustang. This intercooler features precision TIG-welding and is available with a Sleek Silver or Stealth Black finish. As with all our products, the Mishimoto Mustang EcoBoost Performance Intercooler includes the Mishimoto Lifetime Warranty.
Features and Benefits
- Direct fit for the 2015-2023 Ford Mustang EcoBoost
- 35°F (19.45°C) reduction in AIT
- 58% increase in core size
- 25% increase in internal core volume & 165% increase in external fin surface area
- All-aluminum, TIG-welded
- Cast end tanks and in-tank diverter provide optimal flow through intercooler
- Bar-and-plate construction
- Stock location prevents airflow blockage to radiator and AC condenser
- Installs in under 2 hours without having to remove front bumper cover
- Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower
- Available in Sleek Silver or Stealth Black
- Fits with the Mishimoto Mustang EcoBoost Oil Cooler Kit
- CARB EO #: D-759
- Mishimoto Lifetime Warranty
Product Details
| Alternate Part Number: | MINTMUS415BK |
|---|---|
| CARB EO Number: | D-759 |
| Color: | Black |
| Description: | Ford Mustang EcoBoost Performance Intercooler |
| Finish: | Powder-Coat |
| Install Difficulty: | 3 |
| Installation Difficulty: | 3/5 |
| Material: | Aluminum |
| OptionLabel: | Black |
| Part Number: | misMMINT-MUS4-15BK |
| SellingPoint01: | Direct fit for the 2015-2023 Ford Mustang EcoBoost |
| SellingPoint02: | 35 F (19.45 C) reduction in AIT |
| SellingPoint03: | 58-percent increase in core size |
| SellingPoint04: | 25-percent increase in internal core volume and 165-percent increase in external fin surface area |
| SellingPoint05: | Cast end tanks and in-tank diverter provide optimal flow through intercooler |
| SellingPoint06: | Stock location prevents airflow blockage to radiator and AC condenser |
| SellingPoint07: | Installs in under 2 hours without having to remove front bumper cover |
| SellingPoint08: | Retains stock active grille shutters, maintaining ideal aerodynamics when cooling demands are lower |
| SellingPoint09: | Bar-and-plate construction |
| SellingPoint10: | All-aluminum, TIG-welded |
| SellingPoint11: | Available in Sleek Silver or Stealth Black |
| SellingPoint12: | Fits with the Mishimoto Mustang EcoBoost Oil Cooler Kit |
| SellingPoint13: | Mishimoto Lifetime Warranty |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | 2015-2023 Ford Mustang EcoBoost |
| TechSpec Centerline Radius: | N/A |
| TechSpec Chassis Codes: | S550 |
| TechSpec Core Height (in): | 5.75 |
| TechSpec Core Length (in): | 21.06 |
| TechSpec Core Thickness (in): | N/A |
| TechSpec Core Type: | Bar-and-Plate |
| TechSpec Engine Codes: | 2.3L EcoBoost |
| TechSpec Includes: | (1) Mishimoto Intercooler--(1) M6 x 1.0 x 20 Flange Bolt--(1) M4 x 0.7 x 12 Button Head Bolt--(1) M4 Lock Washer--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in): | 2.56 |
| TechSpec Installation Notes: | N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI): | N/A |
| TechSpec Maximum Recommended Horsepower: | 550 |
| TechSpec Note: | N/A |
| TechSpec Outlet (in): | 2.56 |
| TechSpec Overall Height (in): | 6.8 |
| TechSpec Overall Length (in): | 30.3 |
| TechSpec Overall Width (in): | 8 |
| TechSpec Pipe Diameter: | N/A |
| TechSpec Pipe Length: | N/A |
| TechSpec Pipe Shape: | N/A |
| TechSpec Weight (lbs): | N/A |
Application Summary
2015 Ford Mustang EcoBoost 2.3 Liter, 2015 Ford Mustang EcoBoost 2.3 Liter, 2015 Ford Mustang EcoBoost Premium 2.3 Liter 6R80, 2015 Ford Mustang EcoBoost Premium 2.3 Liter MT82
Part Type
Intercooler
Features
- 25-percent increase in internal core volume and 165-percent increase in external fin surface area
- 35 F (19.45 C) reduction in AIT
- 58-percent increase in core size
Specifications
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Manufacturer's Part Number
- MMINT-MUS4-15BK
- Product Attributes - Part Type
- Intercoolers
- Product Attributes - Product Line
- Mishimoto Intercoolers
- Product Attributes - UPC
- 748354019056
- Product Attributes - Intercooler Core Type
- Air-to-air
- Product Attributes - Intercooler Material
- Aluminum
- Product Attributes - Intercooler Color
- Black
- Product Attributes - Intercooler Width Range (in.)
- 30.00-30.99 in.
- Product Attributes - Intercooler Height Range (in.)
- 6.00-6.99 in.
- Product Attributes - Intercooler Width (in.)
- 30.30 in.
- Product Attributes - Intercooler Height (in.)
- 6.80 in.
- Product Attributes - Intercooler Depth (in.)
- 8.00 in.
- Product Attributes - Intercooler Inlet
- Slip fit
- Product Attributes - Intercooler Inlet Size
- 2.560 in.
- Product Attributes - Intercooler Outlet
- Slip fit
- Product Attributes - Intercooler Outlet Size
- 2.560 in.
- Product Attributes - Intercooler Mounting Brackets Included
- Yes
- Product Attributes - Intercooler Pipe Included
- No
- Product Attributes - Aftercooler Included
- No
- Product Attributes - Aftercooler Remote Water Reservoir Included
- No
- Product Attributes - Remote Mount Electric Water Pump Included
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMINT-MUS4-15BK |
| SFX Item ID | 4050304 |
| Supplier Item Code | 4050304 |
| Manufacturer SKU | MMINT-MUS4-15BK |
| Manufacturer UPC | 748354019056 |
| Alternative References | mio-mintmus415bk, MIMMMINT-MUS4-15BK |
Compatibility
2015 Ford Mustang EcoBoost 2.3 Liter, 2015 Ford Mustang EcoBoost 2.3 Liter, 2015 Ford Mustang EcoBoost Premium 2.3 Liter 6R80, 2015 Ford Mustang EcoBoost Premium 2.3 Liter MT82
