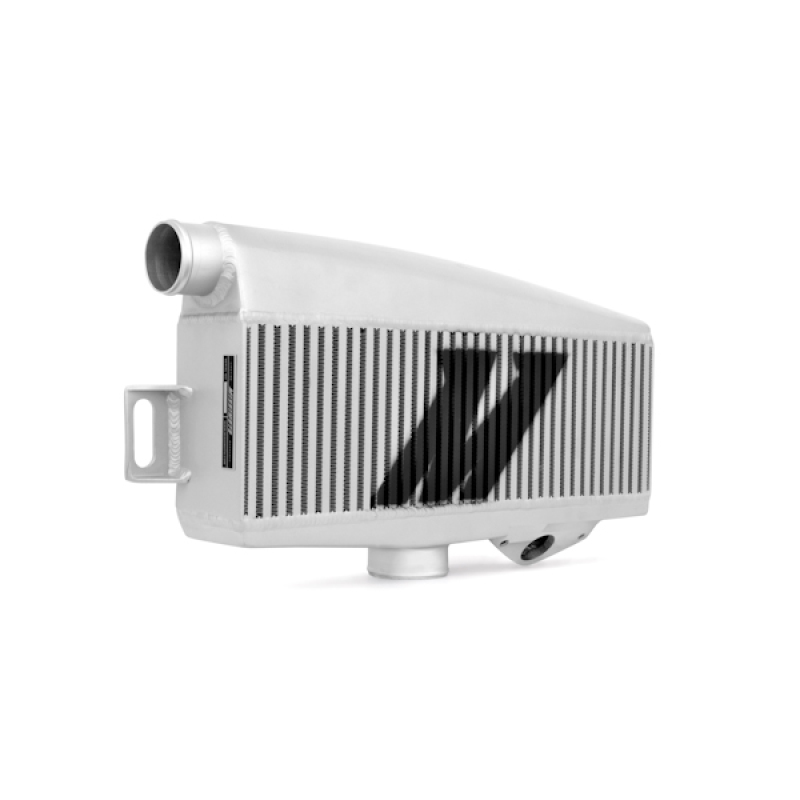

Mishimoto Subaru 02-07 WRX/04-07 STi Top-Mount Intercooler Kit - Powder Coated Silver & Red Hoses
Mishimoto Subaru 02-07 WRX/04-07 STi Top-Mount Intercooler Kit - Powder Coated Silver & Red Hoses
A$1,920.66
LOW STOCK! Est Ship 3-5 days.
HURRY! LOW STOCK. This item is in limited stock at one of our distribution centres. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core, a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details, check out the engineering report! Thanks to a precision engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Product Overview
Subaru WRX/STI Top-Mount Intercooler Kit provides a unique option for upgrading your charge air system. This kit utilizes a single entry inlet compared to the stock Y-pipe setup. This unique tank design provides maximum airflow and superior air dispersion through the core, a process which results in optimal AIT reduction. This intercooler uses a high efficiency bar-and-plate core which provides increased volume and improved heat transfer. The kit is completely bolt-on, requiring zero modifications to your vehicle. The Mishimoto intercooler kit includes silicone bypass hoses for both the WRX and STI, a silicone crankcase ventilation hose, a bypass valve gasket, a silicone throttle body hose, and all the T-bolt clamps and hardware necessary for installation. This intercooler kit has endured rigorous testing on both stock and modified vehicles and has proven to increase power and reduce air intake temperatures. On our 305 hp test vehicle running 20-22 psi of boost, this intercooler provided a 14 hp increase and a 30 degree drop in AITs compared to the stock STI intercooler-- for more testing details, check out the engineering report! Thanks to a precision engineered and tested core construction, this intercooler will support vehicles with up to 350 hp. This kit is available with either a Stealth Black or Sleek Silver cooler and includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Product Details
| Alternate Part Number: | TMIWRX01SLRD |
|---|---|
| CARB EO Number: | D-759 |
| Color: | Silver / Red |
| Description: | Subaru WRX/STI Performance Top-Mount Intercooler Kit |
| Finish: | Powder-Coat |
| Install Difficulty: | 3 |
| Installation Difficulty: | 3/5 |
| Material: | Aluminum |
| OptionLabel: | Silver Intercooler, Red Hoses |
| Part Number: | misMMTMIC-WRX-01SLRD |
| SellingPoint01: | Direct fit for the 2002-2007 Subaru WRX/STI |
| SellingPoint02: | High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs |
| SellingPoint03: | Durable and precision engineered cast aluminum end tanks provide smooth flow |
| SellingPoint04: | Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation |
| SellingPoint05: | Unique single inlet design provides superior airflow and proper dispersion of air through the core |
| SellingPoint06: | Gained 14 hp and dropped intake temperatures 30 F when installed in 305 hp vehicle with 20-22 psi of boost |
| SellingPoint07: | Will support vehicles with up to 350 hp |
| SellingPoint08: | Available in Sleek Silver or Stealth Black finish |
| SellingPoint09: | Mishimoto Lifetime Warranty |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | Saab 9-2X H4 (2.0L) 2005--Saab 9-2X H4 (2.5L) 2006--Subaru WRX H4 (2.0) 2002-2005--Subaru WRX H4 (2.5) 2006-2007--Subaru WRX STI H4 (2.5) 2004-2007 |
| TechSpec Centerline Radius: | N/A |
| TechSpec Chassis Codes: | GD6--GG6 |
| TechSpec Core Height (in): | 6 |
| TechSpec Core Length (in): | 19 |
| TechSpec Core Thickness (in): | 3.5 |
| TechSpec Core Type: | Bar-and-Plate |
| TechSpec Engine Codes: | EJ20--EJ25 |
| TechSpec Includes: | (1) Bar-and-Plate Intercooler--(5) Silicone Hoses and Couplers--(1) High-Temp Silicone hose--(2) 3-in T-bolt Clamps--(1) 2.75-in T-bolt Clamp--(1) 2.25-in T-bolt Clamp--(1) Bypass Valve Gasket--(1) Black Nylon Hose Fitting, 3/4-in I.D.--(1) Black Nylon Tee Hose Fitting, 3/4-in I.D.--(1) WRX specific BPV hose--(1) STI specific BPV hose--(1) Intercooler to throttle body coupler--(1) PCV hose |
| TechSpec Inlet (in): | 2.5 |
| TechSpec Installation Notes: | N/A |
| TechSpec Maximum Recommended Boost Pressure (PSI): | 22 |
| TechSpec Maximum Recommended Horsepower: | 305 |
| TechSpec Note: | This kit is rated for approximately 350 whp, or 25PSI of turbo boost. Exceeding these horsepower or pressure limits may require a larger front-mount intercooler. This intercooler kit will not fit RHD vehicles. |
| TechSpec Outlet (in): | 2.75 |
| TechSpec Overall Height (in): | 11.25 |
| TechSpec Overall Length (in): | 22.25 |
| TechSpec Overall Width (in): | 3.625 |
| TechSpec Pipe Diameter: | N/A |
| TechSpec Pipe Length: | N/A |
| TechSpec Pipe Shape: | N/A |
| TechSpec Weight (lbs): | 17.25 |
Application Summary
2002-2005 Subaru Impreza WRX 2.0 Liter TV1A4, 2002-2005 Subaru Impreza WRX 2.0 Liter TY754, 2006-2007 Subaru Impreza WRX 2.5 Liter TV1B4, 2006-2007 Subaru Impreza WRX 2.5 Liter TY754, 2006-2007 Subaru Impreza WRX Limited 2.5 Liter TV1B4, 2006-2007 Subaru Impreza WRX Limited 2.5 Liter TY754, 2004-2007 Subaru Impreza WRX STI 2.5 Liter TY856, 2007 Subaru Impreza WRX STI Limited 2.5 Liter TY856, 2006-2007 Subaru Impreza WRX TR 2.5 Liter TY754
Part Type
Intercooler Kit
Features
- Durable and precision engineered cast aluminum end tanks provide smooth flow
- High efficiency bar-and-plate core provides increased volume, optimal heat transfer, and significantly reduces AITs
- Includes silicone bypass hose, silicone crankcase ventilation hose, bypass valve gasket, T-bolt clamps, and all hardware for installation
Specifications
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Manufacturer's Part Number
- MMTMIC-WRX-01SLRD
- Product Attributes - Part Type
- Intercoolers
- Product Attributes - UPC
- 748354011043
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMTMIC-WRX-01SLRD |
| SFX Item ID | 4050097 |
| Supplier Item Code | 4050097 |
| Manufacturer SKU | MMTMIC-WRX-01SLRD |
| Manufacturer UPC | 748354011043 |
| Alternative References | mio-tmiwrx01slrd, MIMMMTMIC-WRX-01SLRD, WRX/04-07 |
Compatibility
2002-2005 Subaru Impreza WRX 2.0 Liter TV1A4, 2002-2005 Subaru Impreza WRX 2.0 Liter TY754, 2006-2007 Subaru Impreza WRX 2.5 Liter TV1B4, 2006-2007 Subaru Impreza WRX 2.5 Liter TY754, 2006-2007 Subaru Impreza WRX Limited 2.5 Liter TV1B4, 2006-2007 Subaru Impreza WRX Limited 2.5 Liter TY754, 2004-2007 Subaru Impreza WRX STI 2.5 Liter TY856, 2007 Subaru Impreza WRX STI Limited 2.5 Liter TY856, 2006-2007 Subaru Impreza WRX TR 2.5 Liter TY754
