Mishimoto 94-02 Dodge Ram w/ 5.9L Cummins Engine Aluminum Performance Radiator

SKU: MISMMRAD-RAM-94

Radiators

MM Radiators - Alum...

Mishimoto

Mishimoto 94-02 Dodge Ram w/ 5.9L Cummins Engine Aluminum Performance Radiator

SKU: MISMMRAD-RAM-94

Radiators

MM Radiators - Alum...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

Mishimoto has released a direct-fit performance aluminum radiator for the 1994-2002 Dodge 5.9L Cummins.A high-performance truck needs a cooling system that can keep up with the constant abuse of towing, hauling, and runs on the drag strip.Mishimoto radiators feature a brazed aluminum core with TIG-welded end tanks for superior durability, reliability, and performance.Every Mishimoto performance radiator is a direct factory fit, making installation effortless with no cutting or modification required.Included with the Mishimoto Cummins aluminum radiator is our magnetic drain plug and signature lifetime warranty.

Product Overview

1994-2002 Dodge Ram 2500 5.9 Liter 46RE, 1994-1996 Dodge Ram 2500 5.9 Liter 46RH, 1994 Dodge Ram 2500 5.9 Liter 47RE, 1996-2002 Dodge Ram 2500 5.9 Liter 47RE, 1994-1995 Dodge Ram 2500 5.9 Liter 47RH, 1994-2002 Dodge Ram 2500 5.9 Liter NV4500, 1994-2002 Dodge Ram 2500 5.9 Liter NV4500HD, 1998-2002 Dodge Ram 2500 5.9 Liter NV5600, 1994 Dodge Ram 3500 5.9 Liter 46RE, 1996-2002 Dodge Ram 3500 5.9 Liter 46RE, 1995 Dodge Ram 3500 5.9 Liter 46RH, 1994 Dodge Ram 3500 5.9 Liter 47RE, 1996-2002 Dodge Ram 3500 5.9 Liter 47RE, 1995 Dodge Ram 3500 5.9 Liter 47RH, 1994-2001 Dodge Ram 3500 5.9 Liter NV3500, 1994-2002 Dodge Ram 3500 5.9 Liter NV4500, 1997-2001 Dodge Ram 3500 5.9 Liter NV4500HD, 1998-2002 Dodge Ram 3500 5.9 Liter NV5600

Features and Benefits

Direct fit for the 1994-2002 Dodge 5.9L 12V/24V Cummins

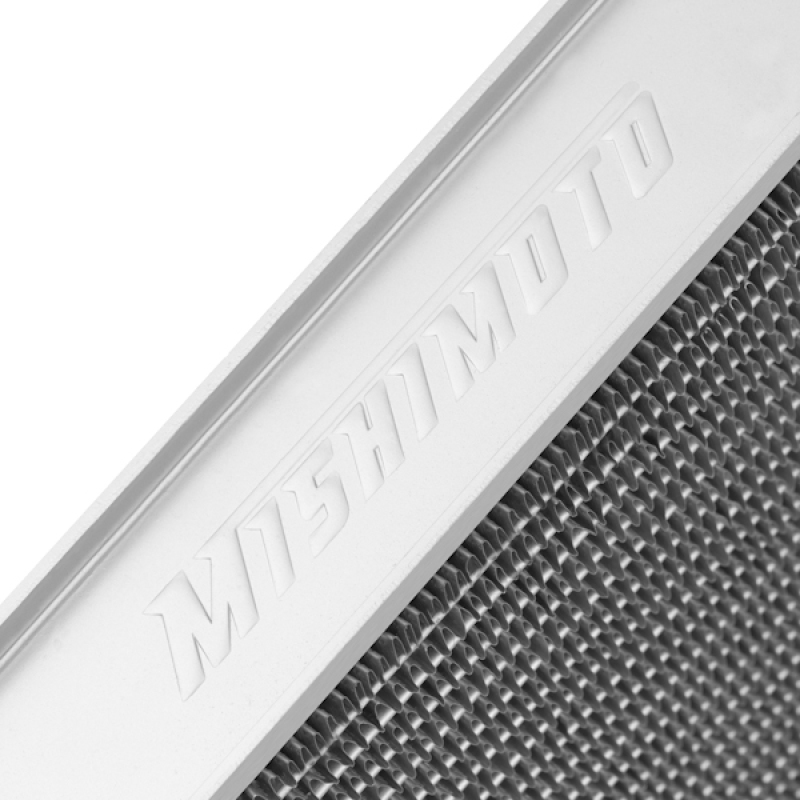

Full aluminum construction including durable, TIG-welded end tanks
Features a three-row, 2.44-in thick, efficient brazed aluminum core
Increased fluid capacity and optimal heat dissipation
Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions
Efficient temperature regulation for both stock and modified trucks
Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
Includes new fan shroud bolts
Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system

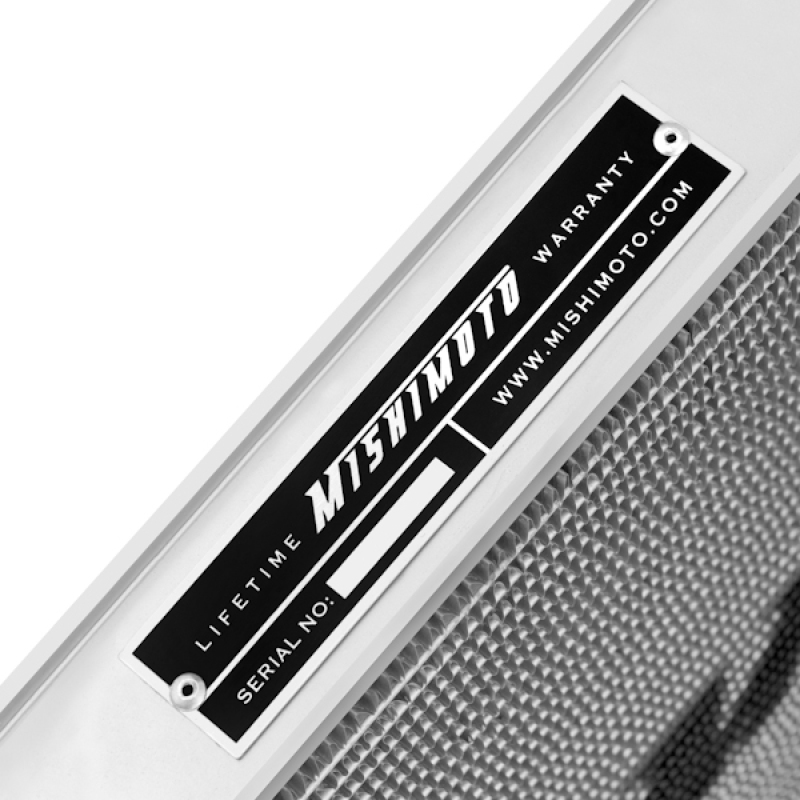

Mishimoto Lifetime Warranty

Product Details

Alternate Part Number:	MMRAD-RAM-94
Description:	Dodge 5.9L Cummins Aluminum Radiator
Install Difficulty:	3
Installation Difficulty:	3
Material:	Aluminum
Part Number:	misMMRAD-RAM-94
SellingPoint01:	Direct fit for the 1994-2002 Dodge 5.9L 12V/24V Cummins
SellingPoint02:	Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03:	Features a three-row, 2.44-in thick, efficient brazed aluminum core
SellingPoint04:	Increased fluid capacity and optimal heat dissipation
SellingPoint05:	Provides efficient temperature reduction for towing, hauling, or during aggressive driving conditions
SellingPoint06:	Efficient temperature regulation for both stock and modified trucks
SellingPoint07:	Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08:	Includes new fan shroud bolts
SellingPoint09:	Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint10:	Mishimoto Lifetime Warranty
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
Size:	45.4in x 21.9in x 4.8in
TechSpec Applications:	1994-2002 Dodge Ram 2500--1994-2002 Dodge Ram 3500--1998 Dodge Ram 2500 Quad Cab--1998 Dodge Ram 3500 Quad Cab--1998 Dodge Ram 2500 Club Cab--2001 Dodge Ram 3500 Quad Cab
TechSpec Chassis Codes:	N/A
TechSpec Core Height (in):	19.21
TechSpec Core Length (in):	36.42
TechSpec Core Thickness (in):	2.44
TechSpec DPI:	1553
TechSpec Drain Plug Thread Size:	M12 x 1.5
TechSpec Engine Codes:	N/A
TechSpec Fluid Capacity (gal):	6.78
TechSpec Includes:	Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--(4) M6 x 1.0 Fan Shroud Bolts--Mishimoto Lifetime Warranty
TechSpec Inlet (in):	1.77
TechSpec Material:	Aluminum
TechSpec Note:	This radiator now includes (4) M6x1.0 bolts to connect the fan shroud to the radiator. If you did not receive these bolts please do not reinstall your stock bolts and contact our customer service team
TechSpec Outlet (in):	1.97
TechSpec Overall Height (in):	21.9
TechSpec Overall Length (in):	45.4
TechSpec Overall Width (ins):	4.8
TechSpec Rows:	3

Application Summary

Part Type

Radiator

Data: v4.2 - Upd: 2026-10-13 18:12:14

Features

Features a three-row, 2.44-in thick, efficient brazed aluminum core
Full aluminum construction including durable, TIG-welded end tanks
Increased fluid capacity and optimal heat dissipation

Specifications

Product Attributes - UPC: 748666001367
Product Attributes - Brand: Mishimoto
Product Attributes - Notes: Includes a magnetic drain plug.
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Radiators
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Performance Radiators
Product Attributes - Row Quantity: 3
Product Attributes - Inlet Location: Upper driver side
Product Attributes - Radiator Style: Crossflow
Product Attributes - Outlet Location: Lower passenger side
Product Attributes - Radiator Finish: Natural
Product Attributes - Core Width (in.): 36.42 in.
Product Attributes - Core Height (in.): 19.21 in.
Product Attributes - Radiator Material: Aluminum
Product Attributes - Overall Width (in.): 45.40 in.
Product Attributes - Radiator Inlet Size: 1.770 in.
Product Attributes - Transmission Cooler: No
Product Attributes - Core Thickness (in.): 2.44 in.
Product Attributes - Overall Height (in.): 21.90 in.
Product Attributes - Radiator Outlet Size: 1.970 in.
Product Attributes - Radiator Cap Included: Yes
Product Attributes - Overall Thickness (in.): 4.80
Product Attributes - Manufacturer's Part Number: MMRAD-RAM-94
Product Attributes - Trans Cooler Adapter Fittings Included: No

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMRAD-RAM-94
SFX Item ID	4049404
Supplier Item Code	4049404
Manufacturer SKU	MMRAD-RAM-94
Manufacturer UPC	748666001367
Alternative References	mio-mmrad-ram-94, MIMMMRAD-RAM-94, 5.9L
