Mishimoto 2017+ Honda Civic Type R Secondary Race Radiator
Mishimoto 2017+ Honda Civic Type R Secondary Race Radiator
A$1,251.41
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
It's no secret now that while the 2017-2021 Civic Type R is designed to attack the track, it can?t always stand up to the heat. Nothing is quite as frustrating as having to cut your track time short, or pull off to the shoulder on a canyon carve due to simmering coolant. Luckily, Mishimoto is here to give the FK8's cooling system the backup it needs with our 2017-2021 Honda Civic Type R Secondary Race Radiator kit. Employing the use of one of our smaller, but efficient, radiator designs, we mounted an additional heat exchanger behind the K20C1 with robust steel brackets, tapping in after the Civic?s heater core. Utilizing the air flow generated through the engine bay the Secondary Race Radiator generates additional cooling power for the already overworked stock radiator, keeping you on the track longer. In addition to the supplementary cooling power, the 2017-2021 Honda Civic Type R Secondary Race Radiator also increases the overall coolant capacity. The Mishimoto Lifetime Warranty is also included with the radiator kit to keep your CTR cool and you worry free.
Product Overview
It's no secret now that while the 2017-2021 Civic Type R is designed to attack the track, it can?t always stand up to the heat. Nothing is quite as frustrating as having to cut your track time short, or pull off to the shoulder on a canyon carve due to simmering coolant. Luckily, Mishimoto is here to give the FK8's cooling system the backup it needs with our 2017-2021 Honda Civic Type R Secondary Race Radiator kit. Employing the use of one of our smaller, but efficient, radiator designs, we mounted an additional heat exchanger behind the K20C1 with robust steel brackets, tapping in after the Civic?s heater core. Utilizing the air flow generated through the engine bay the Secondary Race Radiator generates additional cooling power for the already overworked stock radiator, keeping you on the track longer. In addition to the supplementary cooling power, the 2017-2021 Honda Civic Type R Secondary Race Radiator also increases the overall coolant capacity. The Mishimoto Lifetime Warranty is also included with the radiator kit to keep your CTR cool and you worry free.
Features and Benefits
- Direct fit for the 2017-2021 Honda Civic Type R
- Utilizes factory aerodynamics for improved cooling efficiency
- Full aluminum construction with durable, TIG-welded end tanks
- Increases coolant capacity
- Mishimoto Lifetime Warranty
Product Details
| Description: | Mishimoto 2017+ Honda Civic Type R Secondary Race Radiator |
|---|---|
| Install Difficulty: | 3 |
| Part Number: | misMMRAD-CTR-17S |
| SellingPoint01: | Direct fit for the 2017-2021 Honda Civic Type R |
| SellingPoint02: | Incorporates additional radiator into factory cooling system for increased engine cooling |
| SellingPoint03: | Utilizes factory aerodynamics for airflow to unique mounting location |
| SellingPoint04: | Full aluminum construction with durable, TIG-welded end tanks |
| SellingPoint05: | Robust mounting bracket design for worry-free installation |
| SellingPoint06: | Increases coolant capacity |
| SellingPoint07: | Mishimoto Lifetime Warranty |
| SellingPoint08: | N/A |
| SellingPoint09: | N/A |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | 2017+ Honda Civic Type R |
| TechSpec Chassis Codes: | FK8 |
| TechSpec Core Height (in): | 5.04 |
| TechSpec Core Length (in): | 11.03 |
| TechSpec Core Thickness (in): | N/A |
| TechSpec DPI: | N/A |
| TechSpec Drain Plug Thread Size: | N/A |
| TechSpec Engine Codes: | K20C1 |
| TechSpec Fluid Capacity (gal): | 0.17 |

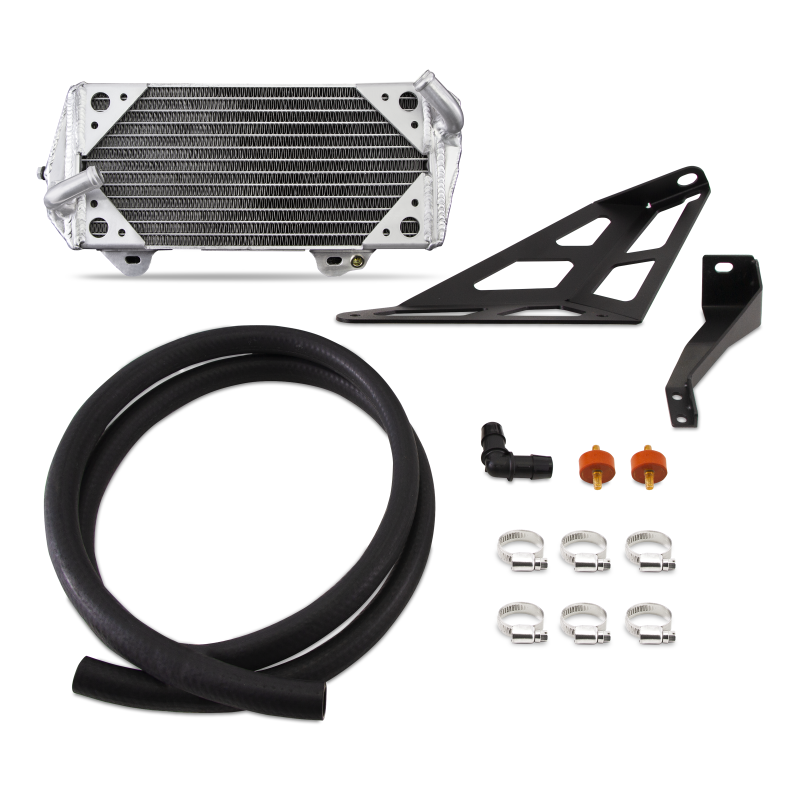

| TechSpec Includes: | Secondary Race Radiator-- Mounting Bracket Set-- Heater Hose-- 90 Barbed Hose Adapter--(6) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Inlet (in): | 0.63 |
| TechSpec Material: | Aluminum |
| TechSpec Note: | N/A |
| TechSpec Outlet (in): | 0.63 |
| TechSpec Overall Height (in): | N/A |
| TechSpec Overall Length (in): | N/A |
| TechSpec Overall Width (ins): | N/A |
| TechSpec Rows: | 1 |
Part Type
Radiator
Features
- Full aluminum construction with durable, TIG-welded end tanks
- Incorporates additional radiator into factory cooling system for increased engine cooling
- Utilizes factory aerodynamics for airflow to unique mounting location
Specifications
- Product Attributes - UPC
- 811580035159
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Part Type
- Radiators
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Race Radiators
- Product Attributes - Row Quantity
- 1
- Product Attributes - Inlet Location
- Upper passenger side
- Product Attributes - Radiator Style
- Crossflow
- Product Attributes - Outlet Location
- Lower driver side
- Product Attributes - Radiator Finish
- Natural
- Product Attributes - Core Width (in.)
- 11.03 in.
- Product Attributes - Core Height (in.)
- 5.04 in.
- Product Attributes - Radiator Material
- Aluminum
- Product Attributes - Radiator Inlet Size
- 0.630 in.
- Product Attributes - Transmission Cooler
- No
- Product Attributes - Radiator Outlet Size
- 0.630 in.
- Product Attributes - Radiator Cap Included
- No
- Product Attributes - Manufacturer's Part Number
- MMRAD-CTR-17S
- Product Attributes - Trans Cooler Adapter Fittings Included
- Yes
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMRAD-CTR-17S |
| SFX Item ID | 4049036 |
| Supplier Item Code | 4049036 |
| Manufacturer SKU | MMRAD-CTR-17S |
| Manufacturer UPC | 811580035159 |
| Alternative References | mio-mmradctr17s, MIMMMRAD-CTR-17S |
