Mishimoto 2017+ Honda Civic Type R Direct Fit Oil Cooler Kit - Black
Mishimoto 2017+ Honda Civic Type R Direct Fit Oil Cooler Kit - Black
Sale ends in Calculating...
A$1,502.86
A$2,051.26
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Nothing puts a damper on a day at the track with your 2017-2021 Honda Civic Type R quite like cutting your track time short due to overheating. It's no secret now that the FK8 struggles to keep the temperatures of its fluids at the correct level. We here at Mishimoto decided to take some of the heat off the K20C1 with the Honda Civic Type R Direct-Fit Oil Cooler Kit. Honda fitted this engine with a liquid-to-liquid stacked plate oil cooler from the factory. During normal driving on a factory tune, this can retain proper oil temperatures. However, once the CTR is put into the environment it was intended for, or with the addition of an aggressive tune, this stock unit can't keep up. The Mishimoto Direct-Fit Oil Cooler Kit gives the stock system a hand by adding a 19-row air-to-air cooler into the system, which utilizes the FK8?s sculpted and aero-centric front bumper to drop oil temperatures by 15?F. This cooler is held in place by a pair of application-specific brackets, designed to keep proper airflow through the front wheel well. Your Civic's oil is securely transported to and from the cooler by way of sturdy stainless steel braided lines featuring durable -AN fittings. The 2017-2021 Honda Civic Type R Oil Cooler Kit is available as a thermostatic kit to eliminate the potential of overcooling, and with the option of a silver or black cooler. As with all of our products, this kit also includes the Mishimoto Lifetime Warranty for a worry-free installation.
Product Overview
Nothing puts a damper on a day at the track with your 2017-2021 Honda Civic Type R quite like cutting your track time short due to overheating. It's no secret now that the FK8 struggles to keep the temperatures of its fluids at the correct level. We here at Mishimoto decided to take some of the heat off the K20C1 with the Honda Civic Type R Direct-Fit Oil Cooler Kit. Honda fitted this engine with a liquid-to-liquid stacked plate oil cooler from the factory. During normal driving on a factory tune, this can retain proper oil temperatures. However, once the CTR is put into the environment it was intended for, or with the addition of an aggressive tune, this stock unit can't keep up. The Mishimoto Direct-Fit Oil Cooler Kit gives the stock system a hand by adding a 19-row air-to-air cooler into the system, which utilizes the FK8?s sculpted and aero-centric front bumper to drop oil temperatures by 15?F. This cooler is held in place by a pair of application-specific brackets, designed to keep proper airflow through the front wheel well. Your Civic's oil is securely transported to and from the cooler by way of sturdy stainless steel braided lines featuring durable -AN fittings. The 2017-2021 Honda Civic Type R Oil Cooler Kit is available as a thermostatic kit to eliminate the potential of overcooling, and with the option of a silver or black cooler. As with all of our products, this kit also includes the Mishimoto Lifetime Warranty for a worry-free installation.
Features and Benefits
- Direct fit for the 2017-2021 Honda Civic Type R
- Reduces oil temperatures by 15 F
- Application-specific brackets designed to retain proper airflow to wheel well
- 19-row stacked plate oil cooler for optimal fluid temperature reduction
- Mishimoto Lifetime Warranty
Product Details
| Description: | Mishimoto 2017+ Honda Civic Type R Direct Fit Oil Cooler Kit - Black |
|---|---|
| Install Difficulty: | 3 |
| OptionLabel: | Black |
| Part Number: | misMMOC-CTR-17TBK |
| SellingPoint01: | Direct fit for the 2017-2021 Honda Civic Type R |
| SellingPoint02: | Reduces oil temperatures by 15F (8C) |
| SellingPoint03: | Minimal pressure drop |
| SellingPoint04: | Application specific brackets designed to retain proper airflow to wheel well |
| SellingPoint05: | Direct fit stainless steel braided oil lines with durable -AN fittings |
| SellingPoint06: | 19-row stacked plate oil cooler for optimal fluid temperature reduction |
| SellingPoint07: | Billet aluminum thermostatic oil sandwich plate |
| SellingPoint08: | Increases oil capacity by .65qt |
| SellingPoint09: | Retains the use of the stock liquid to liquid oil cooler unit |
| SellingPoint10: | Available in silver or black |
| SellingPoint11: | Mishimoto Lifetime Warranty |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | N/A |
| TechSpec Caution: | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Chassis Codes: | FK8 |
| TechSpec Core Construction: | N/A |
| TechSpec Core Height (in): | 5.43 |
| TechSpec Core Length (in): | 11 |
| TechSpec Core Thickness (in): | 1.97 |
| TechSpec Engine Codes: | K20C1 |
| TechSpec Fluid Capacity (qts): | N/A |

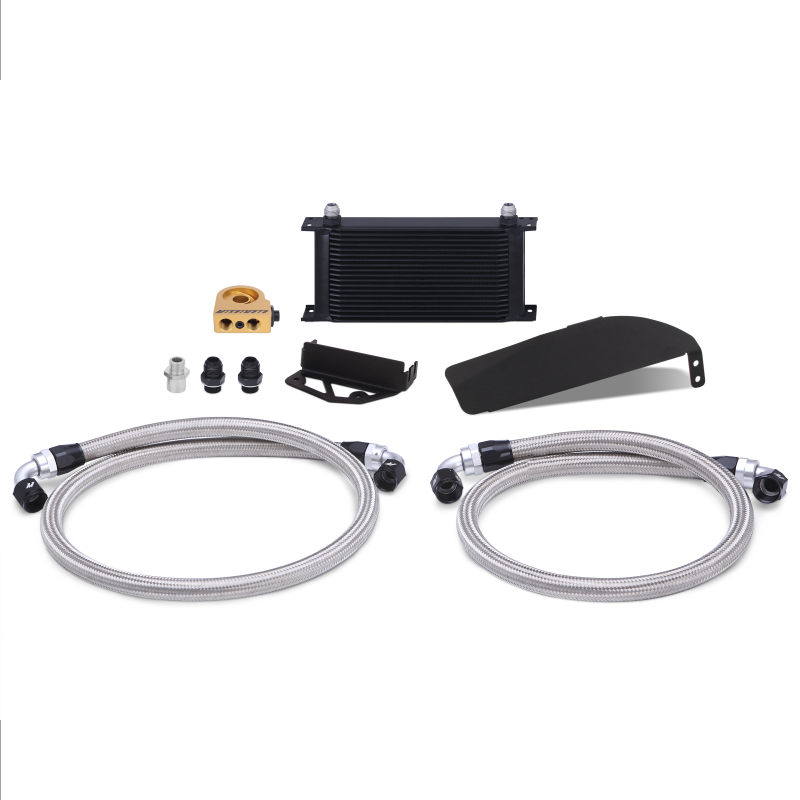

| TechSpec Includes: | Application-Specific Mounting Brackets--19-Row Oil Cooler--4-ft Stainless Steel Braided Hose with 90 and 120 -10AN Fittings--3-ft, 8-in Stainless Steel Braided Hose with 90 and 120 -10AN Fittings--Thermostatic Sandwich Plate with adapter--M20 x -10AN Straight Fittings--Mounting Hardware--Mishimoto Lifetime Warranty |
| TechSpec Inlet: | N/A |
| TechSpec Installation Notes: | Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft-Do not exceed the maximum torque rating of 35 ft- |
| TechSpec Note: | This oil cooler kit retains the use of your stock liquid-to-liquid oil cooler unit----Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft-lbDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Outlet: | N/A |
| TechSpec Overall Height (in): | N/A |
| TechSpec Overall Length (in): | N/A |
| TechSpec Overall Width (in): | N/A |
| TechSpec Rows: | 19 |
Part Type
Engine Oil Cooler
Features
- Application specific brackets designed to retain proper airflow to wheel well
- Minimal pressure drop
- Reduces oil temperatures by 15F (8C)
Specifications
- Product Attributes - UPC
- 811580034770
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Part Type
- Fluid Coolers
- Product Attributes - Cooler Color
- Black powdercoated
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Oil Cooler Kits
- Product Attributes - Inlet Attachment
- Male threads
- Product Attributes - Fluid Cooler Type
- Engine oil
- Product Attributes - Outlet Attachment
- Male threads
- Product Attributes - Number of Cooling Rows
- 19
- Product Attributes - Fluid Cooler Inlet Size
- -10 AN
- Product Attributes - Fluid Cooler Outlet Size
- -10 AN
- Product Attributes - Manufacturer's Part Number
- MMOC-CTR-17TBK
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMOC-CTR-17TBK |
| SFX Item ID | 4049015 |
| Supplier Item Code | 4049015 |
| Manufacturer SKU | MMOC-CTR-17TBK |
| Manufacturer UPC | 811580034770 |
| Alternative References | mio-mmocctr17tbk, MIMMMOC-CTR-17TBK |
