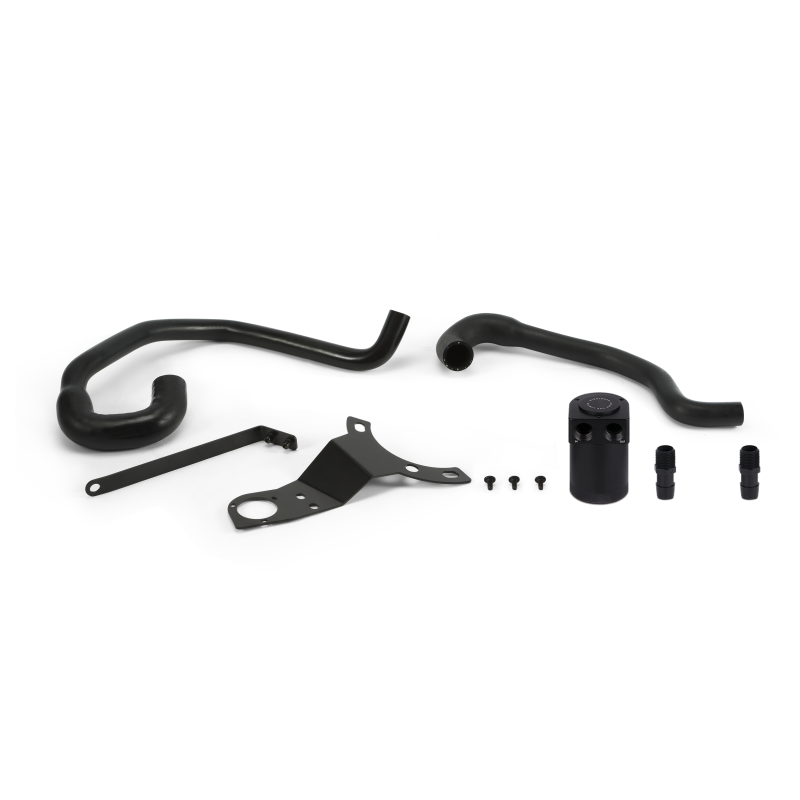

Mishimoto 11-17 BMW N20/N26 Baffled Oil Catch Can Kit - Black

SKU: MISMMBCC-N20N26-12CBE2

Oil Catch Cans

MM Baffled Oil Catch - Kit...

Mishimoto

Mishimoto 11-17 BMW N20/N26 Baffled Oil Catch Can Kit - Black

SKU: MISMMBCC-N20N26-12CBE2

Oil Catch Cans

MM Baffled Oil Catch - Kit...

Sale ends in Calculating... Wed 14 Oct, 2:07 pm AEST

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

The Mishimoto BMW N20/N26 Baffled Oil Catch Can is designed and engineered to reduce carbon buildup, a common issue with the direct fuel injection N20 and N26 engines. The Mishimoto BMW N20/N26 catch can kit uses the proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter, and internal baffled to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid which features large inlet/outlets in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler, intake system, and VANOS system from oil-blowby and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location! Two CNC-machined aluminum, 3/4in barb fittings connect the hoses to the can. Like all of our products, this baffled catch can kit comes with the Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans, you won't want that draining back into your oil either.

Product Overview

Features and Benefits

Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
Application-specific bracket mounts the can in a serviceable location
Direct fit hoses allow for installation with no modification

Product Details

Year	Make
Can Finish:	Anodized
Can Material:	6061-T6 Billet Aluminum
Can Outside Diameter:	2.5
Can Type:	Twist Off
Color:	Black
Description:	Baffled Oil Catch Can
Drain Plug Included:	Yes
Finish:	Anodized
Height:	4
Hose Included:	Yes
Inlet Port Inside Diameter:	0.6
Inlet Port Quantity per Can:	1
Install Difficulty:	3
Installation Difficulty:	3
Interior Baffle:	Yes
Material:	6061 Aluminum
Maximum Can Capacity:	3
Mounting Bracket Included:	Yes
Outlet Port Inside Diameter:	0.6
Outlet Port Quantity per Can:	1
Part Number:	misMMBCC-N20N26-12CBE2
Prop 65 - Short Label:	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N:	Y
SellingPoint01:	Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
SellingPoint02:	Application-specific bracket mounts the can in a serviceable location
SellingPoint03:	Direct fit hoses allow for installation with no modification
SellingPoint04:	Application-specific lid designed so fitting size matches CCV line size
SellingPoint05:	Billet 6061 aluminum sealed can
SellingPoint06:	Defends intercooler, intake system, and VANOS system from oil blow-by
SellingPoint07:	Helps maintain proper octane levels to reduce potential detonation
SellingPoint08:	Filters and can are fully serviceable
SellingPoint09:	Internal air diverter turbulates air longer to improve oil separation
SellingPoint10:	Patent Nos. US ZL 202120175368.7, US D966,372 S
SellingPoint11:	Mishimoto Lifetime Warranty
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
TechSpec Applications:	N/A
TechSpec Catch Can Diameter (in):	N/A
TechSpec Chassis Codes:	N/A
TechSpec Drain Plug Thread Size:	N/A
TechSpec Engine Codes:	N/A
TechSpec Height (in):	N/A
TechSpec Includes:	N/A
TechSpec Inlet:	N/A
TechSpec Installation Notes:	N/A
TechSpec Material:	N/A
TechSpec Note:	N/A
TechSpec Outlet:	N/A
Title:	Mishimoto BMW N20/N26 Baffled Oil Catch Can Kit, 2011-2017

Part Type

Engine Oil Catch Can Kit

Data: v4.2 - Upd: 2026-10-13 14:45:05

Features

Application-specific bracket mounts the can in a serviceable location
Direct fit hoses allow for installation with no modification
Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter

Specifications

Product Attributes - Brand: Mishimoto
Product Attributes - Manufacturer's Part Number: MMBCC-N20N26-12CBE2
Product Attributes - Part Type: Oil Catch Cans
Product Attributes - Product Line: Mishimoto Baffled Oil Catch Cans
Product Attributes - UPC: 811580032738
Product Attributes - Separator Tank Shape: Round
Product Attributes - Separator Tank Diameter (in.): 2.50 in.
Product Attributes - Separator Tank Height (in.): 3.80 in.
Product Attributes - Capacity: 3 oz.
Product Attributes - Separator Tank Material: Aluminum
Product Attributes - Separator Tank Finish: Black
Product Attributes - Fitting Attachment 1: Hose barb
Product Attributes - Fitting Size 1: 3/4 in.
Product Attributes - Fitting Attachment 2: Hose barb
Product Attributes - Fitting Size 2: 3/4 in.
Product Attributes - Quantity: Sold as a kit.

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMBCC-N20N26-12CBE2
SFX Item ID	4048909
Supplier Item Code	4048909
Manufacturer SKU	MMBCC-N20N26-12CBE2
Manufacturer UPC	811580032738
Alternative References	mio-mmbccn20n261, MIMMMBCC-N20N26-12CBE2, N20/N26
