Mishimoto 10-11 Hyundai Gensis Coupe 3.8L Thermostatic Oil Cooler Kit
Mishimoto 10-11 Hyundai Gensis Coupe 3.8L Thermostatic Oil Cooler Kit
Sale ends in Calculating...
A$1,492.73
A$2,033.02
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Mishimoto is proud to announce our new direct-fit oil cooler kit designed specifically for the 2010"2013 Hyundai Genesis Coupe with 3.8L V6! High oil temperatures lead to rapid oil degradation that can result in increased engine wear and potential failure.Protect your street or track Genesis by installing the Mishimoto oil cooler kit for efficient temperature regulation.This kit includes a precision-engineered, CNC-machined aluminum oil filter housing, which replaces the factory housing and canister filter.This allows for the use of an oil sandwich plate and a conventional spin-on filter.The Mishimoto oil cooler kit includes preassembled lines and an efficient 19-row oil cooler that mounts in the front grille for optimum airflow and cooling capability.This oil cooler kit increases overall oil capacity by .75 qt and is proven to reduce temperatures by 37 F while maintaining minimal pressure drop.This kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of a stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.
Product Overview

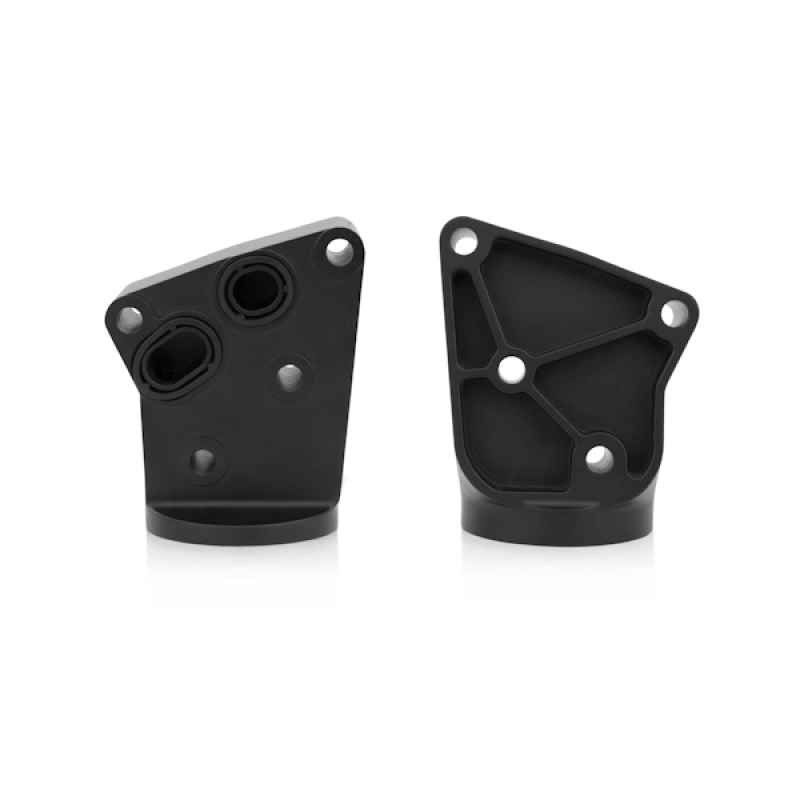

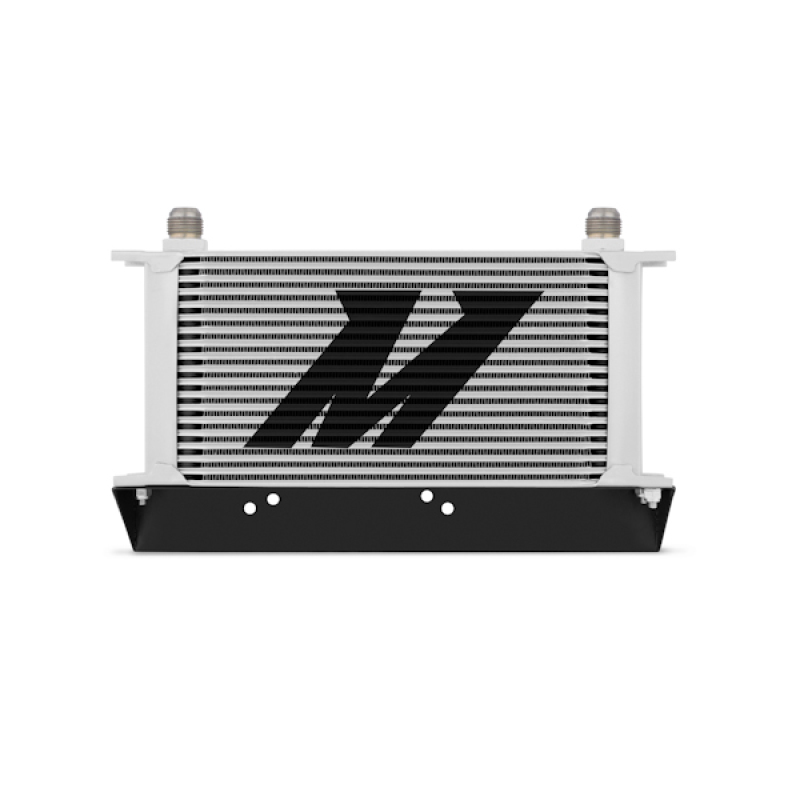

Mishimoto is proud to announce our new direct-fit oil cooler kit designed specifically for the 2010"2013 Hyundai Genesis Coupe with 3.8L V6! High oil temperatures lead to rapid oil degradation that can result in increased engine wear and potential failure.Protect your street or track Genesis by installing the Mishimoto oil cooler kit for efficient temperature regulation.This kit includes a precision-engineered, CNC-machined aluminum oil filter housing, which replaces the factory housing and canister filter.This allows for the use of an oil sandwich plate and a conventional spin-on filter.The Mishimoto oil cooler kit includes preassembled lines and an efficient 19-row oil cooler that mounts in the front grille for optimum airflow and cooling capability.This oil cooler kit increases overall oil capacity by .75 qt and is proven to reduce temperatures by 37 F while maintaining minimal pressure drop.This kit is available with a thermostatic sandwich plate for additional oil temperature control, and your choice of a stealth black or silver cooler.As with all our products, this kit includes the Mishimoto lifetime warranty.
Features and Benefits
- Direct fit for the Hyundai Genesis Coupe 3.8
- 37 degree temperature drop
- Custom adapter allows use of spin-on filter
- Minimal pressure loss
- Thermostatic option available
- Stealth black and sleek silver cooler options
- Easily replaceable thermostat allows you to customize your fluid temperature
- Additional thermostats available in 160°F, 185°F, and 200°F
- Lifetime Warranty
Product Details
| Alternate Part Number: | MMOCGEN6-10T |
|---|---|
| Color: | Silver |
| Description: | Hyundai Genesis Coupe 3.8L Thermostatic Oil Cooler Kit |
| Install Difficulty: | 3 |
| Material: | Aluminum |
| OptionLabel: | Silver Cooler, Thermostatic |
| Part Number: | misMMOC-GEN6-10T |
| SellingPoint01: | Direct fit for the Hyundai Genesis Coupe 3.8 |
| SellingPoint02: | 37 degree temperature drop |
| SellingPoint03: | Custom adapter allows use of spin-on filter |
| SellingPoint04: | Minimal pressure loss |
| SellingPoint05: | Thermostatic option available |
| SellingPoint06: | Stealth black and sleek silver cooler options |
| SellingPoint07: | Lifetime Warranty |
| SellingPoint08: | N/A |
| SellingPoint09: | N/A |
| SellingPoint10: | N/A |
| SellingPoint11: | N/A |
| SellingPoint12: | N/A |
| SellingPoint13: | N/A |
| SellingPoint14: | N/A |
| SellingPoint15: | N/A |
| TechSpec Applications: | 2010-2012 Hyundai Genesis 3.8--2010-2012 Hyundai Genesis 3.8 GT--2010-2012 Hyundai Genesis 3.8 Grand Touring--2010-2012 Hyundai Genesis 3.8 Track--2010-2012 Hyundai Genesis 3.8 R-Spec |
| TechSpec Caution: | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact our customer experience team. |
| TechSpec Chassis Codes: | BK38 |
| TechSpec Core Construction: | N/A |
| TechSpec Core Height (in): | 5.43 |
| TechSpec Core Length (in): | 11 |
| TechSpec Core Thickness (in): | 1.97 |
| TechSpec Engine Codes: | 3.8L Lambda V6 |
| TechSpec Fluid Capacity (qts): | N/A |

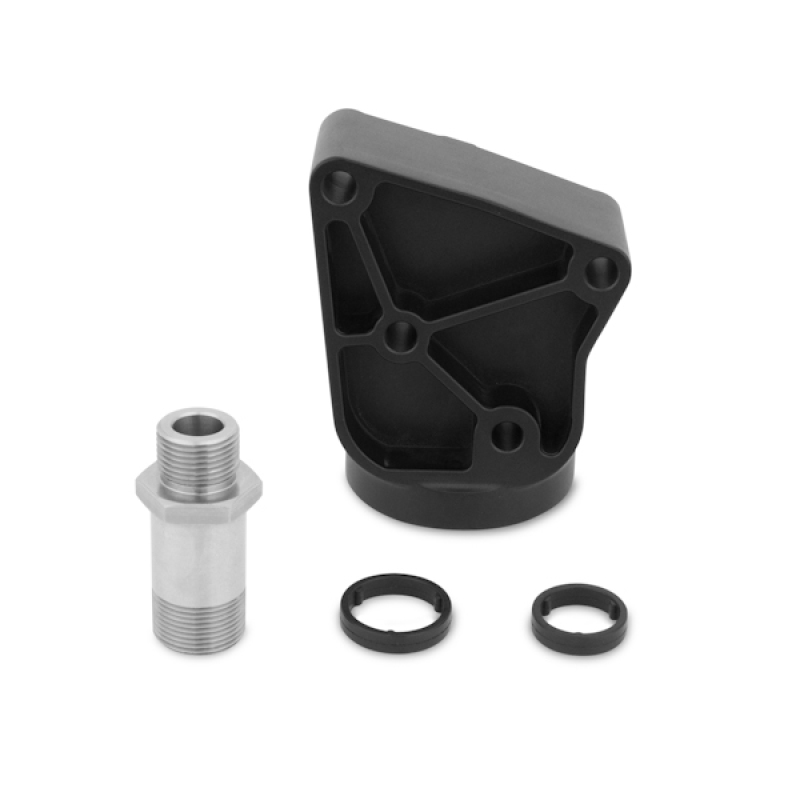

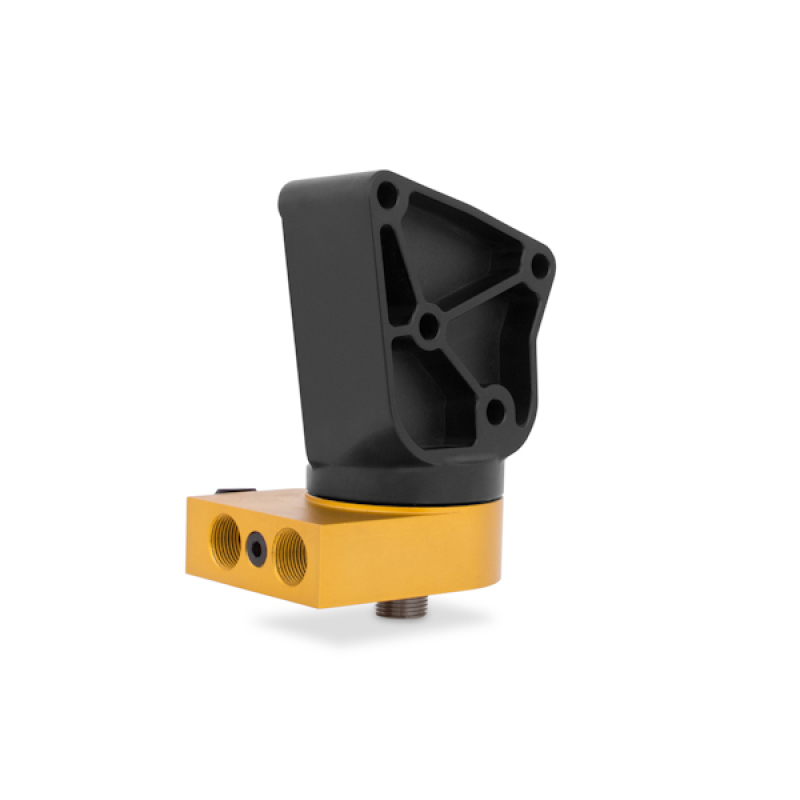

| TechSpec Includes: | Application Specific Mounting Bracket--19-Row Oil Cooler--2ft 7in Stainless Steel Braided Hose w/ -10AN Fittings--3ft 3.5in Stainless Steel Braided Hose w/ -10AN Fittings--Oil Sandwich Plate--6061 Aluminum CNC Oil Filter Housing, Black--Stainless Steel Sandwich Plate Adapter, M20--Straight Fittings M20 x -10AN, Black--1/8-in NPT Plugs--Large O-ring--Small Factory-style O-rings--Mounting Hardware Set--Mishimoto Lifetime Warranty |
| TechSpec Inlet: | N/A |
| TechSpec Installation Notes: | Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 ft-lb |
| TechSpec Note: | This product requires the use of an oil filter for the Hyundai Genesis 2.0T |
| TechSpec Outlet: | N/A |
| TechSpec Overall Height (in): | N/A |
| TechSpec Overall Length (in): | N/A |
| TechSpec Overall Width (in): | N/A |
| TechSpec Rows: | 19 |
Application Summary
2010-2012 Hyundai Genesis Coupe 3.8 Liter 6HP19, 2010-2012 Hyundai Genesis Coupe 3.8 Liter M6VR2
Part Type
Engine Oil Cooler
Features
- 37 degree temperature drop
- Custom adapter allows use of spin-on filter
- Minimal pressure loss
Specifications
- Product Attributes - UPC
- 748666008564
- Product Attributes - Brand
- Mishimoto
- Product Attributes - Notes
- Includes mounting brackets, stainless steel braided hoses, thermostatically controlled oil filter sandwich plate, banjo fitting and mounting hardware.
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Part Type
- Fluid Coolers
- Product Attributes - Cooler Color
- Natural
- Product Attributes - Fan Included
- No
- Product Attributes - Product Line
- Mishimoto Oil Cooler Kits
- Product Attributes - Cooler Material
- Aluminum
- Product Attributes - Core Width (in.)
- 11.00 in.
- Product Attributes - Inlet Attachment
- Male threads
- Product Attributes - Core Height (in.)
- 5.43 in.
- Product Attributes - Fluid Cooler Type
- Engine oil
- Product Attributes - Outlet Attachment
- Male threads
- Product Attributes - Cooler Construction
- Heat sink
- Product Attributes - Overall Width (in.)
- 12.95 in.
- Product Attributes - Core Thickness (in.)
- 1.97 in.
- Product Attributes - Overall Height (in.)
- 6.44 in.
- Product Attributes - Number of Cooling Rows
- 19
- Product Attributes - Fluid Cooler Inlet Size
- -10 AN
- Product Attributes - Overall Thickness (in.)
- 1.97
- Product Attributes - Fluid Cooler Outlet Size
- -10 AN
- Product Attributes - Manufacturer's Part Number
- MMOC-GEN6-10T
Reference Information
| Brand Name/s | Mishimoto |
|---|---|
| StreetFX SKU | misMMOC-GEN6-10T |
| SFX Item ID | 4050025 |
| Supplier Item Code | 4050025 |
| Manufacturer SKU | MMOC-GEN6-10T |
| Manufacturer UPC | 748666008564 |
| Alternative References | mio-mmocgen6-10t, MIMMMOC-GEN6-10T, 3.8L |
Brochures
Compatibility
2010-2012 Hyundai Genesis Coupe 3.8 Liter 6HP19, 2010-2012 Hyundai Genesis Coupe 3.8 Liter M6VR2
