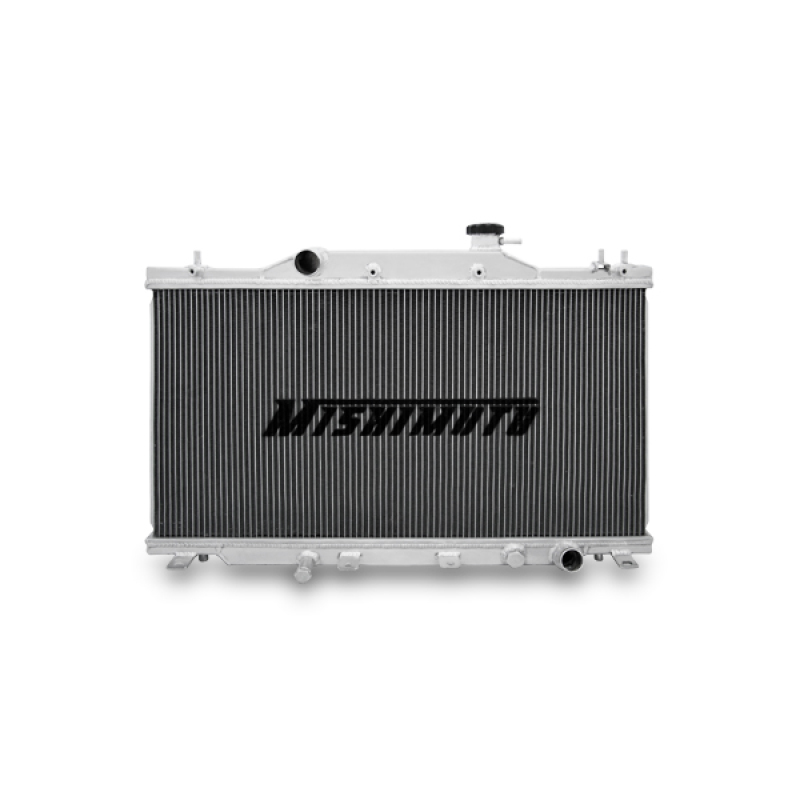

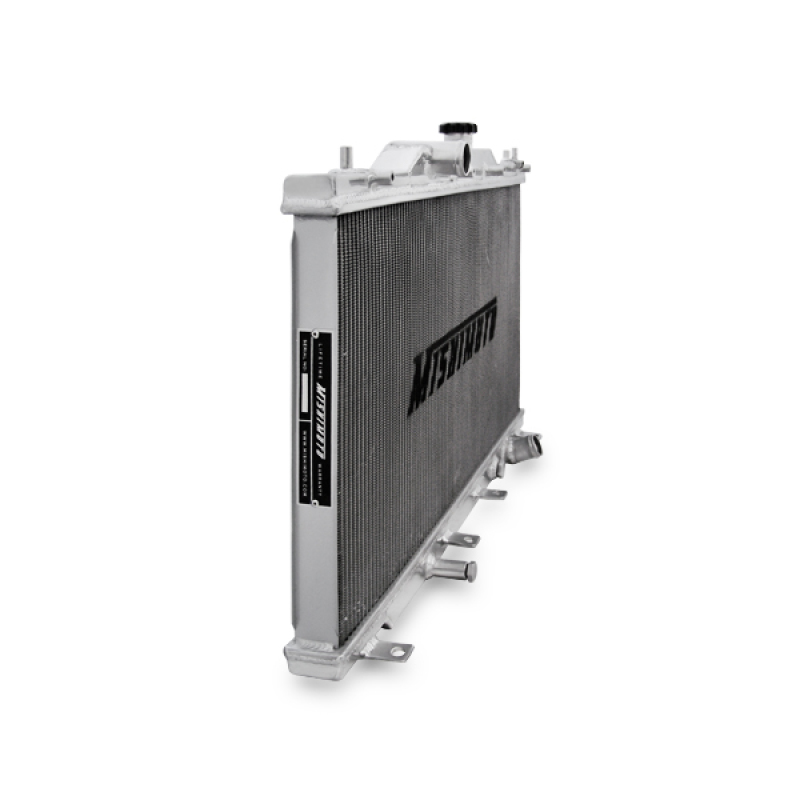

Mishimoto 02-04 Acura RSX Manual Aluminum Radiator

SKU: MISMMRAD-RSX-02

Radiators

MM Radiators - Alum...

Mishimoto

Mishimoto 02-04 Acura RSX Manual Aluminum Radiator

SKU: MISMMRAD-RSX-02

Radiators

MM Radiators - Alum...

IN STOCK! Est Ship 3-5 days. This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.

We accept

Description

By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator, you will immediately notice a cooler more efficient running engine.All Mishimoto Acura RSX radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating.All Mishimoto performance radiators feature a lightweight dual core, 100% brazed aluminum and polished end tanks.The direct OEM fit makes installation effortless and no cutting or modification is required.It is the ideal upgrade to the stock radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap, magnetic drain plug and an excellent warranty.

Product Overview

By replacing your current stock RSX radiator with a top of the line Mishimoto performance aluminum radiator, you will immediately notice a cooler more efficient running engine.All Mishimoto Acura RSX radiators are designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly protect your car from overheating.All Mishimoto performance radiators feature a lightweight dual core, 100-percent brazed aluminum and polished end tanks.The direct OEM fit makes installation effortless and no cutting or modification is required.It is the ideal upgrade to the stock radiator.All Mishimoto radiators come with a high pressure 1.3 bar Mishimoto radiator cap, magnetic drain plug and an excellent warranty.

Features and Benefits

2002-2006 Acura RSX
Full aluminum construction including durable, TIG-welded end tanks
Features a two-row, 1.4-in thick, efficient brazed aluminum core

Product Details

Alternate Part Number:	MMRAD-RSX-02
Description:	Acura RSX Performance Aluminum Radiator
Dimensions:	27.6" x 18.8" x 1.9"
Install Difficulty:	3
Installation Difficulty:	3
Material:	Aluminum
Part Number:	misMMRAD-RSX-02
Prop 65 - Short Label:	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N:	Y
SellingPoint01:	2002-2006 Acura RSX
SellingPoint02:	Full aluminum construction including durable, TIG-welded end tanks
SellingPoint03:	Features a two-row, 1.4-in thick, efficient brazed aluminum core
SellingPoint04:	Increased fluid capacity and optimal heat dissipation
SellingPoint05:	Provides efficient temperature reduction for both street and track use
SellingPoint06:	Efficient temperature regulation for both stock and modified vehicles
SellingPoint07:	Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
SellingPoint08:	Includes Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
SellingPoint09:	Mishimoto Lifetime Warranty
SellingPoint10:	N/A
SellingPoint11:	N/A
SellingPoint12:	N/A
SellingPoint13:	N/A
SellingPoint14:	N/A
SellingPoint15:	N/A
Size:	27.6in x 18.8in x 1.9in
TechSpec Applications:	2002-2006 Acura RSX Type S
TechSpec Chassis Codes:	DC5
TechSpec Core Height (in):	13.75
TechSpec Core Length (in):	27.52
TechSpec Core Thickness (in):	1.4
TechSpec DPI:	2412
TechSpec Drain Plug Thread Size:	M12 x 1.5
TechSpec Engine Codes:	K20a3--K20a1--K20z1
TechSpec Fluid Capacity (gal):	1.91
TechSpec Includes:	Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
TechSpec Inlet (in):	1.25
TechSpec Material:	N/A
TechSpec Note:	This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
TechSpec Outlet (in):	1.25
TechSpec Overall Height (in):	18.8
TechSpec Overall Length (in):	27.6
TechSpec Overall Width (ins):	1.9
TechSpec Rows:	2

Application Summary

2005-2006 Acura RSX 2.0 Liter NSN4, 2005-2006 Acura RSX 2.0 Liter PTD6, 2002-2004 Acura RSX 2.0 Liter W2M5, 2002-2004 Acura RSX 2.0 Liter X2M5

Part Type

Radiator

Data: v4.2 - Upd: 2026-10-13 17:05:53

Features

2002-2006 Acura RSX
Features a two-row, 1.4-in thick, efficient brazed aluminum core
Full aluminum construction including durable, TIG-welded end tanks

Specifications

Product Attributes - UPC: 748354797558
Product Attributes - Brand: Mishimoto
Product Attributes - Quantity: Sold individually.
Product Attributes - Part Type: Radiators
Product Attributes - Fan Included: No
Product Attributes - Product Line: Mishimoto Performance Radiators
Product Attributes - Row Quantity: 2
Product Attributes - Inlet Location: Upper driver side
Product Attributes - Radiator Style: Downflow
Product Attributes - Outlet Location: Lower passenger side
Product Attributes - Radiator Finish: Natural
Product Attributes - Core Width (in.): 27.52 in.
Product Attributes - Core Height (in.): 13.75 in.
Product Attributes - Radiator Material: Aluminum
Product Attributes - Overall Width (in.): 27.60 in.
Product Attributes - Radiator Inlet Size: 1.250 in.
Product Attributes - Transmission Cooler: No
Product Attributes - Core Thickness (in.): 1.40 in.
Product Attributes - Overall Height (in.): 18.80 in.
Product Attributes - Radiator Outlet Size: 1.250 in.
Product Attributes - Radiator Cap Included: Yes
Product Attributes - Overall Thickness (in.): 1.90
Product Attributes - Manufacturer's Part Number: MMRAD-RSX-02
Product Attributes - Trans Cooler Adapter Fittings Included: No

Reference Information

Brand Name/s	Mishimoto
StreetFX SKU	misMMRAD-RSX-02
SFX Item ID	4051380
Supplier Item Code	4051380
Manufacturer SKU	MMRAD-RSX-02
Manufacturer UPC	748354797558
Alternative References	mio-mmrad-rsx-02, MIMMMRAD-RSX-02
