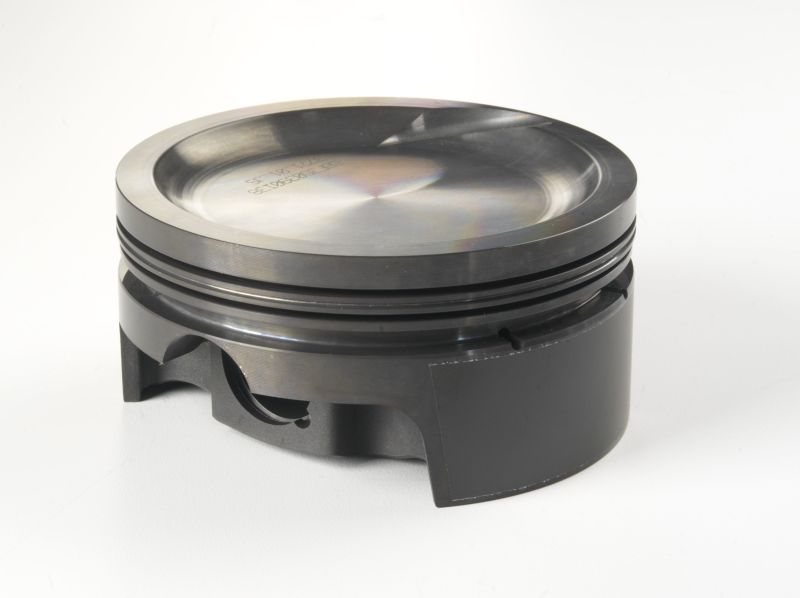

Mahle MS Piston Set BBF 502ci 4.39in Bore 4.15in Stroke 6.7in Rod 0.990 Pin -28cc 9.7 CR Set of 8
Mahle MS Piston Set BBF 502ci 4.39in Bore 4.15in Stroke 6.7in Rod 0.990 Pin -28cc 9.7 CR Set of 8
A$2,058.43
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
503cid 4.390 x 1.525CH, 4.150stroke,6.700rod,0.990pin,-28cc,533g,9.7CR, 4032
Product Overview
Mahle MS Piston Set BBF 502ci 4.39in Bore 4.15in Stroke 6.7in Rod 0.990 Pin -28cc 9.7 CR Set of 8
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | Yes |
| Coatings: | Phosphate plus Grafal |
| Crown Vol: | -28cc |
| Description: | Mahle MS Piston Set BBF 502ci 4.39in Bore 4.15in Stroke 6.7in Rod 0.990 Pin -28cc 9.7 CR Set of 8 |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl930246490 |
| Pin Diameter: | 0.99 |
| Pin Length: | 2.520 |
| Pin Mass: | 148g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 533g |
| Piston Material: | Forged, 4032 |
| Piston Ring Thickness: | 1.5mm, 1.5mm, 3.0mm |
| Piston Style: | Inverted Dome, With INT valve relief |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | Yes |
| Title: | MAHLE Motorsports - 503cid 4.390 x 1.525CH,4.150stroke,6.700rod,0.990pin,-28cc,533g,9.7CR, 4032 |
Application Summary
Ford Big Block 503 cu in.
Part Type
Engine Piston Kit
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- Yes
- Coatings:
- Phosphate plus Grafal
- Crown Vol:
- -28cc
- Description:
- Mahle MS Piston Set BBF 502ci 4.39in Bore 4.15in Stroke 6.7in Rod 0.990 Pin -28cc 9.7 CR Set of 8
- Package Qty:
- Sold as a set of 8
- Part Number:
- mhl930246490
- Pin Diameter:
- 0.99
- Pin Length:
- 2.520
- Pin Mass:
- 148g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- Yes
- Piston Kit Quantity:
- Sold as a set of 8
- Piston Mass:
- 533g
- Piston Material:
- Forged, 4032
- Piston Ring Thickness:
- 1.5mm, 1.5mm, 3.0mm
- Piston Style:
- Inverted Dome, With INT valve relief
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- Yes
- Title:
- MAHLE Motorsports - 503cid 4.390 x 1.525CH,4.150stroke,6.700rod,0.990pin,-28cc,533g,9.7CR, 4032
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930246490 |
| SFX Item ID | 4176797 |
| Supplier Item Code | 4176797 |
| Manufacturer SKU | 930246490 |
| Manufacturer UPC | 930246490 |
| Alternative References | mle-930246490, 502ci, 4.39in, 4.15in, 6.7in, -28cc |
Compatibility
Ford Big Block 503 cu in.
