Mahle
Mahle MS Piston Set Subaru EJ20/207 92mm Bore 75mm Stroke 130.4mm Rod 23mm Pin -12cc 8.5 CR Set of 4
mhl930020322
A$917.54

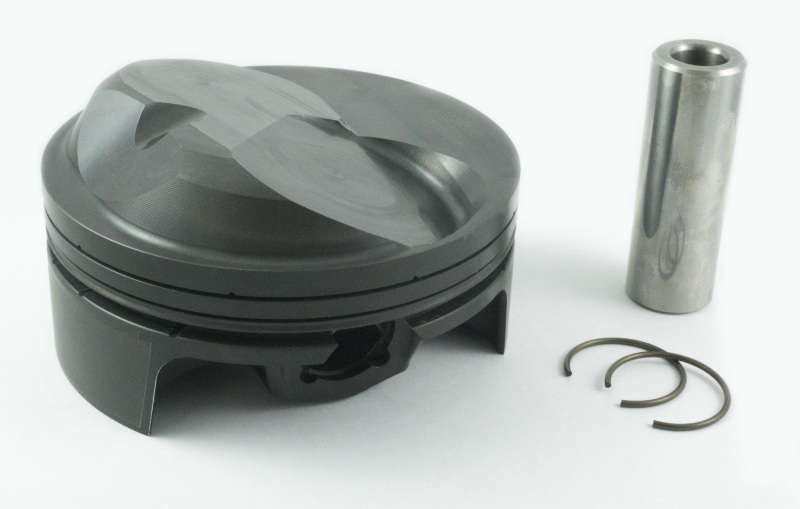

Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke
Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke
A$2,234.88
LAST ONE! Est Ship 4-7 days.
LAST ONE! This is the last unit at our distribution centre. Contact us if you need more. The ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
IMPORTANT NOTICE: Note for Pistons, Rings, Rotors, Rods and engine internalsUnless otherwise specified, some brands supply brake rotors, pistons, rods and rings separately. In some cases, titles may indicate plural, or 'set' - eg the term “ring set” often refers to the rings for a single piston only. If you’re unsure about what’s included with this product, please contact our team for clarification.(keyword: piston)Images are supplied by the manufacturer and may be generic. While all efforts are made to provide accurate pictures, there may be differences in the actual product, such as colour, quantity, version, or included components. Please carefully review the description and specifications for details on inclusions or any variations. Some items may be sold individually or in sets, and images may occasionally depict additional products or quantities not included in your purchase. For assistance or clarification, please contact customer support.Reference Information Reference Data (Provide these details to our support team) Brand Name/s Mahle, Mahle Motorsport, Mahle OE, Mahle Original, MAHLE ORIGINAL/CLEVITE, MAHLE PISTONS StreetFX SKU mhl930239410 SFX Item ID 4177829 Accounting SKU mhl-930239410 Manufacturer SKU 930239410 Manufacturer UPC 930239410 Alternative References 930239410, MAH930239410

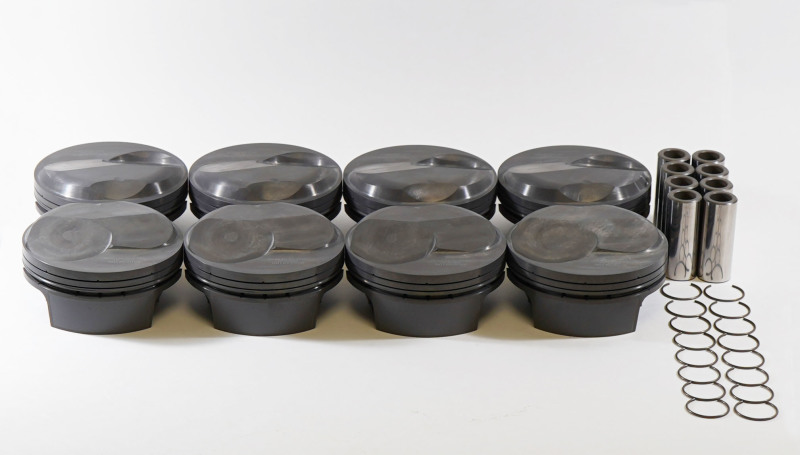

Piston - Elite Sportsman - Forged - 4.610 in Bore - 0.043 x 0.043 x 3 mm Ring Grooves - Plus 47.10 cc - Big Block Chevy - Set of 8
Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke
Additional Information
584cid 4.610 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,47.1cc,658g,15.6CR, 2618
Application Summary
Chevy Big Block 584 cu in.
Product Details
| Clip Style: | Round Wire |
| Clips Included: | Yes |
| Coatings: | Phosphate plus Grafal |
| Crown Vol: | 47.1cc |
| Description: | Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke |
| Lateral Gas Ports: | Yes |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl930239410 |
| Pin Diameter: | 0.990 |
| Pin Length: | 2.930 |
| Pin Mass: | 171g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 658g |
| Piston Material: | Forged, 2618 |
| Piston Ring Thickness: | .043, .043, 3.0mm |
| Piston Style: | Dome, w/ INT valve relief |
| Rings Included: | No |
| Title: | Mahle Motorsport BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 degree/25 degree 584cid 4.610 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,47.1cc,658g,15.6CR, 2618 |
Product Overview
BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24?/25? 584cid 4.610 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,47.1cc,658g,15.6CR, 2618.
Data: v2 - Desc: v4.2 - Upd: 2026-10-14 04:13:33
Product Overview
BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24?/25? 584cid 4.610 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,47.1cc,658g,15.6CR, 2618.
Product Details
| California Proposition 65: | WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm |
|---|---|
| Clip Style: | Round Wire |
| Clips Included: | Yes |
| Coatings: | Phosphate plus Grafal |
| Crown Vol: | 47.1cc |
| Description: | Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke |
| Lateral Gas Ports: | Yes |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl930239410 |
| Pin Diameter: | 0.990 |
| Pin Length: | 2.930 |
| Pin Mass: | 171g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 658g |
| Piston Material: | Forged, 2618 |
| Piston Ring Thickness: | .043, .043, 3.0mm |
| Piston Style: | Dome, w/ INT valve relief |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | N |
| Title: | Mahle Motorsport BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 degree/25 degree 584cid 4.610 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,47.1cc,658g,15.6CR, 2618 |
Application Summary
Chevy Big Block 584 cu in.
Part Type
Engine Piston Kit
Specifications
- California Proposition 65:
- WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm
- Clip Style:
- Round Wire
- Clips Included:
- Yes
- Coatings:
- Phosphate plus Grafal
- Crown Vol:
- 47.1cc
- Description:
- Mahle MS BBC Elite Sportsman Drag Series Piston Set - 4.610in. Bore/15.6 CR/584ci/4.375in. Stroke
- Lateral Gas Ports:
- Yes
- Package Qty:
- Sold as a set of 8
- Part Number:
- mhl930239410
- Pin Diameter:
- 0.990
- Pin Length:
- 2.930
- Pin Mass:
- 171g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- Yes
- Piston Kit Quantity:
- Sold as a set of 8
- Piston Mass:
- 658g
- Piston Material:
- Forged, 2618
- Piston Ring Thickness:
- .043, .043, 3.0mm
- Piston Style:
- Dome, w/ INT valve relief
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- N
- Title:
- Mahle Motorsport BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 degree/25 degree 584cid 4.610 x 1.215RCH, 4.375stroke,6.385rod,0.990pin,47.1cc,658g,15.6CR, 2618
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930239410 |
| SFX Item ID | 4177829 |
| Supplier Item Code | 4177829 |
| Manufacturer SKU | 930239410 |
| Manufacturer UPC | 930239410 |
| Alternative References | mle-930239410, MAH930239410, 4.610in., Bore/15.6, CR/584ci/4.375in. |
Compatibility
No specific fitment data available for this part. For clarification, please contact us.
