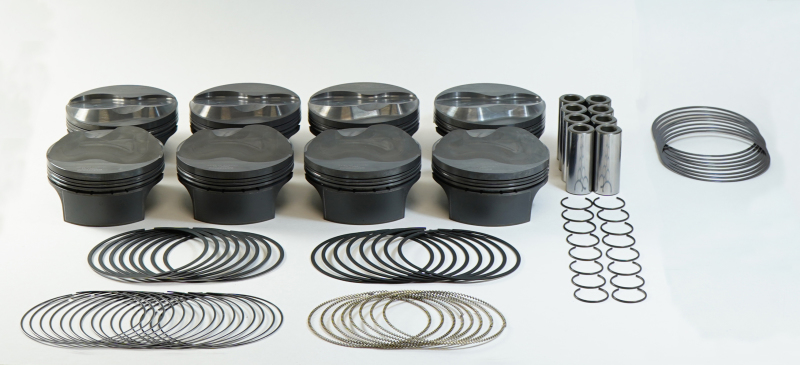

Mahle MS Chevrolet LS 6.8L 417cid 4.070in Bore x 1.110RCH 4.000 Stroke 9.2cc 14.1 CR - Pist Set of 8
Mahle MS Chevrolet LS 6.8L 417cid 4.070in Bore x 1.110RCH 4.000 Stroke 9.2cc 14.1 CR - Pist Set of 8
A$2,075.67
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
416cid 4.070 x 1.110RCH, 4.000stroke,6.125rod,0.927pin,9.2cc,480g,13.7CR, 2618
Product Overview
LS COMBO DOME - compatable with LS1/2/6 style cathedral port heads & LS3 / L92 style rectangular port heads 416cid 4.070 x 1.110RCH, 4.000stroke,6.125rod,0.927pin,9.2cc,480g,14.1CR, 2618.
Product Details
| Clip Style: | Round Wire |
|---|---|
| Clips Included: | Yes |
| Coatings: | Phosphate plus Grafal |
| Crown Vol: | 9.2cc |
| Description: | Mahle MS Chevrolet LS 6.8L 417cid 4.070in Bore x 1.110RCH 4.000 Stroke 9.2cc 14.1 CR - Pist Set of 8 |
| Package Qty: | Sold as a set of 8 |
| Part Number: | mhl930229670 |
| Pin Diameter: | 0.927 |
| Pin Length: | 2.287 |
| Pin Mass: | 118g |
| Pin Material: | Steel |
| Pin Style: | Floating |
| Pins Included: | Yes |
| Piston Kit Quantity: | Sold as a set of 8 |
| Piston Mass: | 480g |
| Piston Material: | Forged, 2618 |
| Piston Ring Thickness: | 1.0mm, 1.0mm, 2.0mm |
| Piston Style: | Dome, w/ 2 valve reliefs |
| Prop 65 (C, R or CR): | CR |
| Prop 65 - Short Label: | prop-65-warning-label_text_image.jpg |
| Prop 65 Yes/No: | Yes |
| Rings Included: | Yes |
| Title: | Mahle Motorsport LS COMBO DOME - compatable with LS1/2/6 style cathedral port heads & LS3 / L92 style rectangular port heads 416cid 4.070 x 1.110RCH, 4.000stroke,6.125rod,0.927pin,9.2cc,480g,14.1CR, 2618 |
Application Summary
Chevrolet LSX 416 cu in.
Part Type
Engine Piston Kit
Specifications
- Clip Style:
- Round Wire
- Clips Included:
- Yes
- Coatings:
- Phosphate plus Grafal
- Crown Vol:
- 9.2cc
- Description:
- Mahle MS Chevrolet LS 6.8L 417cid 4.070in Bore x 1.110RCH 4.000 Stroke 9.2cc 14.1 CR - Pist Set of 8
- Package Qty:
- Sold as a set of 8
- Part Number:
- mhl930229670
- Pin Diameter:
- 0.927
- Pin Length:
- 2.287
- Pin Mass:
- 118g
- Pin Material:
- Steel
- Pin Style:
- Floating
- Pins Included:
- Yes
- Piston Kit Quantity:
- Sold as a set of 8
- Piston Mass:
- 480g
- Piston Material:
- Forged, 2618
- Piston Ring Thickness:
- 1.0mm, 1.0mm, 2.0mm
- Piston Style:
- Dome, w/ 2 valve reliefs
- Prop 65 (C, R or CR):
- CR
- Prop 65 - Short Label:
- prop-65-warning-label_text_image.jpg
- Prop 65 Yes/No:
- Yes
- Rings Included:
- Yes
- Title:
- Mahle Motorsport LS COMBO DOME - compatable with LS1/2/6 style cathedral port heads & LS3 / L92 style rectangular port heads 416cid 4.070 x 1.110RCH, 4.000stroke,6.125rod,0.927pin,9.2cc,480g,14.1CR, 2618
Reference Information
| Brand Name/s | Mahle |
|---|---|
| StreetFX SKU | mhl930229670 |
| SFX Item ID | 4177728 |
| Supplier Item Code | 4177728 |
| Manufacturer SKU | 930229670 |
| Manufacturer UPC | 930229670 |
| Alternative References | mle-930229670, 6.8L, 417cid, 4.070in, 1.110RCH, 9.2cc |
Compatibility
Chevrolet LSX 416 cu in.
Loading compatibility information...
