Connecting Rods

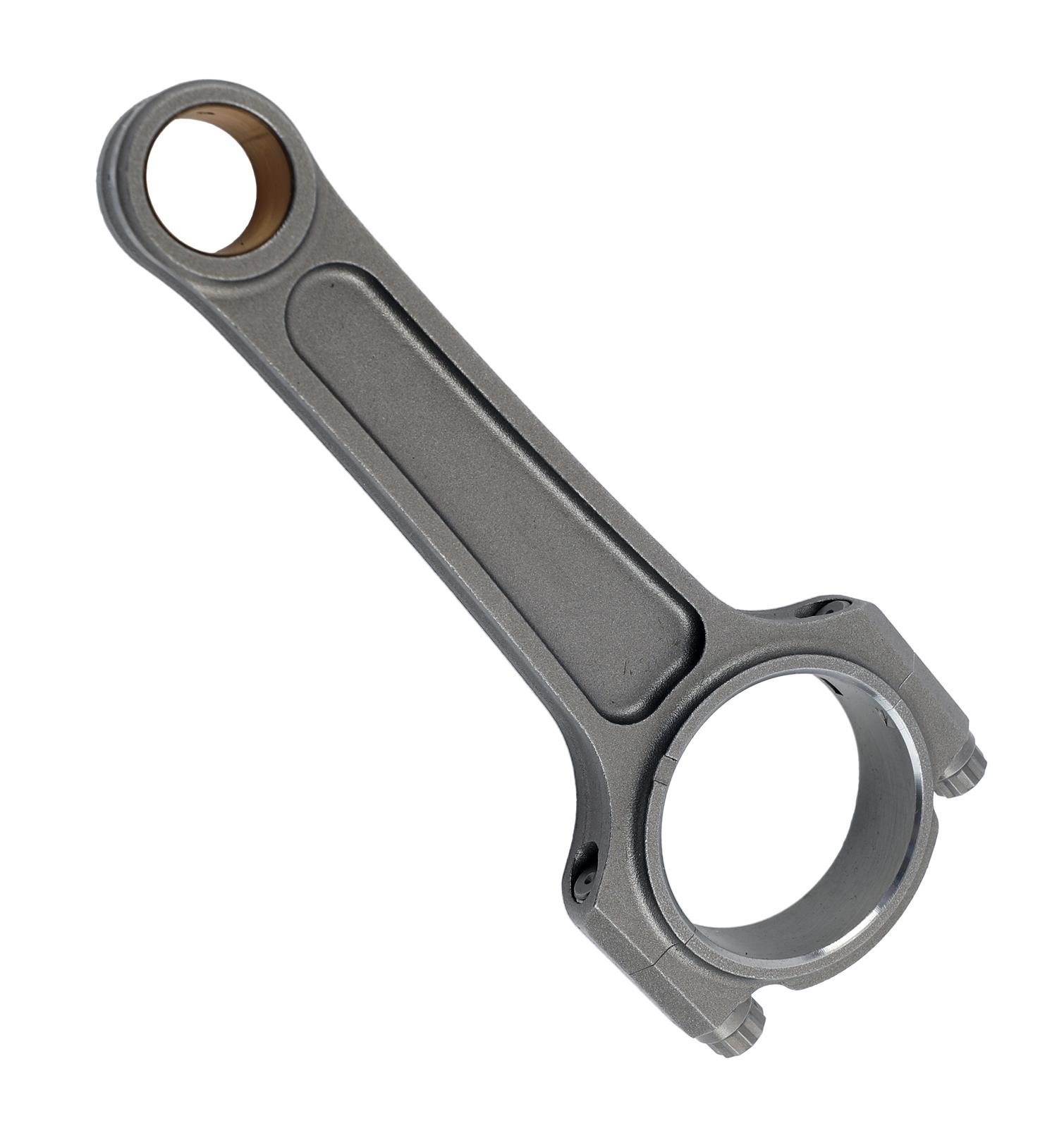

Connecting Rods, ROD-FORD EcoBoost 2.0L 6.136
Manley Pro Series I-Beam Turbo Tuff connecting rods are assembled from high-quality 4340 forged steel. Every rod is fully machined to the highest standards, and the Turbo Tuff design combines the appropriate weight and rugged strength for ultimate horsepower utilization. Each rod is shot-peened after machining and individually magnafluxed. These connecting rods feature 7/16 in. ARP 2000 cap screws with 12-point heads for outstanding 200,000 psi tensile strength.
| Product Attributes | |
|---|---|
| Brand | Manley |
| Manufacturer's Part Number | 14433-1 |
| Part Type | Connecting Rods |
| Product Line | Manley Pro Series I-Beam Turbo Tuff Connecting Rods |
| UPC | 807298091242 |
| Connecting Rod Length Center to Center (in.) | 6.136 in. |
| Connecting Rod Beam Style | I-beam |
| Connecting Rod Material | Forged 4340 steel |
| Wrist Pin Style | Floating |
| Pin End Bore Diameter | 0.887 in. |
| Big End Bore Diameter (in.) | 2.1670 |
| Quantity | Sold individually. |
| Cap Retention Style | Cap screw |
| Big End Width (in.) | 0.860 |
| Clearanced for Stroker | No |
| Connecting Rod Bolt Brand | ARP |
| Connecting Rod Bolt Diameter | 3/8 in. |
| Connecting Rod Bolt Material | ARP2000 alloy |
| Fastener Tensile Strength (psi) | 200,000 psi |
| Connecting Rod Bolt Head Style | 12-point |
| Approximate Connecting Rod Weight (g) | 615 |
| Advertised Horsepower Rating | 1,000 hp |
| Pin End Width (in.) | 0.860 in. |
| Weight Matched Set | Yes |
| Remanufactured | No |
| Magnafluxed | Yes |
| Connecting Rod Color | Shot-peened |
| Brand Name/s | Manley Performance |
|---|---|
| StreetFX SKU | man14433-1 |
| SFX Item ID | 4929832 |
| Supplier Item Code | 4929832 |
| Manufacturer SKU | 14433-1 |
| Manufacturer UPC | 807298091242 |
| Alternative References | 2.0L |
No specific fitment data available for this part. For clarification, please contact us.
| Application Data | |
|---|---|
| Make | FORD |
| Model | EDGE |
| Submodel | LIMITED |
| Beginning Year | 2012 |
| Ending Year | 2014 |
| Engine Type | L4 |
| Engine Family | Ford 4-cylinder |
| Make | FORD |
| Model | EDGE |
| Submodel | SE |
| Beginning Year | 2012 |
| Ending Year | 2021 |
| Engine Type | L4 |
| Engine Family | Ford 4-cylinder |
| Make | FORD |
| Model | EDGE |
| Submodel | SEL |
| Beginning Year | 2012 |
| Ending Year | 2021 |
| Engine Type | L4 |
| Engine Family | Ford 4-cylinder |
This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
