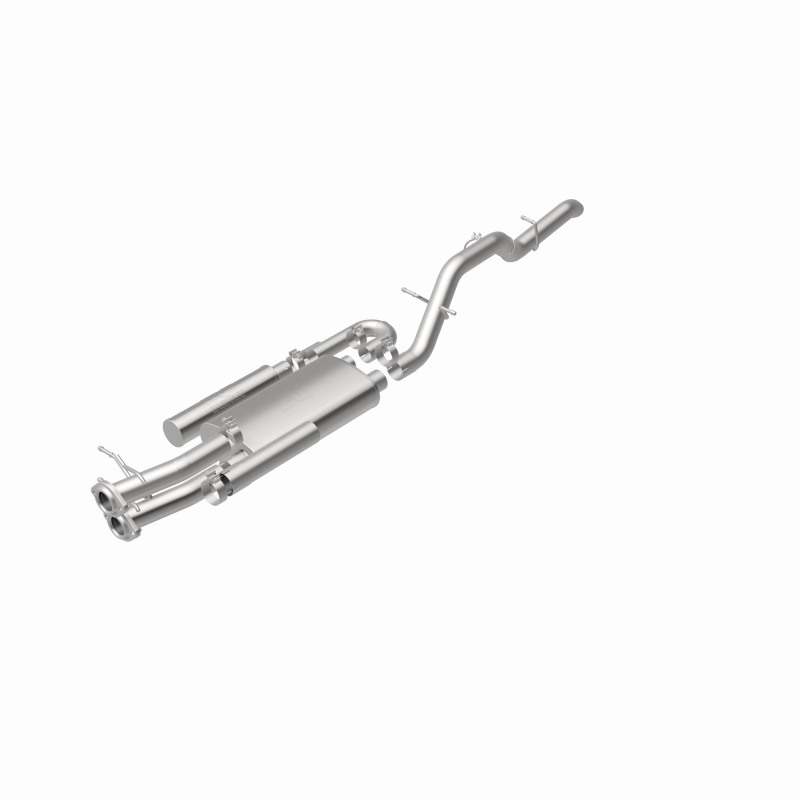

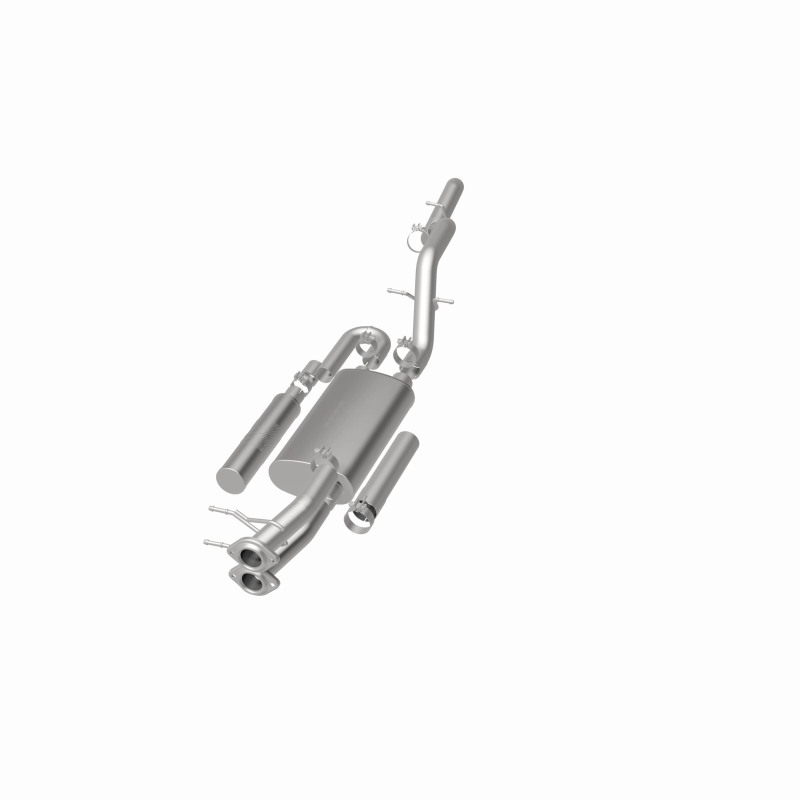

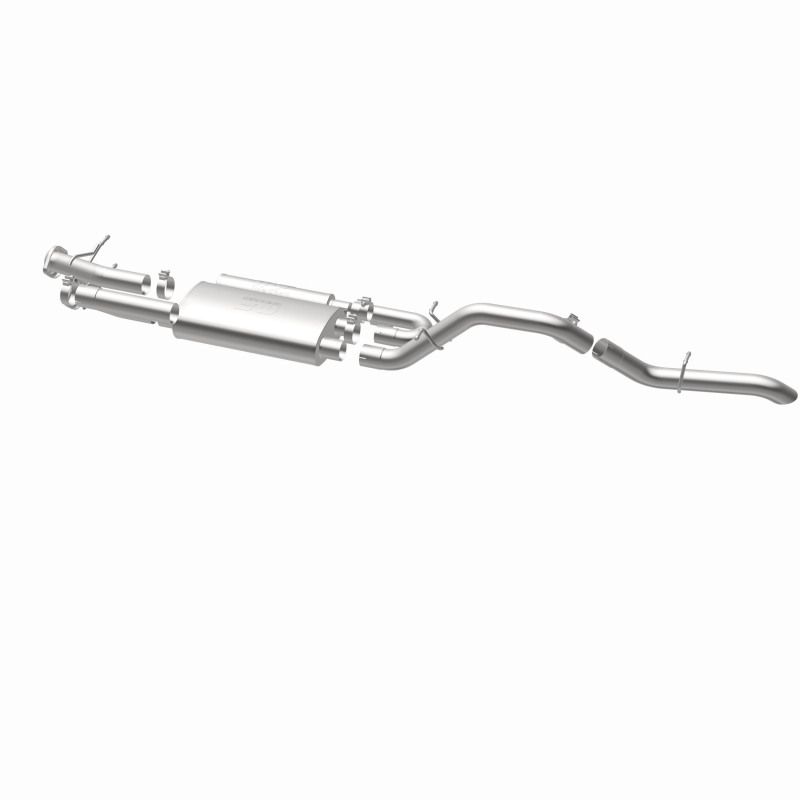

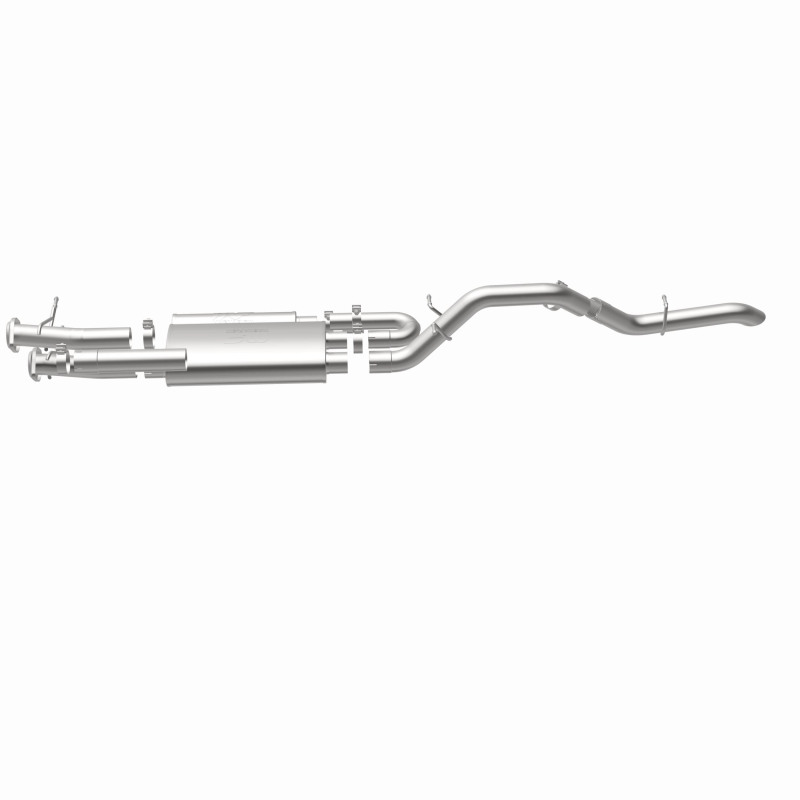

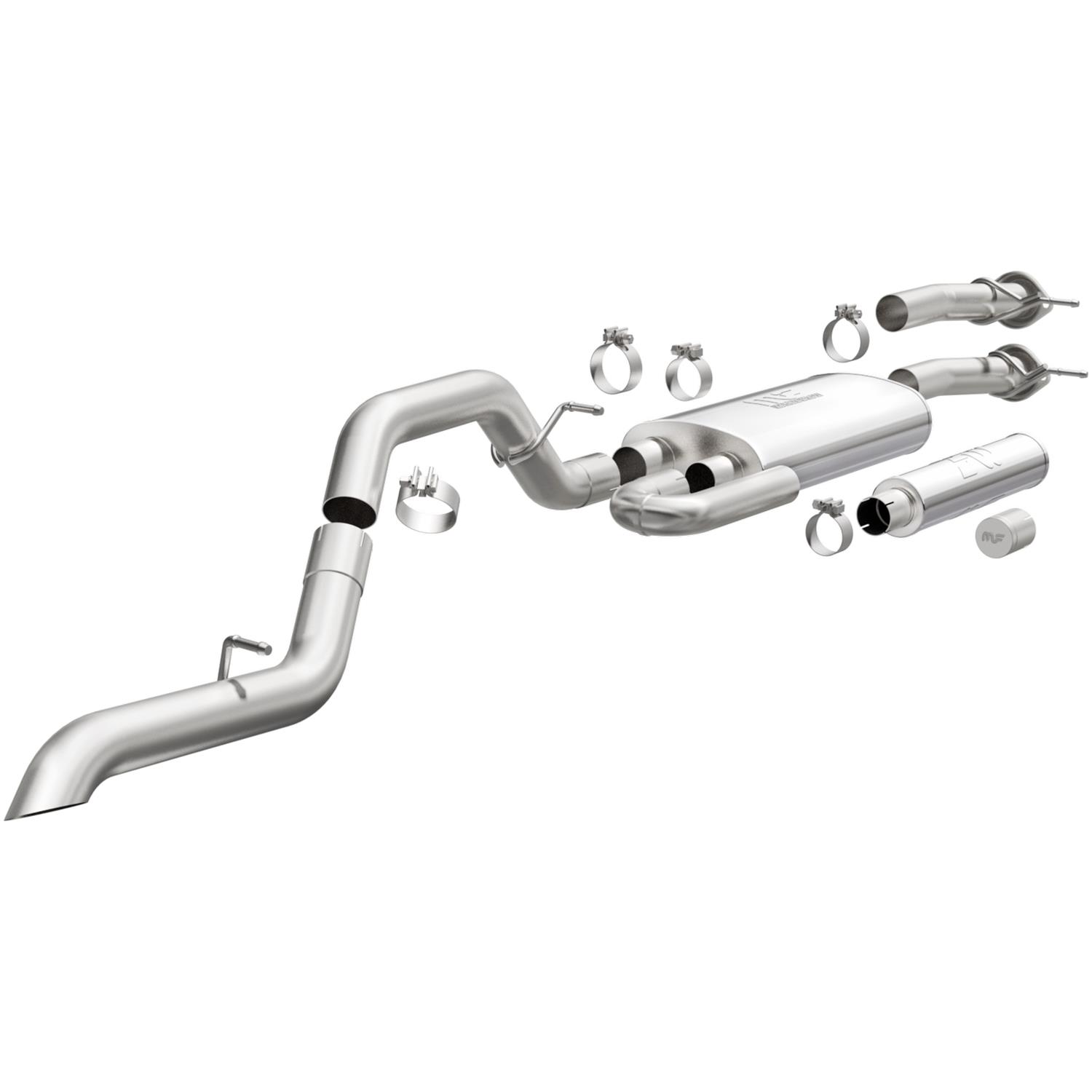

MagnaFlow Stainless Overland Cat-Back Exhaust 15-21 Chevy Colorado/ 15-21 GMC Canyon
MagnaFlow Stainless Overland Cat-Back Exhaust 15-21 Chevy Colorado/ 15-21 GMC Canyon
A$2,579.43
IN STOCK! Est Ship 3-5 days.
This item is IN STOCK at one of our warehouses or distribution centres, the ETA is the approximate time required to prepare your order for dispatch.
We accept
Description
The MagnaFlow® Chevrolet Colorado / GMC Canyon Overland Series™ Cat-Back Performance Exhaust System #19569 is engineered to augment your overland-ready Chevrolet Colorado or GMC Canyon with MagnaFlow®’s famous deep exhaust tone and dyno-proven performance. The weight of MagnaFlow® exhaust kit #19569 has been optimized to improve your rig’s utility, while its mandrel bent 3” main piping and single straight-through muffler are designed to sit much closer to the underside of your truck. Combined with a no-tip, high clearance, passenger-side rear exit, MagnaFlow® #19569 greatly improves the capability of your Colorado or Canyon with enhanced ground clearance and superior departure angles. #19569 utilizes one of MagnaFlow®’s No Drone Technology (NDT) resonators in order to cancel out the natural droning frequencies of your truck and keep the interior quiet on long drives. This Overland Series™ exhaust system was designed to be compatible with the most common bolt-on aftermarket modifications. The use of CNC precision robotic manufacturing enables the system to fit your rig perfectly, allowing for hassle-free bolt-on installation. The entirely stainless-steel construction of MagnaFlow® #19569 is covered by MagnaFlow®’s limited lifetime construction warranty.
Product Overview
The MagnaFlow Chevrolet Colorado / GMC Canyon Overland Series Cat-Back Performance Exhaust System #19569 is engineered to augment your overland-ready Chevrolet Colorado 2015-2022 or GMC Canyon 2015-2022 with MagnaFlow’s famous deep exhaust tone and dyno-proven performance. The weight of MagnaFlow exhaust kit #19569 has been optimized to improve your rig’s utility, while its mandrel bent 3” main piping and single straight-through muffler are designed to sit much closer to the underside of your truck. Combined with a no-tip, high clearance, passenger-side rear exit, MagnaFlow #19569 greatly improves the capability of your Colorado or Canyon with enhanced ground clearance and superior departure angles. #19569 utilizes one of MagnaFlow’s No Drone Technology (NDT) resonators in order to cancel out the natural droning frequencies of your truck and keep the interior quiet on long drives. This Overland Series exhaust system was designed to be compatible with the most common bolt-on aftermarket modifications. The use of CNC precision robotic manufacturing enables the system to fit your rig perfectly, allowing for hassle-free bolt-on installation. The entirely stainless-steel construction of MagnaFlow #19569 is covered by MagnaFlow’s limited lifetime construction warranty.
Features and Benefits
- No-Drone-Technology Allows For A Quiet Cabin
- No-Drone-Technology (NDT) allows for a quiet cabin
- Dyno proven performance
- High clearance exit
Product Details
| 11021: | 5 |
|---|---|
| 11022: | 22 |
| 11023: | 11 |
| 11048: | 4 |
| 11049: | 18 |
| 11050: | 4 |
| 11064: | Straight-Through |
| 11073: | Tuned Chamber |
| Catalytic Converter Quantity: | 0 |
| Clamp Type: | Band Clamp |
| Clamping Type: | Band Clamp |
| Clamps Included: | Yes |
| Description: | Overland Series Stainless Cat-Back System |
| Exhaust Tip Quantity: | 0 |
| Exhaust Type: | Cat-Back |
| Exit Position: | Single Passenger Side Rear |
| Exit Style: | Single Passenger Side Rear |
| Gasket Included: | No |
| Gasket Or Seal Included: | No |
| Hangers Included: | Yes |
| Inlet Connection Type: | Bolt-On |
| Inlet Inside Diameter: | 3.000 in. |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 3 |
| Material: | Stainless Steel |
| Mounting Bracket Included: | No |
| Muffler Body Height Position Left: | 5 |
| Muffler Body Height Position Right: | 4 |
| Muffler Body Length Position Left: | 22 |
| Muffler Body Length Position Right: | 18 |
| Muffler Body Material: | Stainless Steel |
| Muffler Body Width Position Left: | 11 |
| Muffler Body Width Position Right: | 4 |
| Muffler Finish: | Brushed |
| Muffler Height Position Left: | 5 |
| Muffler Height Position Right: | 4 |
| Muffler Length Position Left: | 22 |
| Muffler Length Position Right: | 18 |
| Muffler Quantity: | 2 |
| Muffler Size Position Left: | 5x11x22 |
| Muffler Size Position Right: | 4x4x18 |
| Muffler Type Position Left: | Straight-Through |
| Muffler Type Position Right: | Tuned Chamber |
| Muffler Type: | Straight-Through;Tuned Chamber |
| Muffler Width Position Left: | 11 |
| Muffler Width Position Right: | 4 |
| Part Number: | mag19569 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Series: | Overland |
| Subtitle: | Cat-Back Performance Exhaust System |
| Tail Pipe Diameter: | 3.000 in. |
| Tip Diameter: | No Tip |
| Title: | MagnaFlow Overland Series Cat-Back Performance Exhaust System 19569 |
| Tubing Diameter: | 3.000 in. |
| Type: | Cat-Back |
| Valve Included: | No |
| Valve Type: | None |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust System Kit
Features
- Dyno Proven Performance
- High clearance exit
- No-Drone-Technology Allows For A Quiet Cabin
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 19569
- Product Attributes - Part Type
- Exhaust Systems
- Product Attributes - Product Line
- MagnaFlow Overland Series Performance Exhaust Systems
- Product Attributes - UPC
- 888563168586
- Product Attributes - System Material
- 409 stainless steel
- Product Attributes - System Style
- Cat-back
- Product Attributes - Exhaust Type
- Single
- Product Attributes - Exit Location
- Passenger side
- Product Attributes - System Finish
- Natural
- Product Attributes - Catalytic Converter(s) Included
- No
- Product Attributes - Intermediate Pipe Diameter (in.)
- 3.00 in.
- Product Attributes - Muffler Included
- Yes
- Product Attributes - Muffler Quantity
- Two
- Product Attributes - Muffler Configuration
- Single inlet/Dual outlet
- Product Attributes - Muffler Style
- Chambered
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Muffler Finish
- Polished
- Product Attributes - Hardware Included
- Yes
- Product Attributes - Tailpipe Diameter (in.)
- 3.00 in.
- Product Attributes - Tip Included
- No
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold as a kit.
- Product Attributes - Special Attention
- It is illegal to install parts or components that bypass, defeat, or render inoperative the manufacturers’ technology and design necessary to reduce vehicle emissions to meet state and federal Clean Air Act standards.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag19569 |
| SFX Item ID | 4288954 |
| Supplier Item Code | 4288954 |
| Manufacturer SKU | 19569 |
| Manufacturer UPC | 888563168586 |
| Alternative References | mpe-19569, MFL19569 |
