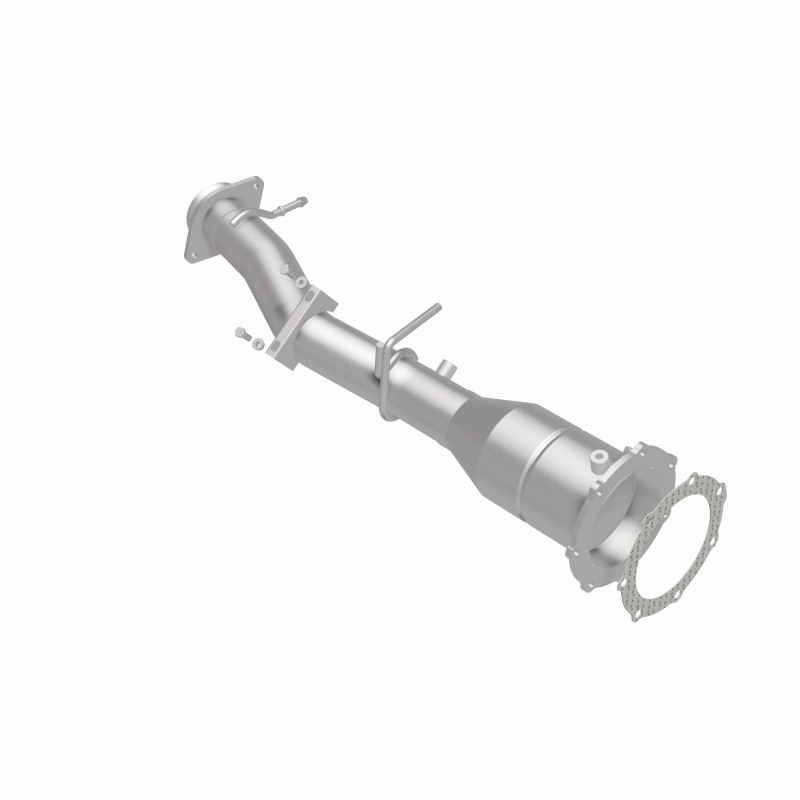

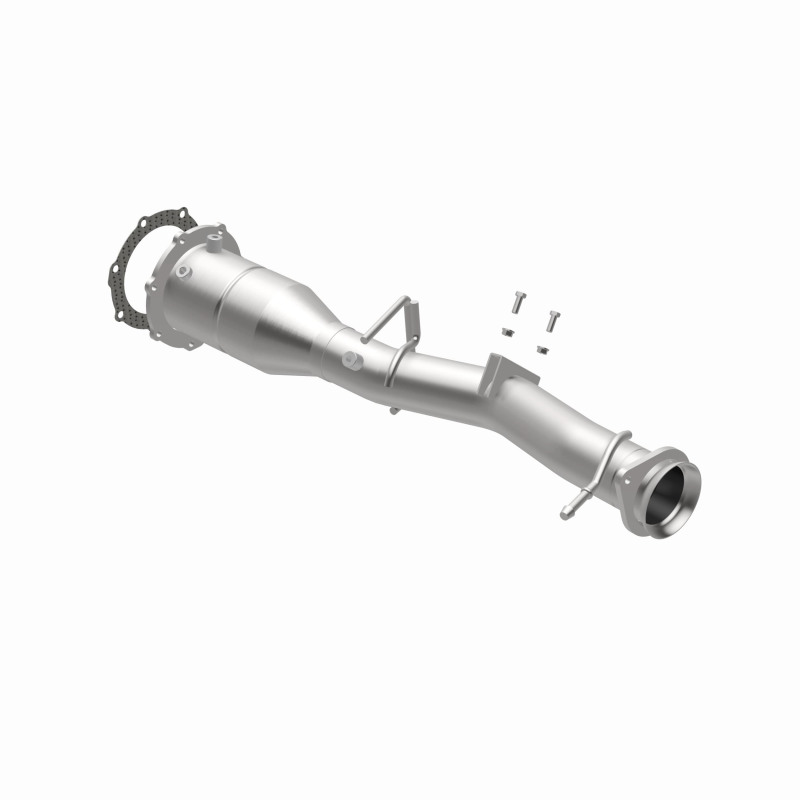

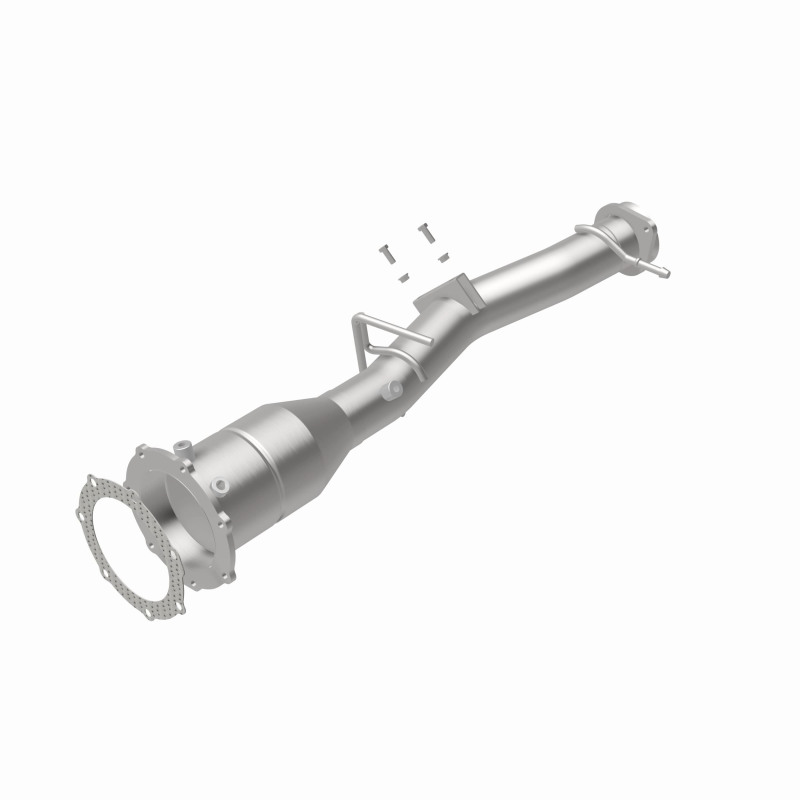

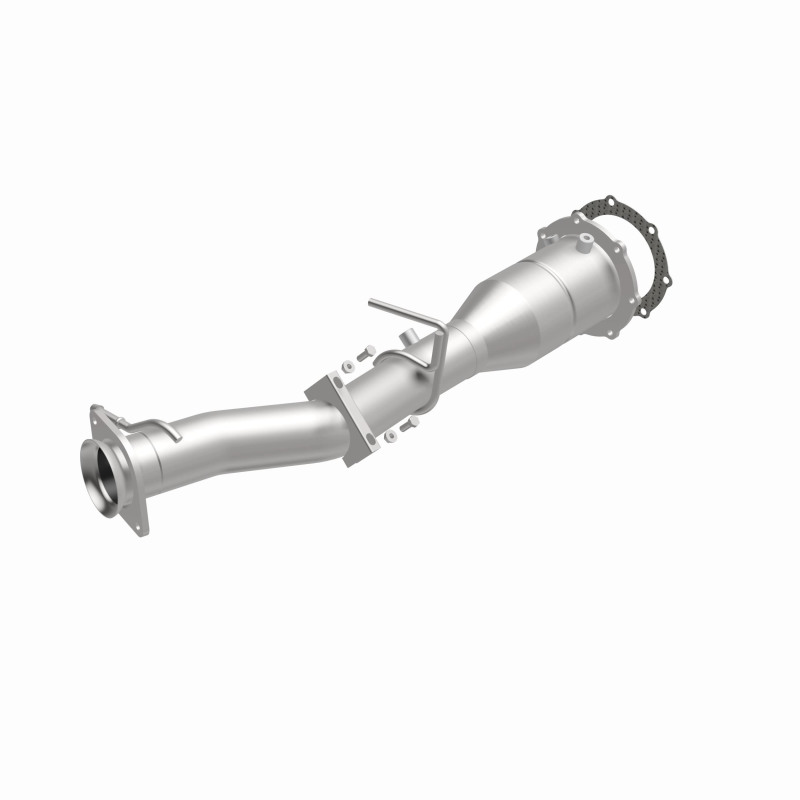

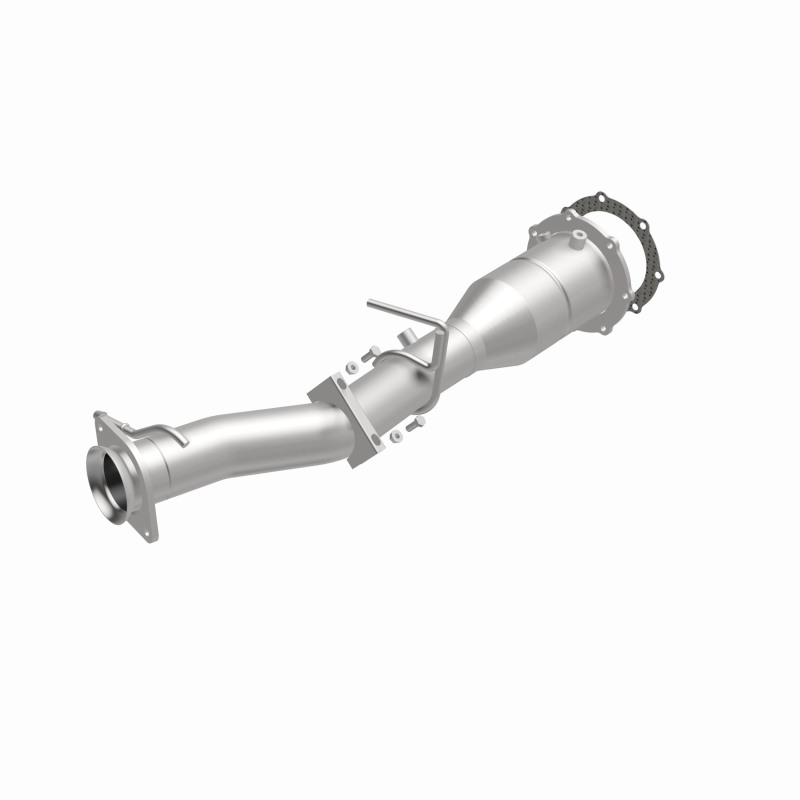

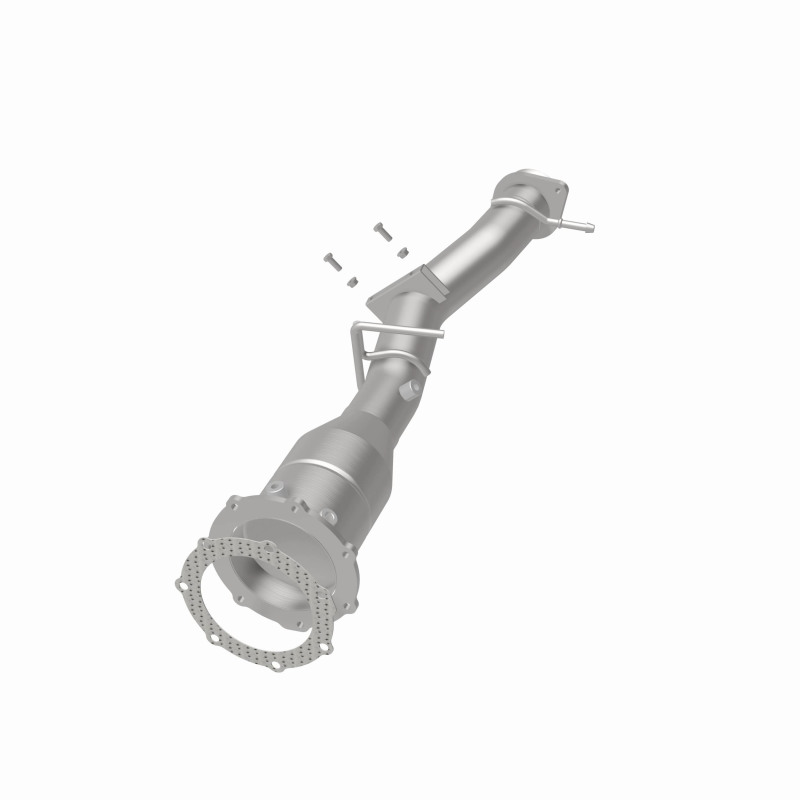

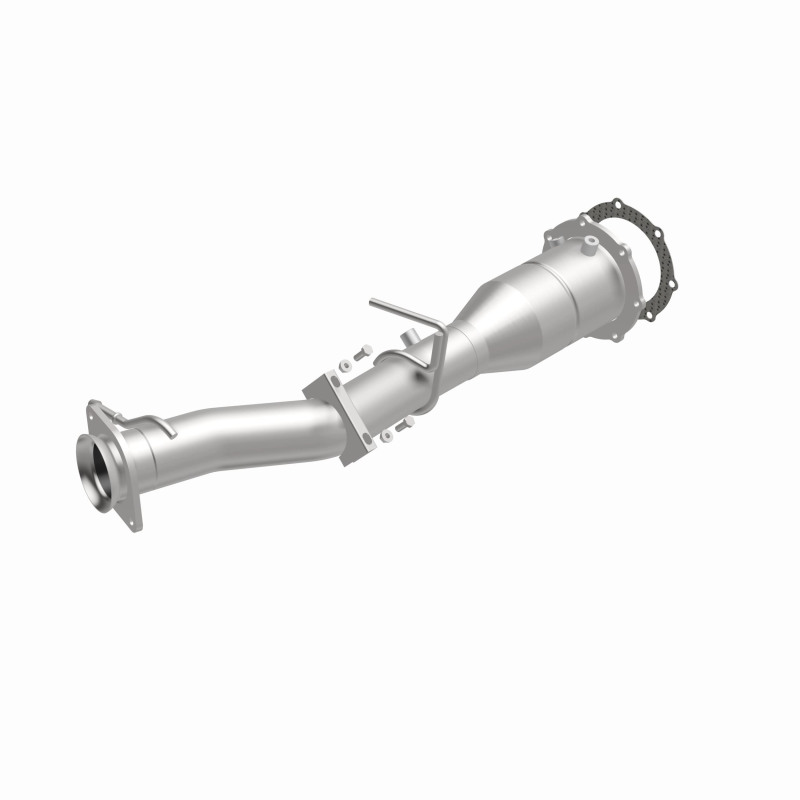

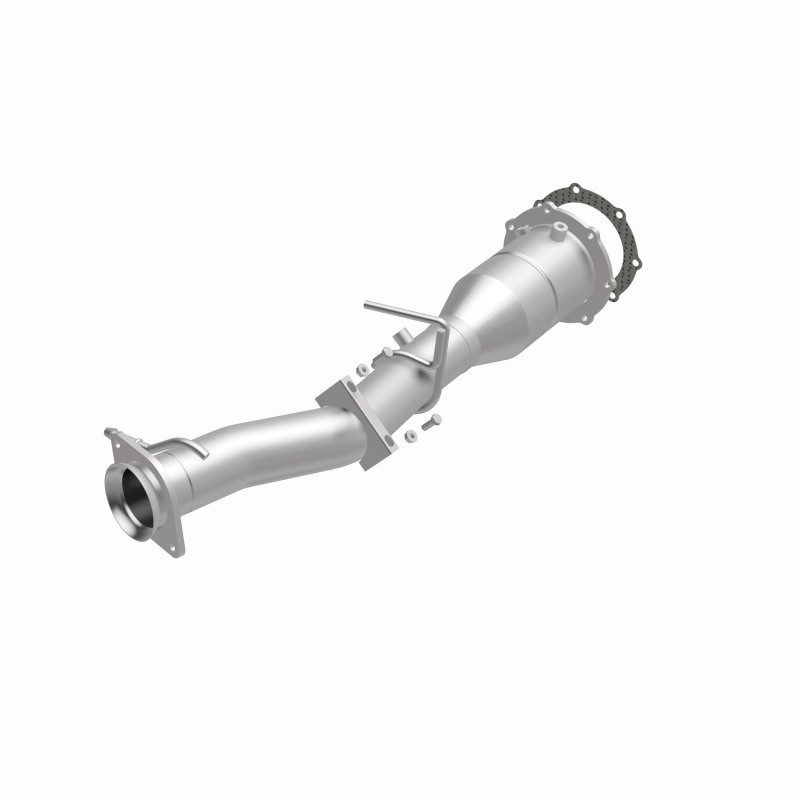

MagnaFlow Diesel Oxidation Catalyst DF 2008-2010 Ford F-250/350/450/550 6.4L
MagnaFlow Diesel Oxidation Catalyst DF 2008-2010 Ford F-250/350/450/550 6.4L
A$2,009.65
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Diesel Oxidation Catalyst 60503. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Diesel Oxidation Catalyst is designed to fit the 2008-2010 Ford F-250 Super Duty 6.4L & 2008-2010 Ford F-350 Super Duty 6.4L. MagnaFlow 60503 includes (1) Flange Gasket, (2) Bolts, (2) Nuts. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Product Overview
MagnaFlow specializes in superior catalytic converter and exhaust technology and has spent the past 30+ years earning its reputation as a global market leader. American engineered and manufactured, MagnaFlow Catalytic Converters combine efficient industrial design to produce a product that exceeds, rather than meets, the highest standards of product performance and efficiency in the industry. MagnaFlow uses both Ceramic and Metallic substrates with different combinations of cell density and wall thickness to meet vehicle specific requirements. MagnaFlow Direct-Fit Catalytic Converters are designed for easy bolt-on installation for the Professional Installer. Each is designed to exact the original equipment specifications. While the majority of the Direct-Fit Catalytic Converter products do not require welding, cutting or bending, limited applications may require additional welding for optimal installation.
All Federal catalytic converters meet EPA requirements. Federal Catalytic Converters are not legal for sale, installation or use on vehicles registered in the state of California.
All California State Catalytic converters are CARB compliant. Converters in this catalog are based on Executive Orders issued by the California Air Resource Board and must be used in accordance with this information. In California, it is illegal to select a catalytic converter for installation based solely on vehicle weight and engine size.
* Stainless steel construction
* Formulated for Gas and Diesel Applications
Features and Benefits
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
Product Details
| 2057: | Yes |
|---|---|
| 5: | New |
| Air Tube Adaptable: | Not Air Tube Kit Adaptable |
| Body Height: | 6 |
| Body Length: | 12.75 |
| Body Material: | Stainless Steel |
| Body O2 Location: | Inlet;Outlet |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 6 |
| Clamp Included: | No |
| Converter Body Quantity: | 1 |
| Converter Quantity: | 1 |
| Description: | Direct-Fit Diesel Oxidation Catalyst |
| Fitment: | Direct-Fit |
| Gasket Included: | Yes |
| Grade Type: | Regular |
| Hangers Included: | Yes |
| Hardware Included: | Yes |
| Heat Shield Included: | No |
| Heat Shield Material: | None |
| Heat Shield: | No |
| Inlet Attachment: | Bolt-On |
| Inlet Bolt Hole Quantity: | 7 |
| Inlet Gasket Included: | No |
| Inlet Mounting Hardware Included: | No |
| Inlet Outside Diameter: | 3.5 |
| Inlet Quantity: | 1 |
| Inlet Tubing Size: | 3.5 |
| Inlet Type: | Welded Flange |
| Material: | 409 Stainless Steel |
| Meets or Exceeds Original Equipment Manufacture Specifications: | Yes |
| Mounting Hardware Included: | Yes |
| New Or Remanufactured: | New |
| O2 Location: | Federal / EPA Compliant |
| Outlet Attachment: | Bolt-On |
| Outlet Bolt Hole Quantity: | 2 |
| Outlet Gasket Included: | Yes |
| Outlet Mounting Hardware Included: | No |
| Outlet Outside Diameter: | 6 |
| Outlet Quantity: | 1 |
| Outlet Tubing Size: | 3.5 |
| Outlet Type: | Flare With Loose Flange |
| Overall Length: | 37.75 |
| Part Number: | mag60503 |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 3 |
| Series: | OEM Grade |
| Substrate Material: | Metallic |
| Subtitle: | Federal / EPA Compliant Diesel Oxidation Catalyst |
| Title: | MagnaFlow OEM Grade Federal / EPA Compliant Diesel Oxidation Catalyst 60503 |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Direct-Fit |
| Universal: | No |
| WARNING CA Proposition 65: | No |
Part Type
Diesel Oxidation Catalyst (DOC)
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Simplifies installation with essential gaskets and hardware being included in the box
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- Your trusted source for EPA-compliant diesel oxidation catalysts, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 60503
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563064123
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Converter Outlet Attachment
- Stock flange
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Metallic substrate
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag60503 |
| SFX Item ID | 4284101 |
| Supplier Item Code | 4284101 |
| Manufacturer SKU | 60503 |
| Manufacturer UPC | 888563064123 |
| Alternative References | mpe-60503, MFL60503, F-250/350/450/550, 6.4L |
