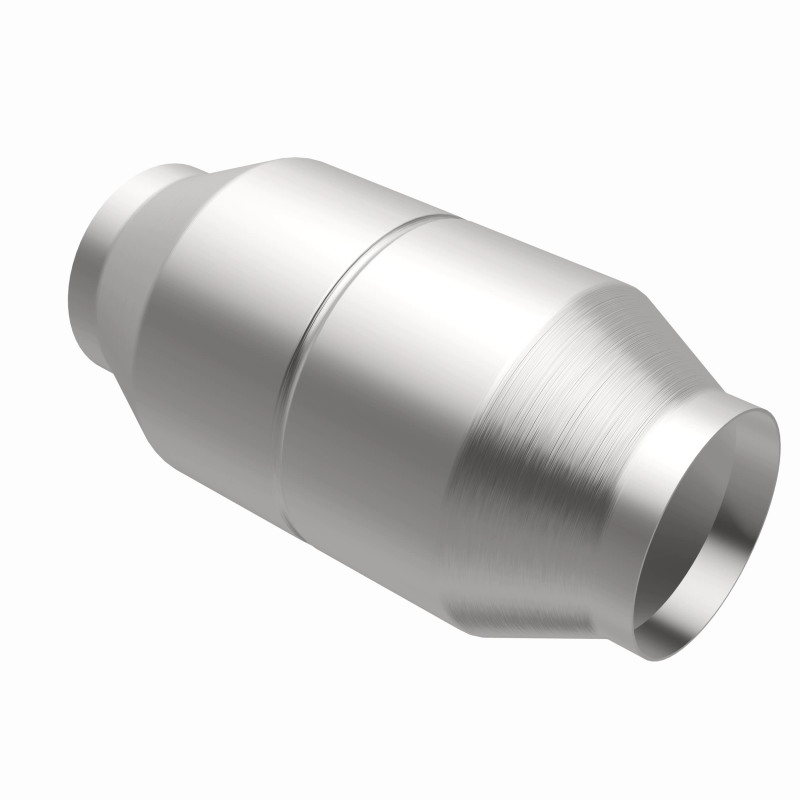

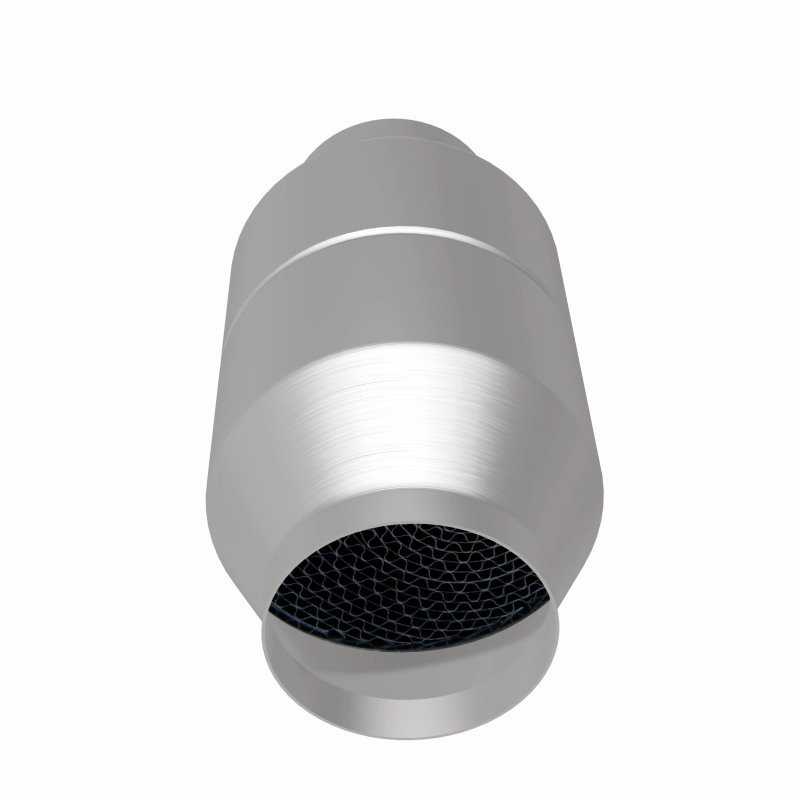

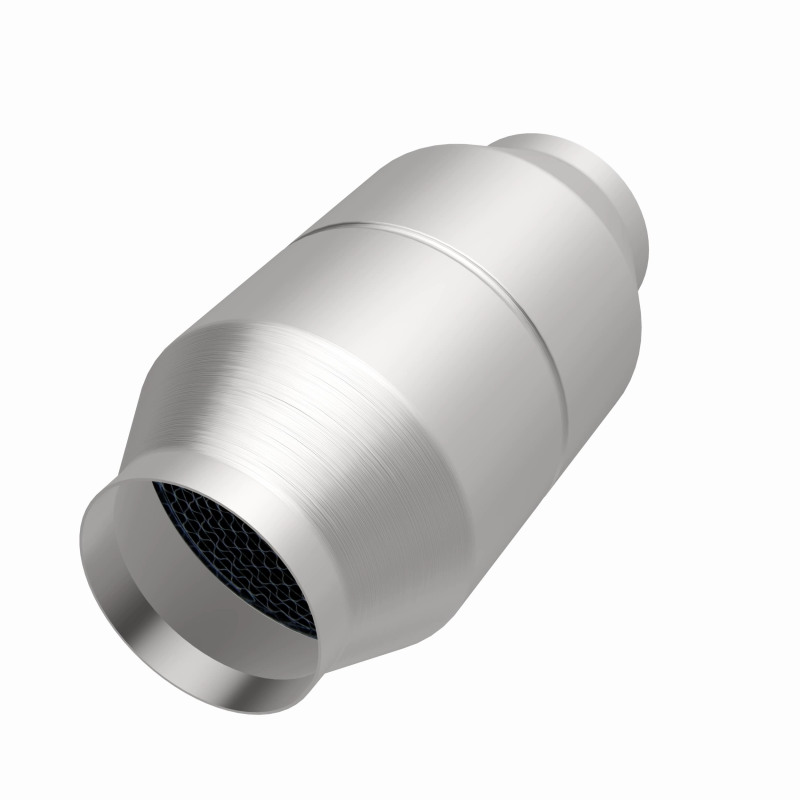

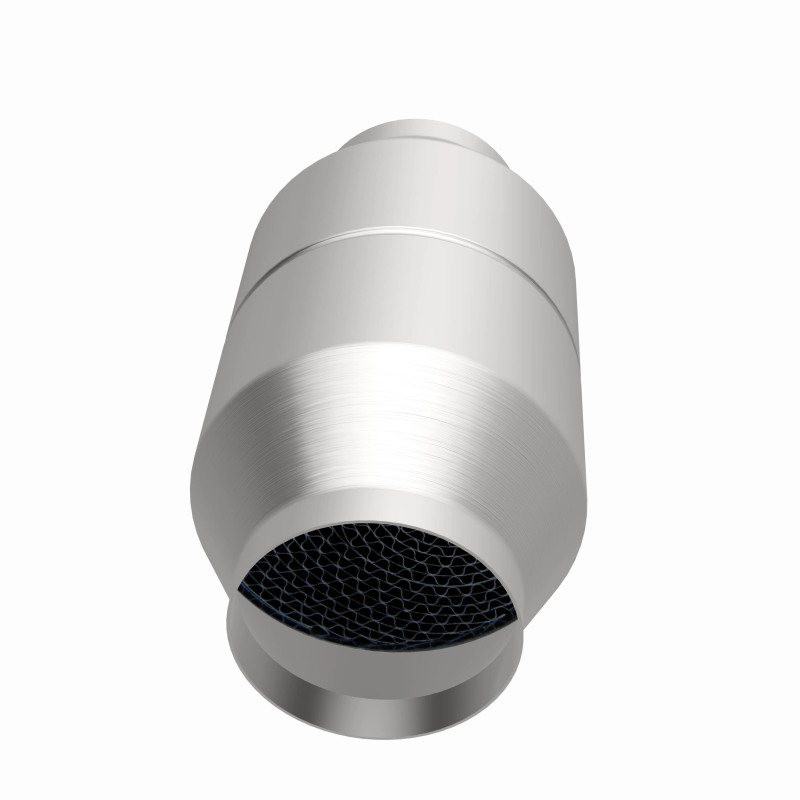

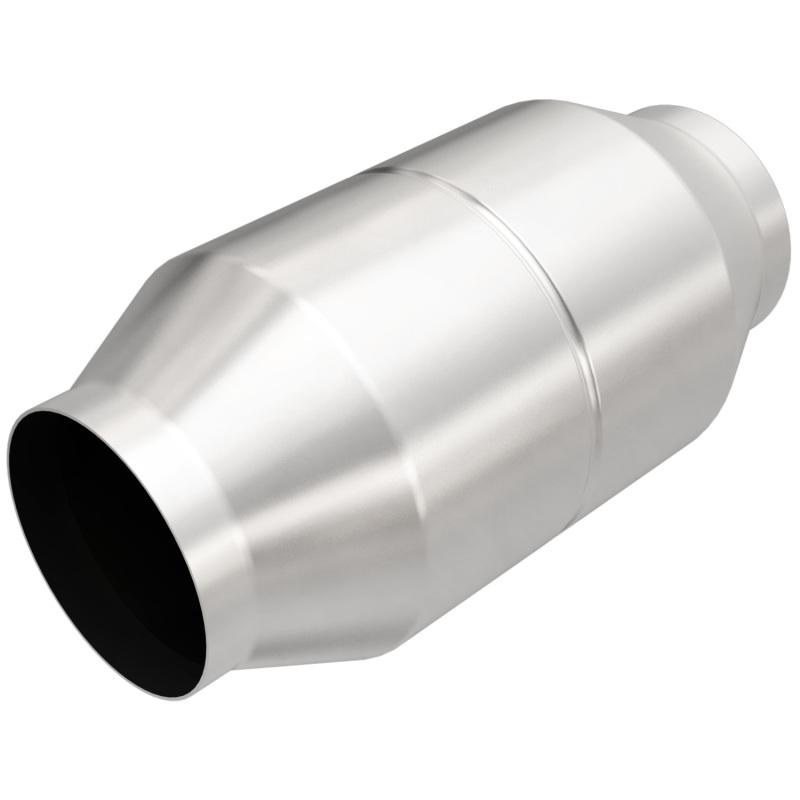

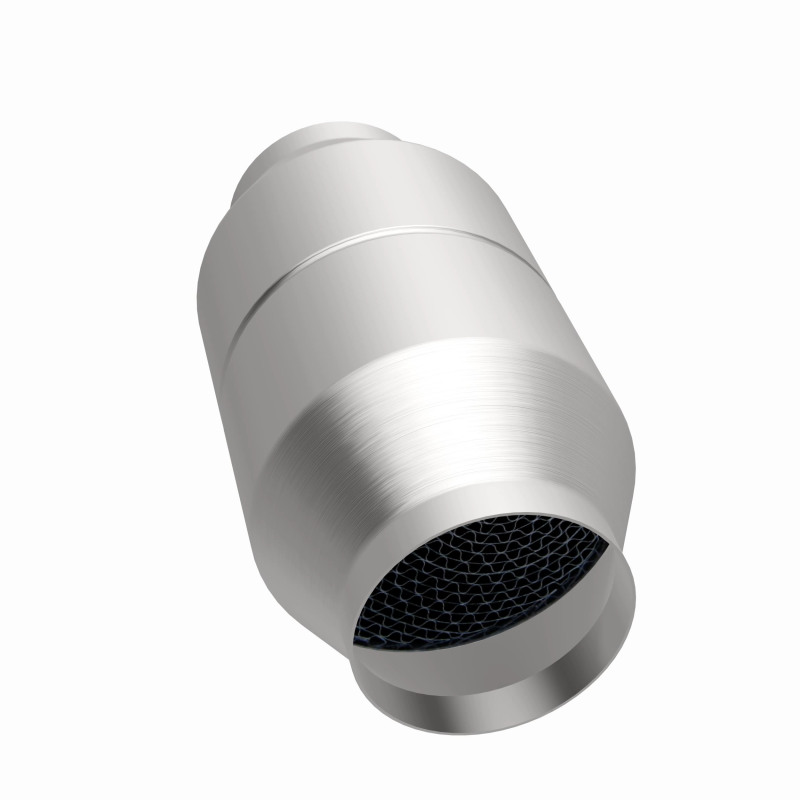

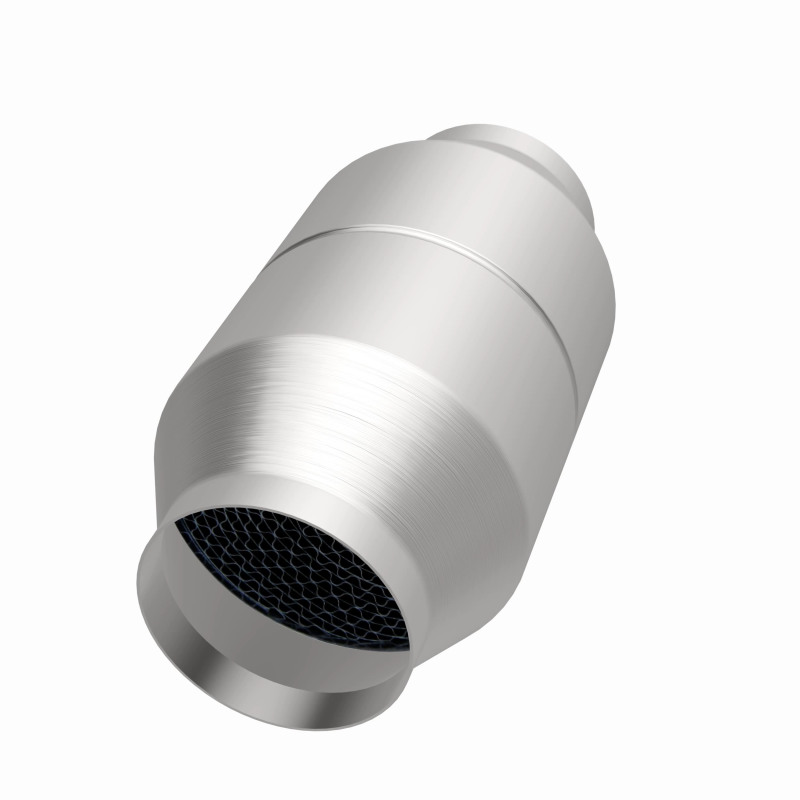

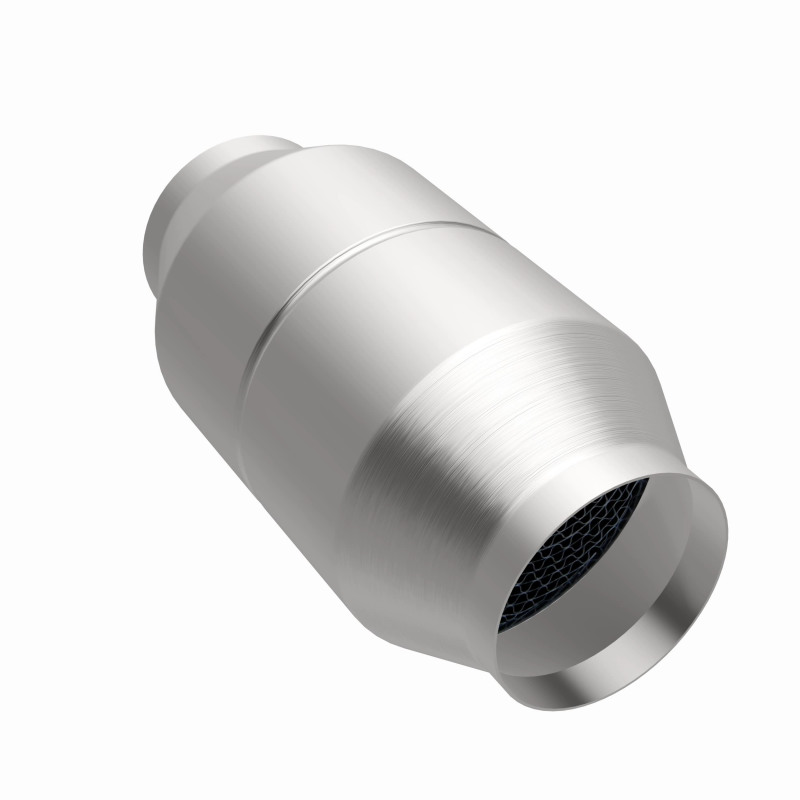

MagnaFlow Universal Catalytic Converter 3.50 inch C/C Diesel
MagnaFlow Universal Catalytic Converter 3.50 inch C/C Diesel
A$860.55
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Diesel Oxidation Catalyst 60110. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Product Overview
MagnaFlow specializes in superior catalytic converter and exhaust technology and has spent the past 30+ years earning its reputation as a global market leader. American engineered and manufactured, MagnaFlow Catalytic Converters combine efficient industrial design to produce a product that exceeds, rather than meets, the highest standards of product performance and efficiency in the industry. MagnaFlow uses both Ceramic and Metallic substrates with different combinations of cell density and wall thickness to meet vehicle specific requirements.
MagnaFlow Universal Catalytic Converters form the basic building blocks for a comprehensive line of direct-fit applications.
The main benefit of the universal catalytic converter is that one unit may cover a wide variety of vehicle makes and models. Installing universal converters often requires the use of welding, cutting and tube bending equipment that is readily available to most professional installers.
All Federal catalytic converters meet EPA requirements. Federal Catalytic Converters are not legal for sale, installation or use on vehicles registered in the state of California.
All California State Catalytic converters are CARB compliant. Converters in this catalog are based on Executive Orders issued by the California Air Resource Board and must be used in accordance with this information. In California, it is illegal to select a catalytic converter for installation based solely on vehicle weight and engine size.
* Stainless steel construction
* Formulated for Gas and Diesel Applications
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Compact/Lightweight Construction Enables Installation In Confined Areas/Welding Is Required
- Your Trusted Source For EPA-Compliant Catalytic Converters
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Compact, lightweight construction enables installation in confined areas, welding is required
- Expertly formulated catalyst blend maximizes efficiency, ensuring optimal emissions control to keep your check engine light off
Product Details
| 2899: | No |
|---|---|
| Air Tube Adaptable: | No |
| Air Tube Count: | 0 |
| Body Height: | 6.000 in. |
| Body Length: | 12.000 in. |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 6.000 in. |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| California Air Resources Board (CARB): | No |
| California Air Resources Board Approved: | No |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Catalytic Converter Body Material: | Stainless |
| Catalytic Converter Format: | Pre-Catalytic Converter and Main Catalytic Converter |
| Catalytic Converter Overall Length: | 12 |
| Catalytic Converter Oxygen Sensor Location: | N/A |
| Clamp Included: | No |
| Clamps Included: | No |
| Converter Body Size: | OEM |
| Converter Quantity: | 1 |
| Core Substrate Material: | Metallic |
| Description: | HM Grade Universal Catalytic Converter-3.50in. |
| Emission: | Non-California (49-State) |
| Finish: | Stainless Steel |
| Gasket Included: | No |
| Grade Type: | Regular |
| Hangers Included: | No |
| Heat Shield Attached: | No |
| Heat Shield Included: | Yes |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Weld-On |
| Inlet Attachment: | Weld-On |
| Inlet Diameter: | 3.5 |
| Inlet Gasket Included: | No |
| Inlet Inside Diameter: | 3.500 in. |
| Inlet Mounting Hardware Included: | No |
| Inlet Orientation: | Straight |
| Inlet Quantity: | 1 |
| Inlet Type: | Weld-On |
| Main Piping Diameter: | 3.5 |
| Material: | Stainless Steel |
| Mounting Hardware Included: | No |
| Outlet Attachment Type: | Weld-On |
| Outlet Attachment: | Weld-On |
| Outlet Diameter: | 3.5 |
| Outlet Gasket Included: | No |
| Outlet Inside Diameter: | 3.5 |
| Outlet Mounting Hardware Included: | No |
| Outlet Orientation: | Straight |
| Outlet Outside Diameter: | 3.500 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Weld-On |
| Overall Length: | 12.000 in. |
| Oxygen Sensor Location: | None |
| Part Number: | mag60110 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Recommended Use: | Converter |
| Sensor Port Count: | 0 |
| Series: | HM Grade |
| Substrate Material: | Metallic |
| Subtitle: | Federal / EPA Compliant Universal Catalytic Converter |
| Subtitles: | Federal / EPA Compliant |
| Title: | MagnaFlow HM Grade Federal / EPA Compliant Universal Catalytic Converter 60110 |
| Tube Material: | Stainless Steel |
| Type: | Universal |
| Universal Or Specific Fit: | Universal |
| WARNING CA Proposition 65: | No |
Part Type
Diesel Oxidation Catalyst (DOC)
Features
- Compact/Lightweight Construction Enables Installation In Confined Areas/Welding Is Required
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Simplifies installation with essential gaskets and hardware being included in the box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant diesel oxidation catalysts, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 60110
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow Diesel Converters
- Product Attributes - UPC
- 841380080165
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Diameter (in.)
- 3.50 in.
- Product Attributes - Converter Inlet Attachment
- Slip fit
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 3.50 in.
- Product Attributes - Converter Outlet Attachment
- Slip fit
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Metallic substrate
- Product Attributes - Converter Overall Length (in.)
- 12.00
- Product Attributes - Converter Overall Width (in.)
- 6.00
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag60110 |
| SFX Item ID | 4288699 |
| Supplier Item Code | 4288699 |
| Manufacturer SKU | 60110 |
| Manufacturer UPC | 841380080165 |
| Alternative References | mpe-60110, MFL60110 |
