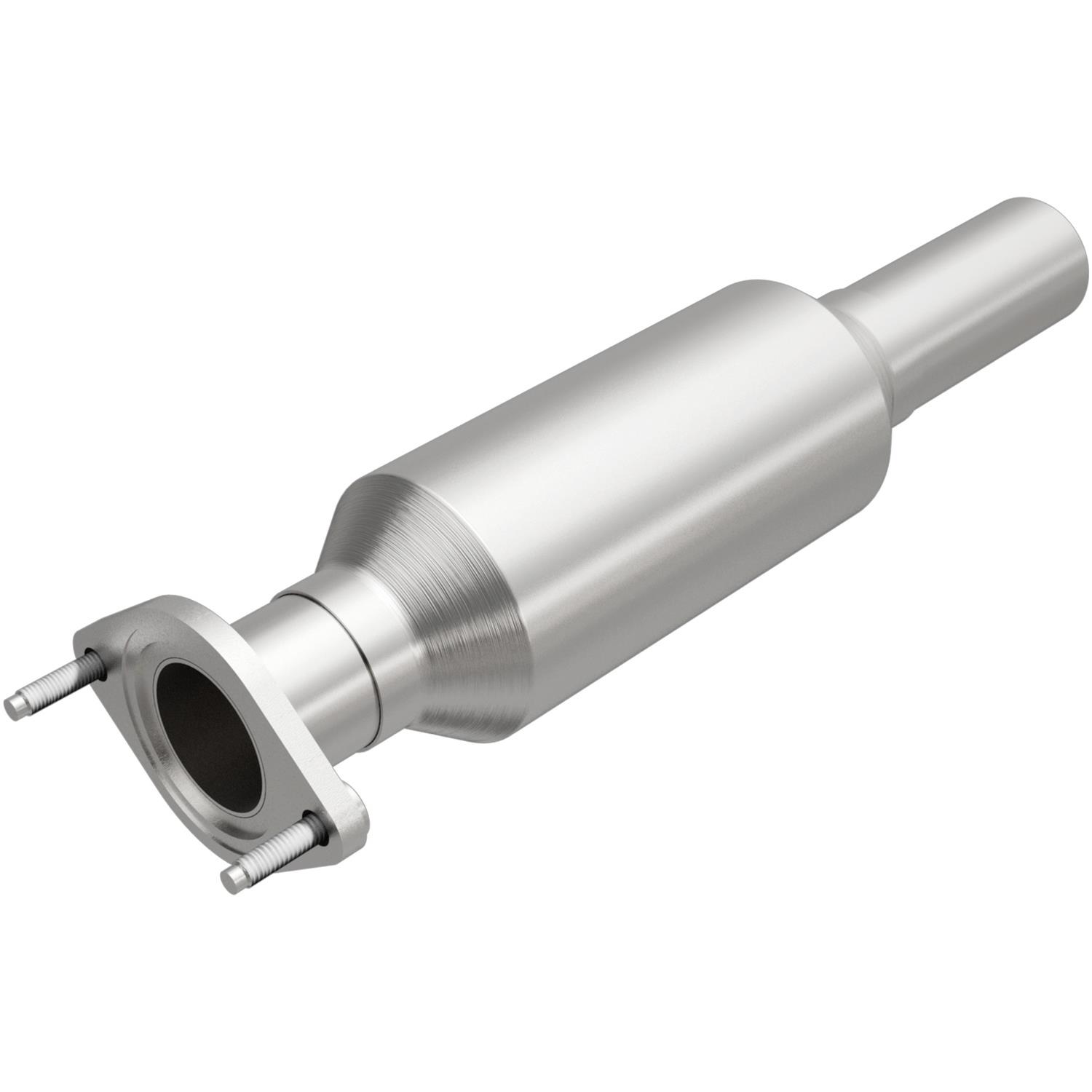

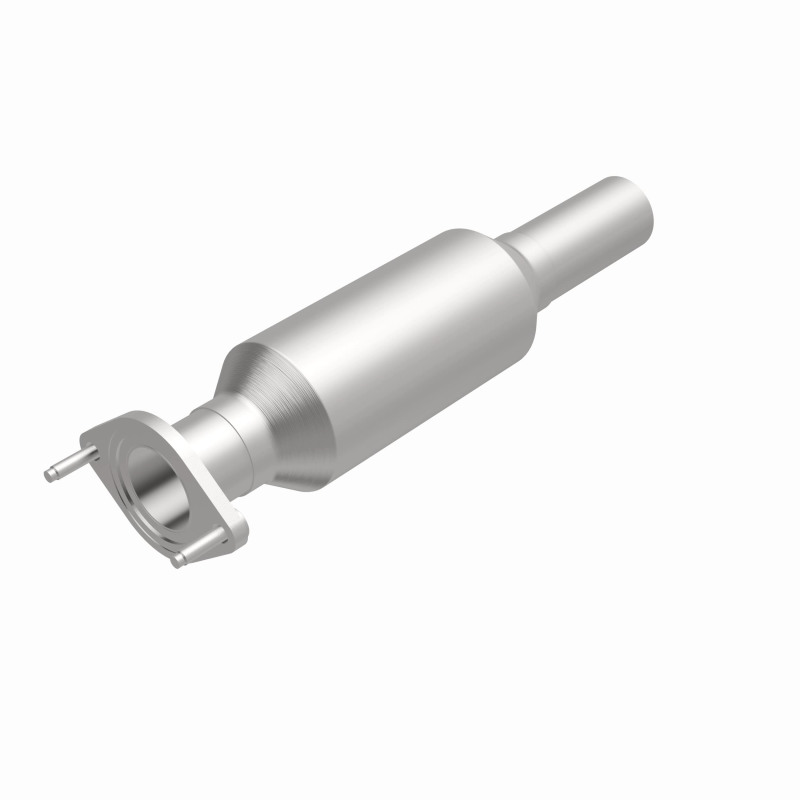

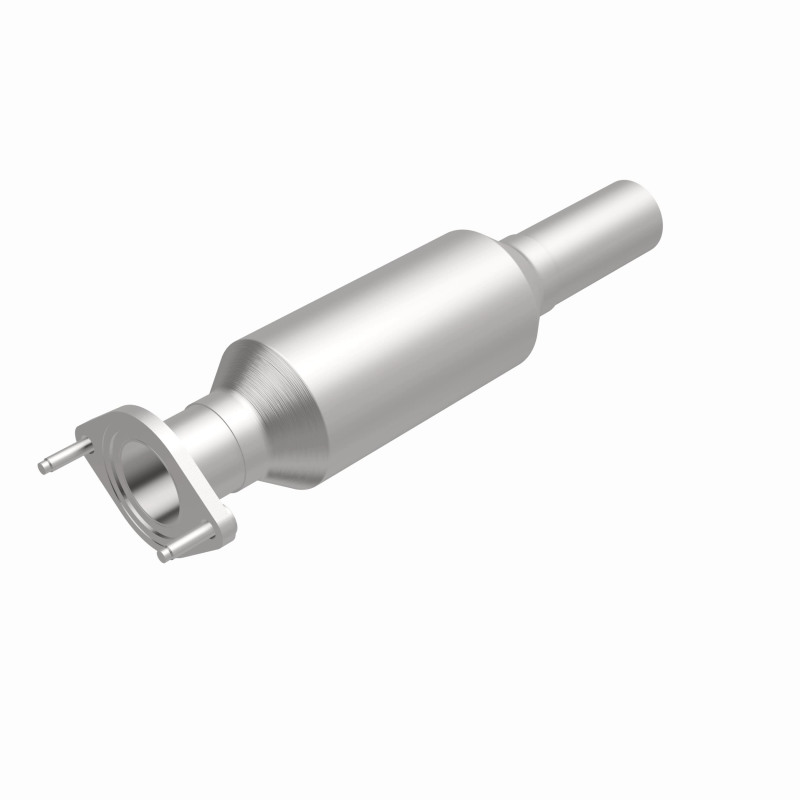

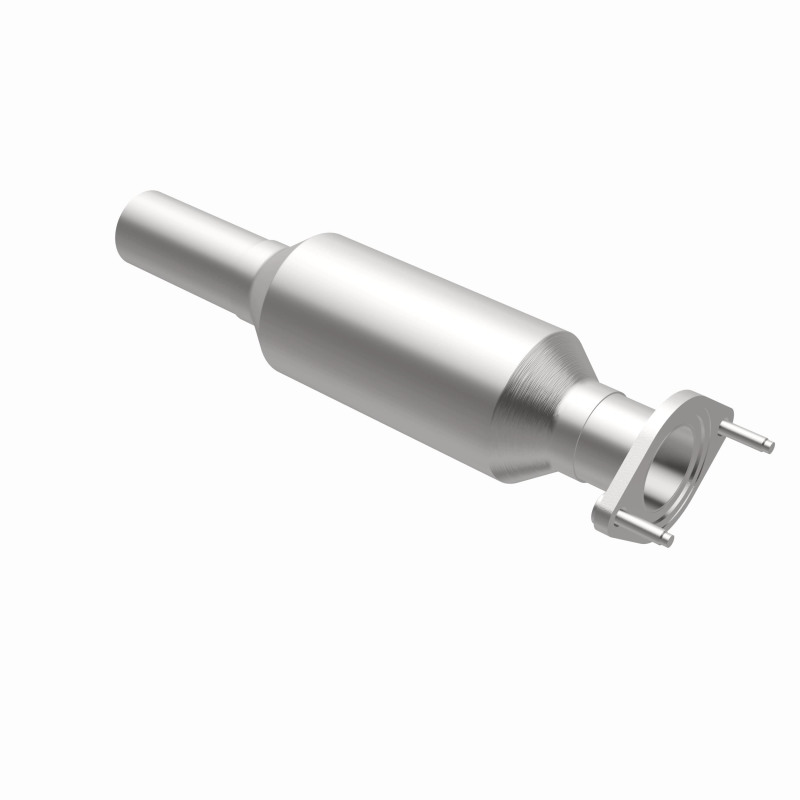

MagnaFlow California Direct Fit Converter 06-09 Ford Fusion 3.0L
MagnaFlow California Direct Fit Converter 06-09 Ford Fusion 3.0L
A$1,168.67
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5571981. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed to fit the 2006-2009 Ford Fusion, 2006-2009 Mercury Milan, and additional vehicles. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Product Overview
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5571981. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed to fit the 2006-2009 Ford Fusion, 2006-2009 Mercury Milan, and additional vehicles. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Features and Benefits
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel MIG Welds
- Simplifies installation with essential gaskets and hardware being included in the box
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height: | 4 |
| Body Length: | 11.250 in. |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 4.000 in. |
| CARB Executive Order Number: | D-193-137 |
| California Air Resources Board (CARB) Certified: | Yes |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Clamp Included: | No |
| Clamps Included: | No |
| Converter Quantity: | 1 |
| Core Substrate Material: | Ceramic |
| Description: | California Direct-Fit Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | No |
| Gasket Or Seal Included: | No |
| Grade Type: | Regular |
| Hanger Included: | No |
| Hangers Included: | No |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 2.250 in. |
| Inlet Gasket Included: | No |
| Inlet Inside Diameter: | 2.25 |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 1 |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.250 in. |
| Material: | Stainless Steel |
| Mounting Hardware Included: | No |
| Outlet Attachment Type: | Clamp-On |
| Outlet Attachment: | Clamp-On |
| Outlet Diameter: | 2.500 in. |
| Outlet Gasket Included: | No |
| Outlet Inside Diameter: | 2.25 |
| Outlet Mounting Hardware Included: | No |
| Outlet Outside Diameter: | 2.250 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Clamp-On |
| Overall Length: | 19.250 in. |
| Oxygen Sensor Location: | None |
| Part Number: | mag5571981 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 0 |
| Series: | California |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | CARB Compliant Direct-Fit Catalytic Converter |
| Subtitles: | California / CARB Compliant |
| Title: | MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5571981 |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Simplifies installation with essential gaskets and hardware being included in the box
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 5571981
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563148540
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Diameter (in.)
- 2.25 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 2.25 in.
- Product Attributes - Converter Outlet Attachment
- Slip fit
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 19.25
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - CARB EO Number(s)
- D-193-137
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag5571981 |
| SFX Item ID | 4286893 |
| Supplier Item Code | 4286893 |
| Manufacturer SKU | 5571981 |
| Manufacturer UPC | 888563148540 |
| Alternative References | mpe-5571981, MFL5571981, 3.0L |
Compatibility
