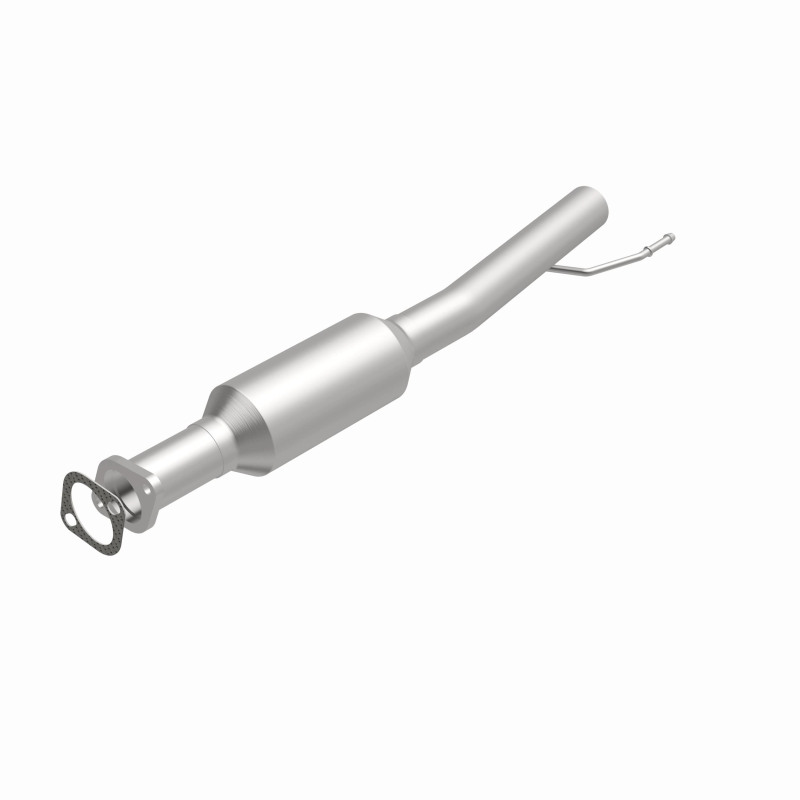

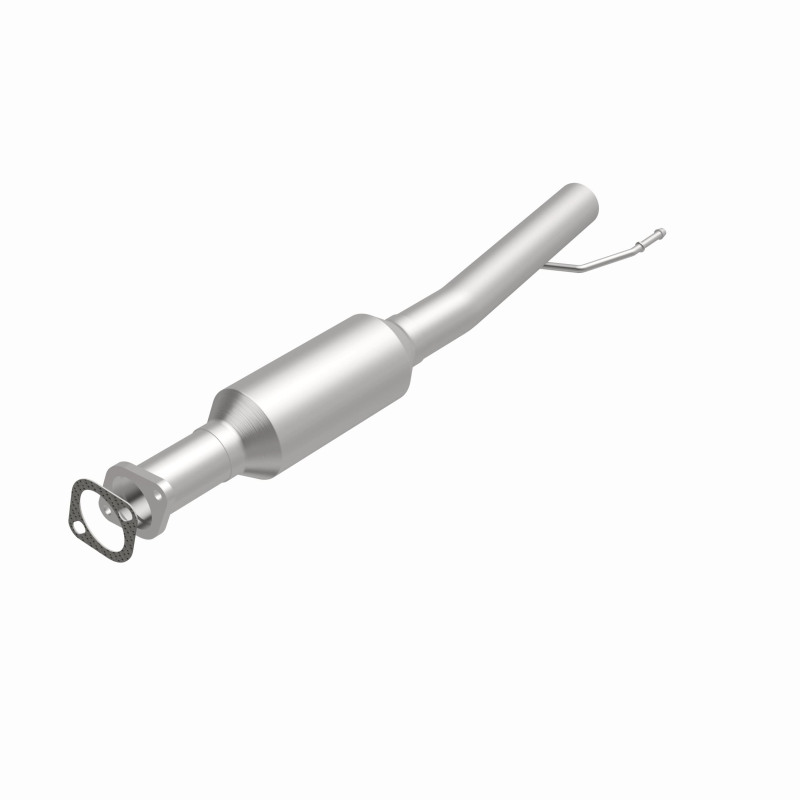

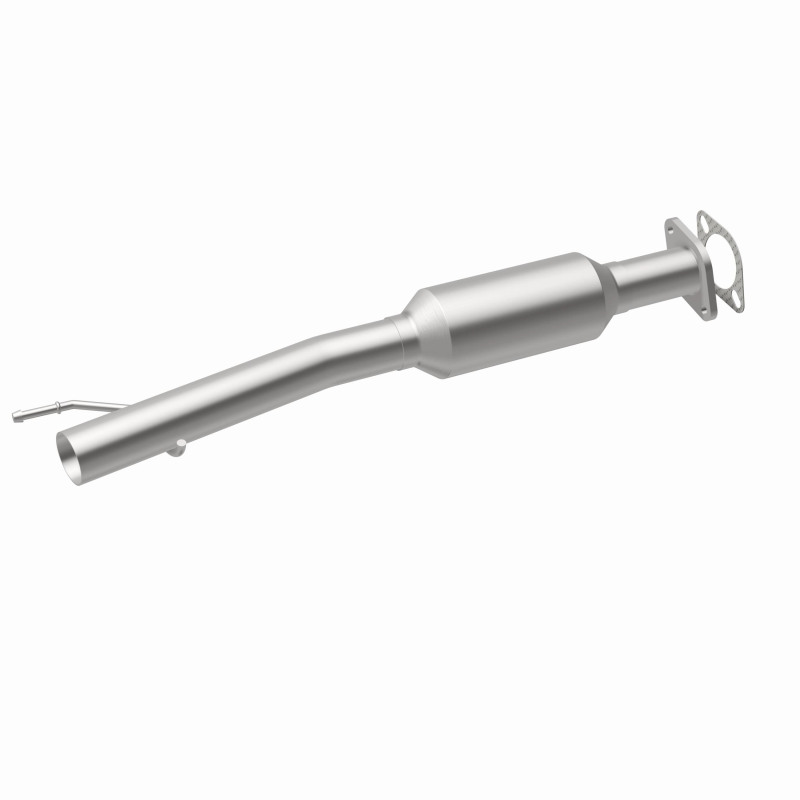

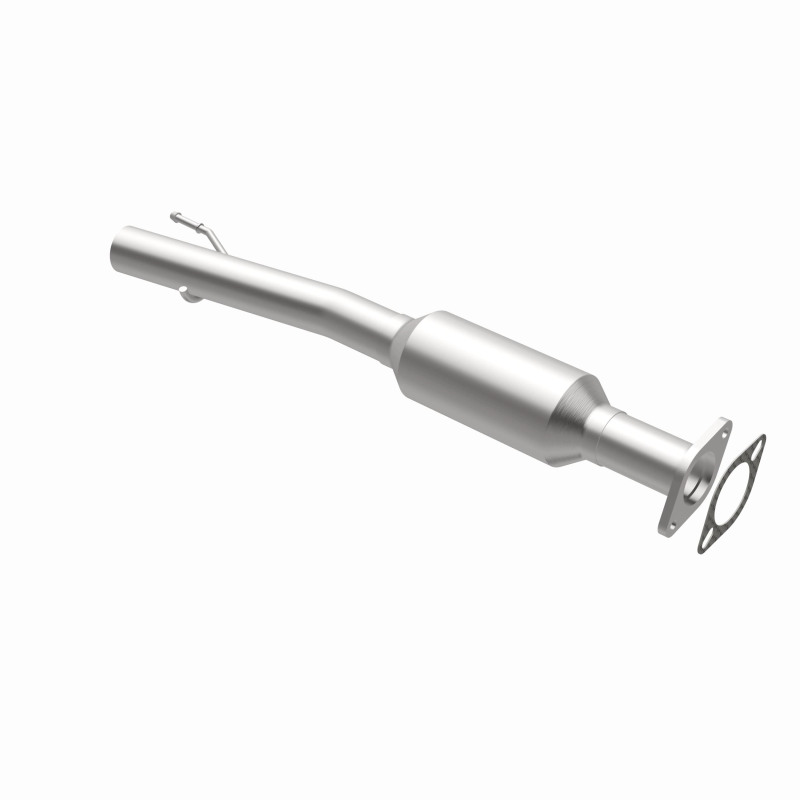

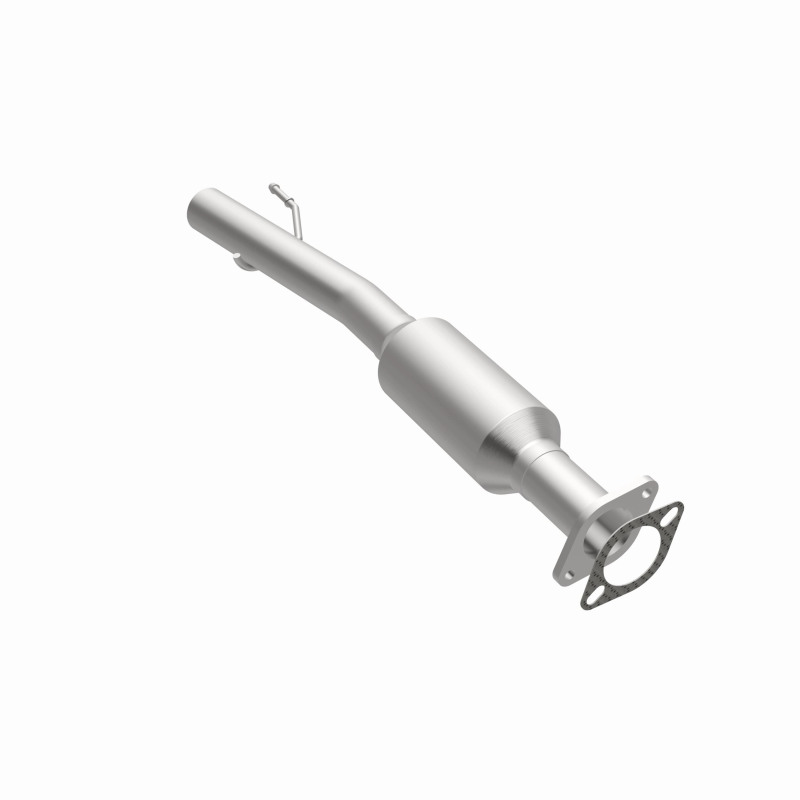

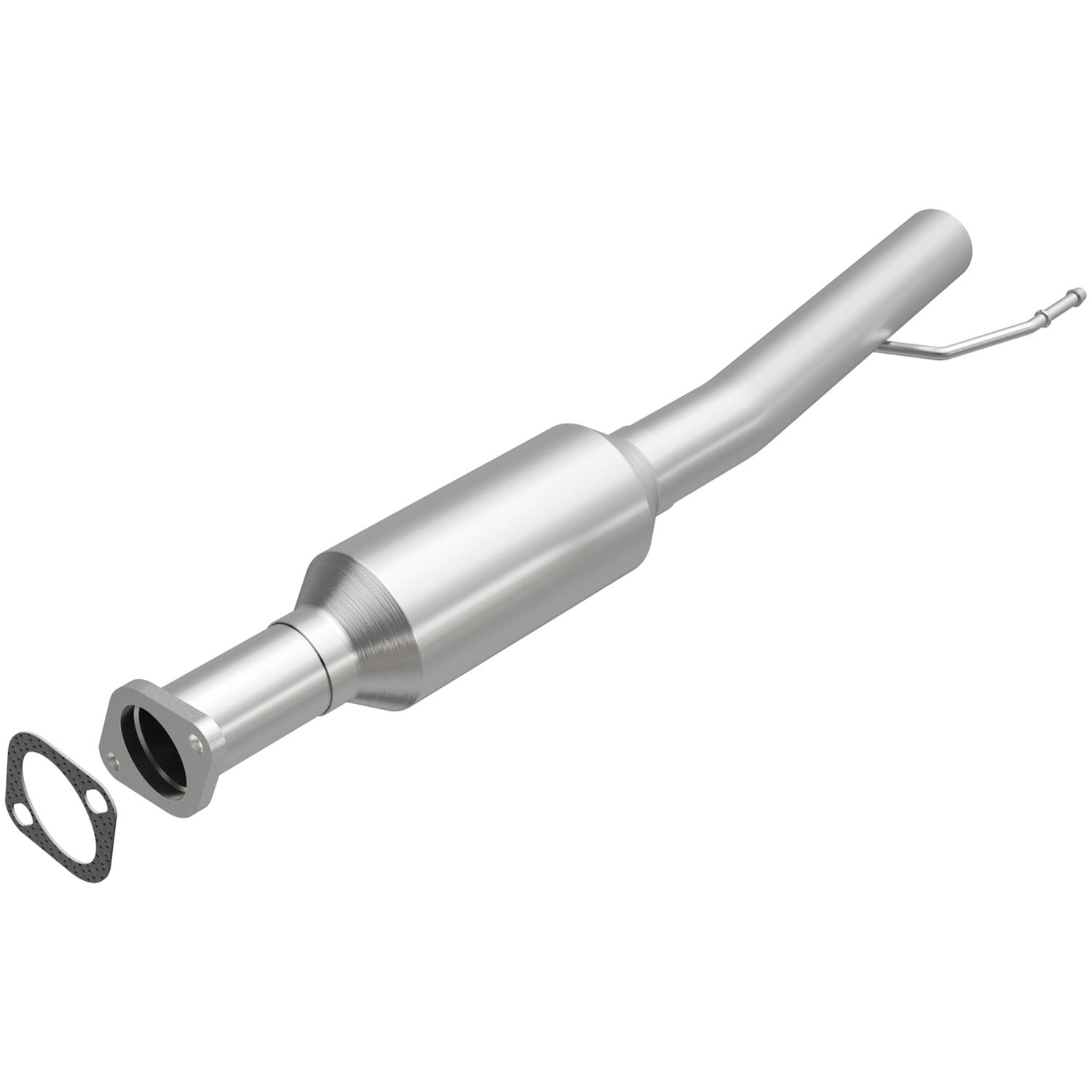

MagnaFlow 2005 Ford Escape 2.3L Direct Fit Converter
MagnaFlow 2005 Ford Escape 2.3L Direct Fit Converter
A$964.27
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5571662. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. MagnaFlow 5571662 includes (1) Flange Gasket and interchanges with OE parts L364-20-600, L364-20-600A, ZZC0-20-500, ZZC1-20-500, ZZC2-20-500, ZZC3-20-500, ZZC4-20-500, ZZCA-20-500, ZZCB-20-500, ZZD1-20-500, ZZD1-20-500A. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Product Overview
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5571662. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. Designed to fit the 2005-2008 Ford Escape, 2005-2008 Mercury Mariner, and more, this direct-fit catalytic converter also interchanges with OE parts ZZC2-20-500 and ZZC3-20-500, among others. Avoid potential exhaust leaks by using the included gaskets to get a proper seal. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Features and Benefits
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel MIG Welds
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Simplifies installation with essential gaskets and hardware being included in the box
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height: | 4 |
| Body Length: | 11.25 |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 4.000 in. |
| CARB Executive Order Number: | D-193-137 |
| California Air Resources Board (CARB) Certified: | Yes |
| Catalytic Converter Air Tube Adapter: | No |
| Clamp Included: | No |
| Clamps Included: | No |
| Converter Quantity: | 1 |
| Core Substrate Material: | Ceramic |
| Description: | California Direct-Fit Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | Yes |
| Grade Type: | Regular |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 2.25 |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | 2.250 in. |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 1 |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.25 |
| Material: | Stainless Steel |
| Mounting Hardware Included: | No |
| Outlet Attachment: | Weld-On |
| Outlet Diameter: | 2.25 |
| Outlet Gasket Included: | No |
| Outlet Inside Diameter: | 2.25 |
| Outlet Mounting Hardware Included: | No |
| Outlet Outside Diameter: | 2.250 in. |
| Outlet Quantity: | 1 |
| Outlet Type: | Weld-On |
| Overall Length: | 30.125 |
| Oxygen Sensor Location: | None |
| Part Number: | mag5571662 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 0 |
| Series: | California |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | CARB Compliant Direct-Fit Catalytic Converter |
| Title: | MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 5571662 |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Simplifies installation with essential gaskets and hardware being included in the box
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 5571662
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563148465
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Diameter (in.)
- 2.25 in.
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Converter Outlet Attachment
- Slip fit
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic honeycomb
- Product Attributes - Converter Overall Length (in.)
- 11.25
- Product Attributes - Converter Overall Thickness (in.)
- 4.00
- Product Attributes - Converter Overall Width (in.)
- 4.00
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- 0
- Product Attributes - CARB EO Number(s)
- D-193-137
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag5571662 |
| SFX Item ID | 4290470 |
| Supplier Item Code | 4290470 |
| Manufacturer SKU | 5571662 |
| Manufacturer UPC | 888563148465 |
| Alternative References | MFL5571662, MPE-5571662, 2.3L |
Compatibility
