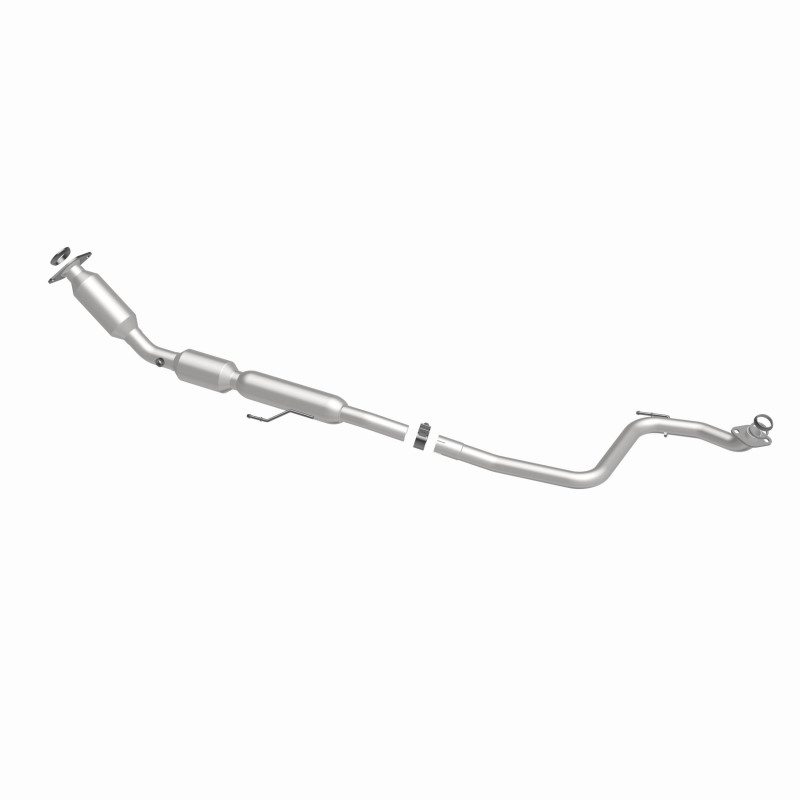

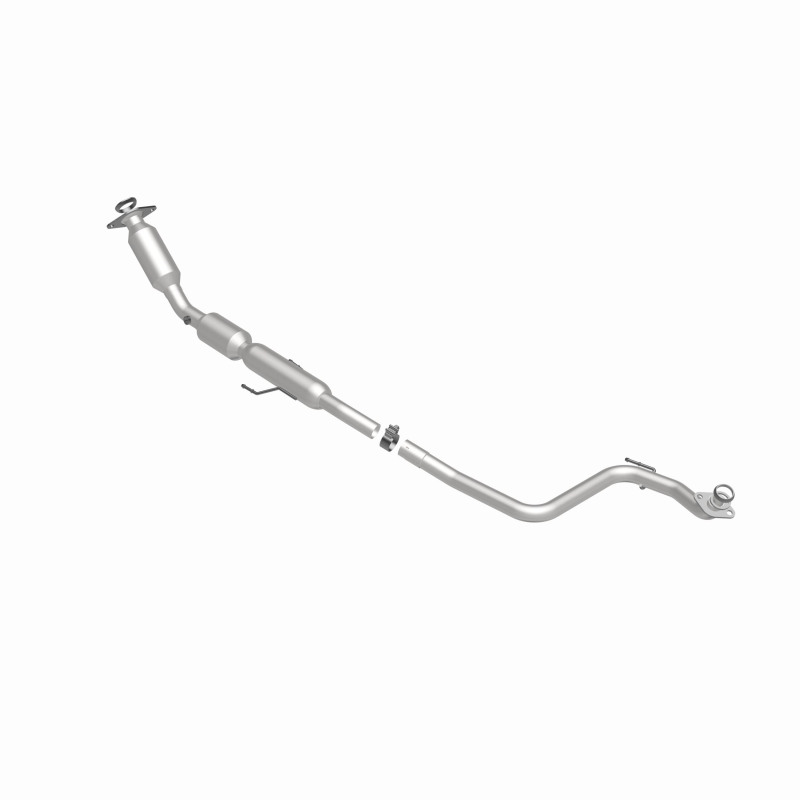

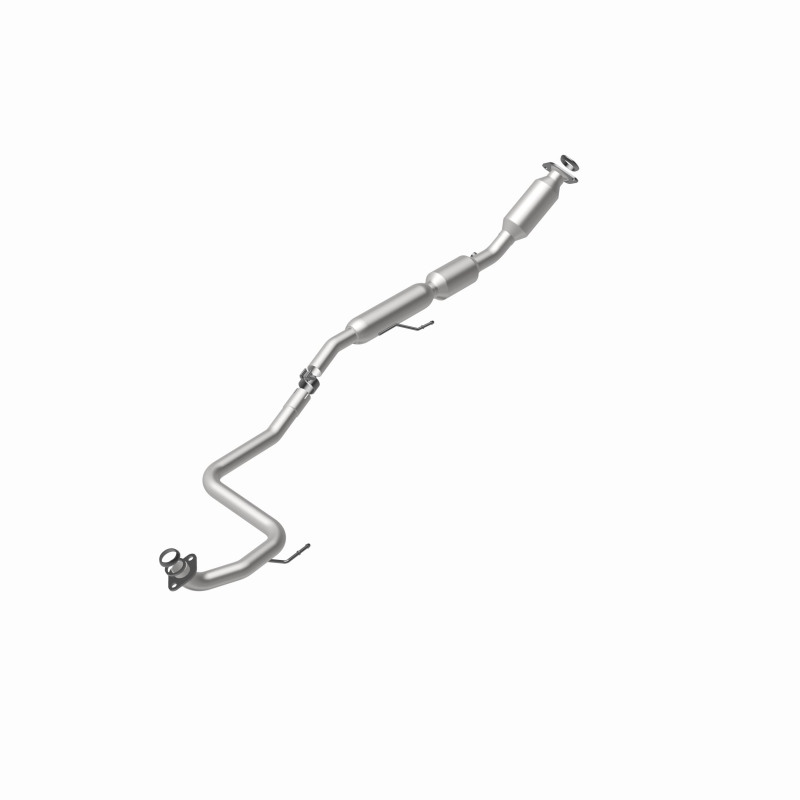

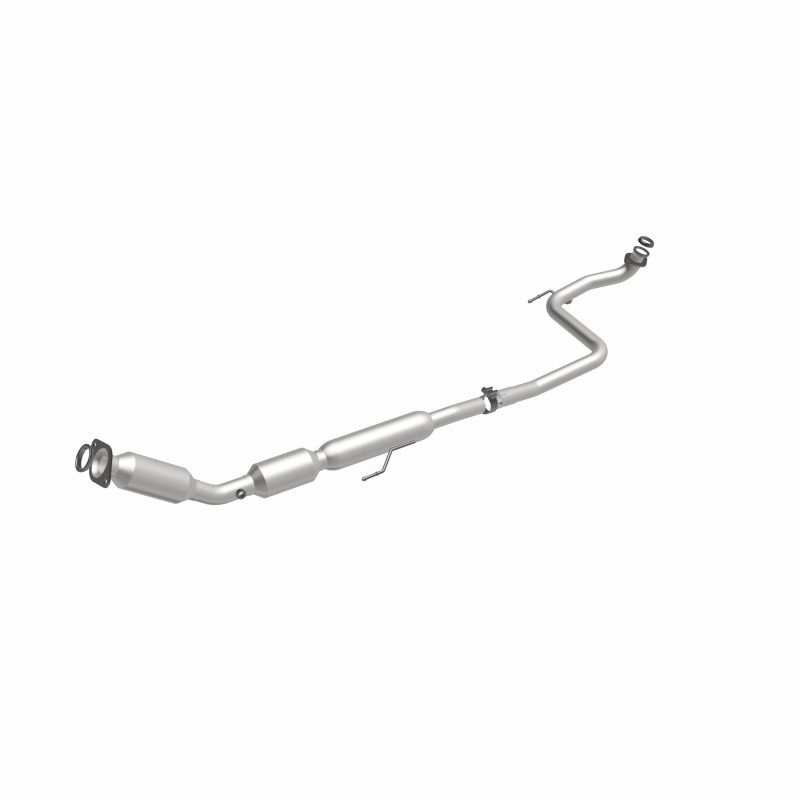

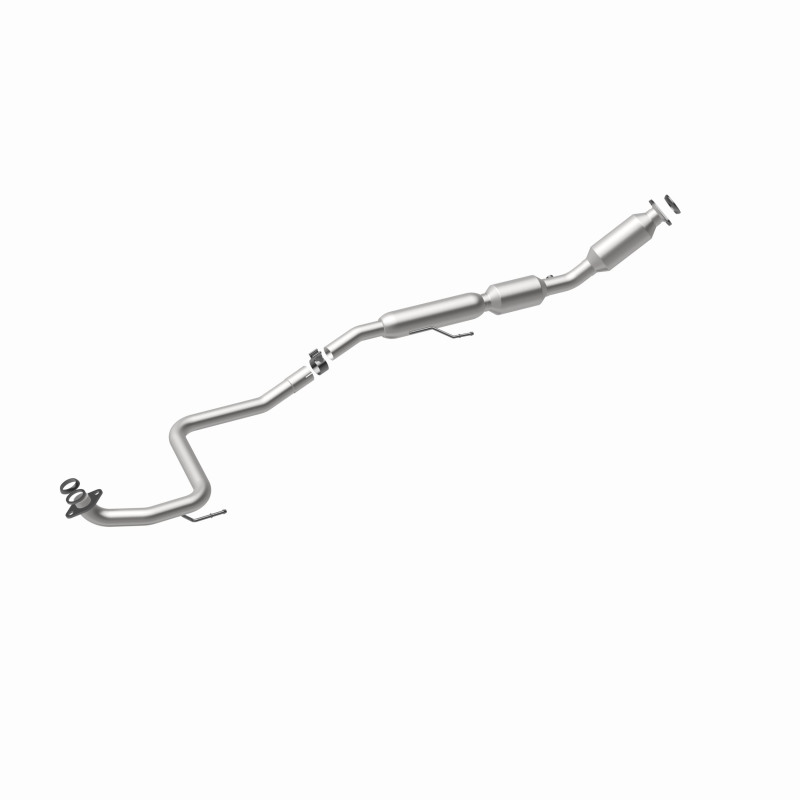

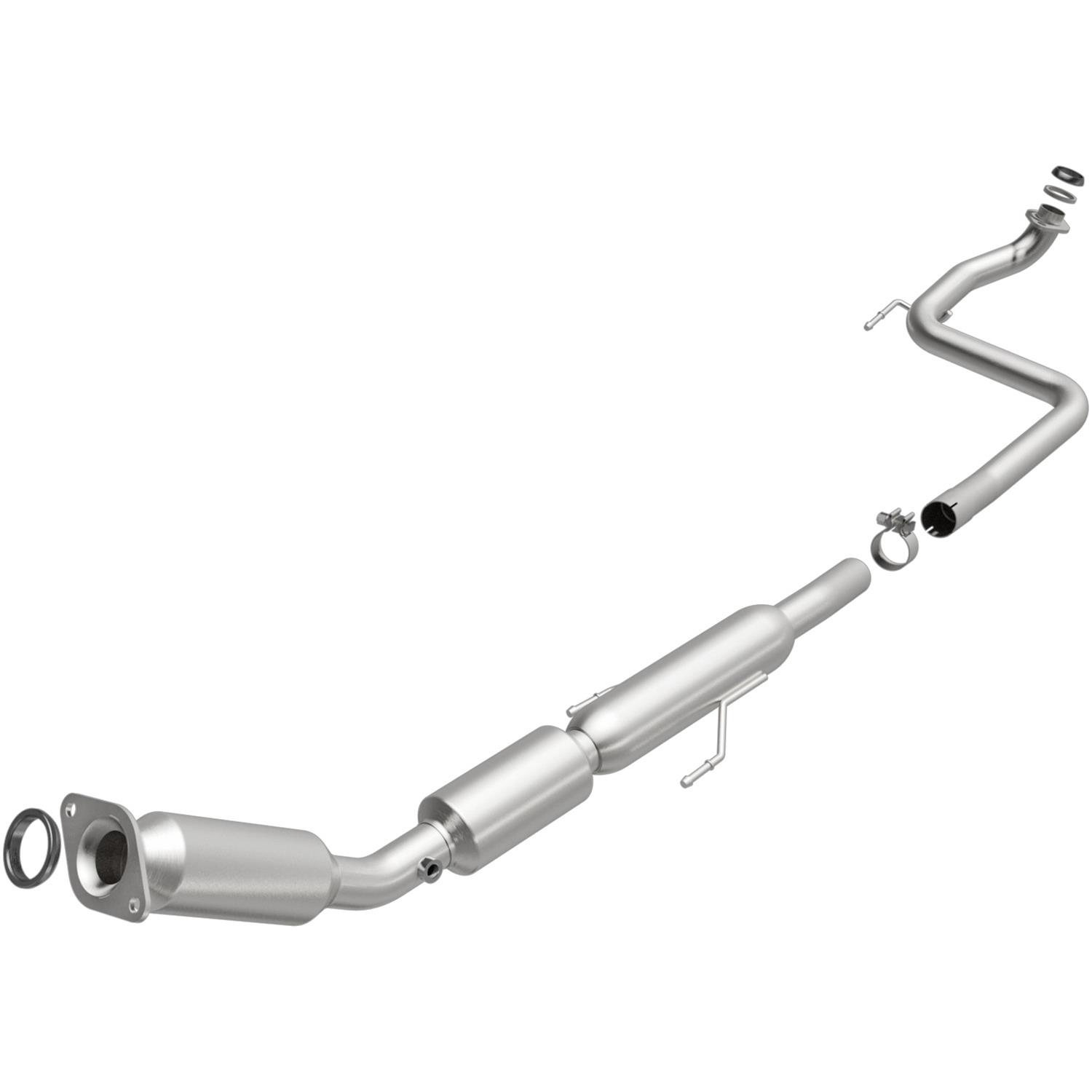

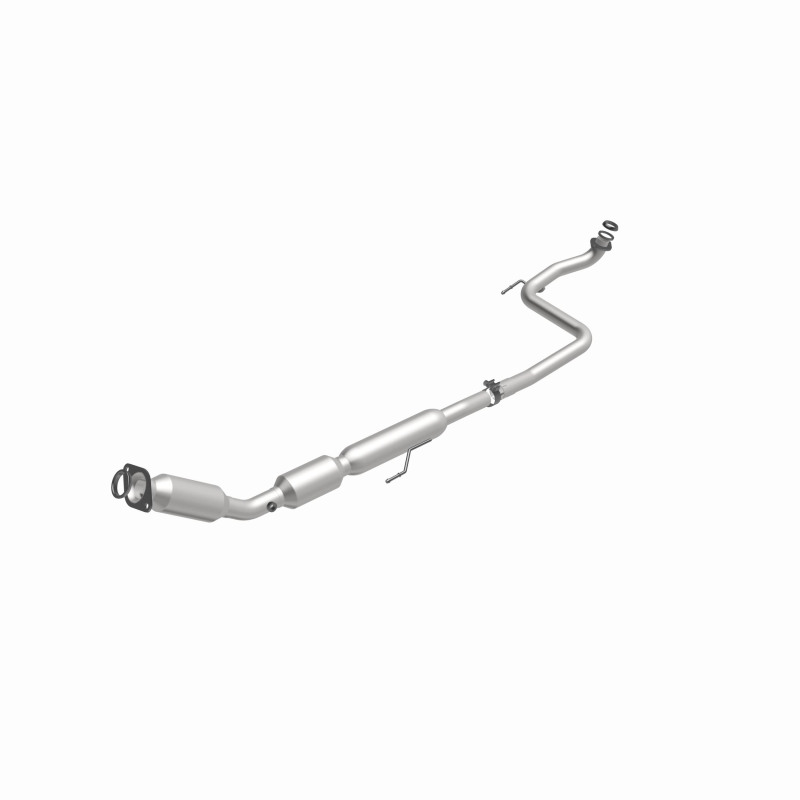

MagnaFlow 10-12 Scion xD 1.8L Direct Fit Converter
MagnaFlow 10-12 Scion xD 1.8L Direct Fit Converter
A$3,105.54
Special Order. Contact for ETA.
This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.
We accept
Description
Keep the check engine light off with MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converter 551159. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2010-2012 Scion xD and interchanges with OE part 17410-37270. Avoid potential exhaust leaks by using the included gaskets to get a proper seal. This replacement part is designed to meet or exceed California Air Resource Board requirements, and has undergone additional testing to comply with CARB guidelines to allow for legal use in California and CARB restricted states, for the listed vehicles.
Product Overview
MagnaFlow specializes in superior catalytic converter and exhaust technology and has spent the past 30+ years earning its reputation as a global market leader. American engineered and manufactured, MagnaFlow Catalytic Converters combine efficient industrial design to produce a product that exceeds, rather than meets, the highest standards of product performance and efficiency in the industry. MagnaFlow uses both Ceramic and Metallic substrates with different combinations of cell density and wall thickness to meet vehicle specific requirements. MagnaFlow Direct-Fit Catalytic Converters are designed for easy bolt-on installation for the Professional Installer. Each is designed to exact the original equipment specifications. While the majority of the Direct-Fit Catalytic Converter products do not require welding, cutting or bending, limited applications may require additional welding for optimal installation.
All Federal catalytic converters meet EPA requirements. Federal Catalytic Converters are not legal for sale, installation or use on vehicles registered in the state of California.
All California State Catalytic converters are CARB compliant. Converters in this catalog are based on Executive Orders issued by the California Air Resource Board and must be used in accordance with this information. In California, it is illegal to select a catalytic converter for installation based solely on vehicle weight and engine size.
* Stainless steel construction
* Formulated for Gas and Diesel Applications
Features and Benefits
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
- Mandrel Bent Tubing Retains OEM-Like Design And Geometry; Ensuring Smooth Exhaust Flow For Peak Fuel Economy Operation
- Torca AccuSeal® Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force Preventing Pipe Distortion
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel MIG Welds
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Simplifies installation with essential gaskets and hardware being included in the box
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Length: | 11 |
| Body Material: | Stainless Steel |
| Body Type: | Spun |
| Body Width: | 4 |
| CARB Executive Order Number: | D-193-133 |
| California Air Resources Board (CARB) Certified: | Yes |
| California Air Resources Board (CARB): | Yes |
| California Air Resources Board Approved: | Yes |
| Catalytic Converter Air Tube Adapter: | Not Air Tube Kit Adaptable |
| Catalytic Converter Body Material: | Stainless |
| Catalytic Converter Format: | Pre-Catalytic Converter and Main Catalytic Converter |
| Catalytic Converter Overall Length: | 80.625 |
| Catalytic Converter Oxygen Sensor Location: | Post Converter |
| Clamp Included: | Yes |
| Clamps Included: | Yes |
| Converter Body Size: | 4.000 in. |
| Converter Quantity: | 2 |
| Core Substrate Material: | Ceramic |
| Description: | California Direct-Fit Catalytic Converter |
| Exhaust Component Mount Type: | Uses Factory Hangers |
| Exhaust Inlet Connection Type: | Bolt-On |
| Exhaust Outlet Connection Type: | Bolt-On |
| Exhaust Pipe Material: | Stainless Steel |
| Finish: | Stainless Steel |
| Grade Type: | Regular |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Connection Type: | Bolt-On |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | 2.25 |
| Inlet Mounting Hardware Included: | No |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.25 |
| Material: | Stainless |
| Mounting Hardware Included: | Yes |
| Outlet Attachment Type: | Bolt-On |
| Outlet Attachment: | Bolt-On |
| Outlet Connection Type: | Bolt-On |
| Outlet Gasket Included: | Yes |
| Outlet Mounting Hardware Included: | No |
| Outlet Outside Diameter: | 2.25 |
| Outlet Type: | Bolt-On |
| Overall Length: | 80.625 in. |
| Oxygen Sensor Location: | Post Converter |
| Part Number: | mag551159 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Recommended Use: | Converter |
| Sensor Port Count: | 1 |
| Series: | California |
| Substrate Material: | Ceramic |
| Subtitle: | CARB Compliant Direct-Fit Catalytic Converter |
| Subtitles: | California / CARB Compliant |
| Title: | MagnaFlow 2010-2012 Scion xD California Grade CARB Compliant Direct-Fit Catalytic Converter |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly Crafted To Replicate OEM Like Flow Dynamics; Maintaining Factory Performance And Fuel Efficiency
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Mandrel Bent Tubing Retains OEM-Like Design And Geometry; Ensuring Smooth Exhaust Flow For Peak Fuel Economy Operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel; Designed To Reduce Noise/Vibration
- Simplifies Installation w/Essential Gaskets And Hardware Being Included In The Box
- Simplifies installation with essential gaskets and hardware being included in the box
- Torca AccuSeal® Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force Preventing Pipe Distortion
- Your trusted source for CARB-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Your Trusted Source For CARB-Compliant Catalytic Converters; Providing Assurance Of Genuine Compliance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 551159
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow California Grade CARB Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563073163
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Converter Outlet Attachment
- Stock flange
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 80.63
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - CARB EO Number(s)
- D-193-133
- Product Attributes - Emissions
- California EO Approved
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag551159 |
| SFX Item ID | 4290228 |
| Supplier Item Code | 4290228 |
| Manufacturer SKU | 551159 |
| Manufacturer UPC | 888563073163 |
| Alternative References | MFL551159, MPE-551159, 1.8L |
