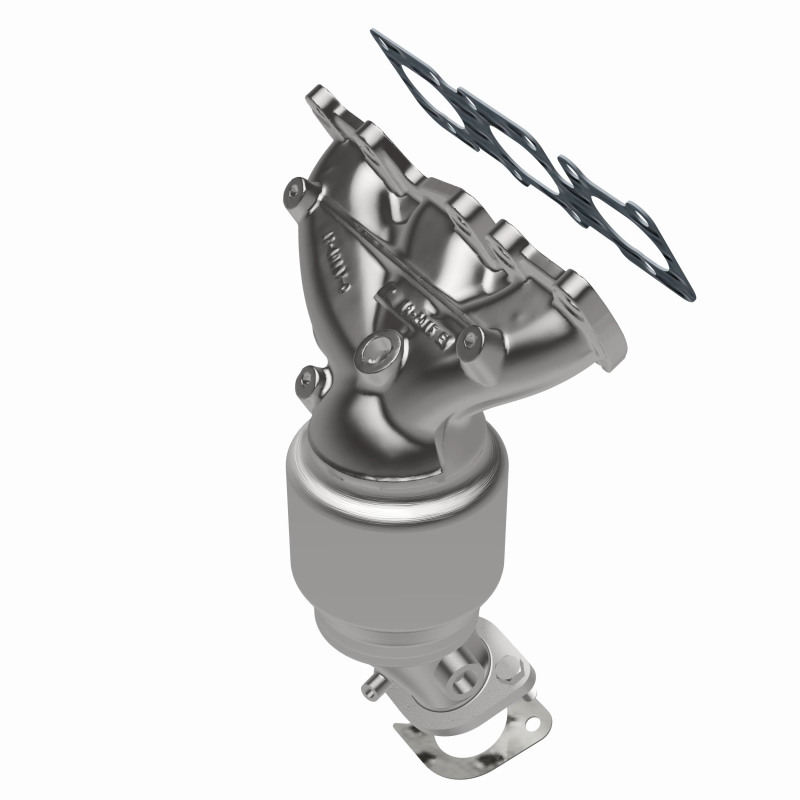

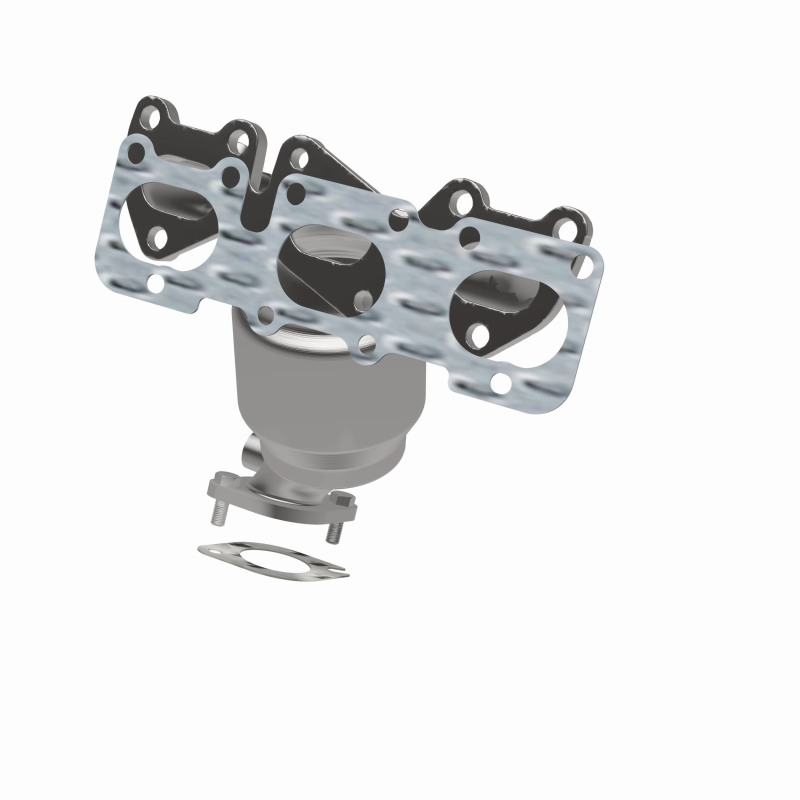

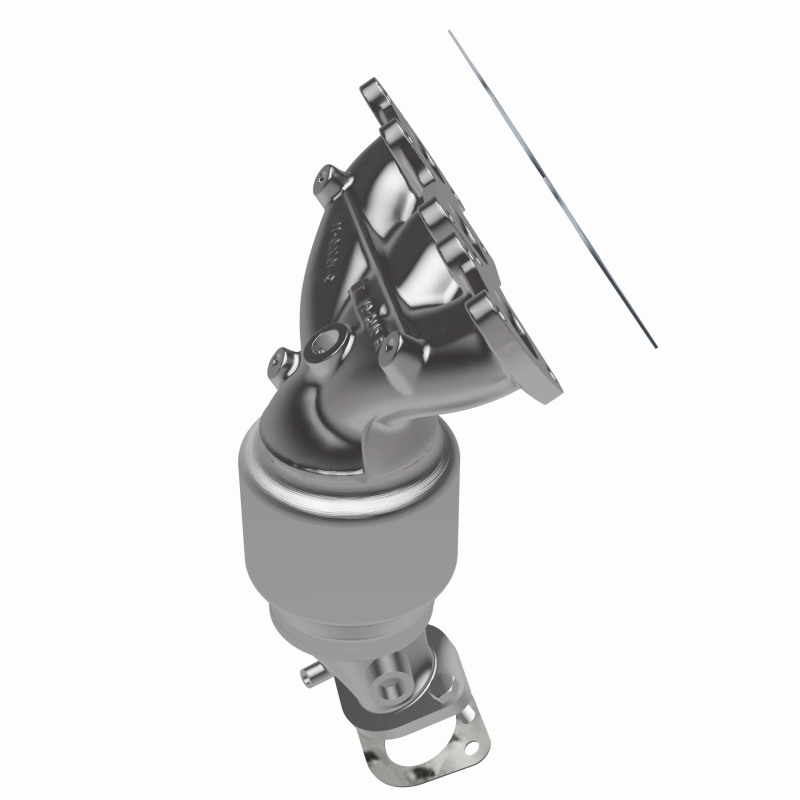

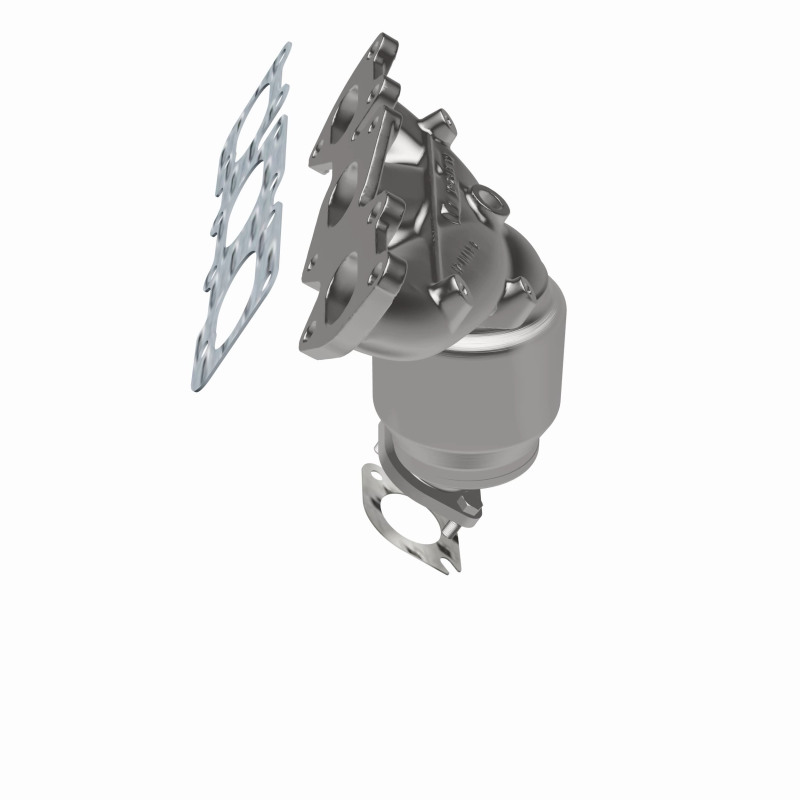

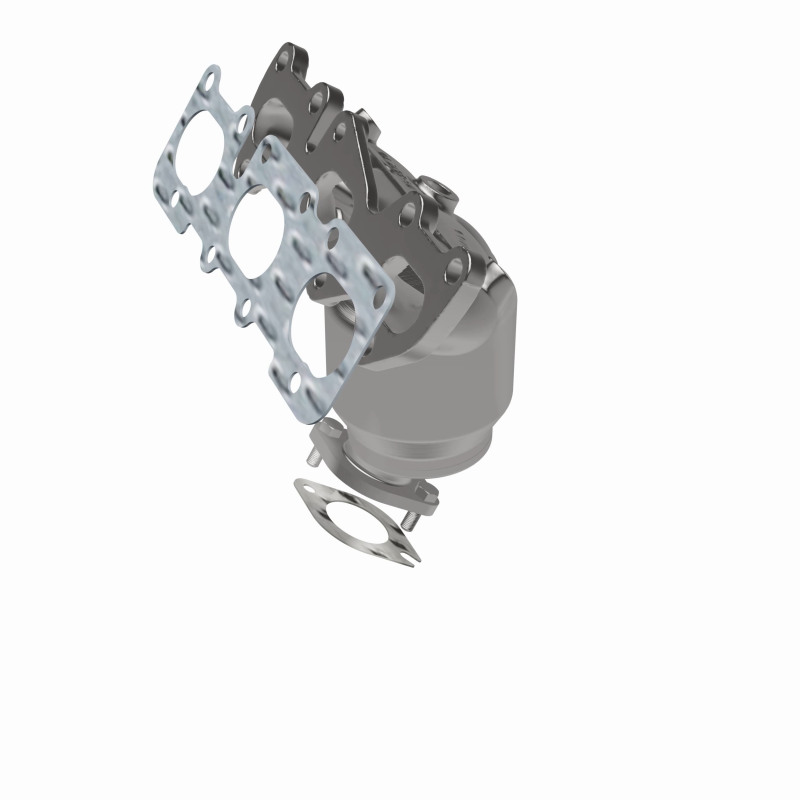

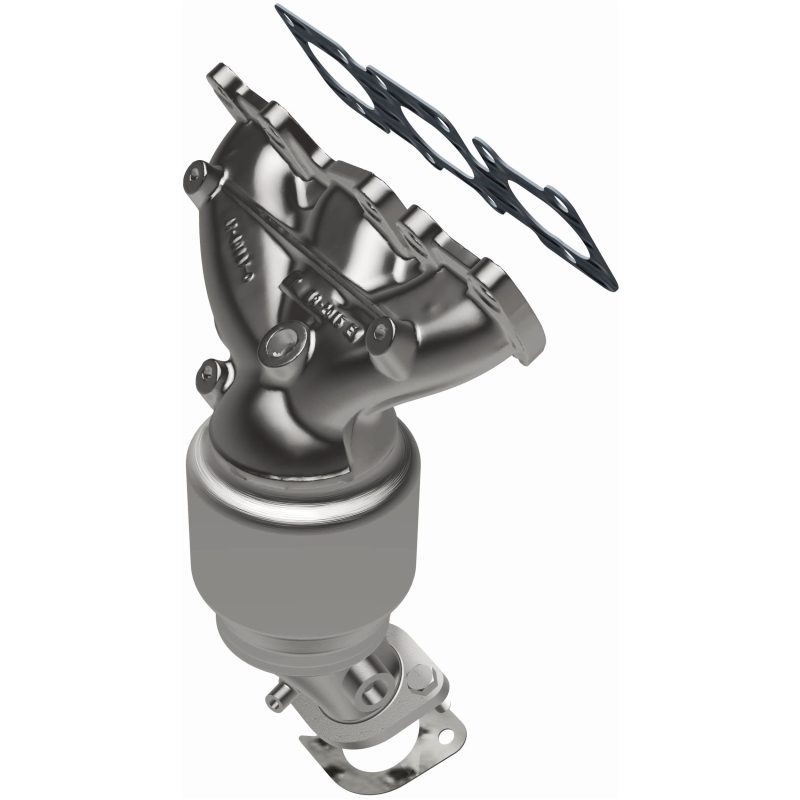

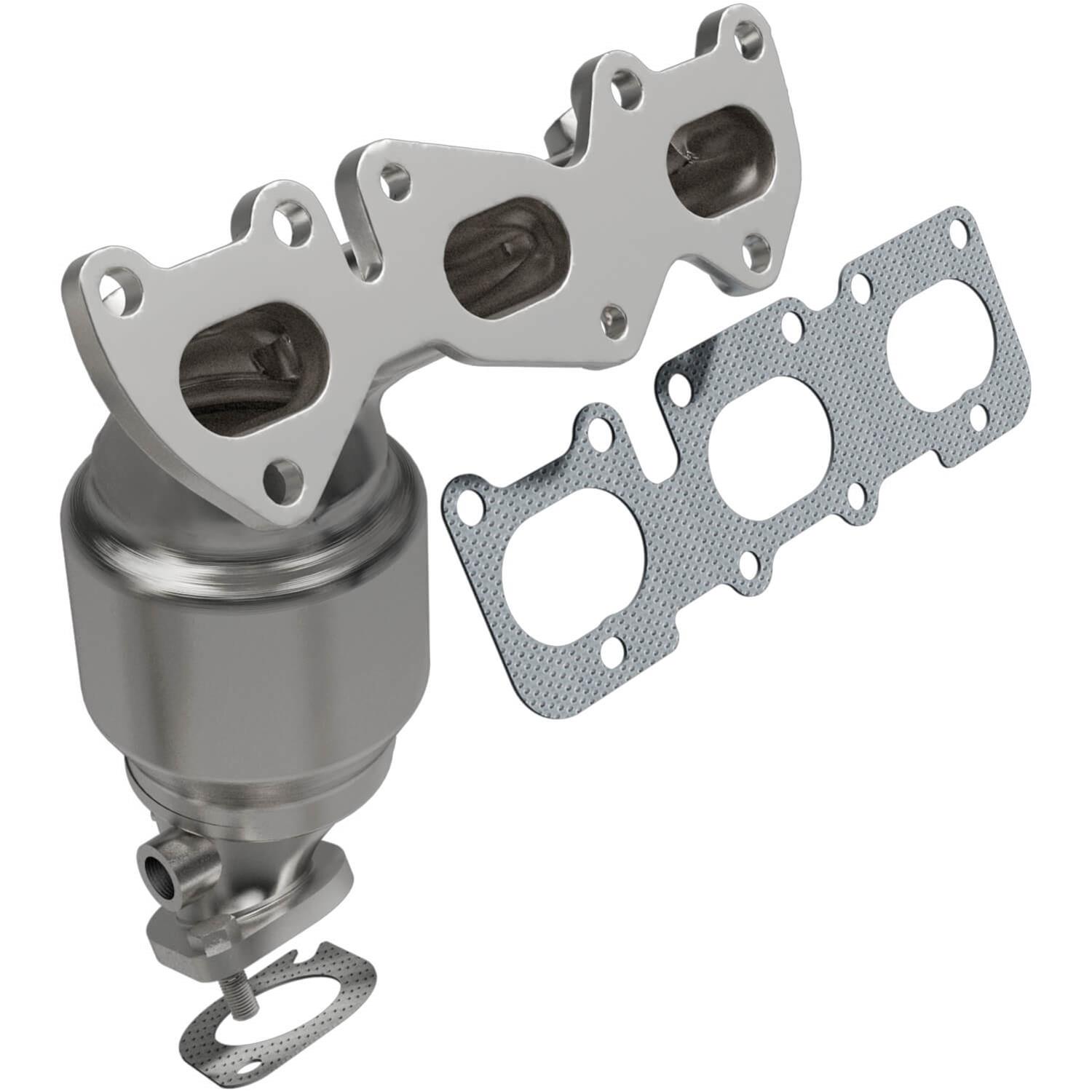

MagnaFlow 10-12 Santa Fe 3.5 Manifold Direct Fit Converter
MagnaFlow 10-12 Santa Fe 3.5 Manifold Direct Fit Converter
A$906.84
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Manifold Catalytic Converter 52743. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Manifold Catalytic Converter is designed to fit the 2011-2013 Kia Sorento 3.5L & 2010-2012 Hyundai Santa Fe 3.5L. MagnaFlow 52743 includes (2) Flange Gaskets, (2) Bolts and interchanges with OE parts 28510-3CBH0. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Product Overview
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52743. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. Designed to fit the 2011-2013 Kia Sorento and 2010-2012 Hyundai Santa Fe, this direct-fit catalytic converter also interchanges with OE part 28510-3CBH0. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Product Details
| 10982: | Stainless Steel |
|---|---|
| Air Tube Adaptable: | No |
| Air Tube Count: | 0 |
| Body Height: | 5 |
| Body Length: | 5 |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 5 |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| Clamp Included: | No |
| Clamps Included: | No |
| Converter Body Length: | 5 |
| Converter Body Material: | Stainless Steel |
| Converter Quantity: | 1 |
| Converter Tube Material: | Stainless Steel |
| Core Substrate Material: | Ceramic |
| Description: | OEM Grade Manifold Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | Yes |
| Grade Type: | Regular |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 2.125 |
| Inlet Gasket Included: | Yes |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 3 |
| Inlet Type: | Flanged |
| Main Piping Diameter: | 2.125 |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment: | Bolt-On |
| Outlet Diameter: | 1.75 |
| Outlet Gasket Included: | Yes |
| Outlet Mounting Hardware Included: | Yes |
| Outlet Quantity: | 1 |
| Outlet Type: | Flanged |
| Overall Length: | 13.25 |
| Oxygen Sensor Location: | Pre and Post Converter |
| Part Number: | mag52743 |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 2 |
| Series: | OEM Grade |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | Federal / EPA Compliant Manifold Catalytic Converter |
| Subtitles: | Federal / EPA Compliant |
| Title: | MagnaFlow OEM Grade Federal / EPA Compliant Manifold Catalytic Converter 52743 |
| Type: | One-Piece |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converter with Integrated Exhaust Manifold
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 52743
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Manifold Catalytic Converters
- Product Attributes - UPC
- 888563073552
- Product Attributes - Inlet Quantity
- 3
- Product Attributes - Inlet Diameter (in.)
- 2.13 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 1.75 in.
- Product Attributes - Converter Outlet Attachment
- Stock flange
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 13.25
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag52743 |
| SFX Item ID | 4289978 |
| Supplier Item Code | 4289978 |
| Manufacturer SKU | 52743 |
| Manufacturer UPC | 888563073552 |
| Alternative References | MFL52743, MPE-52743 |
