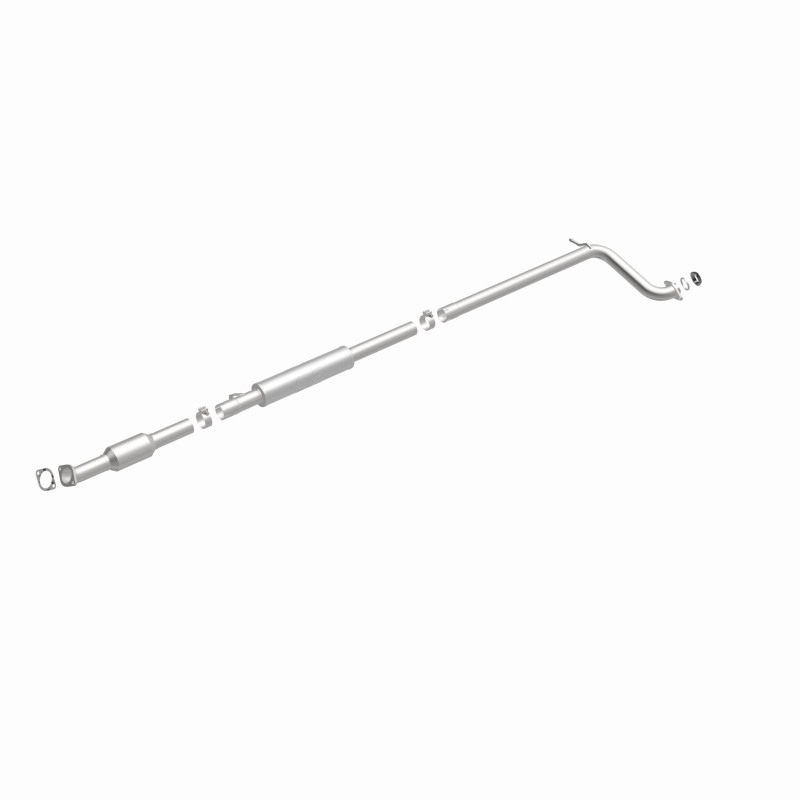

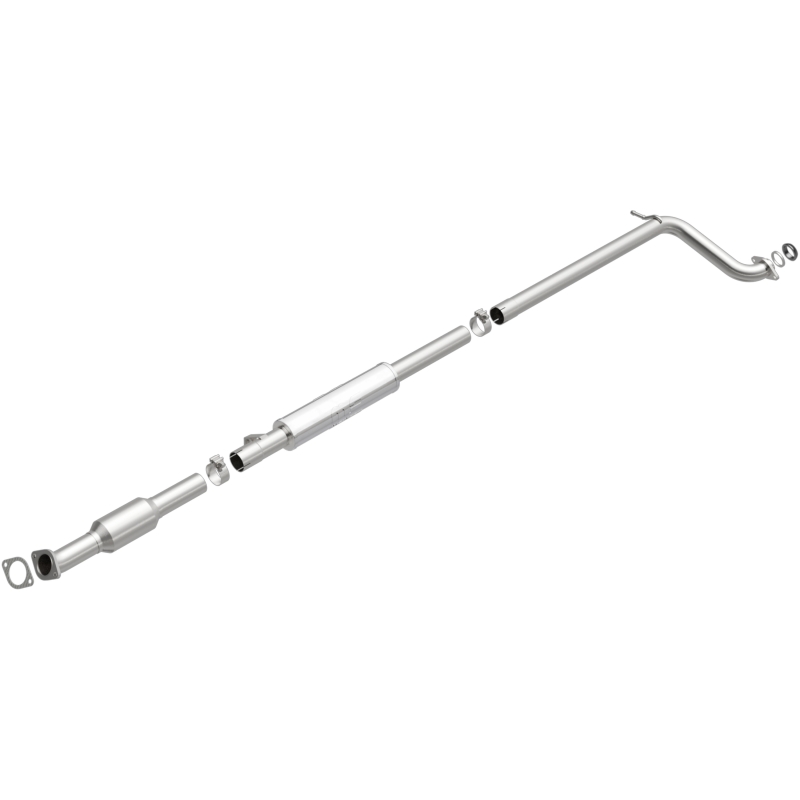

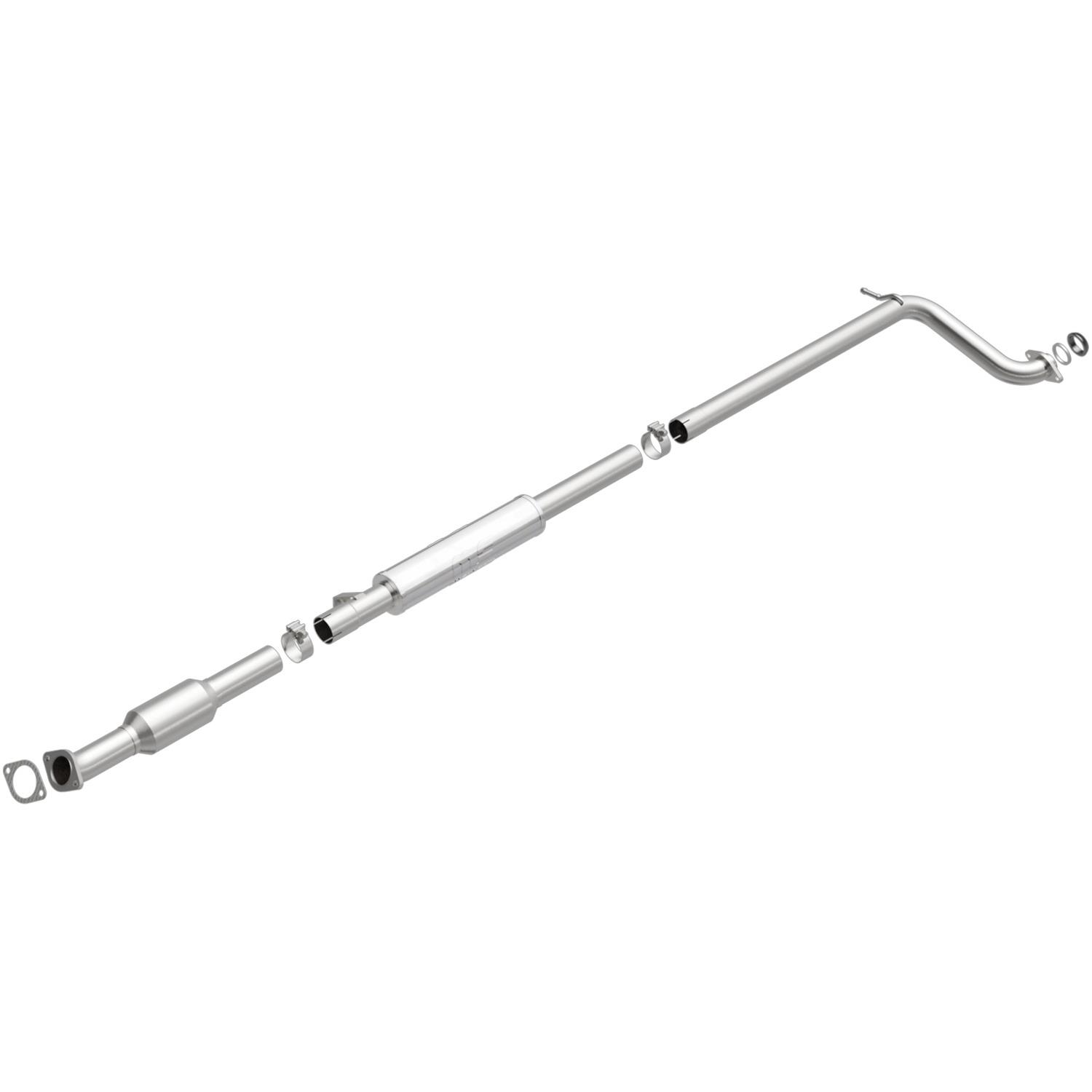

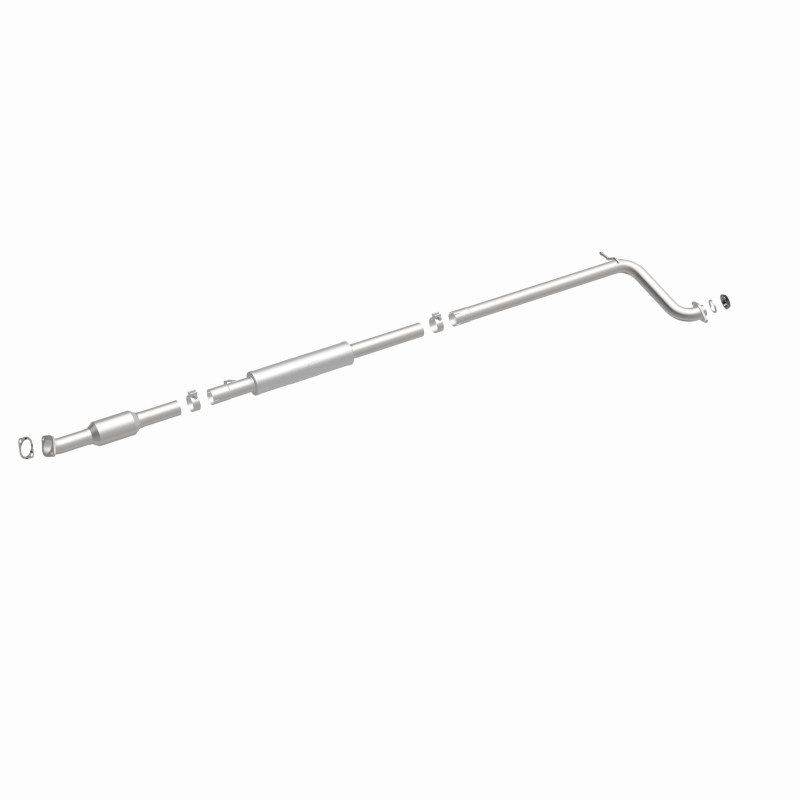

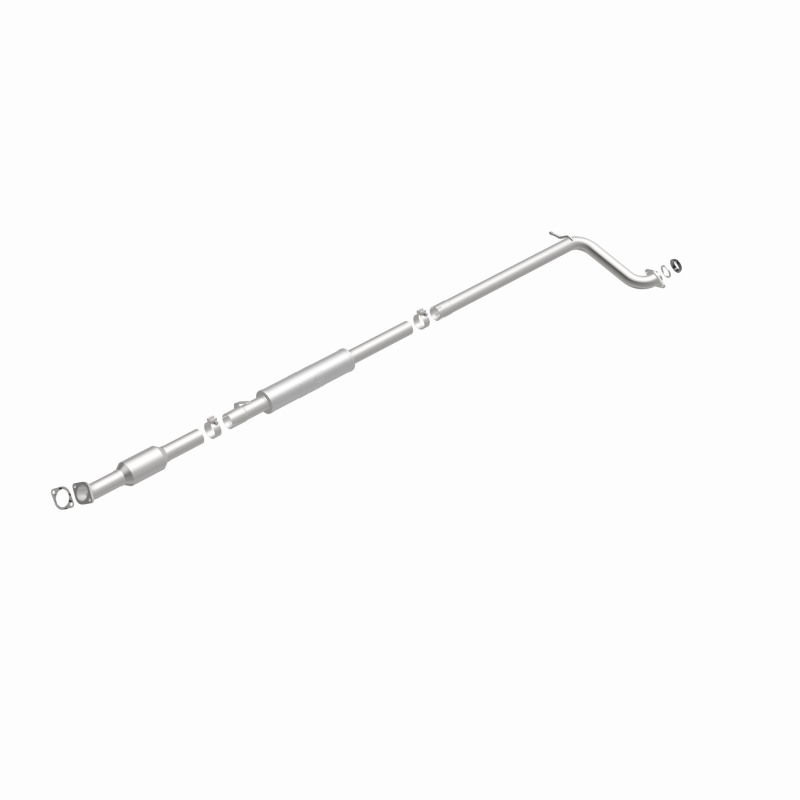

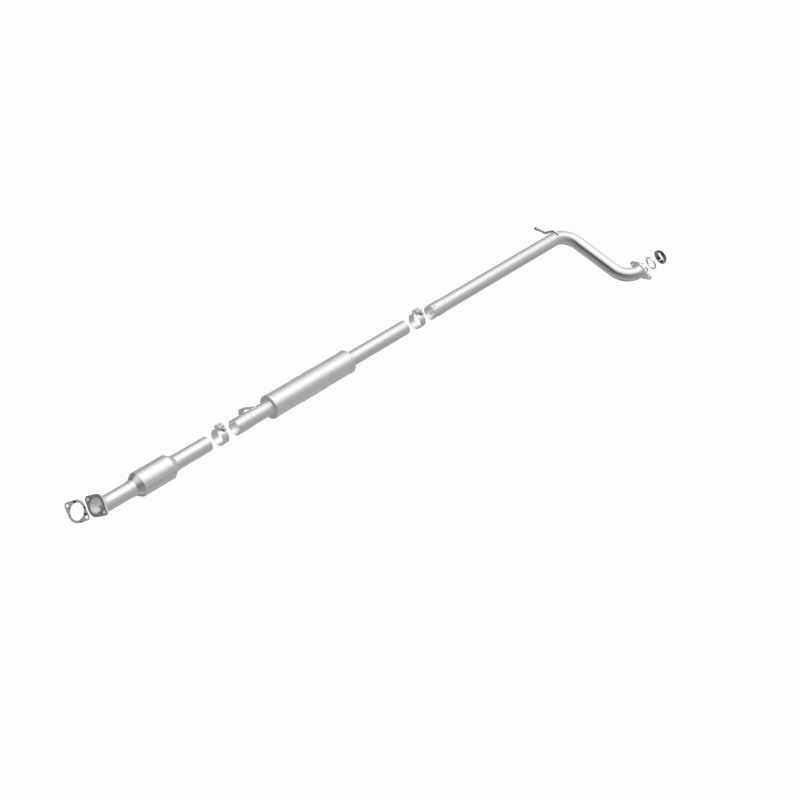

MagnaFlow Direct Fit Catalytic Converter OEM 04-06 Mitsubishi Galant V6 3.8L Underbody
MagnaFlow Direct Fit Catalytic Converter OEM 04-06 Mitsubishi Galant V6 3.8L Underbody
A$1,467.80
Limited Availability from MFR
Limited stock available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical orders of this part. This item is not held in our own warehouse, and availability and release timing may vary depending on manufacturer stock movements and processing at the time of ordering.
We accept
Description
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52466. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This Direct-Fit Catalytic Converter is designed to fit the 2004-2006 Mitsubishi Galant 3.8L. MagnaFlow 52466 includes (1) Flange Gasket, (1) Donut Gasket, (2) Torca Clamps, (1) Nut and interchanges with OE parts MR993605. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Product Overview
Keep the check engine light off with MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converter 52466. With features including free-flowing mandrel-bent tubing and highly corrosion resistant stainless steel construction, easily install this spun body converter yourself using the proper tools, no cutting or welding required. MagnaFlow's state-of-the-art metrology department uses the latest 3D scanning systems during research and development, so you can be confident that your new part will fit and function like the original equipment. By replicating the OE spun body design, the single laser fusion weld greatly reduces the possibility of a leak, and our compact, low-mass design also allows for greater thermal efficiency. This direct-fit catalytic converter is designed specifically for the 2004-2006 Mitsubishi Galant and interchanges with OE parts MR993605 and MR993605. The included gaskets & hardware reduce the possibility of a leaking seal while avoiding the need to reuse corroded factory parts for installation. This replacement part is designed to meet or exceed Federal emissions requirements set forth by the EPA, complying with legal standards for OBDII Federally registered vehicles with California or Federal/EPA Emission systems.
Features and Benefits
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- Torca AccuSeal® Exhaust Clamps provide a full 360-degree equally distributed clamping force preventing pipe distortion while creating a complete seal and maintaining serviceability
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Durable 308 Stainless Steel Mig Welds
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
Product Details
| Air Tube Adaptable: | No |
|---|---|
| Air Tube Count: | 0 |
| Body Height: | 4.000 in. |
| Body Length: | 9.000 in. |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Type: | Spun |
| Body Width: | 4.000 in. |
| CARB Executive Order Number: | Not Applicable |
| California Air Resources Board (CARB) Certified: | No |
| Catalytic Converter Air Tube Adapter: | No |
| Clamp Included: | Yes |
| Clamps Included: | Yes |
| Converter Quantity: | 1 |
| Core Substrate Material: | Ceramic |
| Description: | OEM Grade Direct-Fit Catalytic Converter |
| Finish: | Stainless Steel |
| Gasket Included: | Yes |
| Gasket Or Seal Included: | Yes |
| Grade Type: | Regular |
| Hanger Included: | Yes |
| Hangers Included: | Yes |
| Heat Shield Attached: | No |
| Heat Shield Material: | None |
| Inlet Attachment Type: | Bolt-On |
| Inlet Attachment: | Bolt-On |
| Inlet Diameter: | 2.500 in. |
| Inlet Gasket Included: | Yes |
| Inlet Inside Diameter: | 2.500 in. |
| Inlet Mounting Hardware Included: | No |
| Inlet Quantity: | 1 |
| Inlet Type: | Bolt-On |
| Main Piping Diameter: | 2.500 in. |
| Material: | Stainless Steel |
| Mounting Hardware Included: | Yes |
| Outlet Attachment Type: | Bolt-On |
| Outlet Attachment: | Bolt-On |
| Outlet Diameter: | 2.500 in. |
| Outlet Gasket Included: | Yes |
| Outlet Inside Diameter: | 2.5 |
| Outlet Mounting Hardware Included: | No |
| Outlet Quantity: | 1 |
| Outlet Type: | Bolt-On |
| Overall Length: | 101.625 |
| Oxygen Sensor Location: | None |
| Part Number: | mag52466 |
| Pipe Material: | Stainless Steel |
| Prop 65 Y/N: | No |
| Sensor Port Count: | 0 |
| Series: | OEM Grade |
| Substrate Material: | Ceramic |
| Substrate: | Ceramic |
| Subtitle: | Federal / EPA Compliant Direct-Fit Catalytic Converter |
| Subtitles: | Federal / EPA Compliant |
| Title: | MagnaFlow 2004-2006 Mitsubishi Galant OEM Grade Federal / EPA Compliant Direct-Fit Catalytic Converter |
| Tube Material: | Stainless Steel |
| Type: | Direct-Fit |
| Universal Or Specific Fit: | Specific |
| WARNING CA Proposition 65: | No |
Part Type
Catalytic Converters
Features
- Durable 308 stainless steel MIG welds
- Expertly crafted to replicate OEM-like flow dynamics, maintaining factory performance and fuel efficiency
- Expertly Crafted To Replicate Oem-Like Flow Dynamics/Maintaining Factory Performance And Fuel Efficiency
- High Strength 16 Gauge 409 Stainless Steel Tubing For Exceptional Corrosion Resistance And Maximum Service Life
- Mandrel Bent Tubing Retains Oem-Like Design And Geometry
- Mandrel bent tubing retains OEM-like design and geometry, ensuring smooth exhaust flow for peak fuel economy and engine operation
- OE-Sized Barbed Exhaust Hangers Made From Corrosion-Resistant 410 Stainless Steel
- OE-sized barbed exhaust hangers made from corrosion-resistant 410 stainless steel, designed to reduce noise and vibration
- Simplifies Installation With Essential Gaskets And Hardware Being Included In The Box
- Torca Accuseal Exhaust Clamps Provide A Full 360-Degree Equally Distributed Clamping Force
- Your Trusted Source For EPA-Compliant Catalytic Converters
- Your trusted source for EPA-compliant catalytic converters, providing assurance of genuine compliance while delivering quality that will last
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 52466
- Product Attributes - Part Type
- Catalytic Converters
- Product Attributes - Product Line
- MagnaFlow OEM Grade Federal/EPA Compliant Direct-Fit Catalytic Converters
- Product Attributes - UPC
- 888563153995
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Inlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Inlet Attachment
- Stock flange
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Converter Outlet Attachment
- Stock flange
- Product Attributes - Converter Case Material
- Stainless steel
- Product Attributes - Converter Substrate Material
- Ceramic substrate
- Product Attributes - Converter Overall Length (in.)
- 101.63
- Product Attributes - Converter Overall Width (in.)
- 4.00
- Product Attributes - Converter Style
- 3-way
- Product Attributes - Remanufactured
- No
- Product Attributes - AIR Tube
- No
- Product Attributes - Heat Shield
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag52466 |
| SFX Item ID | 4289182 |
| Supplier Item Code | 4289182 |
| Manufacturer SKU | 52466 |
| Manufacturer UPC | 888563153995 |
| Alternative References | mpe-52466, MFL52466, 3.8L |
