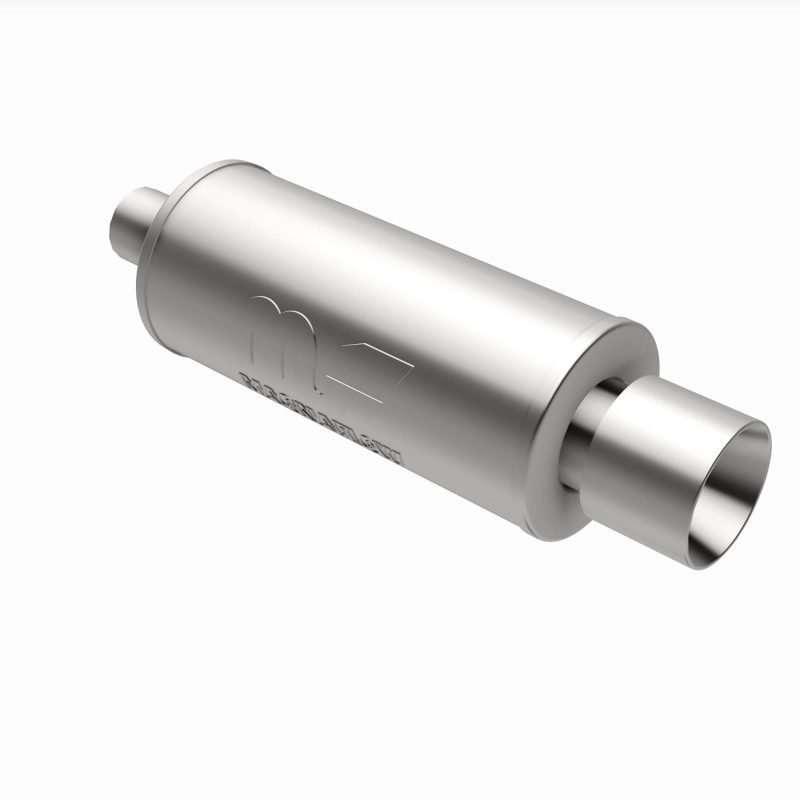

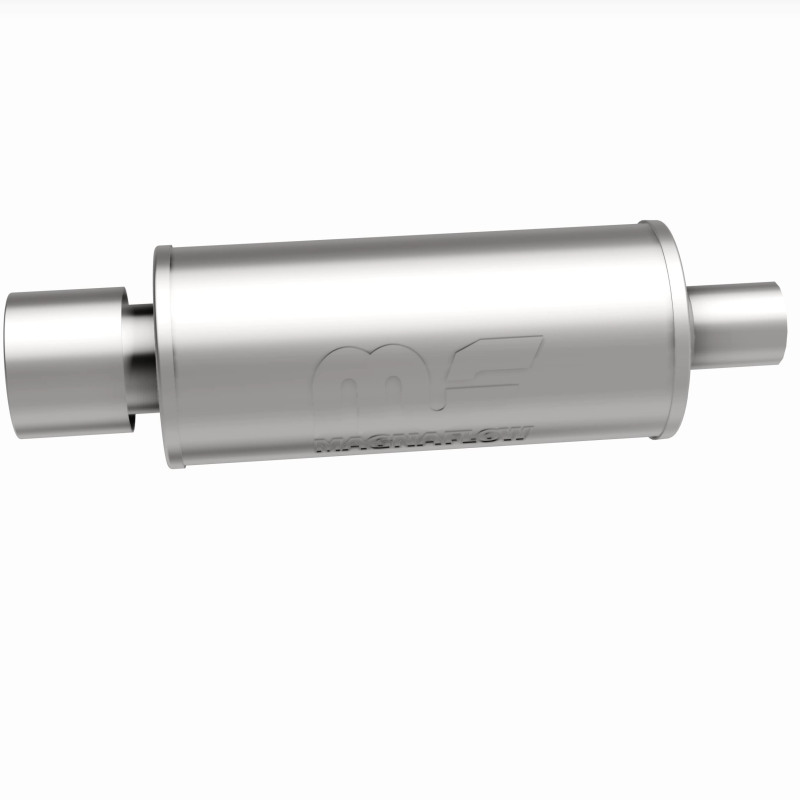

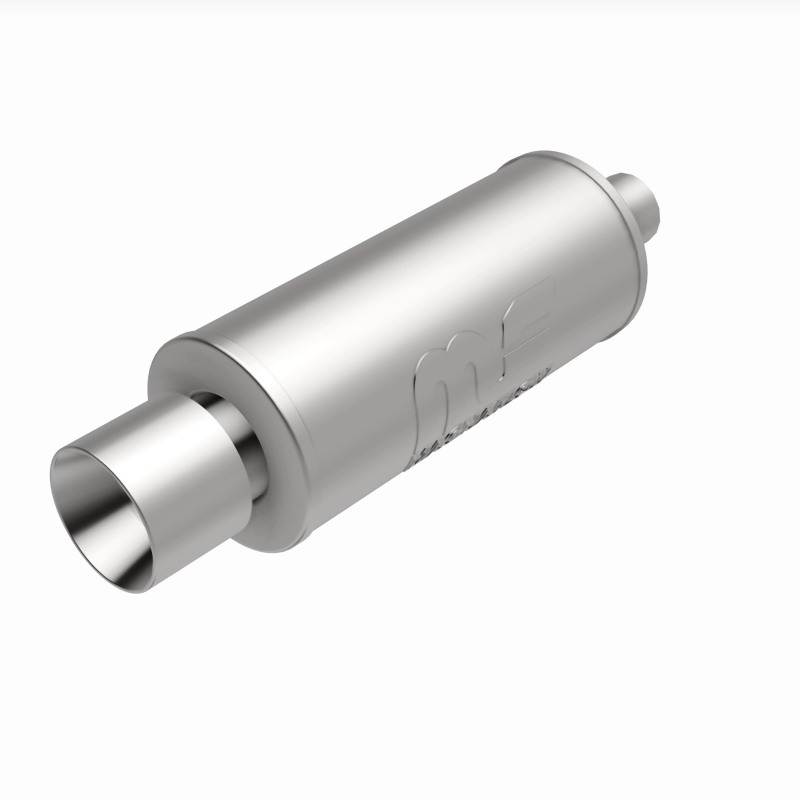

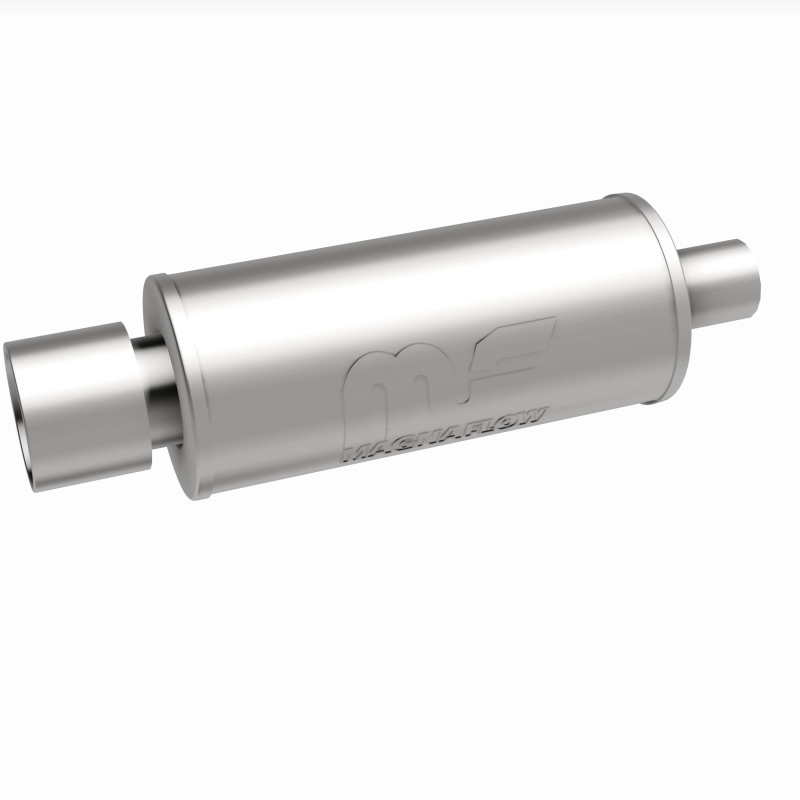

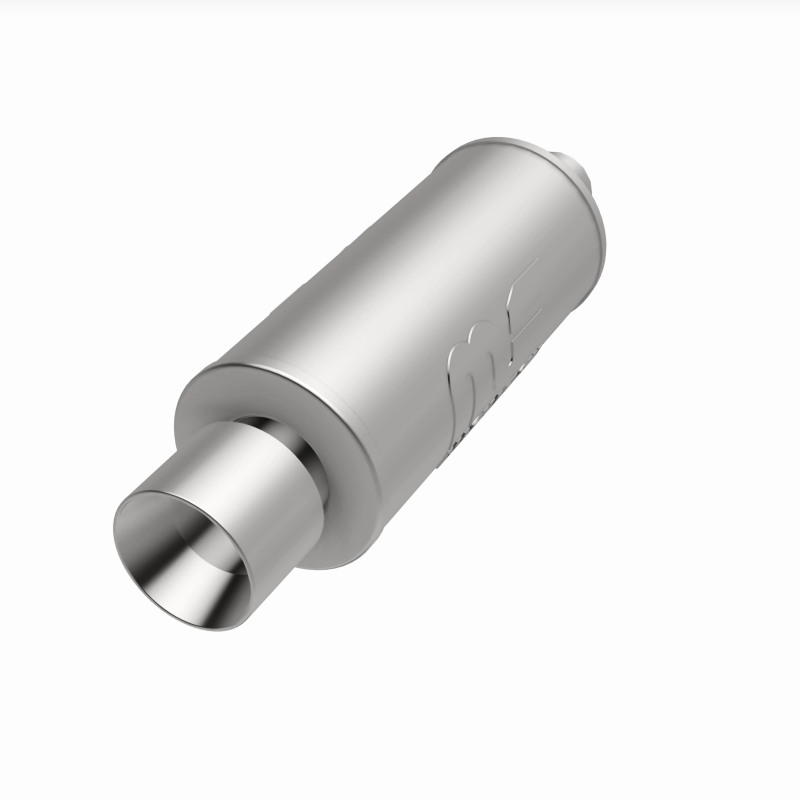

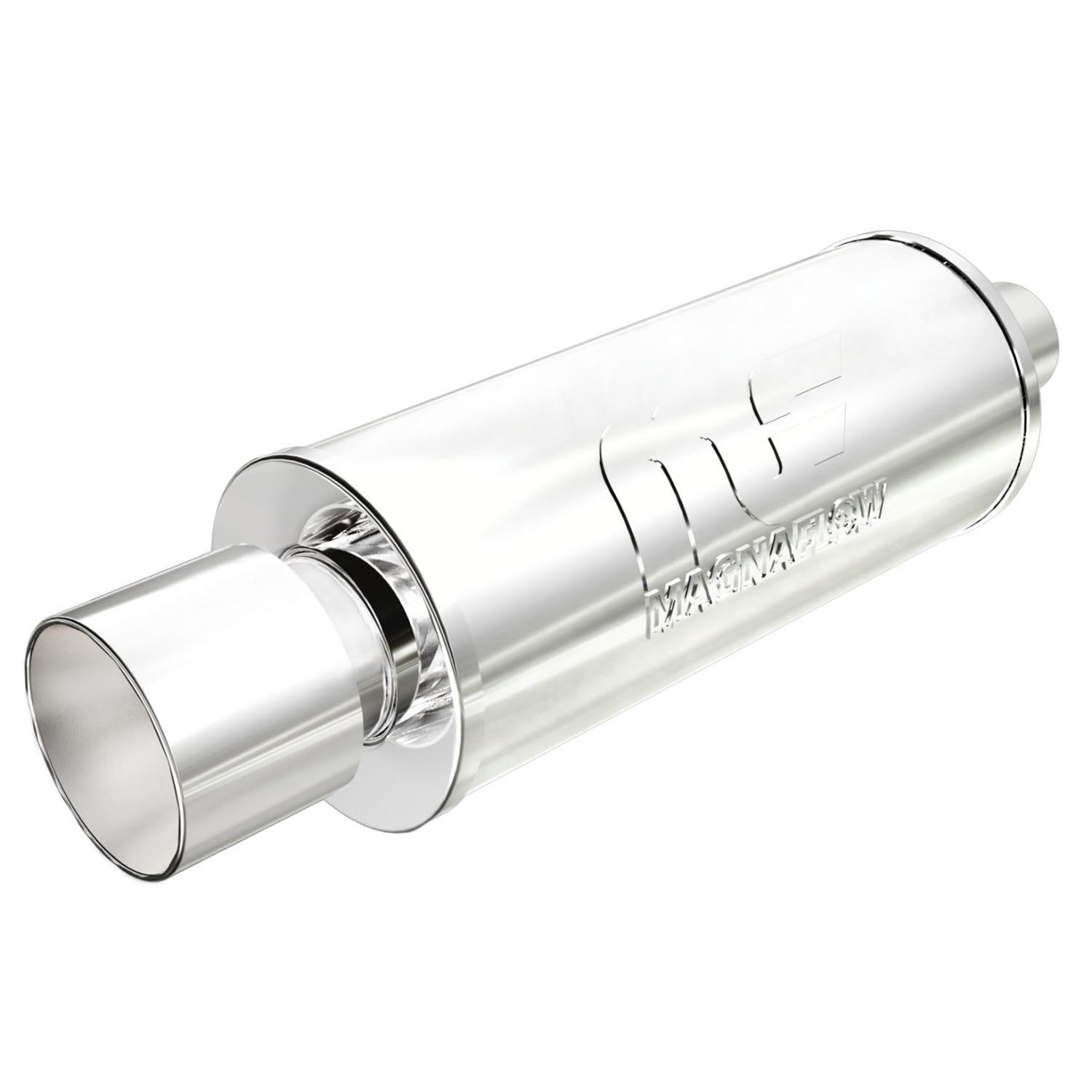

MagnaFlow Muffler W/Tip Mag SS 14X6X6 2.25/4.
MagnaFlow Muffler W/Tip Mag SS 14X6X6 2.25/4.
A$490.15
Last Available from MFR.
LAST ONE AVAILABLE from the manufacturer's distribution centre. Once sold, this item may not be immediately available again. The dispatch timeframe shown is an estimate based on historical orders for this part and is dependent on the manufacturer releasing the final available unit.
We accept
Description
Complete your custom exhaust with a straight-through design muffler with an integrated welded tip for a finished look and simple installation.
Product Overview
MagnaFlow Mufflers with Tips provide you with the same dedication to quality, power and performance that our non-tipped mufflers offer, but give you the added benefit of a MagnaFlow tip expertly selected with design in mind.
Features and Benefits
- Balanced Exterior/Interior Sound
- Increased Horsepower And Torque
- Mandrel Bent Tubing
Product Details
| 10980: | Round |
|---|---|
| Body Diameter: | 6 x 6 |
| Body Finish: | Brushed |
| Body Height: | 6.000 in. |
| Body Length: | 14.000 in. |
| Body Material: | Stainless Steel |
| Body Shape: | Round |
| Body Width: | 6.000 in. |
| Core Diameter: | 2.5 |
| Core Size: | 2.5 |
| Description: | Straight-Through Performance Muffler; 2.25/4in. Center/Center; 6x14x6 Body |
| Exhaust Tip Connection: | Welded-On |
| Exhaust Tip Diameter: | 4 |
| Exhaust Tip Edge: | Folded Edge |
| Exhaust Tip Finish: | Polished |
| Exhaust Tip Intercooled: | No |
| Exhaust Tip Length: | 4 |
| Exhaust Tip Material: | Stainless Steel |
| Exhaust Tip Quantity: | 1 |
| Exhaust Tip Resonated: | No |
| Exhaust Tip Shape: | Round |
| Exhaust Tip Type: | Welded-On;Double Wall;Straight Cut;Folded Edge |
| Exhaust Tip Wall: | Double Wall |
| Finish: | Polished |
| Hanger Included: | No |
| Inlet Connection Type: | Pipe |
| Inlet Diameter: | 2.25 |
| Inlet Inside Diameter: | 2.250 in. |
| Inlet Outside Diameter: | 2.250 in. |
| Inlet Position: | Front |
| Inlet Quantity: | 1 |
| Inlet Type: | Center |
| Main Piping Diameter: | 2.250 in. |
| Material: | Stainless |
| Muffler Body Diameter: | 6.000 in. x 6.000 in. |
| Muffler Configuration: | Center/Center |
| Muffler Count: | 1 |
| Muffler Overall Length: | 21.125 in. |
| Muffler Type: | Straight-Through |
| Outlet Diameter: | 2.25 |
| Outlet Inside Diameter: | 4 |
| Outlet Outside Diameter: | 4.000 in. |
| Outlet Position: | Rear |
| Outlet Quantity: | 1 |
| Outlet Tip Shape: | Round |
| Outlet Type: | Center |
| Overall Length: | 21.125 |
| Part Number: | mag14817 |
| Prop 65 Y/N: | No |
| Removable Core: | No |
| Reversible: | No |
| Series: | Street |
| Shape: | Round |
| Sound Level: | Moderate |
| Subtitle: | Performance Muffler |
| Subtitles: | Center/Center |
| Tip Diameter: | 4 |
| Tip Finish: | Polished |
| Tip Length: | 4.000 in. |
| Tip Material: | Stainless Steel |
| Tip Quantity: | 1 |
| Tip Shape: | Round |
| Tip Type: | Double Wall |
| Title: | MagnaFlow Street 6in. Round Straight-Through Performance Exhaust Muffler 14817 |
| Type: | With Tip |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust Muffler
Features
- Balanced Exterior/Interior Sound
- Increased Horsepower And Torque
- Mandrel bent tubing
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 14817
- Product Attributes - Part Type
- Mufflers
- Product Attributes - Product Line
- MagnaFlow Mirror Finish Stainless Steel Street Series Muffler and Tip Combos
- Product Attributes - UPC
- 841380003522
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Inlet Diameter (in.)
- 2.25 in.
- Product Attributes - Outlet Diameter (in.)
- 4.00 in.
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Outlet Quantity
- 1
- Product Attributes - Internal Construction
- Perforated stainless tube with packing
- Product Attributes - Inlet Location
- Center
- Product Attributes - Outlet Location
- Center
- Product Attributes - Case Shape
- Round
- Product Attributes - Reversible
- No
- Product Attributes - Muffler Finish
- Polished
- Product Attributes - Case Exterior Length (in.)
- 14.00 in.
- Product Attributes - Case Outside Diameter (in.)
- 6.00 in.
- Product Attributes - Outlet Style
- Double wall
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
- Product Attributes - Notes
- 4.00 in. long, double wall, straight cut tip.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag14817 |
| SFX Item ID | 4286170 |
| Supplier Item Code | 4286170 |
| Manufacturer SKU | 14817 |
| Manufacturer UPC | 841380003522 |
| Alternative References | mpe-14817, MFL14817, 14X6X6 |
