MagnaFlow Muffler Trb SS 4X9 18 3/2.5
MagnaFlow Muffler Trb SS 4X9 18 3/2.5
A$418.77
Available from MFR.
This item is available from the manufacturer's distribution centre. The dispatch timeframe shown is an estimate based on historical order processing and release times for this part. This item is not held in our own warehouse, and actual dispatch timing may vary depending on manufacturer workload and logistics at the time of ordering.
We accept
Description
XL Mufflers are a reversible reflection style mufflers using a combination of perforated tubing and baffles to reduce unwanted resonance and increase exhaust flow.
Product Overview

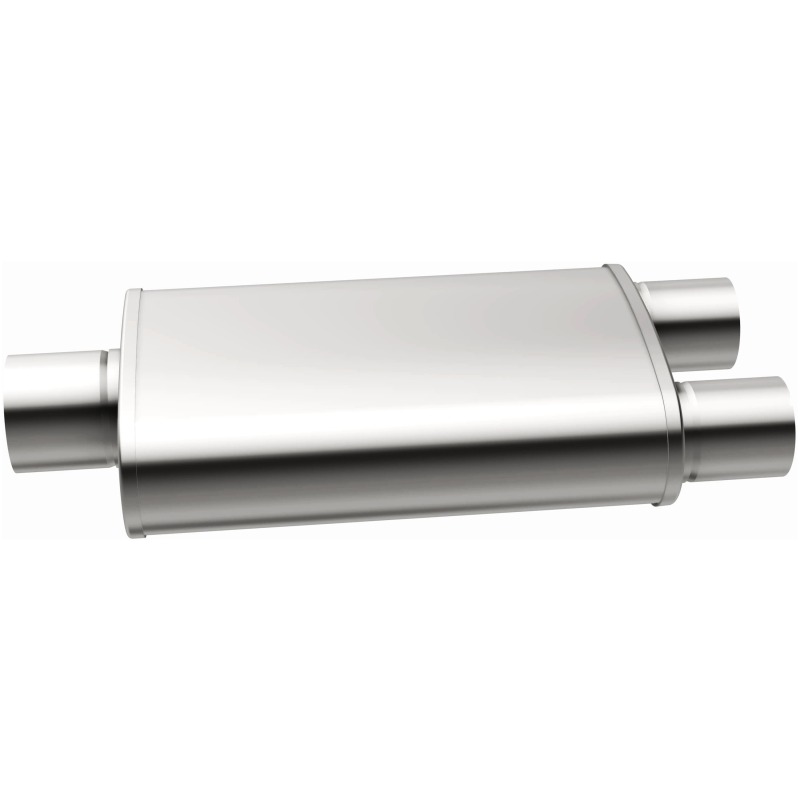

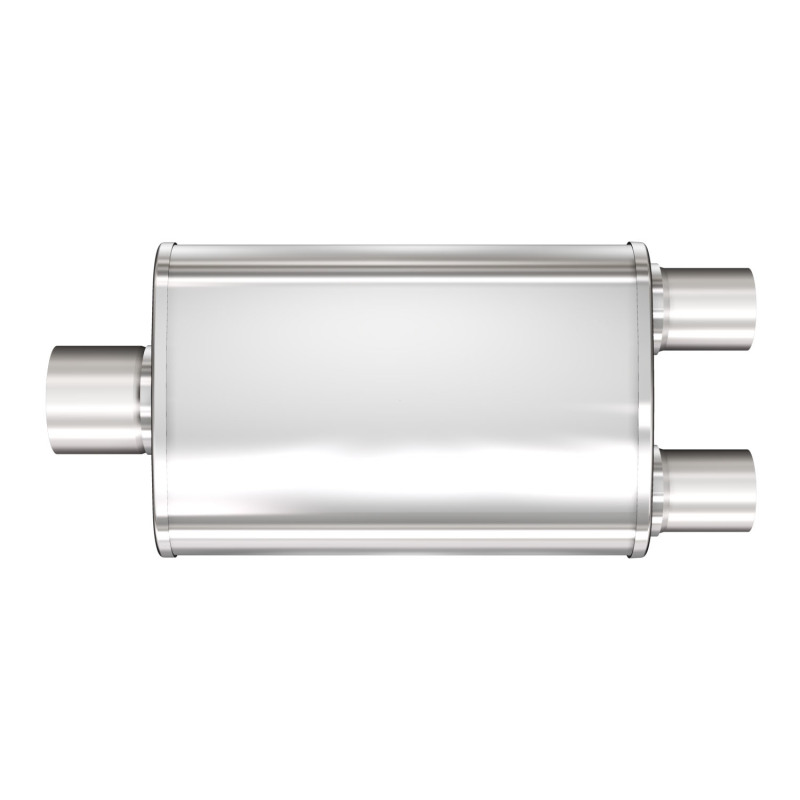

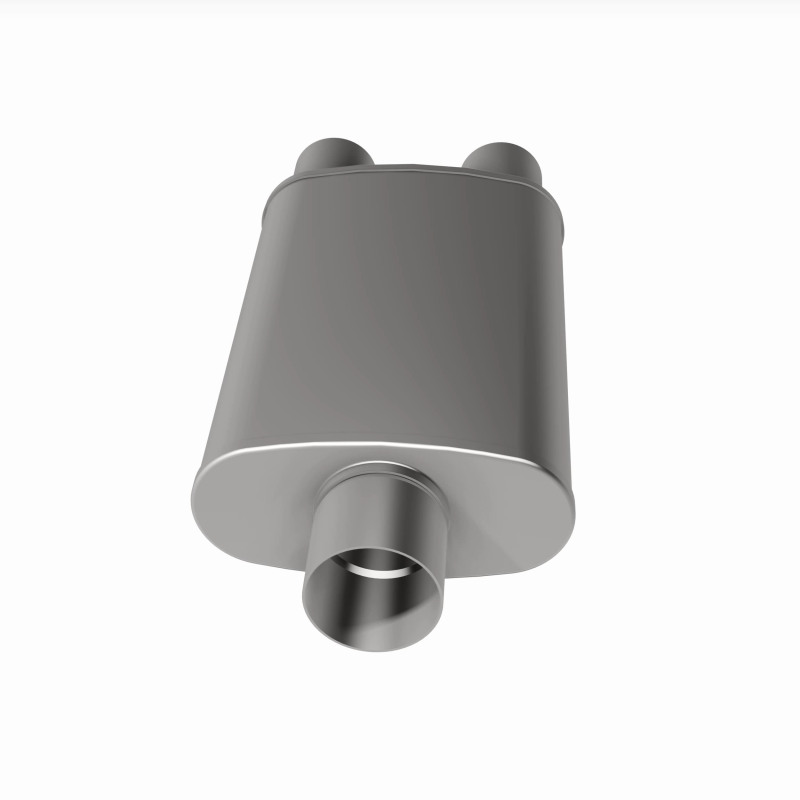

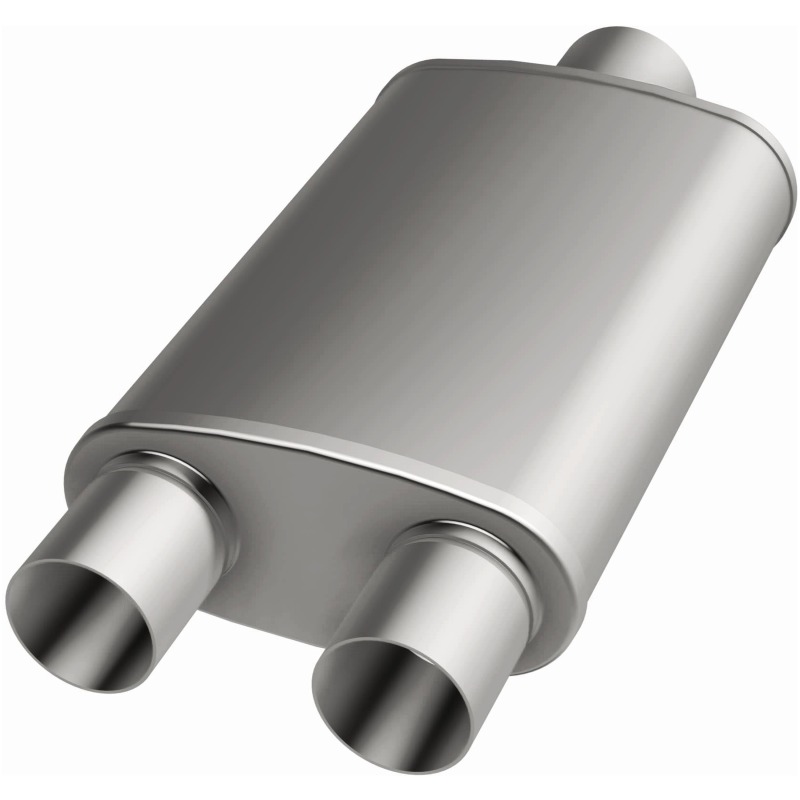

The MagnaFlow XL 4 X 9in. Oval Multi-Chamber Performance Exhaust Muffler 13288 features a straight-through, weight-optimized reversible design with a perforated stainless steel core featuring baffles and tuning gates, enabling it to deliver the powerful signature sound and dyno-proven performance that's made MagnaFlow a household name. Muffler 13288's oval-shaped, 4x9x14in. body and universal 3/2.5in. diameter inlet/outlet layout enables flexible installation options to match the spacing requirements of your vehicle. Professional installation is highly recommended. 13288 is produced using advanced CNC precision robotic manufacturing techniques and features durable, corrosion resistant stainless-steel construction, all backed by MagnaFlow's limited lifetime warranty.
Features and Benefits
- Durable Corrosion-Resistant Stainless Steel Construction
- CNC Precision Robotic Manufacturing Techniques
- Superior Flow Performance
- Superior flow & performance
Product Details
| Body Diameter: | 4 x 9 |
|---|---|
| Body Finish: | Satin |
| Body Height: | 4.000 in. |
| Body Length: | 14.000 in. |
| Body Material: | Stainless Steel |
| Body Shape: | Oval |
| Body Width: | 9.000 in. |
| Core Diameter: | 2.5 |
| Core Size: | 2.5 |
| Description: | Multi-Chamber Performance Muffler; 3/2.5in. Center/Dual; 4x14x9 Body |
| Exhaust Tip Quantity: | |
| Finish: | Satin |
| Hanger Included: | No |
| Inlet Connection Type: | Pipe |
| Inlet Diameter: | 3 |
| Inlet Inside Diameter: | 3.000 in. |
| Inlet Outside Diameter: | 3.000 in. |
| Inlet Position: | Front |
| Inlet Quantity: | 1 |
| Inlet Type: | Center |
| Main Piping Diameter: | 3.000 in. |
| Material: | Stainless |
| Muffler Body Diameter: | 4.000 in. x 9.000 in. |
| Muffler Configuration: | Center/Dual |
| Muffler Count: | 1 |
| Muffler Overall Length: | 20.000 in. |
| Muffler Type: | Multi-Chamber |
| Outlet Diameter: | 2.5 |
| Outlet Inside Diameter: | 2.500 in. |
| Outlet Outside Diameter: | 2.500 in. |
| Outlet Position: | Rear |
| Outlet Quantity: | 2 |
| Outlet Type: | Dual |
| Overall Length: | 20 |
| Part Number: | mag13288 |
| Prop 65 Y/N: | No |
| Removable Core: | No |
| Reversible: | Yes |
| Series: | XL |
| Shape: | Oval |
| Subtitle: | Performance Muffler |
| Subtitles: | Single/Dual |
| Tip Quantity: | 0 |
| Title: | MagnaFlow XL 4 X 9in. Oval Multi-Chamber Performance Exhaust Muffler 13288 |
| Type: | XL Multi-Chamber |
| WARNING CA Proposition 65: | No |
Part Type
Exhaust Muffler
Features
- CNC Precision Robotic Manufacturing Techniques
- Durable Corrosion-Resistant Stainless Steel Construction
- Superior flow & performance
- Superior Flow Performance
Specifications
- Product Attributes - Brand
- MagnaFlow
- Product Attributes - Manufacturer's Part Number
- 13288
- Product Attributes - Part Type
- Mufflers
- Product Attributes - Product Line
- MagnaFlow XL 3 Chamber Mufflers
- Product Attributes - UPC
- 841380001627
- Product Attributes - Muffler Material
- 409 stainless steel
- Product Attributes - Inlet Diameter (in.)
- 3.00 in.
- Product Attributes - Outlet Diameter (in.)
- 2.50 in.
- Product Attributes - Inlet Quantity
- 1
- Product Attributes - Outlet Quantity
- 2
- Product Attributes - Internal Construction
- Perforated tube
- Product Attributes - Inlet Location
- Center
- Product Attributes - Outlet Location
- Offset
- Product Attributes - Case Shape
- Oval
- Product Attributes - Reversible
- No
- Product Attributes - Muffler Finish
- Natural
- Product Attributes - Case Exterior Length (in.)
- 14.00 in.
- Product Attributes - Overall Length (in.)
- 20.00 in.
- Product Attributes - Thickness (in.)
- 4.000
- Product Attributes - Width (in.)
- 9.000 in.
- Product Attributes - Outlet Style
- Standard, without tip
- Product Attributes - Remanufactured
- No
- Product Attributes - Quantity
- Sold individually.
Reference Information
| Brand Name/s | Magnaflow |
|---|---|
| StreetFX SKU | mag13288 |
| SFX Item ID | 4286081 |
| Supplier Item Code | 4286081 |
| Manufacturer SKU | 13288 |
| Manufacturer UPC | 841380001627 |
| Alternative References | mpe-13288, MFL13288, 4X9 |
