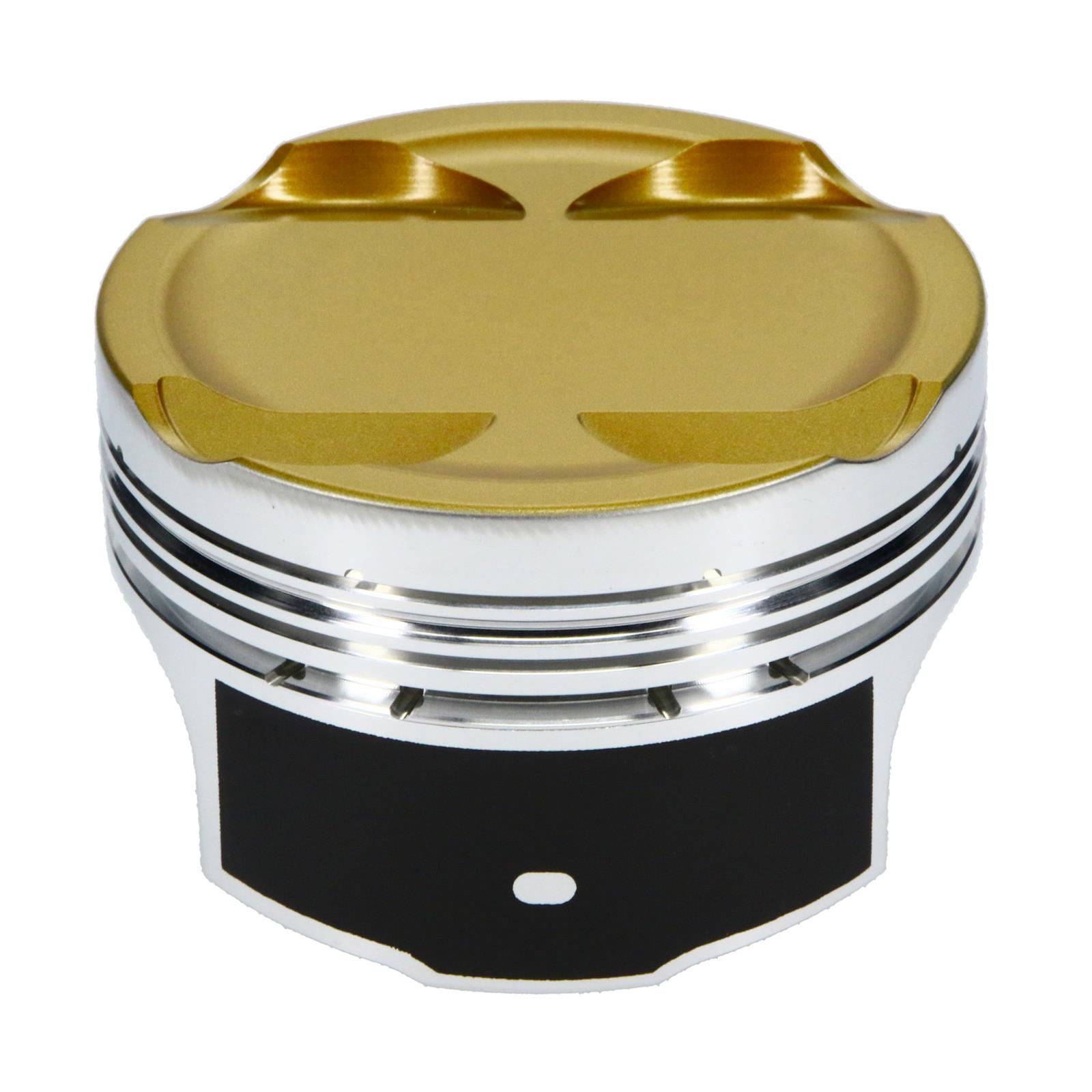

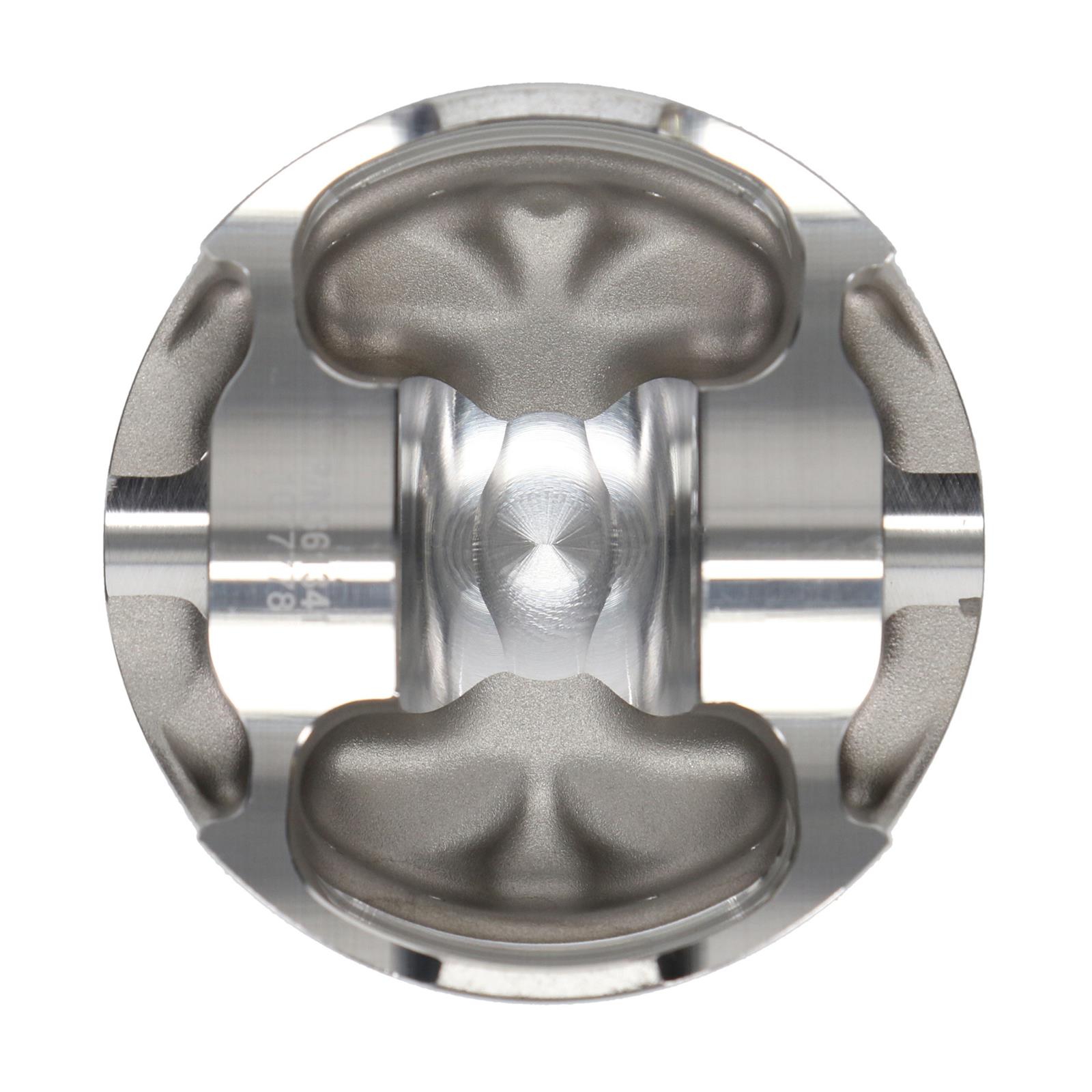

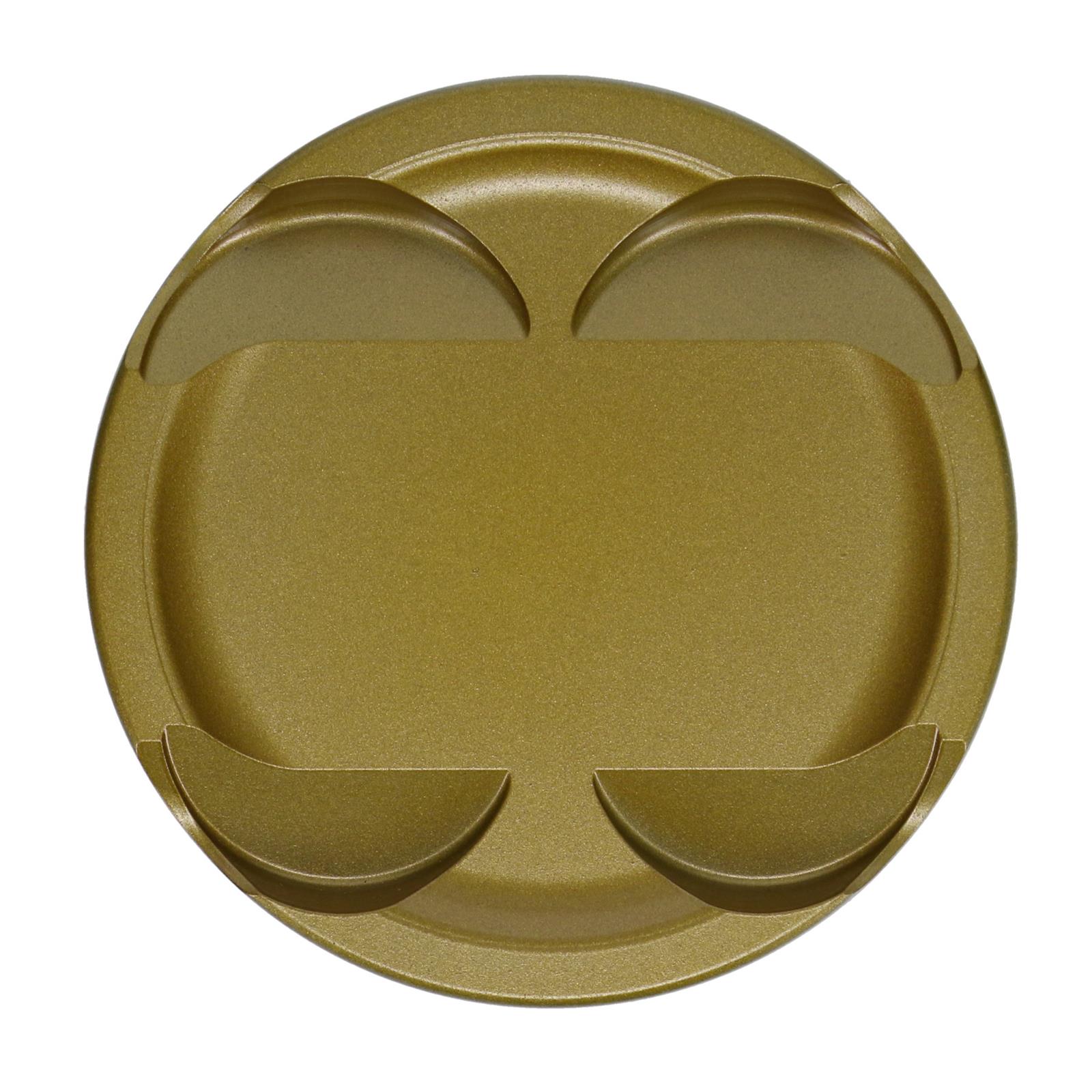

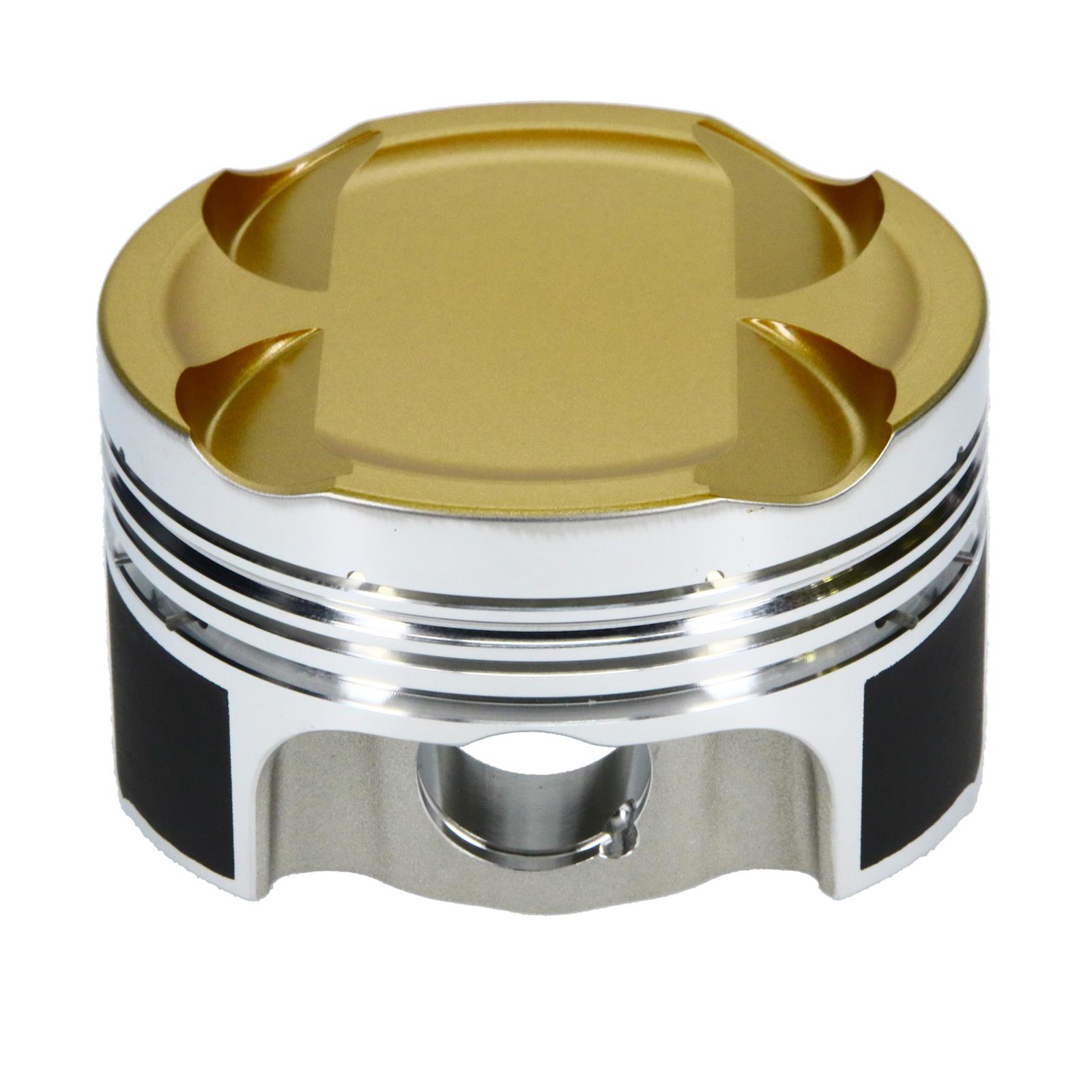

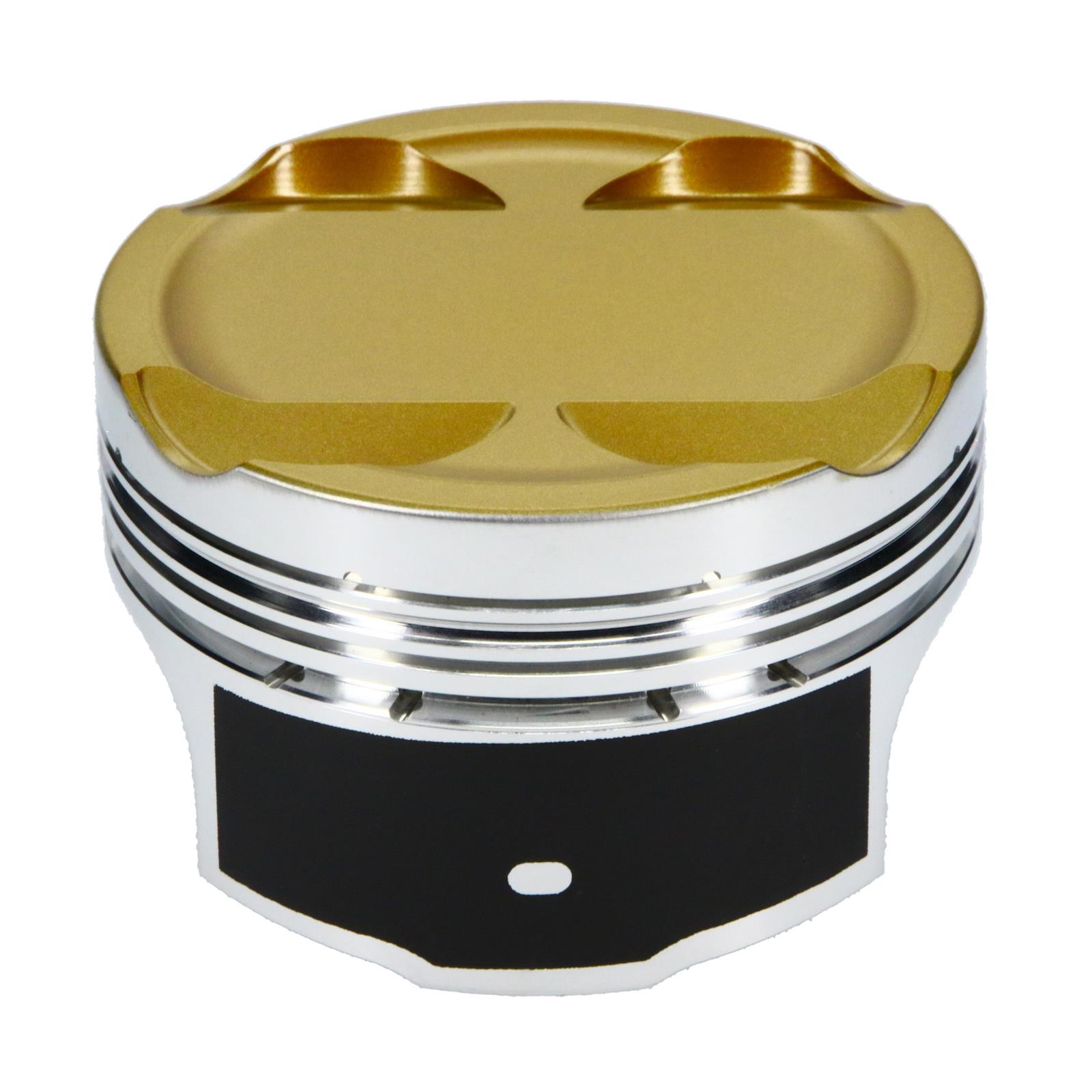

JE Pistons Nissan SR20VE Ultra Series 87mm Bore 1.260 CD 0.866 Pin Piston Kit (Set of 4)

SKU: JEP367895

Pistons

JE Piston Sets -4 Cyl...

JE Pistons

JE Pistons Nissan SR20VE Ultra Series 87mm Bore 1.260 CD 0.866 Pin Piston Kit (Set of 4)

SKU: JEP367895

Pistons

JE Piston Sets -4 Cyl...

Special Order. Contact for ETA. This item is out of stock in our warehouse and partner distribution centres. In some cases, this may be due to not having live inventory feeds available for all suppliers. Please contact us before ordering if you need to meet a specific deadline.

We accept

Description

Ultra Series forged pistons from JE are the industry’s strongest, most fully featured pistons available off the shelf. Offered for Nissan SR20VE VVL Engines. Ultra Series Pistons feature JE’s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds. Equipped with the following custom level features

Application Summary

Nissan SR20VE

Part Type

Engine Piston Kit

Data: v4.2 - Upd: 2026-10-13 21:37:07

Features

Accumulator Groove: A specialty groove between the top and second ring provides added volume for blow-by gases. This helps reduce pressure between the rings, improving top ring seal and minimizing ring flutter at high cylinder pressures.
Designed specifically for Nissan SR20VE VVL Engines. To provide optimized performance durability
Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
JE’s proprietary Aligned Grain Flow forging technology providing next-level tensile strength ideal for the extreme cylinder pressures of power adder engine builds.
Lateral Gas Ports: This process mills slots into the top of the top ring groove and provides a pathway for combustion pressure to get behind the top ring. Resulting in increased ring seal and is most common in circle track applications.
Made 100% in the USA
Pin Fit: The pin bore is precision honed to attain an exact pin clearance. Clearances typically range from .0003 to .0010 between the wrist pin and pin bore.
Skirt Coat: Skirt Coat reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
Smooth Crown Finish: Deburs all areas around the valve pocket and dome area, to reduces stress risers and prevent hot spots.
Thermal Crown: Applied to the piston crown, this thermal barrier coating reflects heat back into the combustion chamber to improve exhaust gas velocity and scavenging while reducing heat transfer to help extend piston life.

Specifications

Product Attributes - Brand: JE Pistons
Product Attributes - Manufacturer's Part Number: 367895
Product Attributes - Part Type: Pistons
Product Attributes - Product Line: JE Pistons Ultra Series Pistons
Product Attributes - UPC: 193564215437
Product Attributes - Piston Rings Included: Yes
Product Attributes - Bore (in.): 3.425 in.
Product Attributes - Bore (mm): 87.000mm
Product Attributes - Stroke: 3.386 in.
Product Attributes - Engine Stroke Type: Stock
Product Attributes - Rod Length: 5.365 in.
Product Attributes - Piston Style: Dish, with no valve reliefs
Product Attributes - Piston Material: Forged aluminum
Product Attributes - Compression Height (in.): 1.260 in.
Product Attributes - Piston Head Volume (cc): -14.20cc
Product Attributes - Wrist Pin Style: Floating
Product Attributes - Wrist Pin Retainers Included: Yes
Product Attributes - Wrist Pin Included: Yes
Product Attributes - Pin Diameter (in.): 0.866 in.
Product Attributes - Piston Ring Thickness: 1.20mm x 1.20mm x 2.80mm
Product Attributes - File Fit: Yes
Product Attributes - Gapless: No
Product Attributes - Top Ring Thickness: 1.2mm
Product Attributes - Top Ring Material: Carbon steel
Product Attributes - Top Ring Facing Material: Gas nitrided
Product Attributes - Second Ring Thickness: 1.2mm
Product Attributes - Second Ring Material: Steel
Product Attributes - Second Ring Facing Material: Nitride
Product Attributes - Oil Ring Thickness: 2.8mm
Product Attributes - Oil Ring Material: Carbon steel
Product Attributes - Remanufactured: No
Product Attributes - Quantity: Sold as a set of 4.
Product Attributes - Notes: Fits Nissan SR20VE VVL engines.

Reference Information

Brand Name/s	JE Pistons
StreetFX SKU	jep367895
SFX Item ID	4361604
Supplier Item Code	4361604
Manufacturer SKU	367895
Manufacturer UPC	193564215437
Alternative References	SR20VE, 87mm
