During the process of venting crankcase pressure back through your intake track, large amounts of oil, in the form of vapors can gather/accumulate in your intake tube, intake manifold runners and even dilute your gas, lowering its octane level. This happens on all engines and is even worse with forced inducted vehicles (supercharged and turbocharged) as crankcase pressures are increased. To combat this, we have developed an oil separator of our own design. Milled from solid billet aluminum this is a rock-solid piece. It has a knurled tank base for easy removal to drain the spent oil and an O-ring seal to prevent any leaks.

Filtering consists of a fine mesh stainless steel screen that traps fine oil vapors and releases them once heavy enough to fall. They then pass through a 1/2" thick 1/16th" aluminum honeycomb filter where they grow every larger and then fall into the bottom. By the time the oil gets through the filter it's too heavy to be passed on into the intake. The tank holds 3 oz of fluid, while that may not sound like a lot, you shouldn’t see that much oil in your PCV system. Drain it every 2000-3000 miles and you will never come close to filling it.

Additional Information

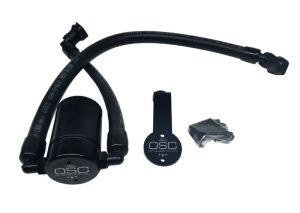

J&L Oil Separator 3.0 Passenger Side, Black Anodized (2016-2019 Ford Escape 1.5L EcoBoost)

Part Type

Engine Oil Separator

Features and Benefits

• 3oz Capacity
• Quick connect PCV fittings
• Solid billet construction
• The multistage filter is designed to collect the finest of oil vapors and drop them into the removable bottom while allowing clean air to pass through to the intake.

Product Downloads

#	Document Type	Download
1.	Installation Instructions

Installation guides, warranty details, and other supporting documents are provided by the supplier. In some cases, these files may originate from regions outside your locale, meaning instructions, warranty procedures, and images may not fully align with your specific vehicle or region (e.g., LHD vs. RHD differences, return policies, etc.). If you need clarification, please contact a StreetFX support agent.

• 3oz Capacity
• Quick connect PCV fittings
• Solid billet construction
• The multistage filter is designed to collect the finest of oil vapors and drop them into the removable bottom while allowing clean air to pass through to the intake.

J&L Oil Separator Co.'s new oil separators are the perfect addition to your high performance machine. They're everything you're missing to filter out oil vapors that could damage your internal engine components over time. The 3 oz. tanks nearly triple their original design in size—and feature a thick billet construction that's available in a clear or stealthy black anodized finish. Their new multi-stage filtration system collects the finest of vapors and drops them into an easily removable bottom. Clean air is then able to pass through, saving components such as your intake tube and manifold runners. J&L Oil Separator Co. oil separators include the fittings you'll need to make installation a breeze. Order the model tailored for your vehicle.

Please note that this information serves as a fitment guide only. For specific fitment questions or clarifications, please contact us, as manufacturers may introduce variations and modifications during model year or regional revisions. While we strive to provide accurate data, fitment details may vary by region; therefore, compatibility outside the listed region and submodel variant cannot be guaranteed.

Detailed Compatibility

This may not be an exhaustive list of compatible vehicles. Please reach out to one of our representatives if you are unsure or do not see your vehicle here.
