Description

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.

Product Overview

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.

Features and Benefits

• 100% Bolt-on - no cutting or welding necessary for installation
• Increased wheel travel over stock
• Vehicle specific tuned front shocks for superior shock damping and control
• External reservoir to attain cooler operating temperatures during extended off-road use
• Improved ride quality over stock on and off-road
• Height-adjustable coilovers offer 0-3" of lift height adjustment
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft
• FK Rod End bearings for extended longevity and minimal deflection

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add-On Part:	198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression:	No
Adjustable Damping:	NO
Adjustable Height:	Yes
Adjustable Rebound:	No
Body Diameter:	2,5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	Yes
Cylinder Color:	Silver
Cylinder Finish:	Cadmium Plated
Cylinder Material:	Steel
Damping Type:	Oil
Description:	96-04 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT
Diámetro del árbol:	2021-07-08
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Internal Construction Type:	Single Tube
Lower Mount Type:	Eyelet
Material del resorte:	Acero
Material:	Steel
Maximum Lift:	3
Minimum Lift:	0
Muelles helicoidales incluidos:	SI
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico58715
Recommended Aftermarket Tires:	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels:	ICON Alloys | 20x9" w/ 5” Backspace / 0mm Offset
Remote Reservoir:	Yes
Reservoir Style:	Remote
Self-Leveling:	No
Service Parts:	191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Center of Eylet
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Spring Rate:	650
Tipo de Grado:	Reparación de Banda
Title:	96-04 TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT
Upper Mount Type:	Mounting Plate
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title

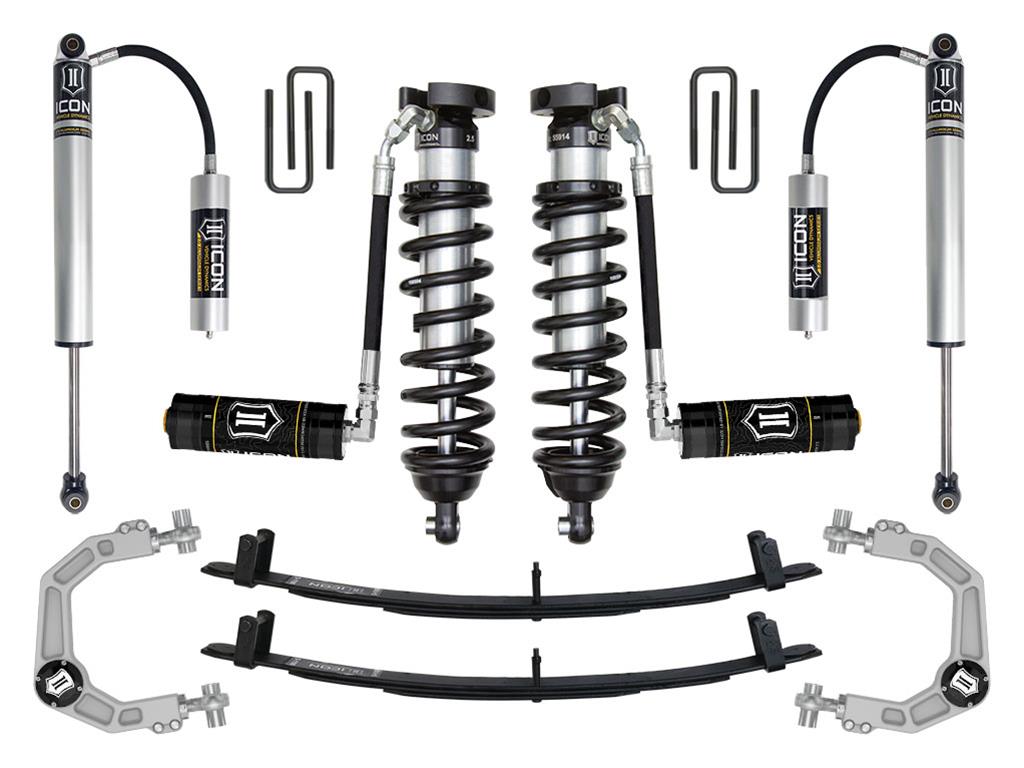

	icoK53014	ICON 95.5-04 Toyota Tacoma 0-3in Stage 4 Suspension System w/Tubular Uca (1x ico51100, 1x ico58400DJ, 2x ico56502R, 1x ico58715)
	icoK53014B	ICON 95.5-04 Toyota Tacoma 0-3in. Stage 4 Suspension System W/ Billet Upper Control Arms (1x ico51100, 2x ico56502R, 1x ico58715, 1x ico58500DJ)

Data: v4.2 - Upd: 2026-10-14 01:10:58

Features

Specifications

Product Attributes - UPC

00840103404158

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Quantity

Sold as a kit.

Product Attributes - Part Type

Coilover Kits

Product Attributes - Gas Charged

Yes

Product Attributes - Lower Mount

Eyelet

Product Attributes - Upper Mount

Bracket

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 RR Extended Travel Coilover Kits

Product Attributes - Spring Finish

Black

Product Attributes - Internal Design

Monotube

Product Attributes - Shocks Included

Yes

Product Attributes - Welding Required

No

Product Attributes - Hardware Included

Yes

Product Attributes - Shock Body Finish

Zinc plated

Product Attributes - Adjustable Valving

No

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Crossmember Included

No

Product Attributes - Coilover Kit Position

Front

Product Attributes - Coilover Springs Included

Yes

Product Attributes - Manufacturer's Part Number

58715

Product Attributes - Adjustable Mounting Bracket Included

No
