Product Overview

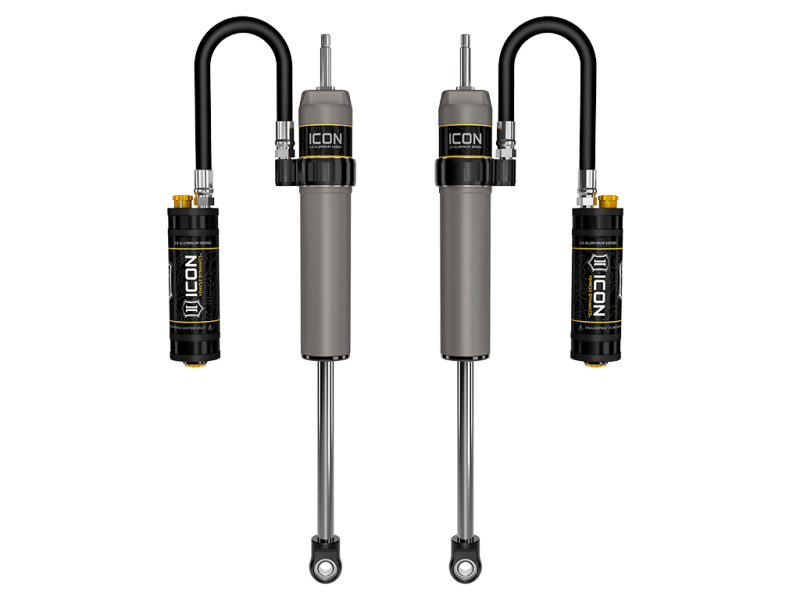

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are fully rebuildable and re-tunable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

Features and Benefits

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• 6061 aircraft grade aluminum CNC machined components
• Fully rebuildable and re-tunable
• ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with remote reservoir
• One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8” diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware

Product Details

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK53276	(1x ico58561DJ, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841CP, 1x ico58771C, 1x ico51013, 1x ico51014)
	icoK53276T	(1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841CP, 1x ico58771C, 1x ico51013, 1x ico51014)
	icoK53277	(1x ico58561DJ, 1x ico54002, 1x ico54102, 1x ico54202, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841CP, 1x ico58771C, 1x ico51013, 1x ico51014)
	icoK53277T	(1x ico54002, 1x ico54102, 1x ico54202, 1x ico58461DJ, 1x ico51011, 1x ico51012, 1x ico51017, 1x ico51010, 1x ico57841CP, 1x ico58771C, 1x ico51013, 1x ico51014)
