Description

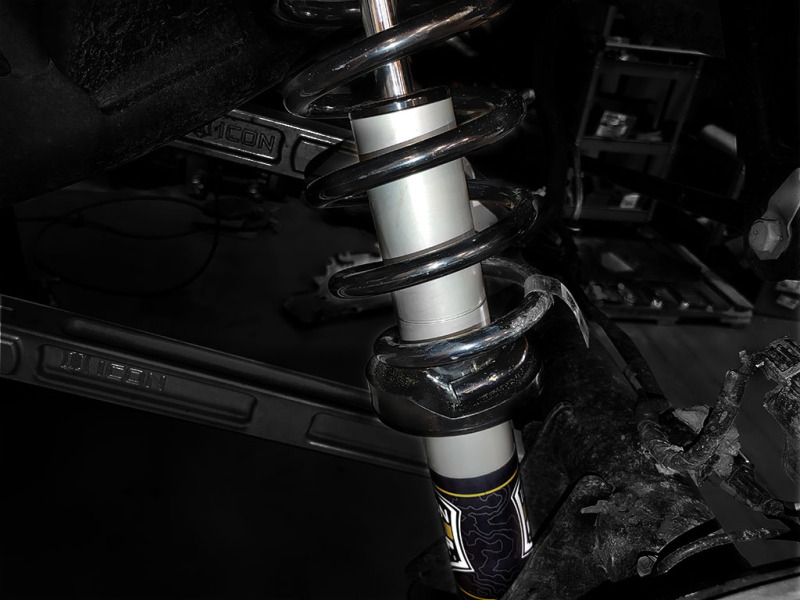

The 6061-billet aluminum coil spring seat is CNC machined to fit the molded heavy duty urethane coil spring seat that is specifically design for fit each of the Bronco model’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable rear-end ride height adjustment from 0” to 1.75” of lift over stock on Bronco’s equipped with the OE HOSS 2.0 suspension package.

Product Overview

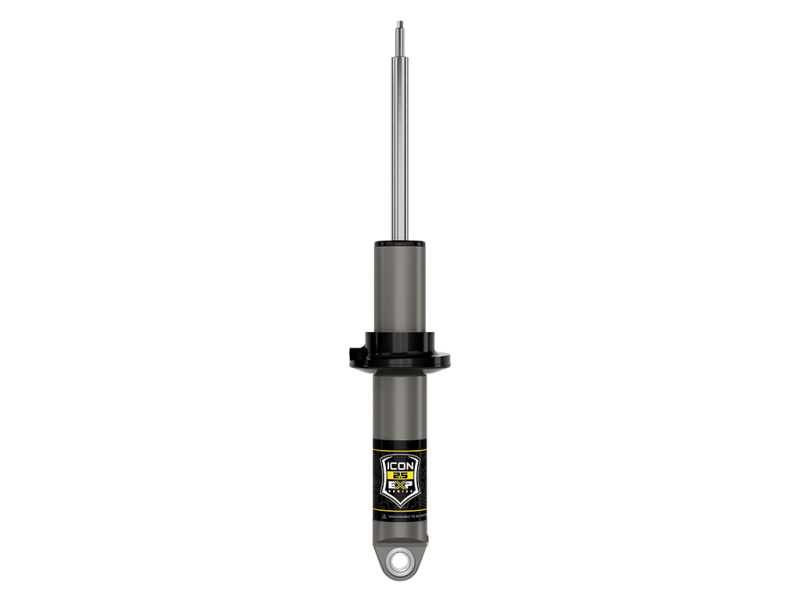

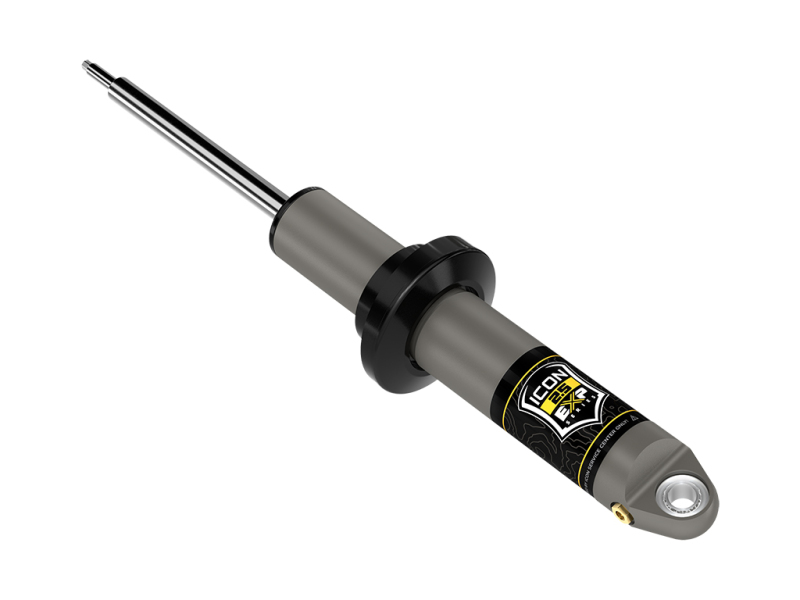

EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Bronco in conjunction with their stock coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2.5-inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.

Features and Benefits

• Vehicle specific design for 2021-2023 Ford Bronco with HOSS. 2.0 Suspension Package
• Fully rebuildable and re-tunable
• 100% Bolt-on - no cutting or welding necessary for installation
• Vehicle specific tuned for superior shock damping and control
• 2.5 Aluminum Series Shock with Internal Reservoir
• Adjustable ride heights from 0-1.75” of rear lift over stock with the use of snap ring
• Utilizes factory coil and coil hardware
• Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
• One-piece, impact extruded, hard anodized aluminum cylinder offer excellent corrosion resistance and consistent finish
• CNC machined 6061 aluminum components with a black anodized finish
• PTFE lined spherical bearing for extended longevity and minimal deflection

Product Details

110:	No
AAP_UDA_12:	EA
AAP_UDA_22:	1
AAP_UDA_4:	55
Active or Passive Suspension:	Passive
Add-On Part:	44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT
Adjustable Compression:	No
Adjustable Damping:	NO
Adjustable Height:	Yes
Adjustable Rebound:	No
Body Diameter:	2.5
Boot Included:	No
California Prop 65 Warning:	Yes
California Proposition 65:	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Over Springs Included:	No
Cylinder Color:	Gray
Cylinder Finish:	Hard Anodized
Cylinder Material:	Aluminum
Damping Type:	Oil
Description:	21-UP BRONCO HOSS 2.0 PKG 2.5 REAR EXP COILOVER
Dust Shield Included:	No
Dust Shield:	No
Gas Charged:	Yes
Grade Type:	Performance
Internal Construction Type:	Single Tube
Lower Mount Type:	BAR PIN
Material:	Steel
Maximum Lift:	3
Minimum Lift:	0
OEM Wheels & Tires Fitment:	Yes
Part Number:	ico48612
Recommended Aftermarket Tires:	(With Sasquatch Package): 35" x 12.50" (37" tire packages may require fender trimming and modifications)
Recommended Aftermarket Wheels:	(Without Sasquatch Package): ICON Alloys | 17x8.5" with 4.75” Backspace / 0mm Offset
Remote Reservoir:	NO
Reservoir Style:	Internal
Self-Leveling:	No
Service Parts:	252010 - 2.5 IFP REBUILD KIT
Shaft Diameter:	0.875
Shock Absorber Body End Measuring Point:	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point:	Flat on Bar Pin
Spring Color:	Black
Spring Material:	Steel
Spring Rate Type:	Linear
Title:	21-UP BRONCO HOSS 2.0 PKG 2.5 FRONT EXP COILOVER
Upper Mount Type:	Mounting Plate
Valving Type:	Digressive

Kit Options

This item is available as a full kit.
Select a kit option in the following table if you are looking for this item in a bundle form with all associated components.

Kit option/s:

Thumb	SKU	Kit Title
	icoK40011	2021+ Ford Bronco Sasquatch Stage 1 Suspension System (2-3in Lift) (2x ico48602, 2x ico48612)
	icoK40012T	2021+ Ford Bronco Hoss 2.0 Pkg Stage 2 Suspension System Tubular UCA (2- 3in Lift) (1x ico48400DJ, 2x ico48602, 2x ico48612)
	icoK40012	2021+ Ford Bronco Hoss 2.0 Stage 2 Suspension System Billet UCA (2- 3in Lift) (1x ico48500DJ, 2x ico48602, 2x ico48612)

Data: v4.2 - Upd: 2026-10-13 20:37:21

Features

Specifications

Product Attributes - Brand

ICON Vehicle Dynamics

Product Attributes - Manufacturer's Part Number

48612

Product Attributes - Part Type

Coilover Shocks and Struts

Product Attributes - Product Line

Icon Vehicle Dynamics 2.5 EXP Coilover Shocks

Product Attributes - UPC

00840103414324

Product Attributes - Coilover Shock Type

Non-adjustable

Product Attributes - Shock Body Material

Aluminum

Product Attributes - Shock Body Finish

Clear anodized

Product Attributes - Adjustable Valving

No

Product Attributes - Upper Mount

Stock

Product Attributes - Lower Mount

Stock

Product Attributes - Internal Design

Monotube

Product Attributes - Gas Charged

Yes

Product Attributes - Body Diameter (in.)

2.500

Product Attributes - Coilover Springs Included

No

Product Attributes - Adjustable Mounting Bracket Included

No

Product Attributes - Hardware Included

No

Product Attributes - Quantity

Sold individually.

Product Attributes - Notes

Only compatible with 2021 - 2023 Ford Broncos equipped with HOSS 2.0 Suspension Package. Not compatible with Bronco Raptor.
